Axxess AXAC-CH7 Camera Data Interface for Jeep and Ram 2018.5-2023

Axxess AXAC-CH7 is a vehicle-specific camera data interface for compatible factory radio systems. It is designed to retain the factory backup camera while adding additional aftermarket camera inputs, using CAN bus communication to activate camera views from reverse, turn-signal, or configured manual triggers.

At a Glance

• Retains the factory backup camera while adding aftermarket front and side camera inputs
• Up to 4 additional CAN-activated camera inputs depending on application
• Includes AXAC camera interface and vehicle-specific harnessing
• Programmable 12-volt, 5-amp switched output configured through the Axxess Updater program
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• One programmable camera control wire configured through the Axxess Updater program
• Can also be manually controlled and used with an aftermarket radio
• VSS input and output

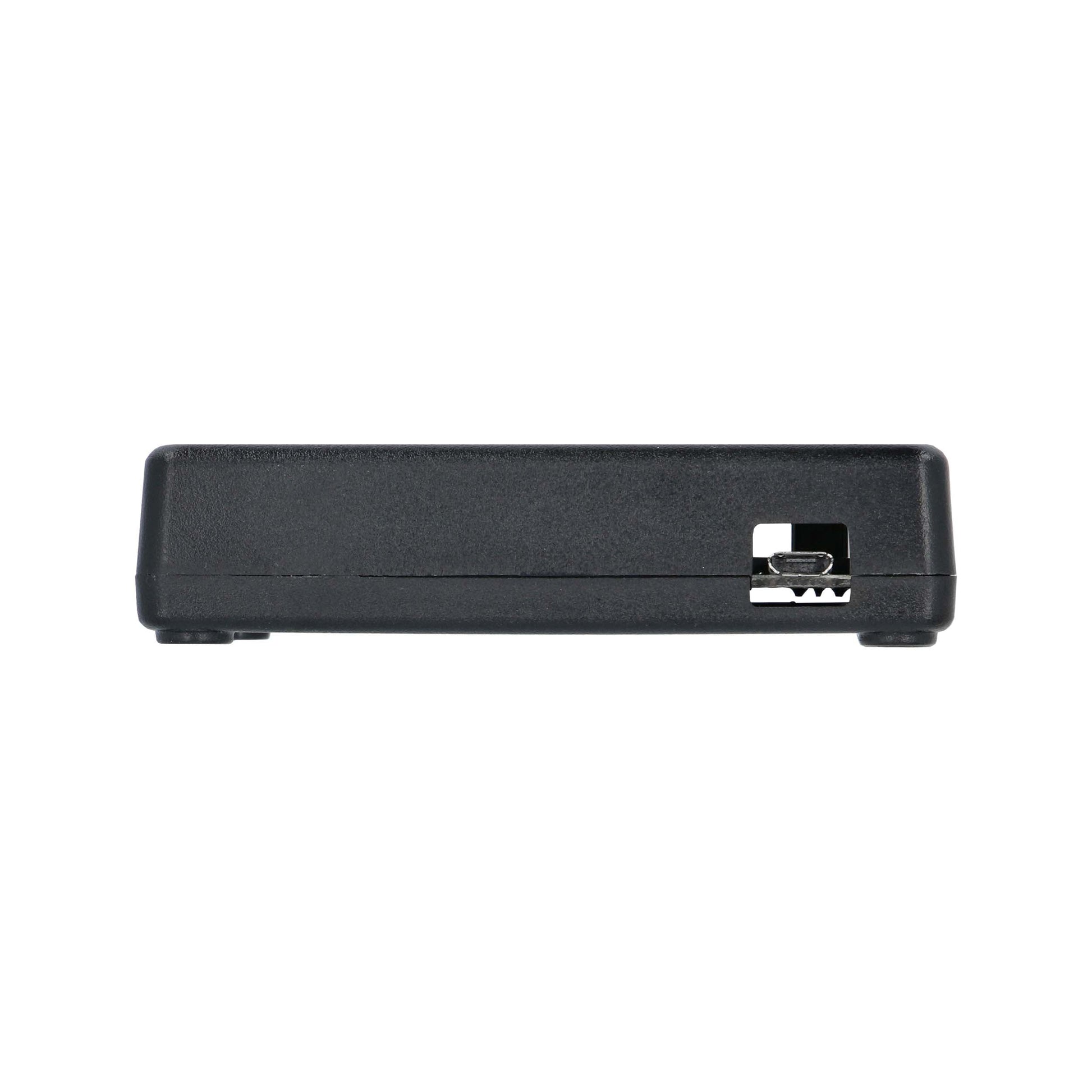

• Micro-B USB updatable

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Axxess backup-camera integration

Axxess radio replacement

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

• Designed for compatible factory radio systems where the factory display and camera path are retained
• Camera switching behavior is vehicle- and configuration-dependent
• Axxess Updater program may be required for configuration
• AXUSB-MCBL Micro-B to USB cable may be required for setup/update where listed by Axxess
• Professional installation is recommended for camera routing, trigger setup, and interface programming

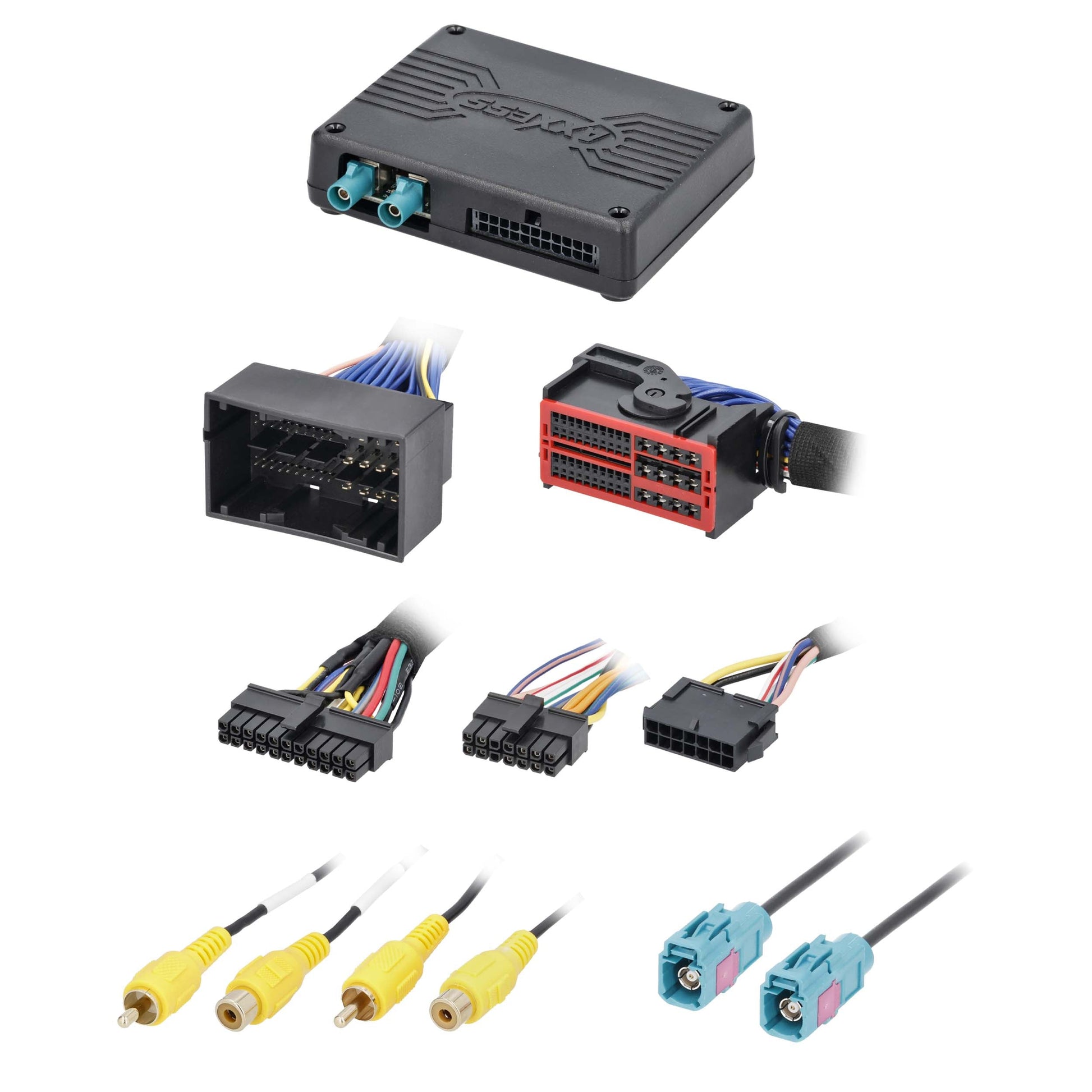

What’s in the Box

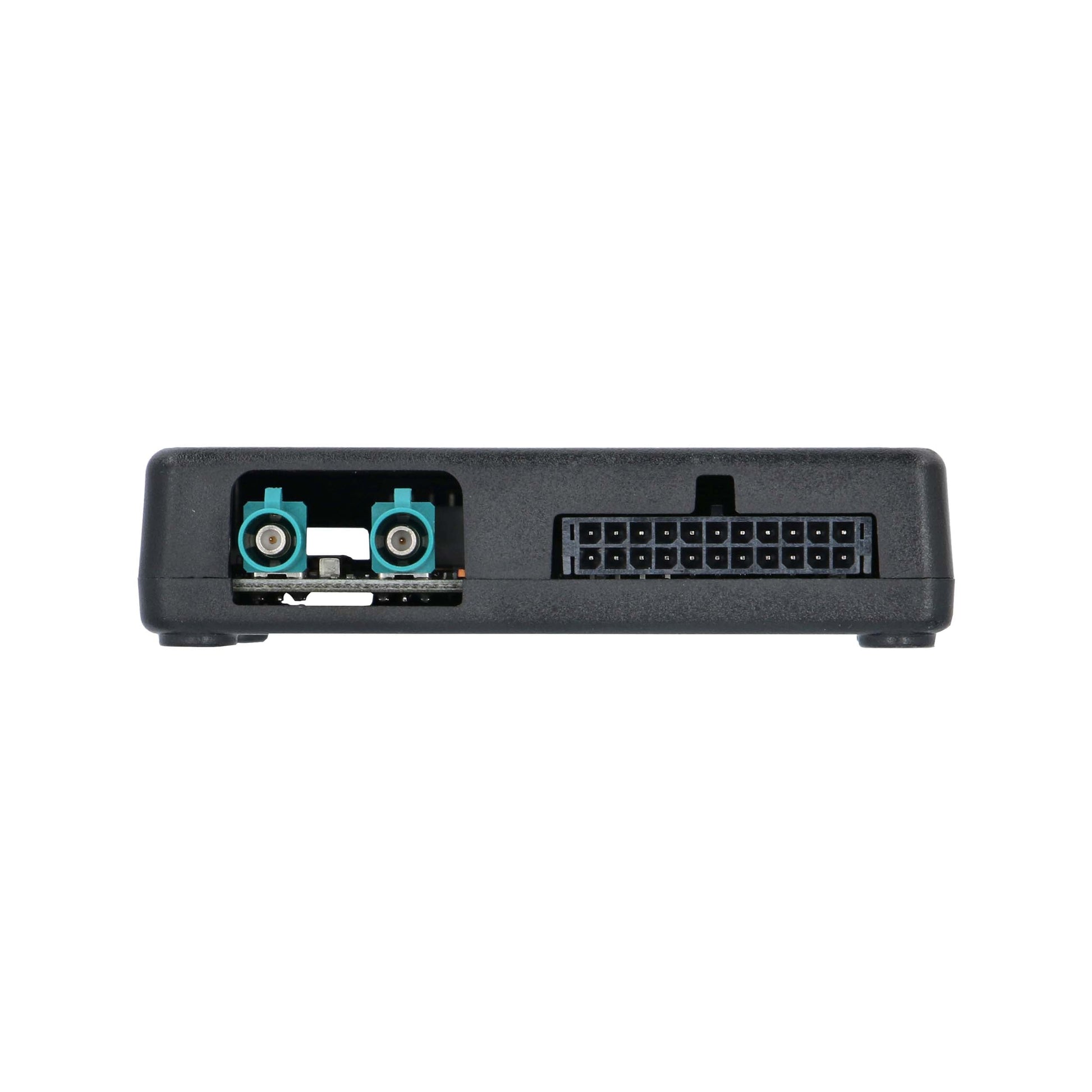

• Axxess AXAC-CH7 camera data interface

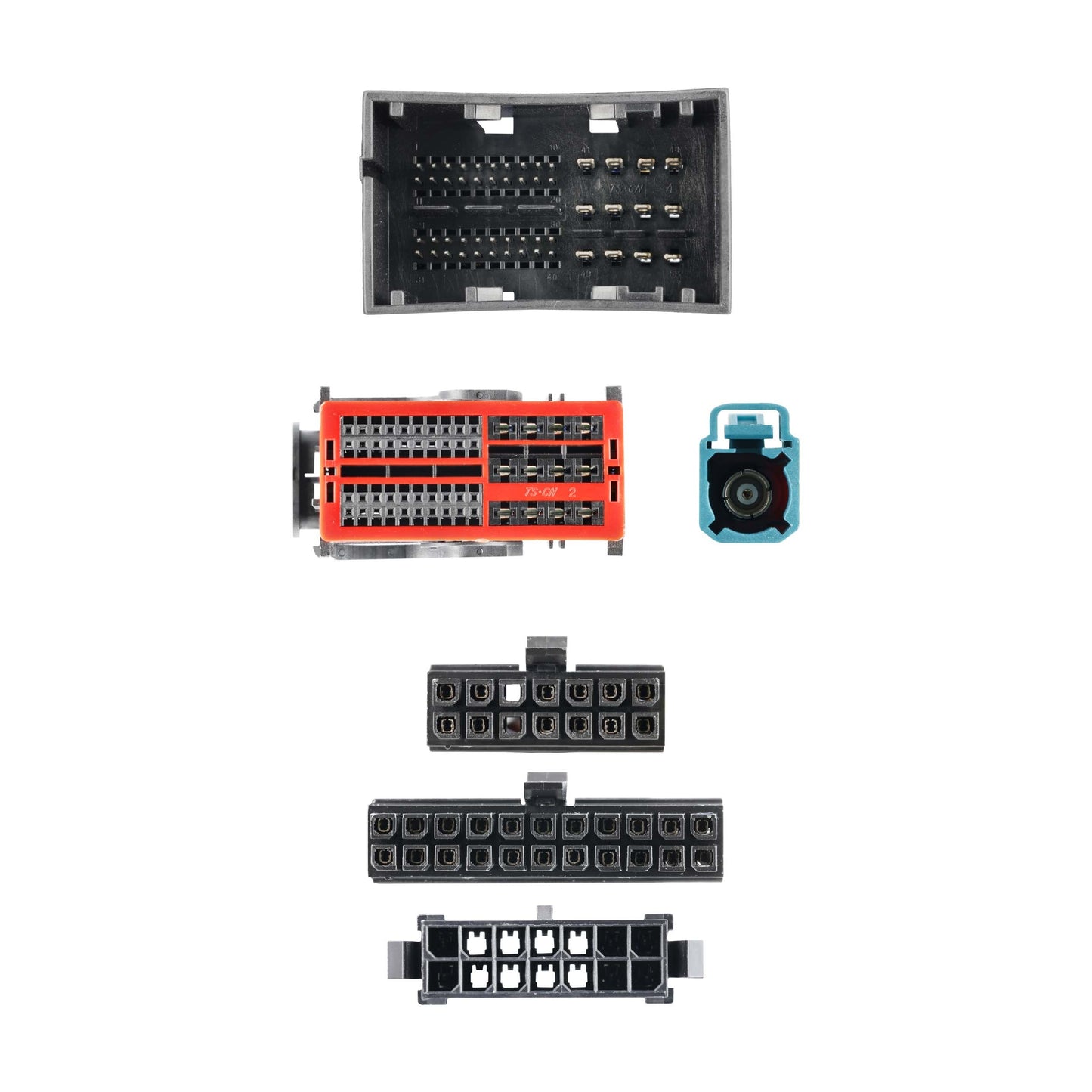

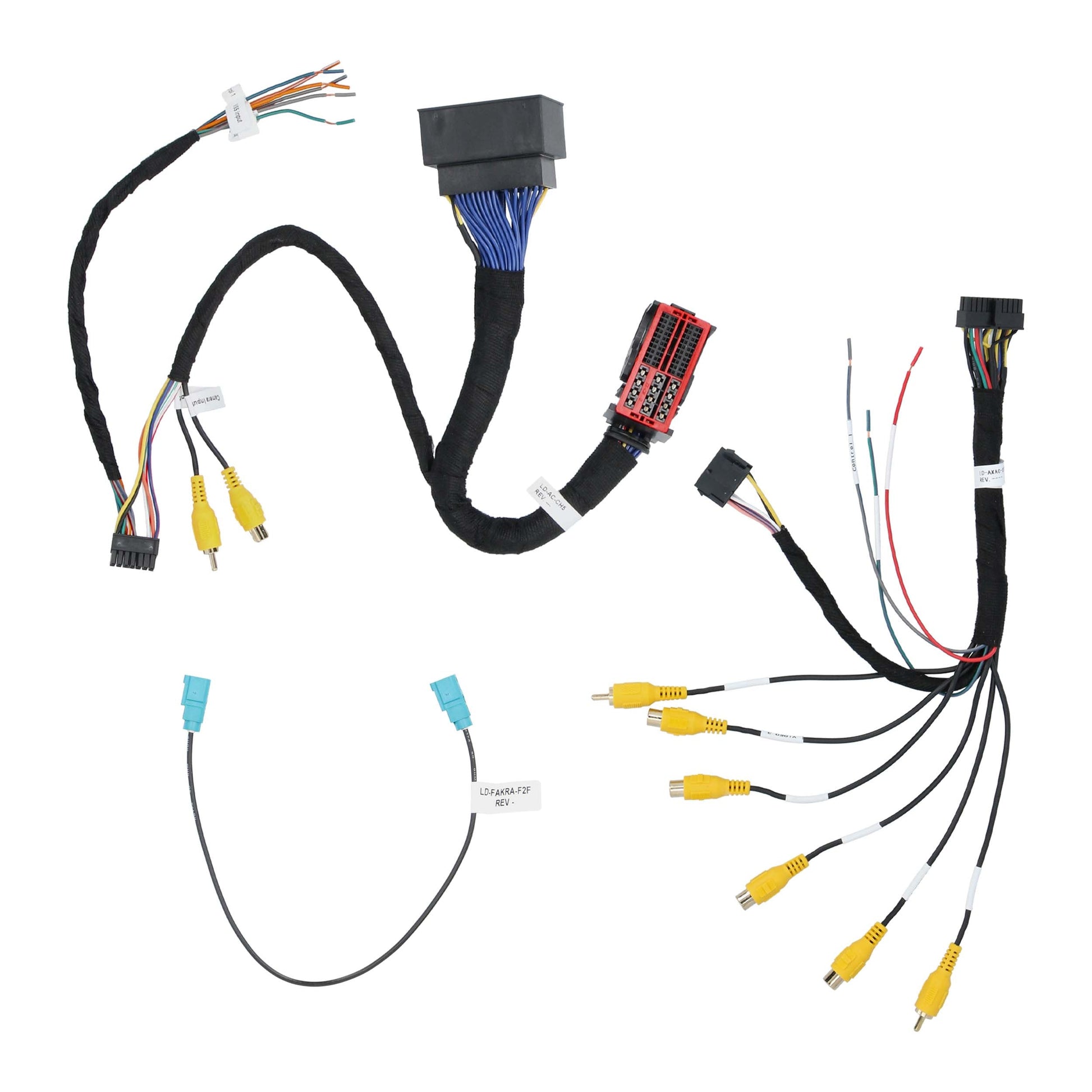

• Interface harness
• Vehicle harness

Technical Specifications

• Brand: Axxess
• Model: AXAC-CH7
• Product Type: Vehicle-specific camera data interface
• Application: select Jeep and Ram 2018.5-2023 vehicles
• Camera Inputs: Up to 4 additional CAN-activated camera inputs depending on application
• Output: Programmable 12V 5A switched output
• Triggers: CAN bus reverse and turn signal trigger generation
• Update Port: Micro-B USB
• Sold As: Each

Identifiers & Packaging

• MPN: AXAC-CH7
• UPC: 086429400195
• Sold As: Each
• Included Components: Axxess AXAC-CH7 camera data interface, Interface harness, Vehicle harness
