Axxess AXAC-CH3 Camera Data Interface for Chrysler and Dodge 2011-2018

Axxess AXAC-CH3 is a vehicle-specific camera data interface designed to retain the factory backup camera while allowing additional aftermarket camera inputs on compatible factory radio systems. It uses CAN bus communication for reverse and turn-signal camera activation and supports front, side, and factory camera integration when the vehicle application matches.

At a Glance

• Retains the factory backup camera while adding up to three additional CAN-activated cameras
• Supports four total camera inputs including the factory camera
• Includes AXAC camera interface and vehicle-specific harnessing
• Programmable 12-volt, 5-amp switched output configured through the Axxess Updater program
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• Four programmable camera control wires configured through the Axxess Updater program
• Can also be manually controlled and used with an aftermarket radio
• VSS input and output
• Micro-B USB updatable

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

• Designed for compatible factory radio systems retaining the factory display/camera path
• Supports CAN-activated camera switching based on vehicle functions such as reverse and turn signals
• Axxess Updater program may be required for configuration
• AXUSB-MCBL Micro-B to USB cable may be required for setup/update where listed by Axxess
• Professional installation is recommended for camera routing, trigger setup, and interface programming

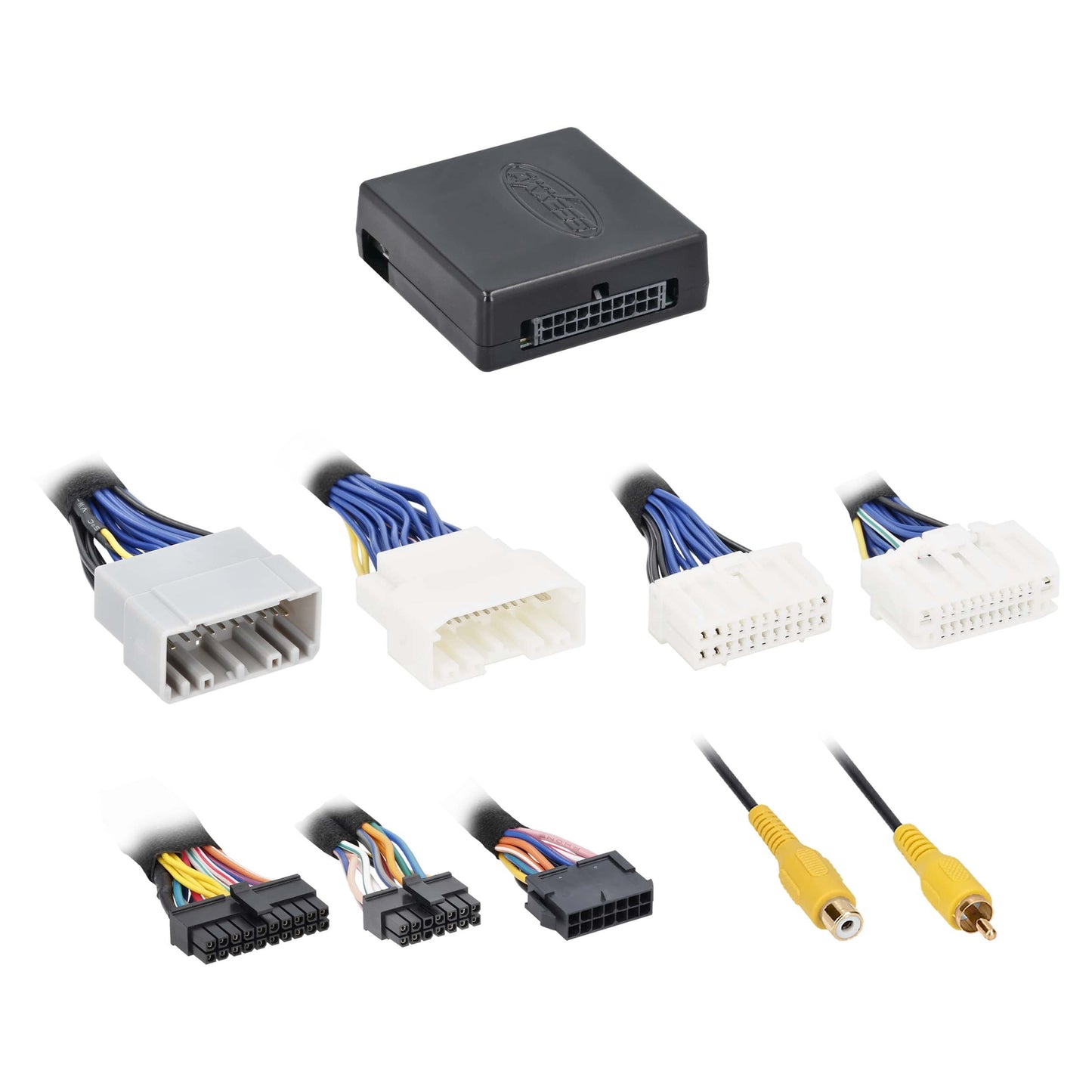

What’s in the Box

• Axxess AXAC-CH3 camera data interface
• Interface harness
• Two vehicle harnesses

Technical Specifications

• Brand: Axxess
• Model: AXAC-CH3
• Product Type: Vehicle-specific camera data interface
• Application: select Chrysler and Dodge 2011-2018 vehicles
• Camera Inputs: Up to 4 total camera inputs including factory camera
• Output: Programmable 12V 5A switched output
• Triggers: CAN bus reverse and turn signal trigger generation
• Update Port: Micro-B USB
• Sold As: Each

Identifiers & Packaging

• MPN: AXAC-CH3
• UPC: 086429386734
• Sold As: Each
• Included Components: Axxess AXAC-CH3 camera data interface, Interface harness, Two vehicle harnesses
