Axxess AXABH-HN1 Amp Bypass Harness for Select Honda 2008-2017
Axxess AXABH-HN1 Amp Bypass Harness for Select Honda 2008-2017
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

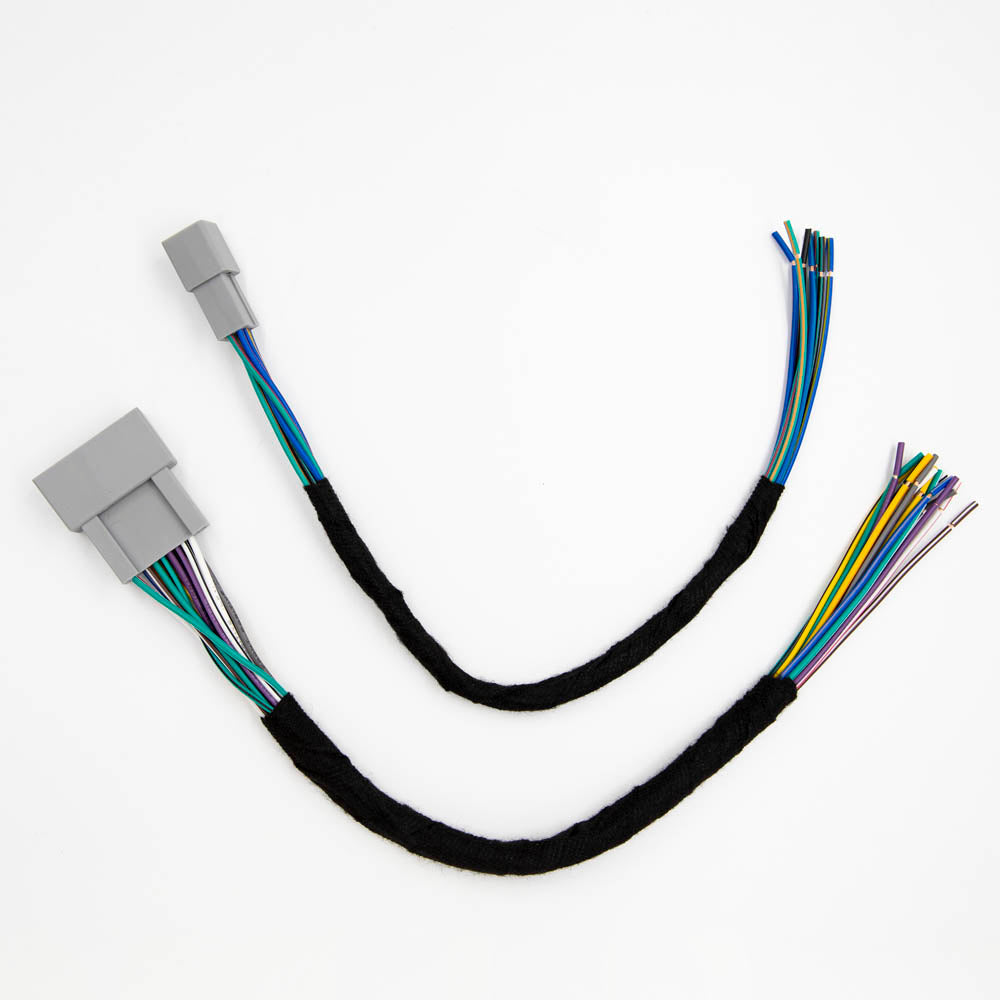

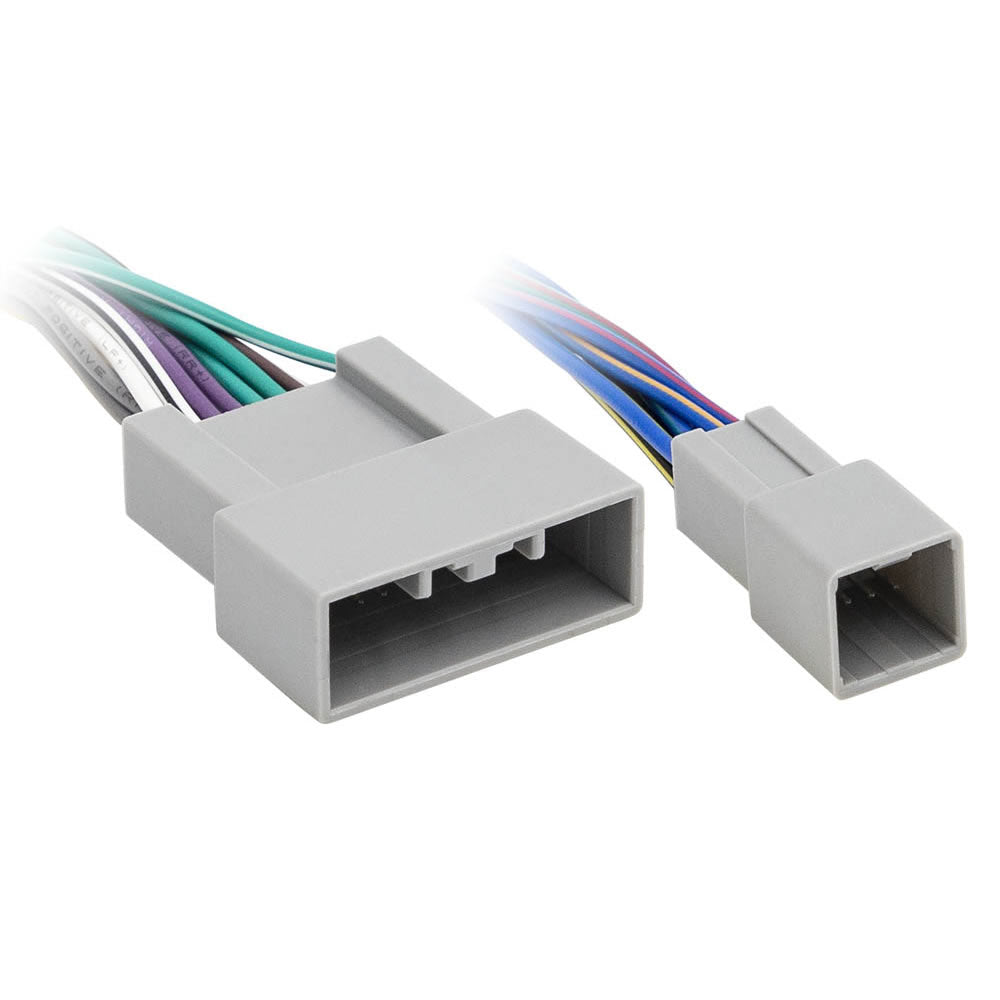

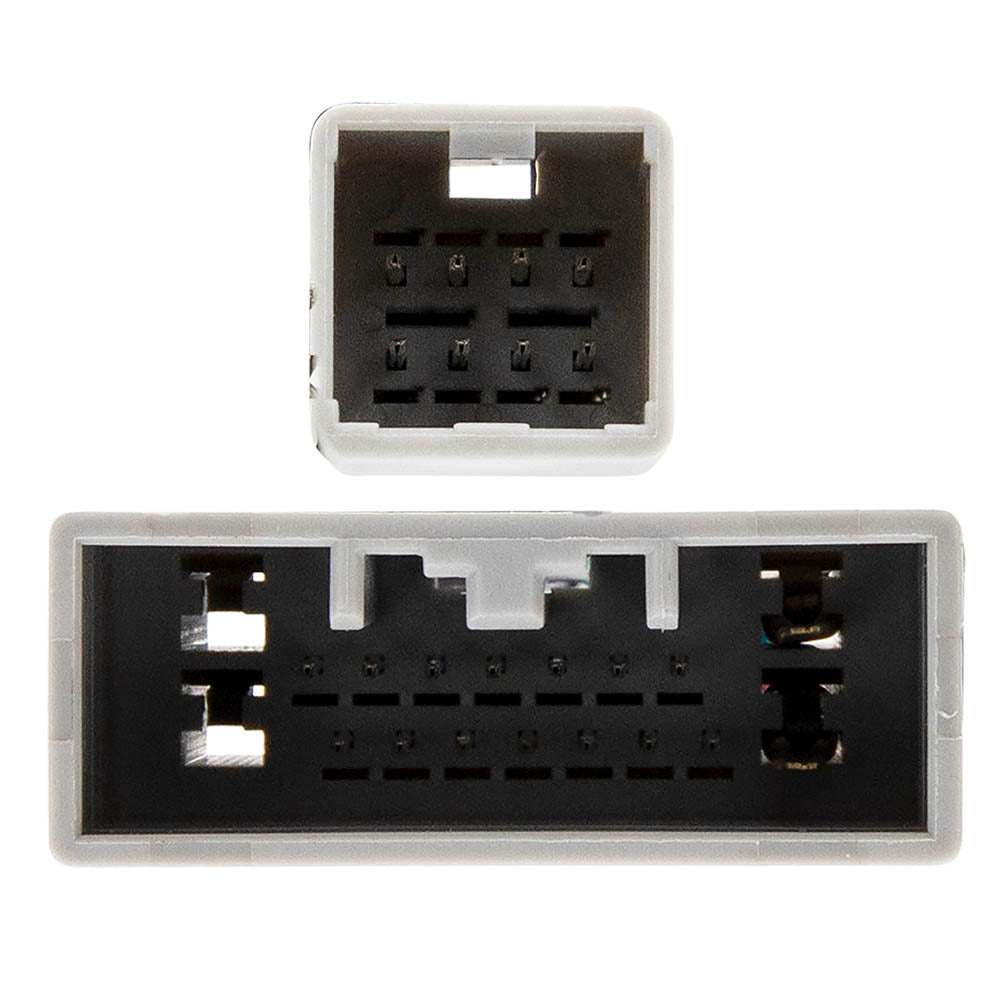

Axxess AXABH-HN1 is a vehicle-specific amplifier bypass harness for select Honda vehicles 2008-2017. It lets an installer bypass the factory amplifier when adding an aftermarket amplifier or replacing a failed factory amp while reducing custom wiring time.
At a Glance
- Vehicle-specific amp bypass harness for select Honda vehicles 2008-2017
- Bypasses the factory amplifier when installing an aftermarket amplifier
- Provides clearly labeled wiring leads to simplify amplifier-bypass wiring
- 20-gauge wire construction
- 12-inch wire length
- Useful for upgraded speaker/subwoofer systems or failed factory-amplifier replacement
System / Wiring Notes
- Designed for compatible factory amplified systems only
- This is a bypass harness; it does not retain or repair the factory amplifier
- Aftermarket amplifier, power wiring, signal wiring, and other installation parts are sold separately
- Factory audio package, amplifier location, trim level, and radio configuration must be verified before purchase
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Honda | Accord | 2008-2015 | Factory amplifier location: In the Passenger Comparment, behind the glovebox. |
| Honda | Accord | 2016-2017 | Factory amplifier location: In the Passenger Comparment, behind the glovebox. |
| Honda | Accord | 2016-2017 | LX; Factory amplifier location: In the Passenger Comparment, behind the glovebox. |
| Honda | Civic | 2009-2015 | Factory amplifier location: 2-Door: Center Console; 4-Door: Below Driver's Seat. |
| Honda | CR-V | 2010-2016 | Factory amplifier location: Below the Gear Selector. |
| Honda | CR-Z | 2011-2016 | Factory amplifier location: In the Dashboard, behind Audio Unit, to the Left. |
| Honda | Fit | 2009-2017 | Factory amplifier location: N/A |
| Honda | HR-V | 2016-2017 | Factory amplifier location: N/A |
| Honda | Insight | 2010-2014 | Factory amplifier location: In the Passenger Compartment, behind the Glovebox. |
| Honda | Odyssey | 2011-2017 | Factory amplifier location: In the Passenger Compartment, behind the Glovebox. |
| Honda | Pilot | 2009-2016 | Factory amplifier location: Passenger's Kick Panel area, up high in the dashboard. |
| Honda | Ridgeline | 2009-2017 | Factory amplifier location: In the Passenger Compartment, behind the Glovebox. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle fitment, factory amplified system, and amplifier connector before installation
- Professional installation is recommended because amplifier-bypass installations require proper signal routing, power wiring, and system setup
- Additional parts may be required depending on the aftermarket amplifier and system design
- Check the current manufacturer instructions before installation
What’s in the Box

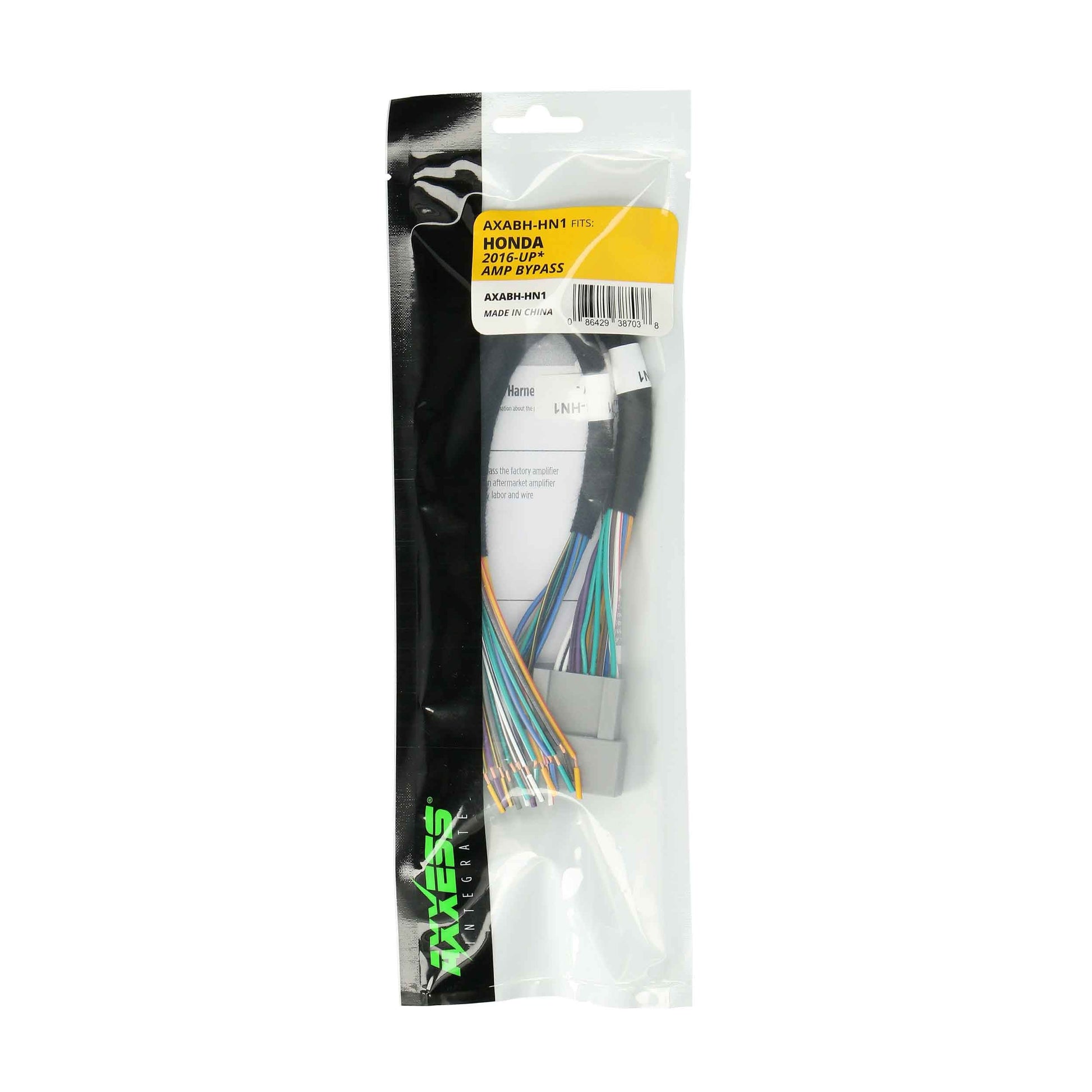

- Axxess AXABH-HN1 amplifier bypass harness
Technical Specifications
- Brand: Axxess
- Model: AXABH-HN1
- Product Type: Amplifier bypass harness
- Application: select Honda vehicles 2008-2017
- Compatibility Type: Vehicle-specific
- Wire Gauge: 20-gauge
- Wire Length: 12 inches
- Sold As: Each
Identifiers & Packaging
- MPN: AXABH-HN1
- UPC: 086429387038
- Sold As: Each
- Included Components: Amplifier bypass harness
