Axxess AXABH-FD1 Sony Amp Bypass Harness for Select Ford 2011-2020
Axxess AXABH-FD1 Sony Amp Bypass Harness for Select Ford 2011-2020
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

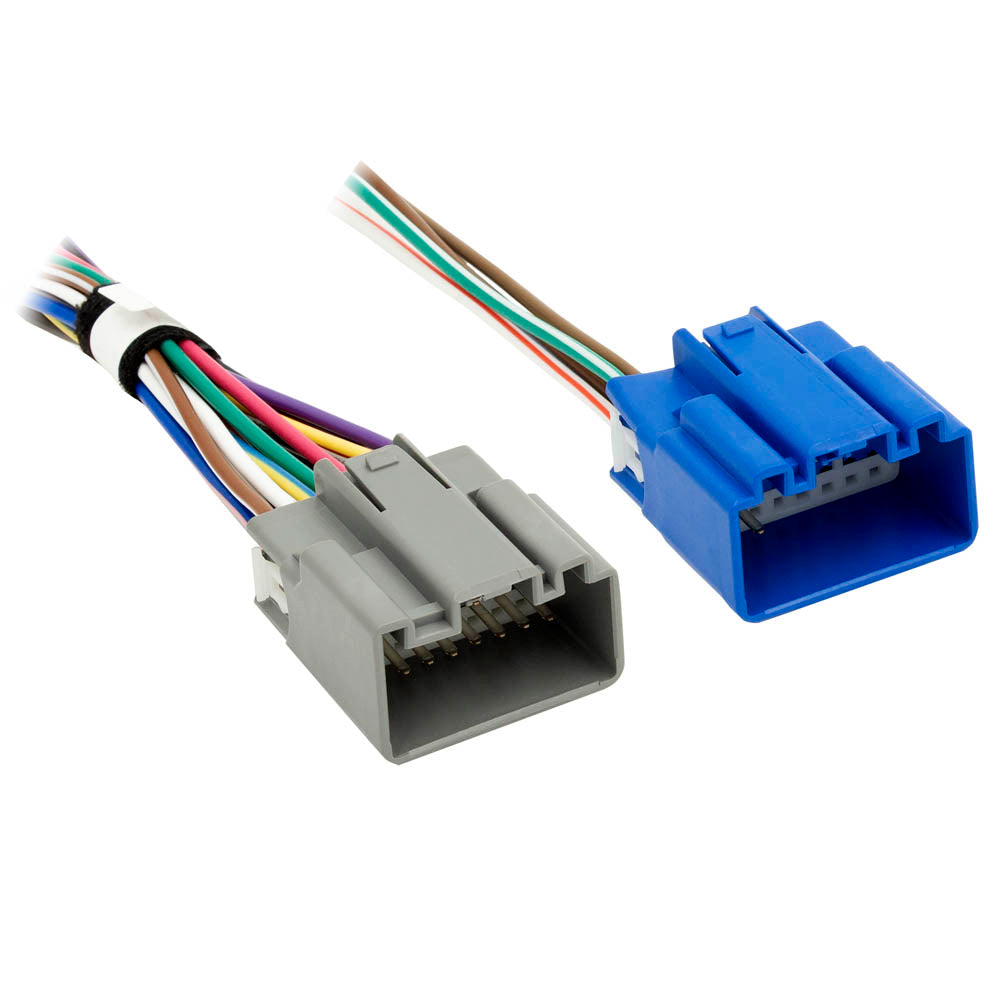

Axxess AXABH-FD1 is a vehicle-specific amplifier bypass harness for select Ford vehicles 2011-2020 with Sony amplified audio. It lets an installer bypass the factory Sony amplified system when adding an aftermarket amplifier or replacing a failed factory amp while reducing custom wiring time.
At a Glance
- Vehicle-specific amp bypass harness for select Ford vehicles 2011-2020 with Sony amplified audio
- Bypasses the factory Sony amplified system when installing an aftermarket amplifier

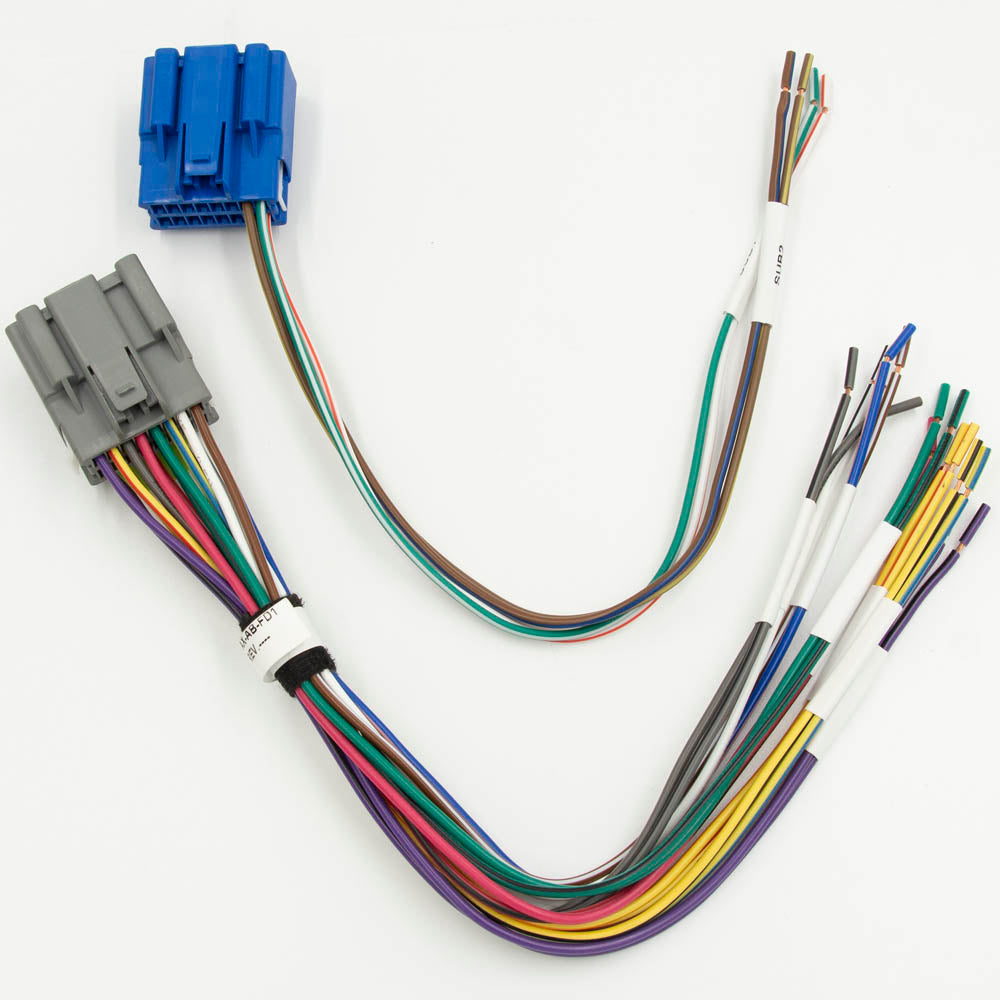

- Provides clearly labeled wiring leads to simplify amplifier-bypass wiring
- 20-gauge wire construction
- 12-inch wire length
- Useful for upgraded speaker/subwoofer systems or failed factory-amplifier replacement
System / Wiring Notes
- Designed for compatible factory amplified systems only
- This is a bypass harness; it does not retain or repair the factory amplifier
- Aftermarket amplifier, power wiring, signal wiring, and other installation parts are sold separately
- Factory audio package, amplifier location, trim level, and radio configuration must be verified before purchase
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Ford | Edge | 2011-2018 | Sony or Non-amplified; Factory amplifier location: Passenger Side Rear, Above Wheel Well. |
| Ford | Escape | 2015-2019 | Factory amplifier location: Driver Side Trunk Behind Rear Seat. |
| Ford | Expedition | 2015-2017 | Sony or Non-amplified; Factory amplifier location: Left Rear Quarter Panel |
| Ford | Explorer | 2011-2019 | Sony or Non-amplified; Factory amplifier location: Right Rear Quarter Panel |
| Ford | F-150 | 2013-2016 | Sony or Non-amplified; Factory amplifier location: Driver Side Rear Floor, Behind Rear Seat. |
| Ford | Flex | 2013-2019 | Factory amplifier location: Passenger Side of Trunk Above Rear Wheel-Well. |
| Ford | Focus | 2012-2018 | Factory amplifier location: Driver's Side of Trunk. |
| Ford | Fusion | 2013-2020 | Factory amplifier location: Passenger Side of Trunk Above Rear Wheel-Well. |
| Ford | Super Duty | 2019 | Sony or Non-amplified; Factory amplifier location: N/A |
| Ford | Taurus | 2013-2019 | Factory amplifier location: Driver's Side of Trunk. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle fitment, factory amplified system, and amplifier connector before installation
- Professional installation is recommended because amplifier-bypass installations require proper signal routing, power wiring, and system setup
- Additional parts may be required depending on the aftermarket amplifier and system design
- Check the current manufacturer instructions before installation
What’s in the Box

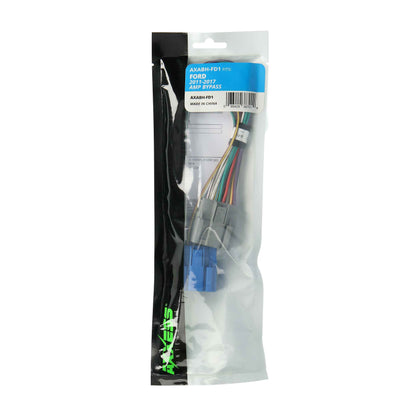

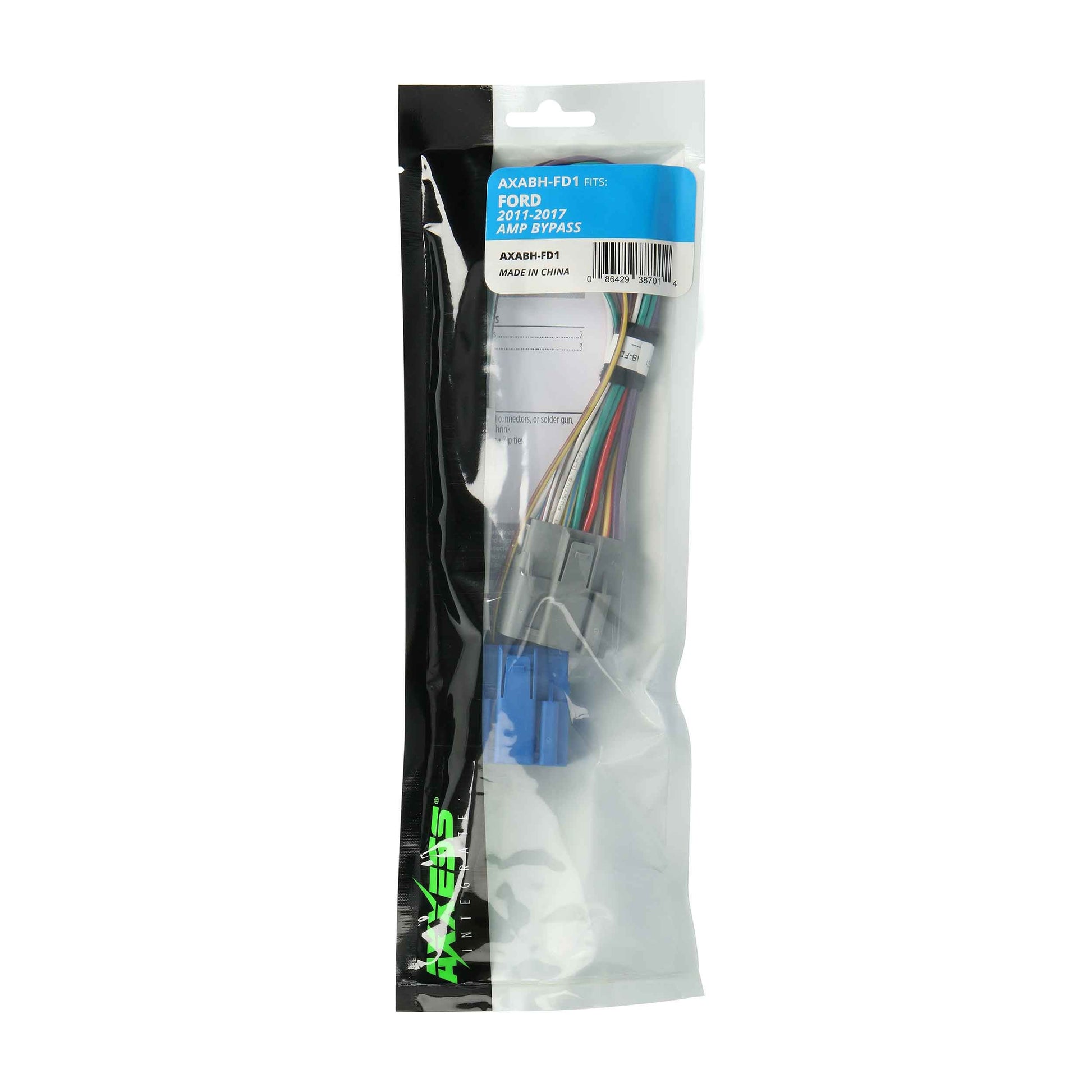

- Axxess AXABH-FD1 amplifier bypass harness
Technical Specifications
- Brand: Axxess
- Model: AXABH-FD1
- Product Type: Amplifier bypass harness
- Application: select Ford vehicles 2011-2020 with Sony amplified audio
- Compatibility Type: Vehicle-specific
- Wire Gauge: 20-gauge
- Wire Length: 12 inches
- Sold As: Each
Identifiers & Packaging
- MPN: AXABH-FD1
- UPC: 086429387014
- Sold As: Each
- Included Components: Amplifier bypass harness
