Axxess AXABH-CH4 Amp Bypass Harness for Select Chrysler 2014-Up

Axxess AXABH-CH4 Amp Bypass Harness for Select Chrysler 2014-Up

$33.99 USD
$33.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Axxess AXABH-CH4 is a vehicle-specific amplifier bypass harness for select Chrysler, Dodge, Jeep, and RAM vehicles 2014-Up. It lets an installer bypass the factory amplifier when adding an aftermarket amplifier or replacing a failed factory amp while reducing custom wiring time.

At a Glance

  • Vehicle-specific amp bypass harness for select Chrysler, Dodge, Jeep, and RAM vehicles 2014-Up
  • Bypasses the factory amplifier when installing an aftermarket amplifier
  • Provides clearly labeled wiring leads to simplify amplifier-bypass wiring
  • 20-gauge wire construction
  • 12-inch wire length
  • Useful for upgraded speaker/subwoofer systems or failed factory-amplifier replacement

System / Wiring Notes

  • Designed for compatible factory amplified systems only
  • This is a bypass harness; it does not retain or repair the factory amplifier
  • Aftermarket amplifier, power wiring, signal wiring, and other installation parts are sold separately
  • Factory audio package, amplifier location, trim level, and radio configuration must be verified before purchase

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier
Chrysler 300 2015-2023 Factory amplifier location: Drivers Dash Up High. (Above Knee Bolster Panel).
Chrysler Pacifica 2017-2020 Factory amplifier location: Passenger Kick Panel.
Chrysler Pacifica 2021-2022 with separate screen; Factory amplifier location: Passenger Kick Panel.
Chrysler Pacifica 2021-2022 without separate screen; Factory amplifier location: Passenger Kick Panel.
Chrysler Voyager 2022 Factory amplifier location: Passenger Kick Panel.
Dodge Challenger 2015-2023 Factory amplifier location: Driver Kick Panel.
Dodge Charger 2015-2023 Factory amplifier location: Driver Kick Panel.
Dodge Durango 2021-2022 with separate screen; Factory amplifier location: Driver Kick Panel.
Dodge Durango 2021-2022 without separate screen; Factory amplifier location: Passenger Kick Panel.
Dodge Viper 2015-2017 Factory amplifier location: Passenger Side Trunk Above Wheel Well.
Jeep Cherokee 2014-2020 Factory amplifier location: Passenger's Kick Panel.
Jeep Gladiator 2020-2023 exclude 4XE; Factory amplifier location: Driver Knee Bolster.
Jeep Gladiator 2024 Factory amplifier location: Driver Knee Bolster.
Jeep Grand Cherokee 2014-2022 Factory amplifier location: Driver Side Trunk Area.
Jeep Wrangler 2018-2023 JL; exclude 4XE; Factory amplifier location: Driver Knee Bolster.
Jeep Wrangler 2024 JL; exclude 4XE; Factory amplifier location: Driver Knee Bolster.
RAM 1500 2022 RFV radio; Factory amplifier location: Under Driver's seat
RAM 1500/2500/3500 2013-2021 Factory amplifier location: Driver Kick Panel.
RAM 2500/3500 2022 RFA/RFL radio; Factory amplifier location: Under Driver's seat

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle fitment, factory amplified system, and amplifier connector before installation
  • Professional installation is recommended because amplifier-bypass installations require proper signal routing, power wiring, and system setup
  • Additional parts may be required depending on the aftermarket amplifier and system design
  • Check the current manufacturer instructions before installation

What’s in the Box

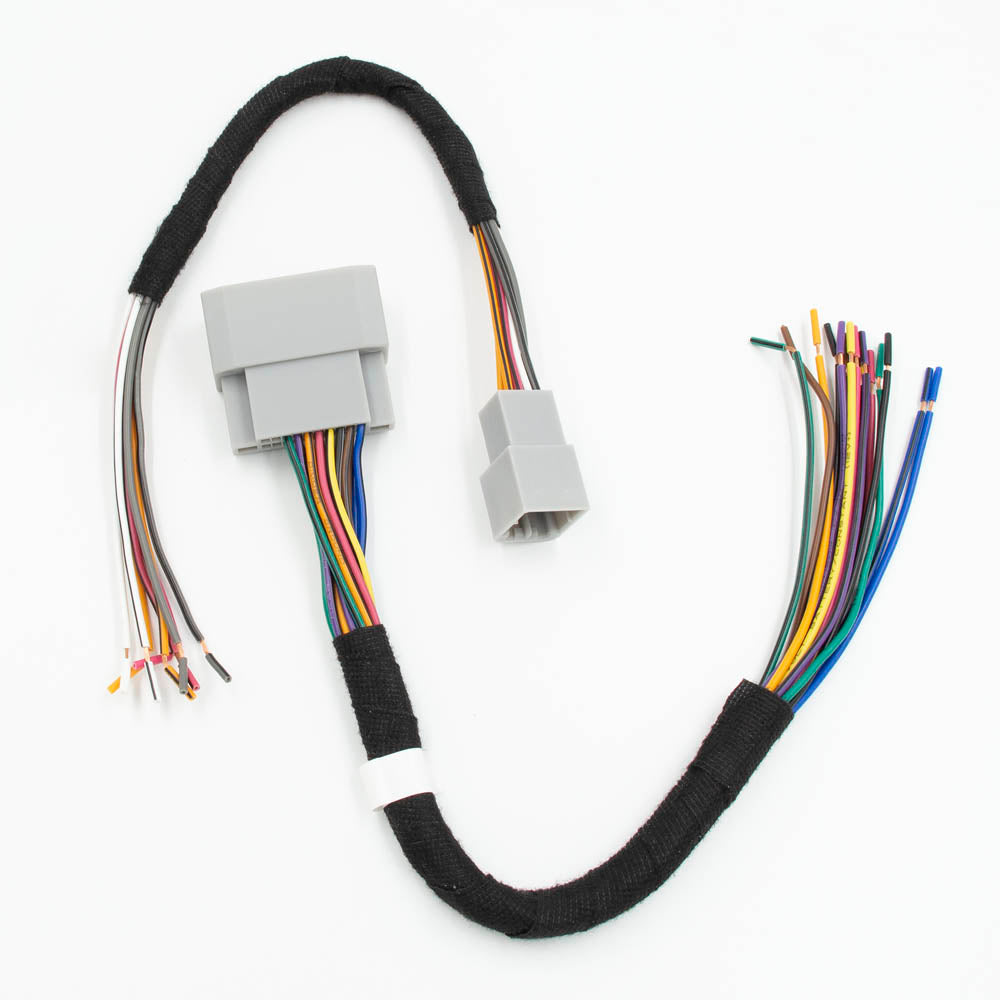

  • Axxess AXABH-CH4 amplifier bypass harness

Technical Specifications

  • Brand: Axxess
  • Model: AXABH-CH4
  • Product Type: Amplifier bypass harness
  • Application: select Chrysler, Dodge, Jeep, and RAM vehicles 2014-Up
  • Compatibility Type: Vehicle-specific
  • Wire Gauge: 20-gauge
  • Wire Length: 12 inches
  • Sold As: Each

Identifiers & Packaging

  • MPN: AXABH-CH4
  • UPC: 086429387007
  • Sold As: Each
  • Included Components: Amplifier bypass harness
