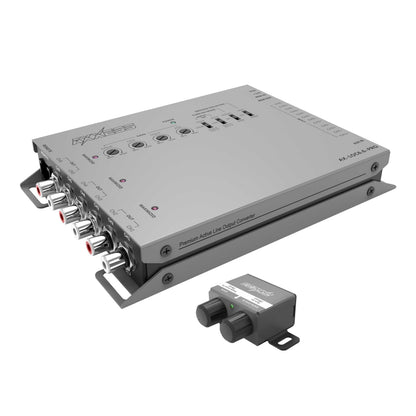

Axxess AX-LOC6.6-PRO 6-Channel LOC with Summing Processor

Axxess AX-LOC6.6-PRO is a 6-channel active line output converter with summing processor for adding aftermarket amplifiers to factory or aftermarket source units. It converts speaker-level audio into usable RCA preamp outputs while supporting professional audio integration features for cleaner system setup.

Key Features

• 6-channel active summing line output converter for OEM source integration
• Sums OEM audio signals into full-range output for aftermarket amplifiers

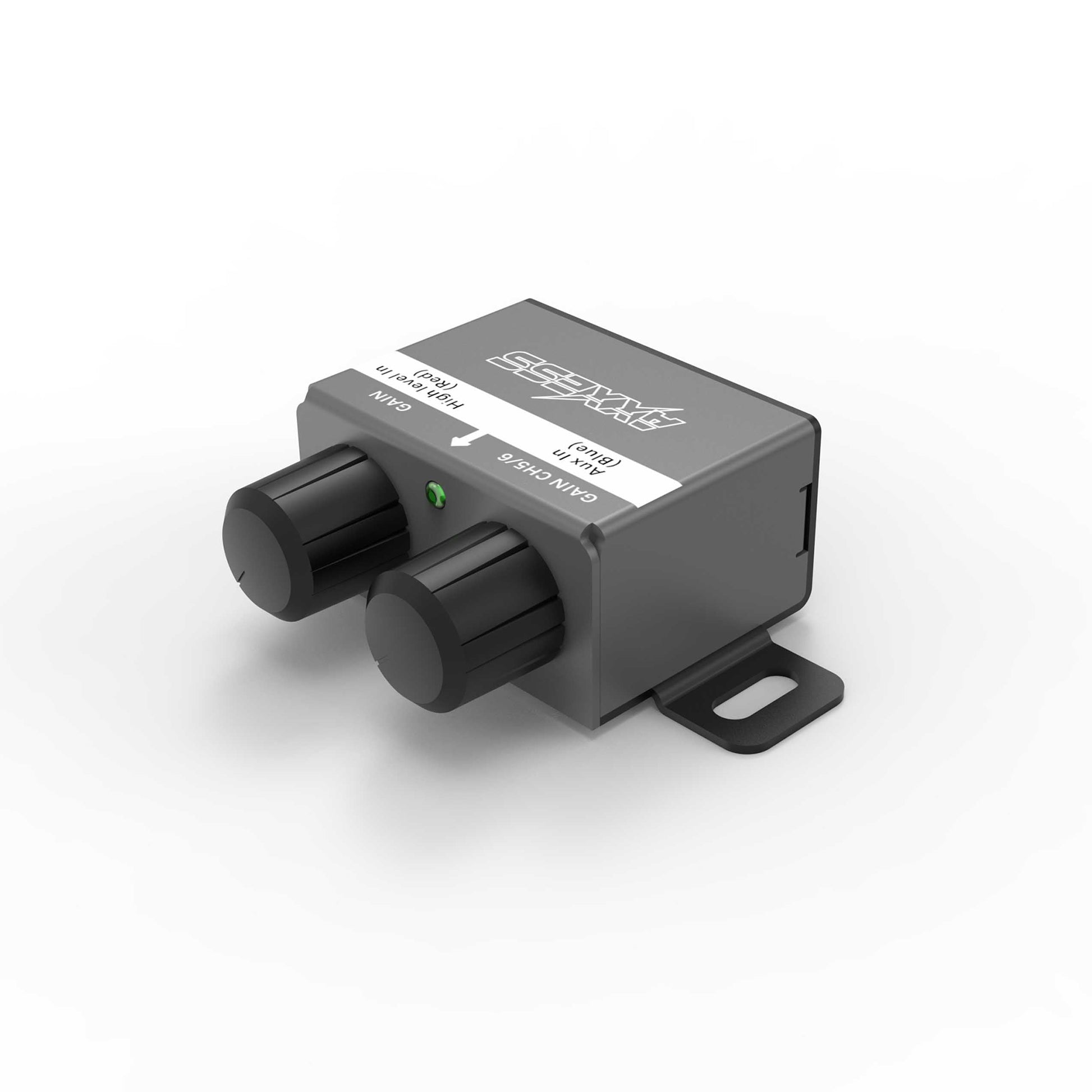

• Includes multi-function remote control for channels 1-6 and bass level on channels 5 and 6
• Master volume and AUX volume control
• Independent channel 5 or 6 level control
• AUX 3.5mm input
• Differential balanced inputs and low-impedance outputs
• 2, 4, or 6-channel input select
• Generated 12-volt remote output
• Clip indicator and bass boost on channels 5/6

System / Wiring Notes

• Universal line output converter for OEM integration and amplifier-addition systems
• Designed for systems without usable RCA preamp outputs or where a factory source unit is being retained
• Factory radios or amplifiers may require load resistors when speakers are disconnected
• Remote turn-on, trigger behavior, gain, impedance, and ground-isolation settings must be configured for the specific system
• Aftermarket amplifier, RCA cables, power wiring, and vehicle-specific integration parts are sold separately

Installation Notes

• Set gains and trigger settings according to the system design and manufacturer instructions
• Verify whether external load resistors are needed before disconnecting factory speakers
• Confirm exact vehicle fitment, factory system, radio/amplifier configuration, and connector requirements before installation
• Additional installation parts may be required depending on the vehicle, factory equipment, and aftermarket system design
• Professional installation is recommended for proper setup and reliable operation
• Check the current Axxess vehicle fit guide and manufacturer instructions before installation

What’s in the Box

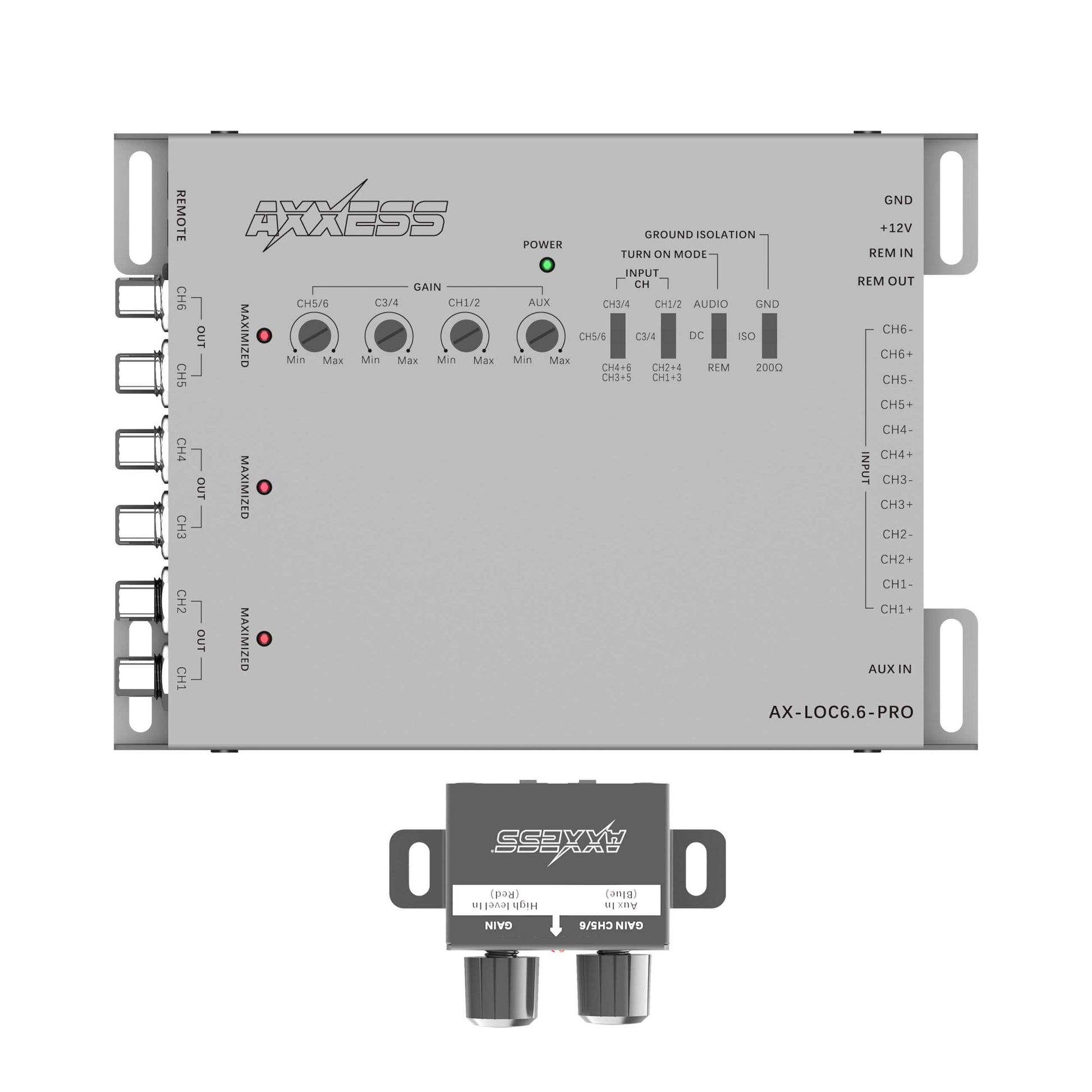

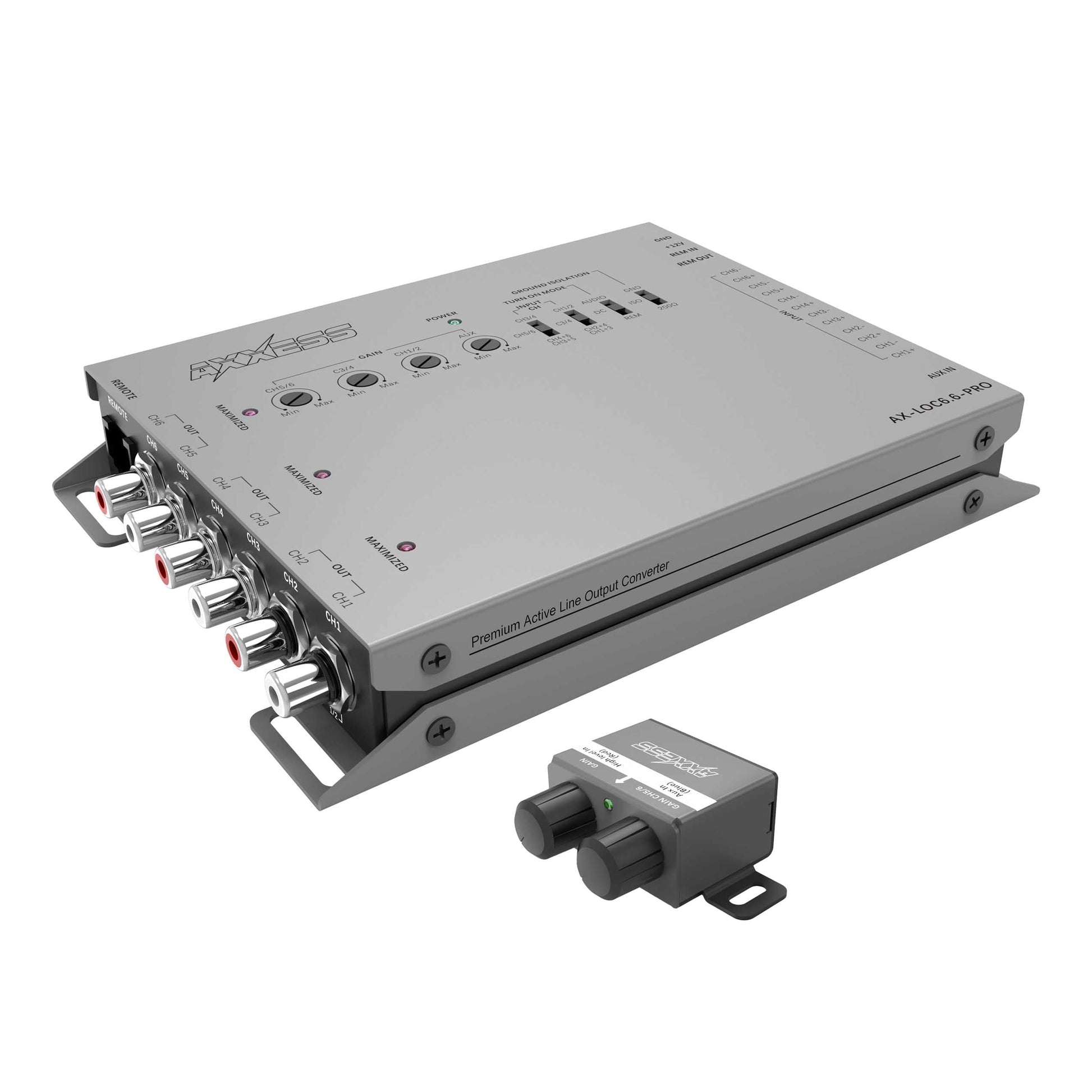

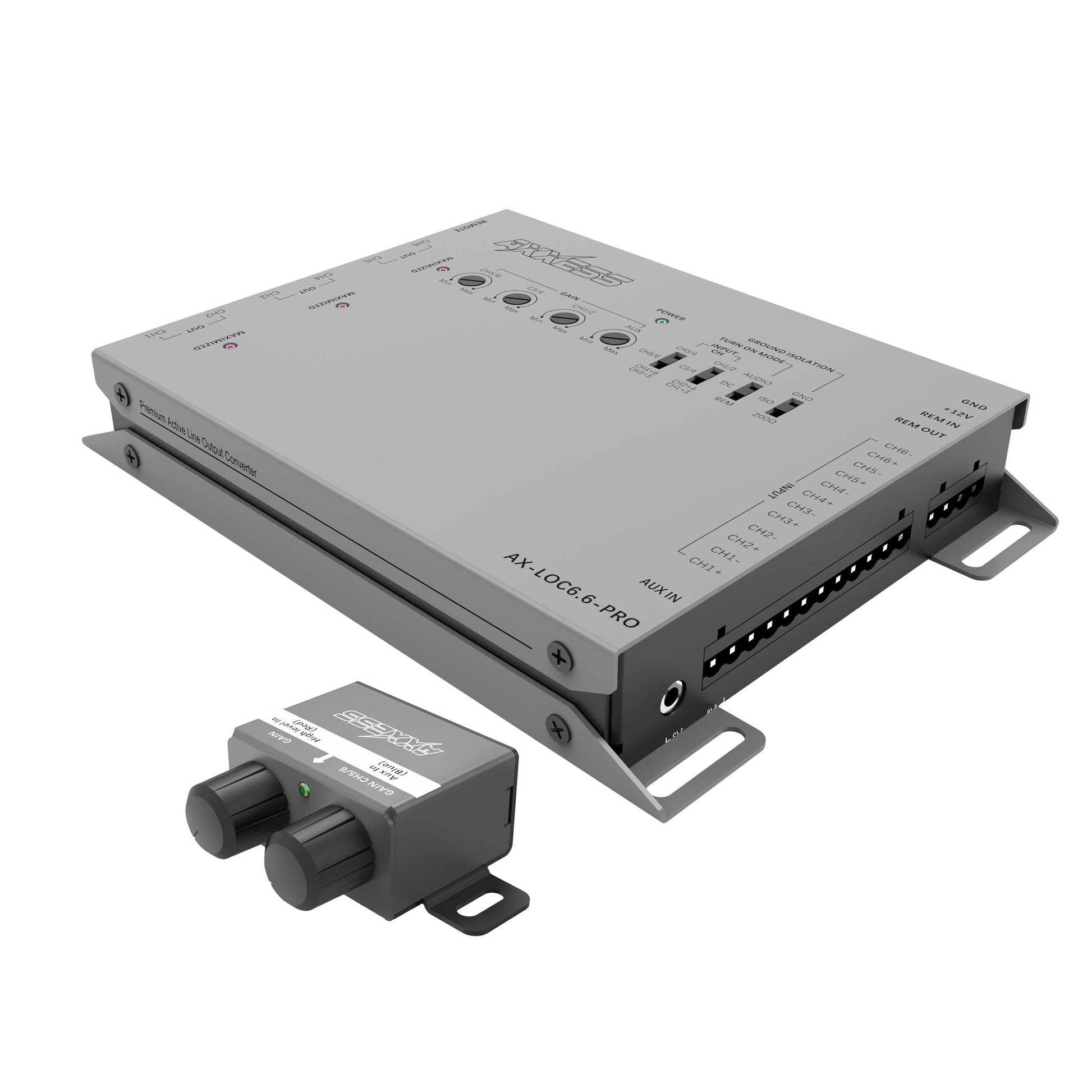

• AX-LOC6.6-PRO line output converter, multi-function remote control, and manufacturer-supplied components
• Manufacturer instructions

Technical Specifications

• Brand: Axxess
• Model: AX-LOC6.6-PRO
• Product Type: 6-channel active line output converter with summing processor
• Application: Universal amplifier addition / OEM source integration
• Compatibility Type: Universal
• Channel Configuration: 6-channel: 6 in / 6 out
• Input / Output: Speaker-level input to RCA preamp output
• Max Input Level: 20V / 40V selectable
• Operating Voltage: 10.5V-18V
• Trigger Selection: REM / DC / AUDIO
• Output Max at 13.8V: 9.5V RMS
• Signal-to-Noise Ratio: >114dB @ 10V output
• Frequency Response: 5Hz-100kHz
• Bass Boost: 0dB to +12dB on channels 5/6

Identifiers & Packaging

• MPN: AX-LOC6.6-PRO
• UPC: '86429430291
• Sold As: Each
• Included Components: AX-LOC6.6-PRO line output converter, multi-function remote control, and manufacturer-supplied components
