Axxess AX-BXLOC2 4-Channel LOC with Bass Restoration

Axxess AX-BXLOC2 is a 4-channel active line output converter with Bass-X restoration for adding aftermarket amplifiers to factory or aftermarket source units. Bass-X restoration helps reduce factory bass roll-off. It converts speaker-level audio into RCA preamp output while supporting cleaner bass and amplifier integration from an OEM audio system.

Key Features

• 4-channel active LOC with 2-channel input and 4-channel output
• Bass-X restoration helps counter factory bass roll-off as volume increases
• Accepts speaker-level signals up to 40V / 400W at 20k ohm
• Converts factory speaker-level audio to RCA preamp outputs for aftermarket amplifiers
• Remote output rated at 500mA
• Output max at 13.8V: 9.5V RMS
• Input sensitivity from 0.5V to 20V
• Bass boost from 0dB to +12dB
• Plug-and-play remote bass knob with voltmeter included
• May require AX-LR20, AX-LR39, or AX-LR60 load resistors in some factory systems

System / Wiring Notes

• Universal line output converter / bass restoration accessory; vehicle need depends on the factory radio and amplifier behavior
• Designed for systems without usable RCA preamp outputs or where the factory source unit is being retained
• Factory radios or amplifiers may require Axxess load resistors when OE speakers are disconnected
• Remote turn-on, bass restoration, gain, impedance, and ground-isolation settings must be configured for the specific system
• Aftermarket amplifier, RCA cables, power wiring, and vehicle-specific integration parts are sold separately

Vehicle Compatibility

Installation Notes

• Set gains, bass controls, load settings, and trigger modes according to the system design before final tuning
• Verify whether external load resistors are required before disconnecting factory speakers
• Confirm exact vehicle fitment, factory audio system, amplifier configuration, and radio connector before installation
• Additional installation parts may be required depending on the vehicle, factory equipment, and system design
• Programming, firmware updates, app setup, or DSP tuning may be required for proper operation
• Professional installation and tuning are recommended for best results
• Check the current Axxess vehicle fit guide and manufacturer instructions before installation

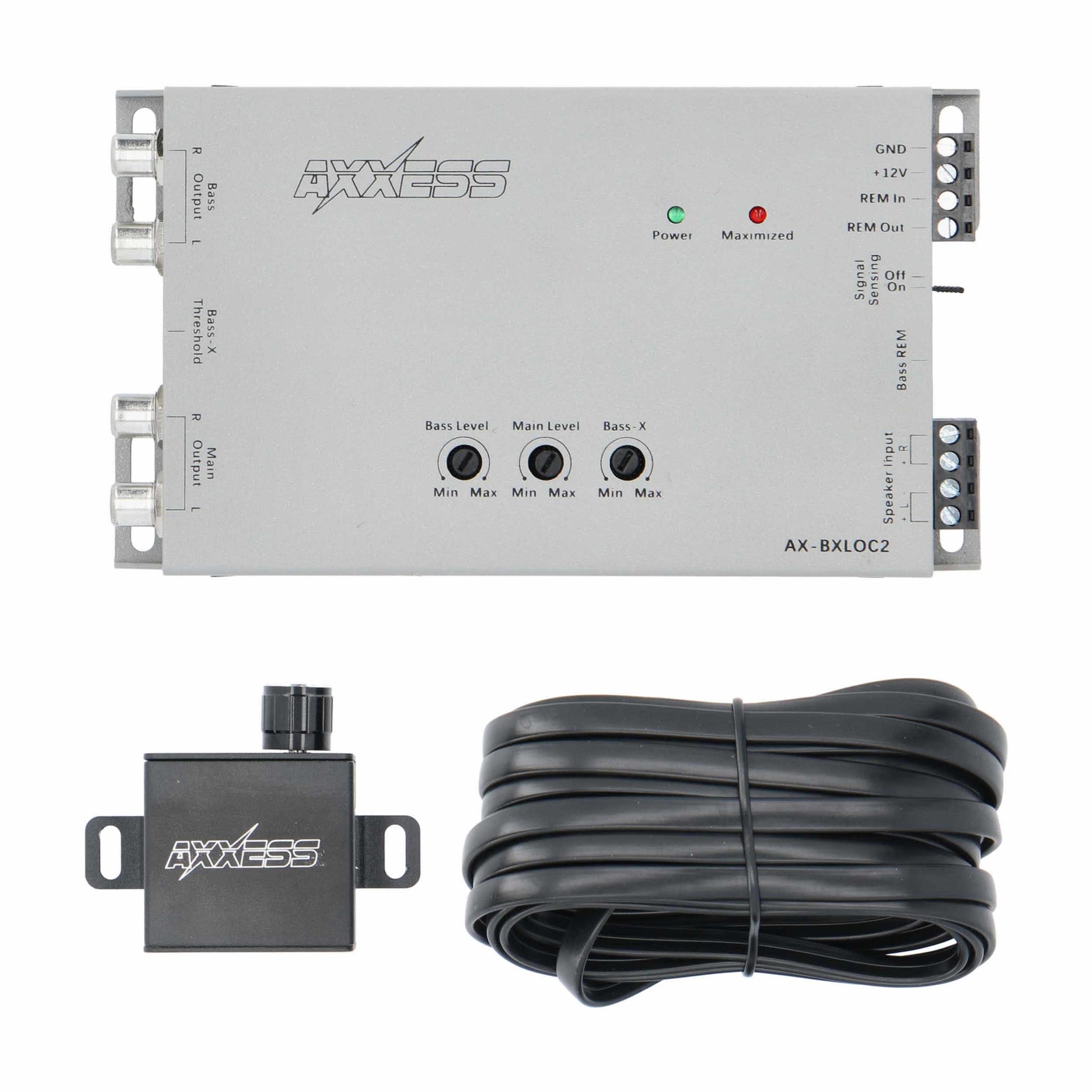

What’s in the Box

• Line output converter, remote bass control, and manufacturer-supplied components
• Manufacturer instructions

Technical Specifications

• Brand: Axxess
• Model: AX-BXLOC2
• Product Type: 4-channel active line output converter with Bass-X restoration
• Application: Universal amplifier addition / OEM source integration
• Compatibility Type: Universal
• Channel Configuration: 4-channel: 2 in / 4 out
• Max Input Level: 40V / 400W @ 20k ohm
• Operating Voltage: 9V-16V
• Remote Output Rating: 500mA
• Output Max at 13.8V: 9.5V RMS
• Input Sensitivity: 0.5V-20V
• Frequency Response: 20Hz-20kHz
• Bass Boost: 0dB to +12dB

Identifiers & Packaging

• MPN: AX-BXLOC2
• UPC: 86429430215
• Sold As: Each
• Included Components: Line output converter, remote bass control, and manufacturer-supplied components
