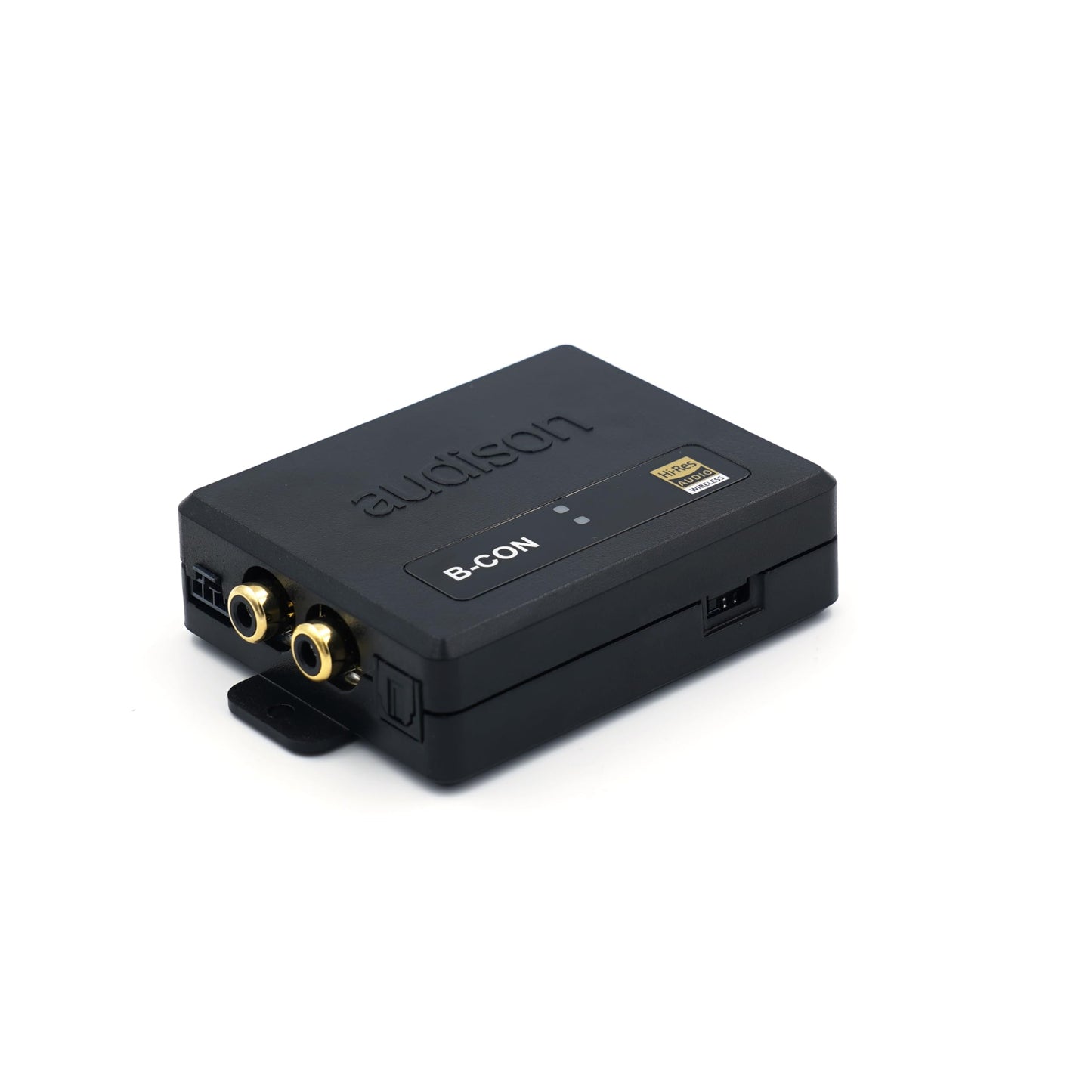

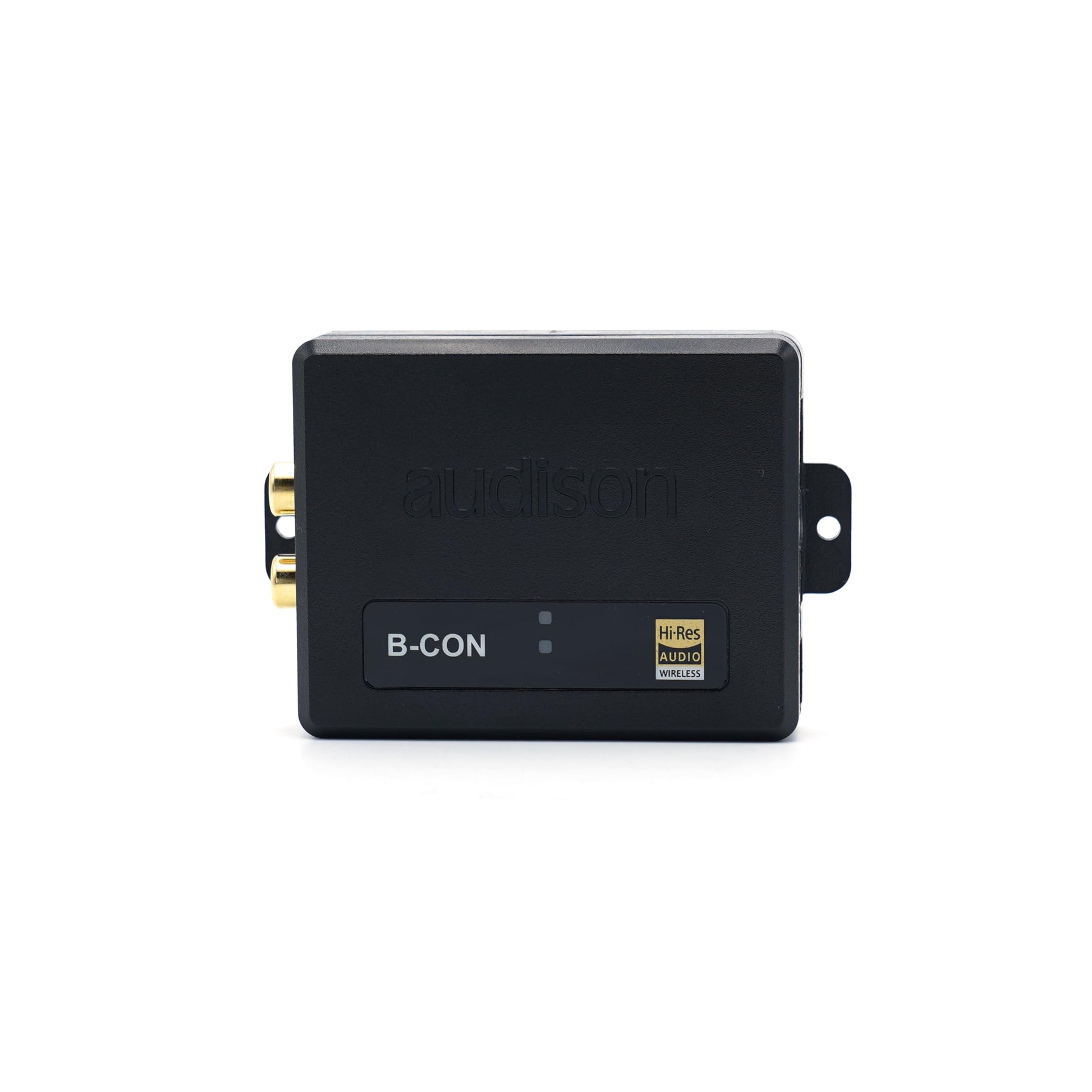

Audison B-CON Bluetooth HI-RES Receiver

Product Overview

The Audison B-CON is the only Bluetooth 5.0 receiver designed for automotive
use that has obtained the “Hi-Res audio wireless” certification from JAS
(Japan Audio Society). B-CON is the ideal choice for streaming audio from a
Hi-Res player (FIIO, Sony Walkman…) and from the latest generation
Android/Apple mobile devices, fully supporting the car’s Hands-Free Bluetooth
profile. B-CON is compatible with all audio formats and reaches maximum
performance with uncompressed BT streaming (max 96kHz / 24bit, only with
Android LDAC devices), both playing local files and with Apps that provide Hi-
Res streaming (Tidal, Qobuz…) In keeping with Audison tradition, during the
design phase particular attention was paid to volume management, a fundamental
aspect for the search for the highest audio quality. The study by the Audison
R&D team focused on the audiophile use of the “Absolute Volume” function. In
the B-CON this manages the Master Volume of the DSP, avoiding the loss of
resolution that occurs when operating on the volume of the mobile device
(mode: Absolute Volume Off), ensuring full dynamic range. Power Supply -
Voltage: 6 ÷ 24 VDC Idling current: 70 mA @ 12 V Remote IN voltage: 3 ÷ 12 VDC
(0.5 mA) + 12 Remote IN voltage:/td >: 6 ÷ 12 VDC (70 mA) USB Micro: 5 V (500
mA) Bluetooth - Type: Bluetooth 5.0 + EDR Codec: LDAC, AAC, SBC Profile:
Bluetooth A2DP 1.3, AVRCP 1.6 Input Output Management - Digital IN delay
switch: 1 sec. Power Connector: AUX SEL wire, MASTER ENABLE wire ADC: Serial
RS232, to manage other Audison devices that support this standard Mode Switch:
Absolute volume ON/OFF, upgrade mode
