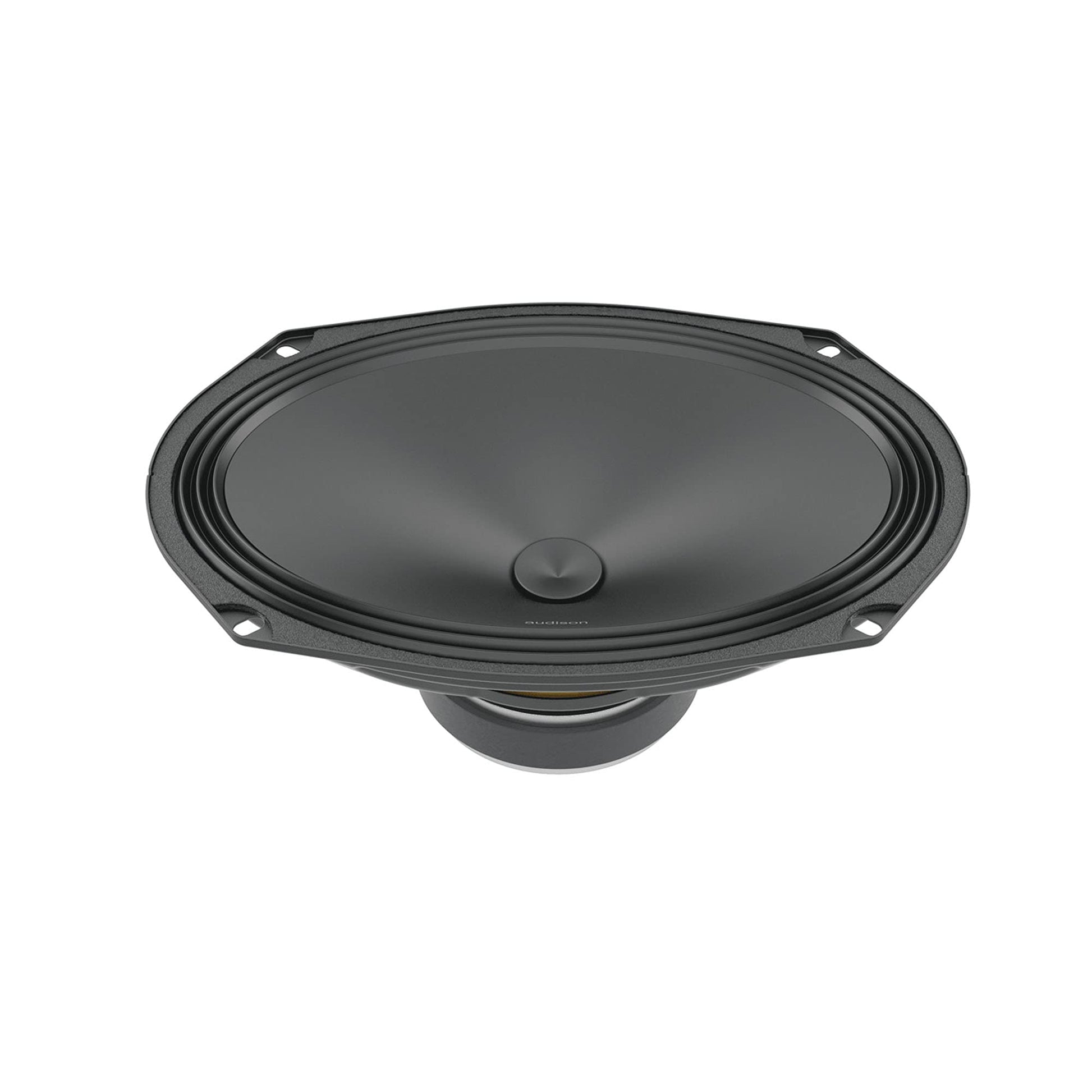

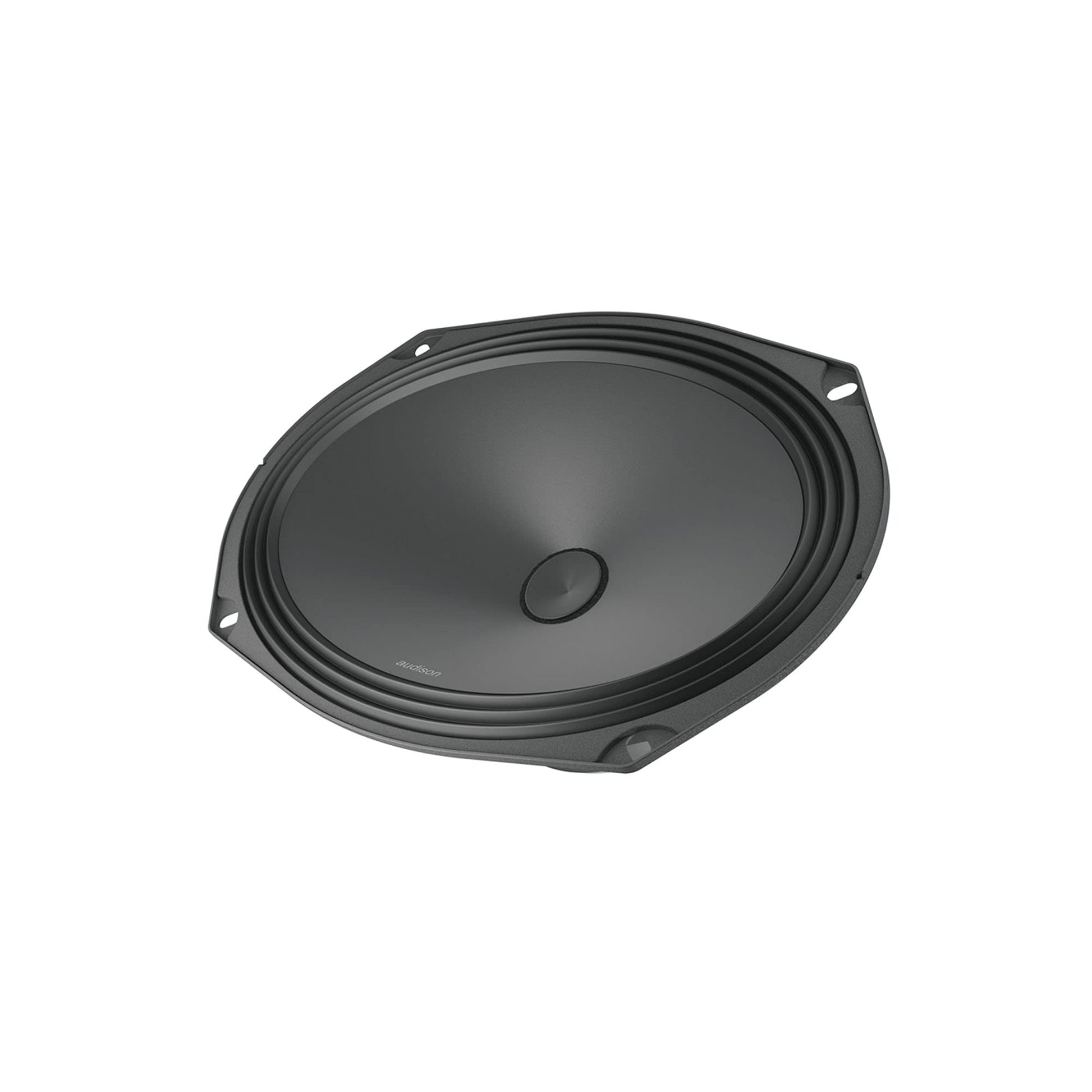

Audison AP 690 Prima 6"x9" 100W RMS 4Ω Woofer Speakers (Pair)

Audison AP 690 is a Prima Series 6" x 9" woofer pair engineered for OEM door locations that accept elliptical speakers. Designed as a midbass driver for multi-way front stages, the AP 690 provides controlled, efficient low-frequency and midbass output with high sensitivity and compact depth for factory door integration.

Technical Specifications — Audison AP 690

• Type: Woofer (pair)
• Size: 6" x 9"
• Impedance: 4Ω
• Continuous Power Handling: 100W RMS
• Peak Power Handling: 300W
• Frequency Response: 40 – 5,000 Hz
• Sensitivity: 95 dB/SPL
• Magnet: high density flux ferrite
• Cone: water-repellent treated paper cone
• Xmax: 4 mm (0.16")

Design & Application Notes

• Optimized electro-acoustic parameters for car door installation
• Elliptical 6x9" basket for OEM door locations
• High sensitivity for strong output with moderate amplifier power
• Intended as a midbass / woofer in active or semi-active systems

Ideal System Use

• Front-stage midbass in 2-way or 3-way Prima systems
• OEM upgrade when factory doors accept 6x9" woofers
• Sound quality builds requiring strong, controlled midbass

What’s Included

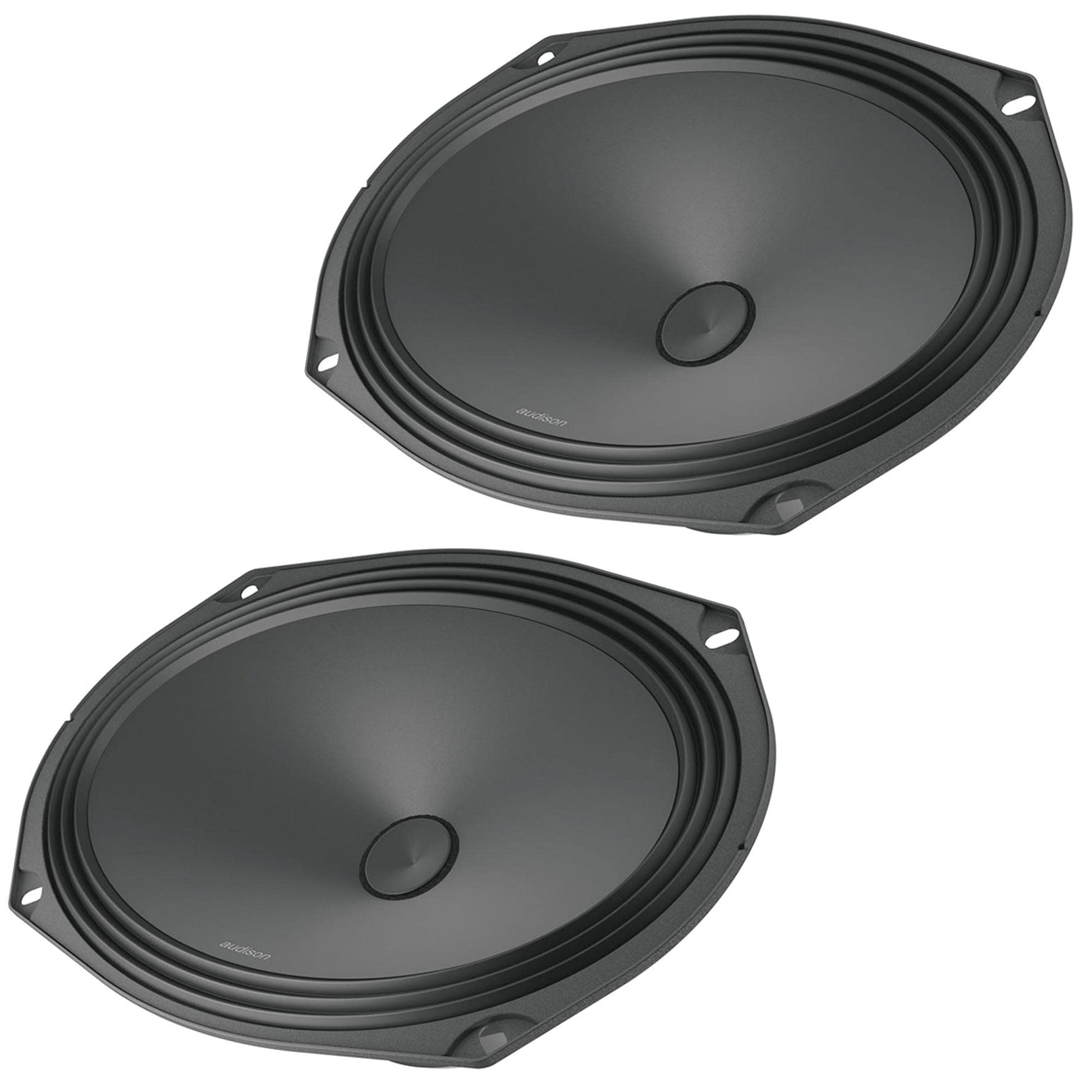

• (2) Audison AP 690 Prima 6" x 9" woofers
• User documentation
