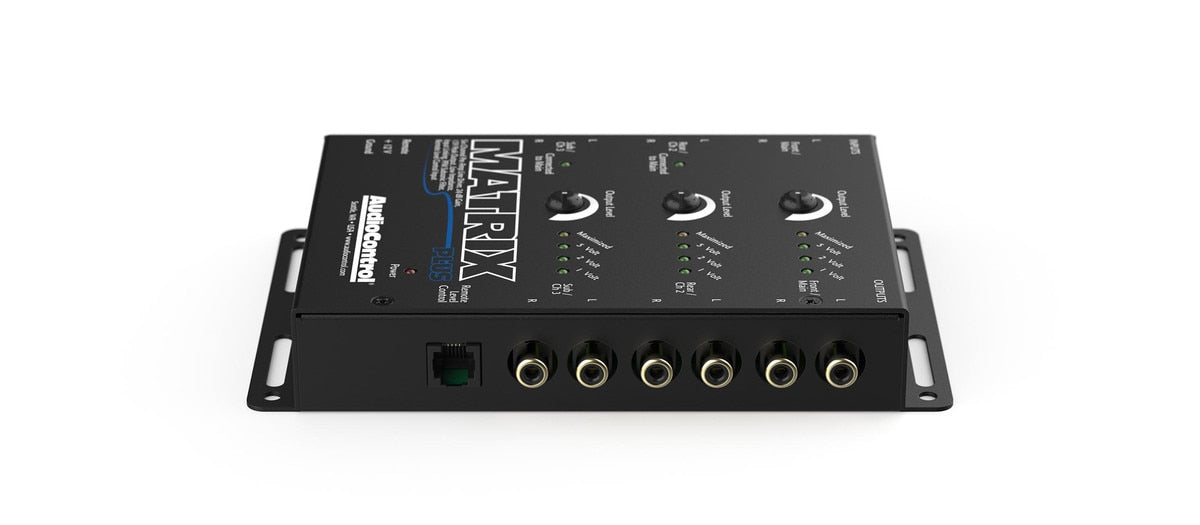

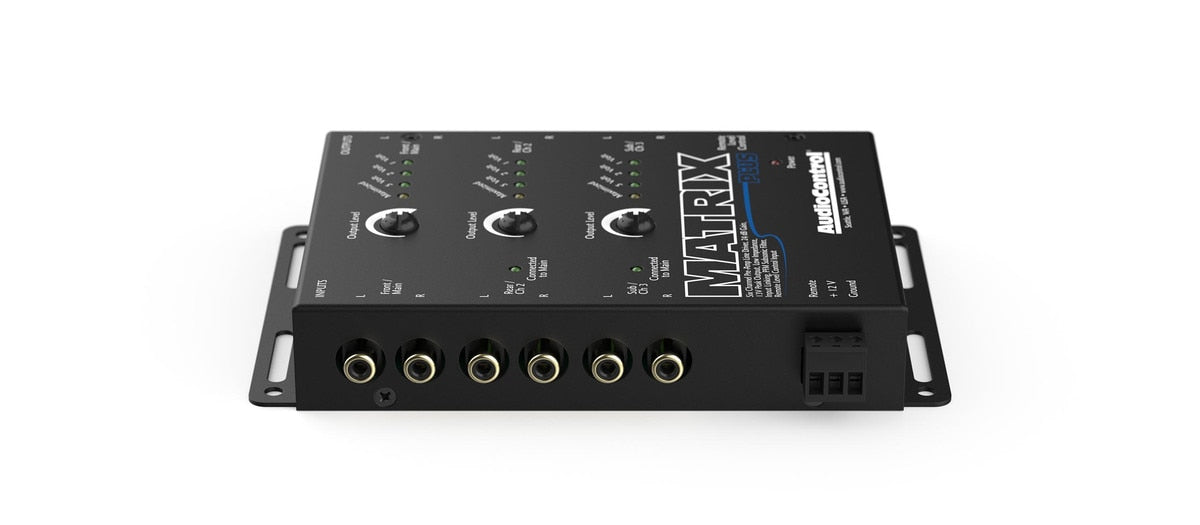

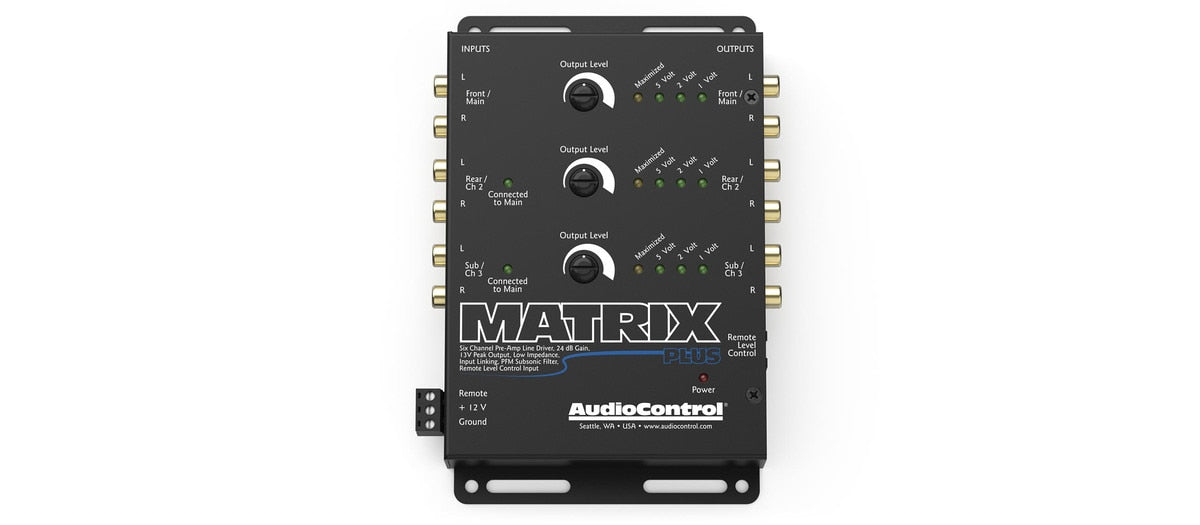

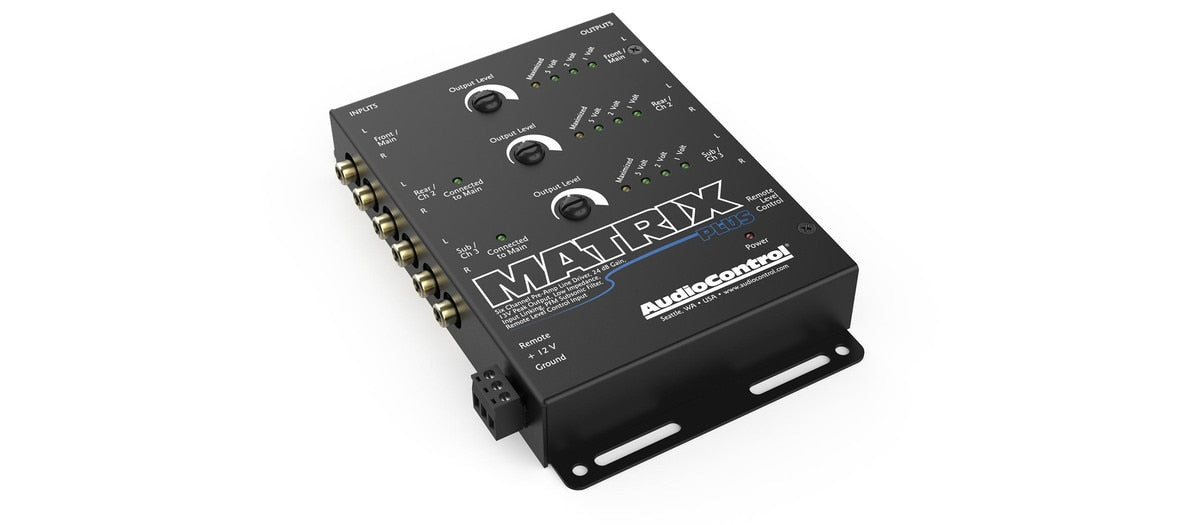

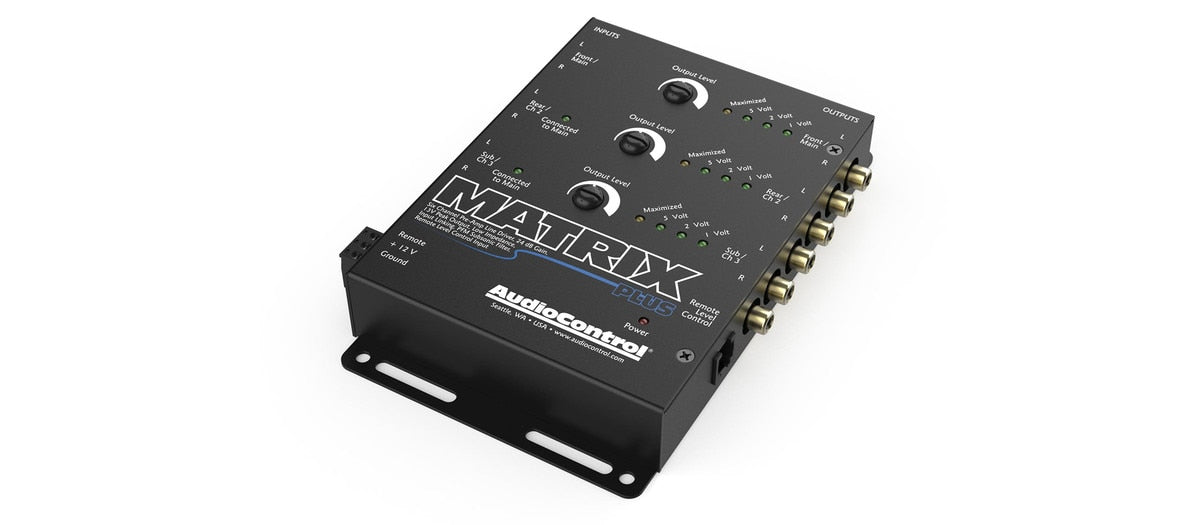

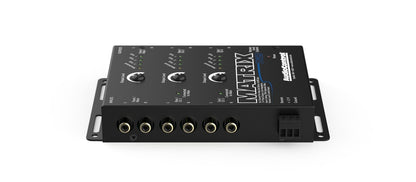

AudioControl MATRIX PLUS 6-Channel Line Driver
AudioControl MATRIX PLUS 6-Channel Line Driver
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Improve level matching between a compatible source and downstream amplifiers with the AudioControl MATRIX PLUS. Six line-level inputs and outputs, adjustable gain and low-impedance outputs support a multi-amplifier system without relying on a weak source signal.
At a Glance
- Six line-level input and output channels
- Gain range -12 to +24 dB
- Balanced differential inputs
- Output-level indicators and ground isolation
- Optional ACR-1 remote sold separately
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. This is a line driver, not a speaker-level LOC or programmable DSP. Conformal coating is not a waterproof rating.
Included Equipment
- MATRIX PLUS
- Power connector
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | MATRIX PLUS |
| UPC | 851523007904 |
| Sold as | Each (one product) |
| Inputs / outputs | 6 line-level channels in / 6 channels out |
| Maximum output | 9.5 Vrms / 13 V peak |
| Gain | -12 to +24 dB |
| Input / output impedance | 20 kOhms / 50 ohms |
| Frequency response | 10 Hz–100 kHz, +/-1 dB |
| Current draw / recommended fuse | 250 mA / 1 A |
| Dimensions, W x D x H | 4.6 x 7.1 x 1.2 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
