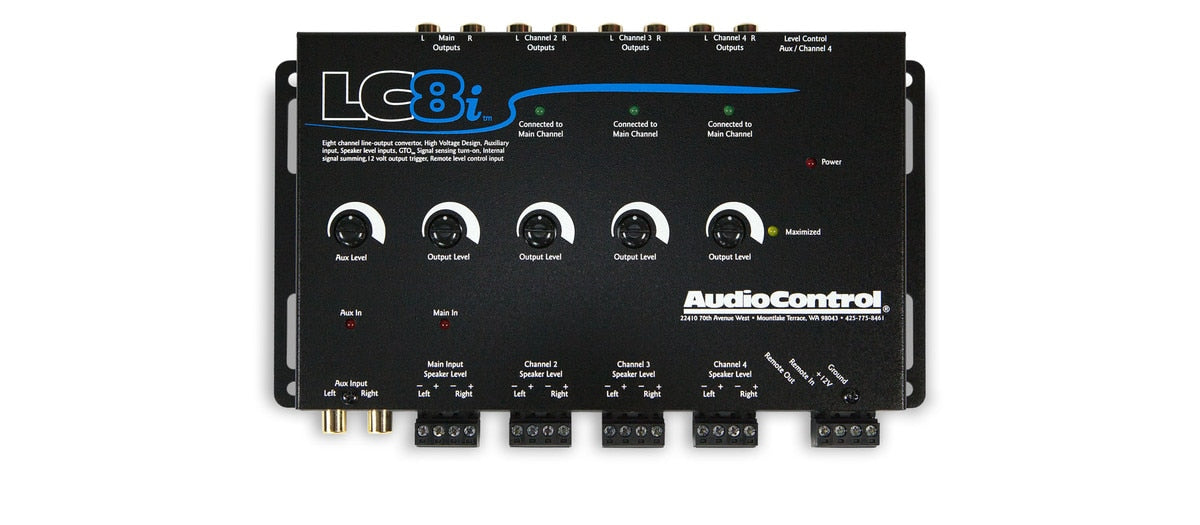

AudioControl LC8i 8-Channel Line Output Converter with Auxiliary Input
AudioControl LC8i 8-Channel Line Output Converter with Auxiliary Input
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Keep a compatible factory source while feeding a multi-amplifier upgrade with the AudioControl LC8i. Eight speaker-level channels are converted to RCA outputs, with internal summing and an auxiliary input for a separate audio source.
At a Glance
- Eight speaker-level input and eight RCA output channels
- Internal channel summing
- Stereo auxiliary line input
- Included ACR-3 control handles source selection, auxiliary volume and subwoofer level
- GTO signal-sensing turn-on
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. Confirm which factory channels carry the required audio before summing. It does not replace the need for downstream power amplifiers.
Included Equipment
- LC8i
- ACR-3 remote
- Speaker/power connectors
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | LC8i |
| UPC | 855814005884 |
| Sold as | Each (one product) |
| Speaker-level channels | 8 |
| Maximum speaker input | 400 W per channel at 4 ohms, as stated by manufacturer |
| Auxiliary input | One stereo line-level input |
| RCA output channels | 8 |
| Input impedance | 20 kOhms |
| Current draw / recommended fuse | 350 mA / 2 A |
| Dimensions, W x D x H | 8.6 x 4.75 x 1.2 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
