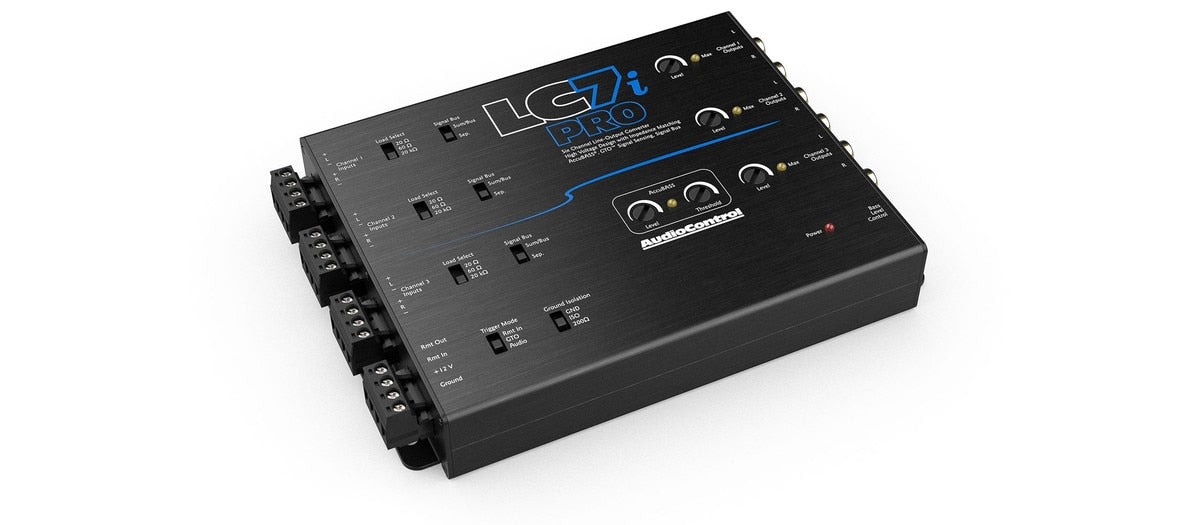

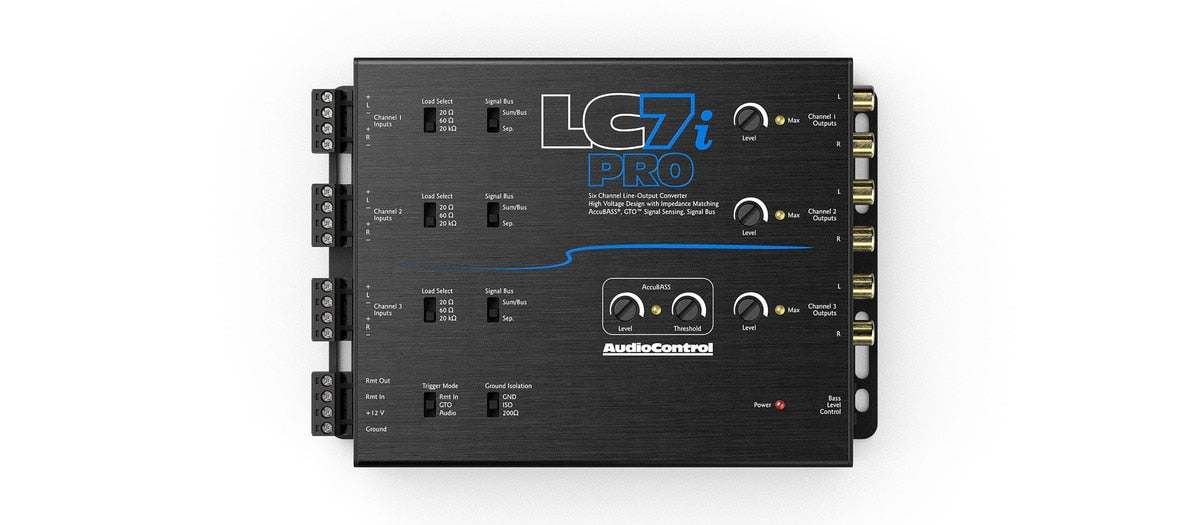

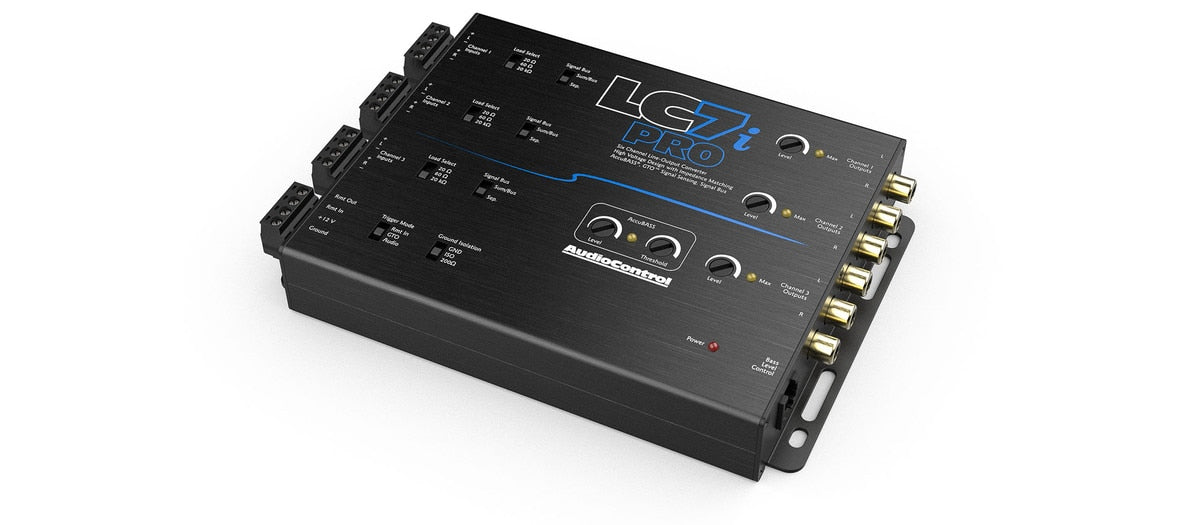

AudioControl LC7i PRO 6-Channel Line Output Converter with AccuBASS
AudioControl LC7i PRO 6-Channel Line Output Converter with AccuBASS
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Connect aftermarket amplification to a compatible factory speaker-level signal with the AudioControl LC7i PRO. 6 input channels feed 6 RCA output channels, while AccuBASS and selectable input loading help address common factory-system integration requirements.
At a Glance
- 6 speaker-level inputs; 6 RCA output channels
- AccuBASS adjustment for factory bass roll-off
- Selectable 20-ohm / 60-ohm / 20-kOhm input load
- Remote, GTO or audio-sensing turn-on
- ACR-1 dash remote included
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. This unit requires constant 12 V power. Factory audio routing and the appropriate load-selection setting must be established for the actual installation.
Included Equipment
- LC7i PRO
- ACR-1 remote
- 20-foot remote cable
- Speaker/power connectors
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | LC7iPRO |
| UPC | 850038647216 |
| Sold as | Each (one product) |
| Speaker-level input channels | 6 |
| RCA output channels | 6 |
| Maximum speaker-level input | 40 Vrms / 400 W at the 20 kOhm setting |
| Maximum output | 9.5 Vrms / 13 V peak |
| Selectable input impedance | 20 ohms / 60 ohms / 20 kOhms |
| Current draw / recommended fuse | 330 mA / 2 A |
| Dimensions, L x D x H | 7 x 5.1 x 1.14 inches including connectors |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
