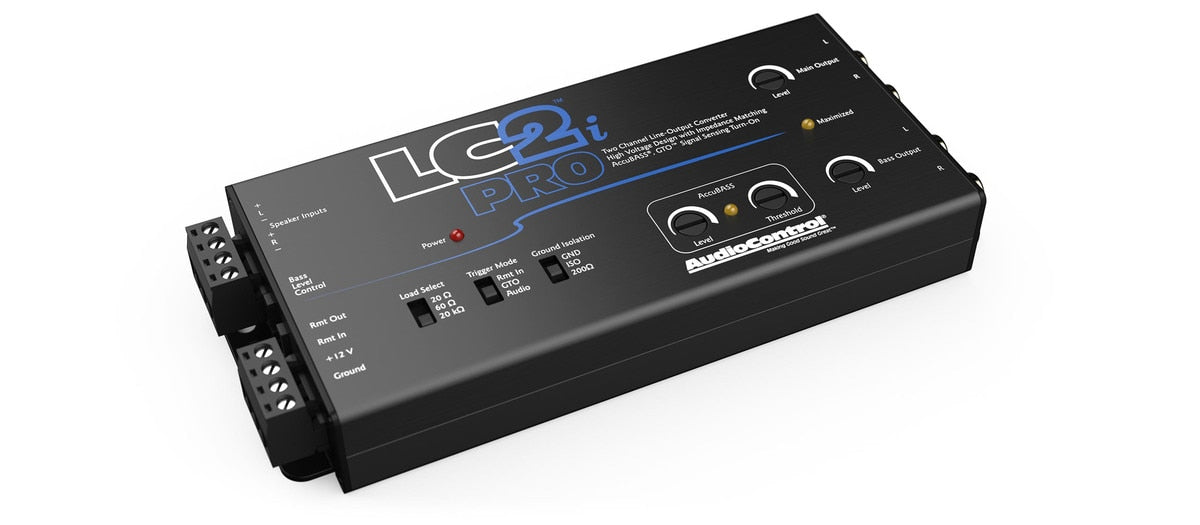

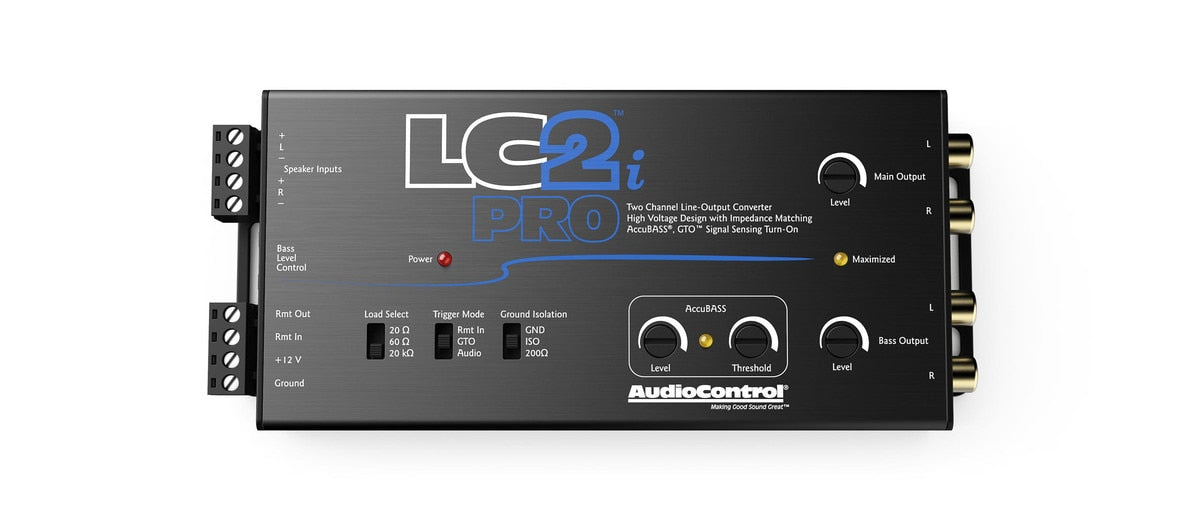

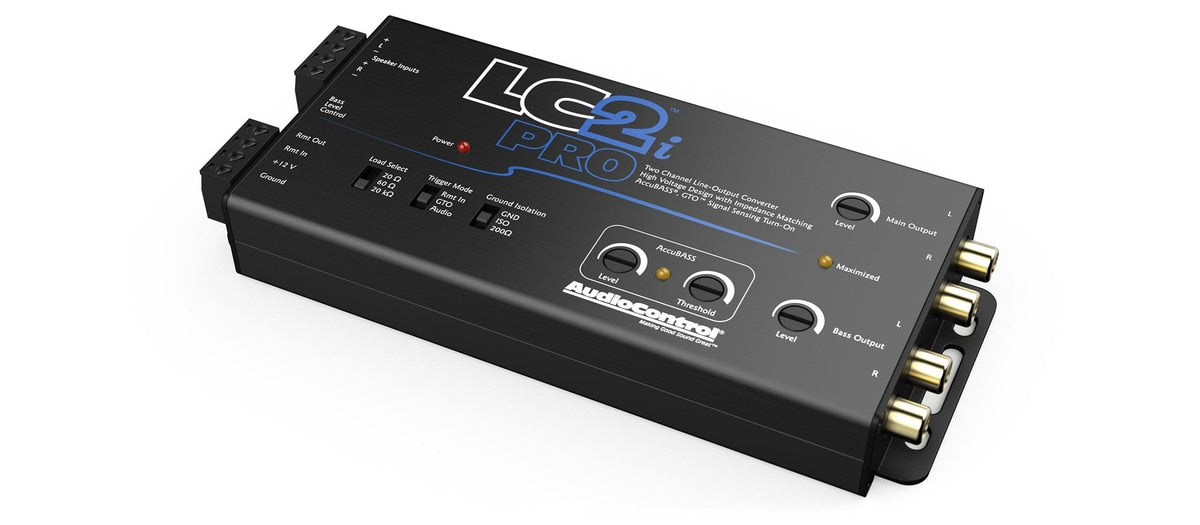

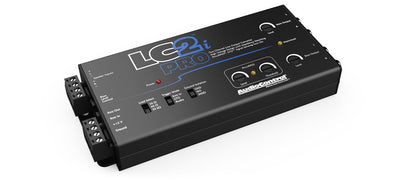

AudioControl LC2i PRO 2-Channel Line Output Converter with AccuBASS
AudioControl LC2i PRO 2-Channel Line Output Converter with AccuBASS
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Add aftermarket amplification to a compatible factory signal with the AudioControl LC2i PRO. It converts two speaker-level input channels to main and bass RCA outputs and includes AccuBASS adjustment for systems that reduce bass as volume rises.
At a Glance
- Two speaker-level inputs; two main and two bass RCA outputs
- AccuBASS bass roll-off adjustment
- Selectable 20-ohm / 60-ohm / 20-kOhm loading
- Remote, GTO or audio-sensing turn-on
- ACR-1 remote and 20-foot cable included
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. Select the appropriate load and turn-on mode for the source system; vehicle-specific wiring is not included.
Included Equipment
- LC2i PRO
- ACR-1 remote
- 20-foot remote cable
- Speaker/power connectors
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | LC2i PRO |
| UPC | 851523007782 |
| Sold as | Each (one product) |
| Maximum speaker input | 40 Vrms / 400 W at the 20 kOhm setting |
| Maximum output | 9.5 Vrms / 13 V peak |
| Output gain | +/-12 dB |
| Current draw / recommended fuse | 200 mA / 1 A |
| Dimensions, L x D x H | 6.9 x 3 x 1 inches including connectors |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
