AudioControl EPICFOUR 4-Channel Class D Amplifier
AudioControl EPICFOUR 4-Channel Class D Amplifier
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Give a four-speaker system dedicated amplification with the AudioControl EPICFOUR. Its compact Class D layout supports stereo or bridged configurations, with adjustable high-pass filtering for matching the amplifier to the connected speakers.
At a Glance
- Four full-range channels
- 100 W x 4 at 4 ohms; 200 W x 4 at 2 ohms
- 400 W x 2 when bridged at 4 ohms
- Adjustable 12 dB/octave high-pass filtering
- Automatic-reset protection circuitry
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit.
Included Equipment
- EPICFOUR amplifier
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | EPICFOUR |
| UPC | 850038647797 |
| Sold as | Each (one product) |
| RMS power at 14.4 V | 100 W x 4 at 4 ohms; 200 W x 4 at 2 ohms |
| Bridged RMS power at 14.4 V | 400 W x 2 at 4 ohms |

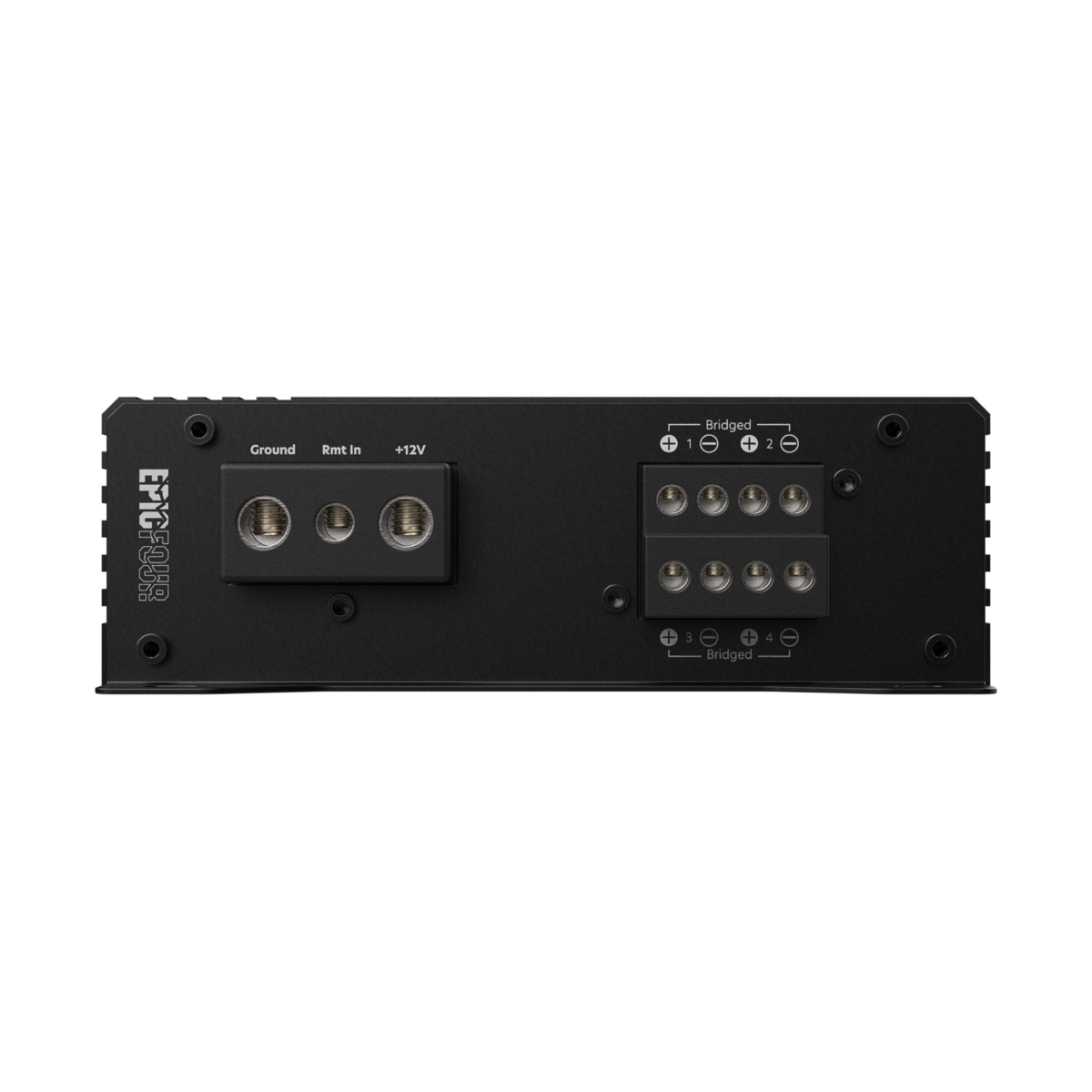

| Power / speaker terminals | 4 AWG power; 8 AWG speaker |
| Dimensions, W x L x H | 6.1 x 9.41 x 2.09 inches |
| Remote level control | Not included / not provided on this model |
| EPICENTER Link | No |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
