AudioControl EPICFIVE 5-Channel Amplifier with Remote Level Control
AudioControl EPICFIVE 5-Channel Amplifier with Remote Level Control
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Power four speakers and a subwoofer from one AudioControl EPICFIVE. Separate full-range and subwoofer outputs simplify a complete system build, while adjustable filters and the included remote help balance the bass with the rest of the system.
At a Glance
- Four full-range channels plus a dedicated subwoofer channel
- 75 W x 4 plus 300 W x 1 at 4 ohms
- 150 W x 4 plus 500 W x 1 at 2 ohms
- Remote level control included
- EPICENTER Link connection for a separately sold bass restoration processor
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit. The 1-ohm rating applies to the subwoofer channel, not the four full-range channels.
Included Equipment
- EPICFIVE amplifier
- Remote level control
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | EPICFIVE |
| UPC | 850038647803 |
| Sold as | Each (one product) |
| RMS power at 14.4 V, 4 ohms | 75 W x 4 + 300 W x 1 |
| RMS power at 14.4 V, 2 ohms | 150 W x 4 + 500 W x 1 |
| Bridged full-range output | 300 W x 2 at 4 ohms |
| Subwoofer channel at 1 ohm | 700 W x 1 at 14.4 V |

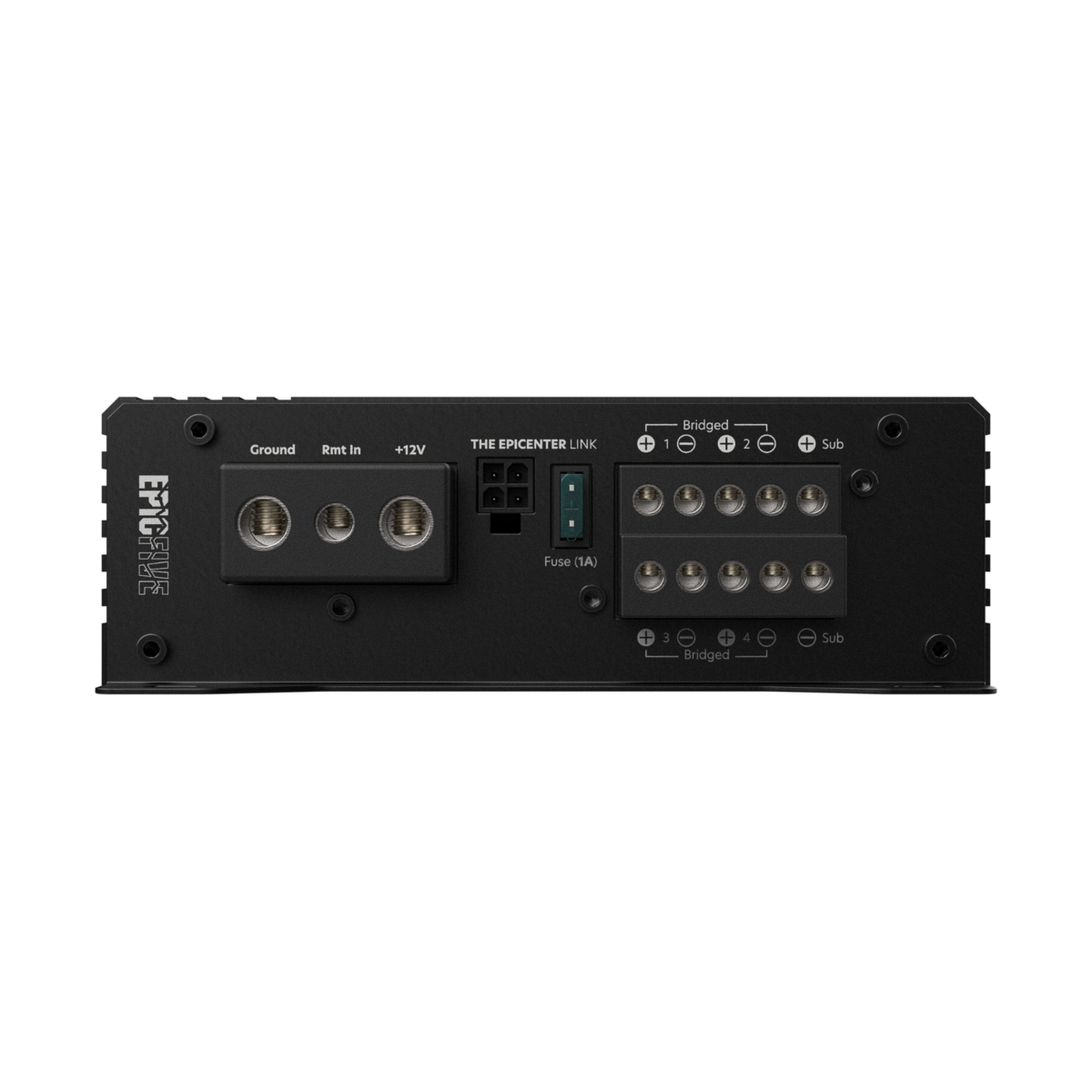

| Power / speaker terminals | 4 AWG power; 8 AWG speaker |
| Dimensions, W x L x H | 6.1 x 13.35 x 2.01 inches |
| Subsonic filter | Yes |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
