AudioControl The Epicenter PRO Bass Restoration Processor & Line Driver
AudioControl The Epicenter PRO Bass Restoration Processor & Line Driver
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Bring bass restoration and line-level signal control to an aftermarket subwoofer system with The Epicenter PRO. ParaBASS adjustments shape the restored low frequencies, while the included dual-knob ACR-4 remote controls the effect and output level.
At a Glance
- Bass restoration with adjustable frequency shaping
- Balanced line-level inputs; built-in line driver
- Selectable output voltage and 24 Hz / bypass PFM filter
- ACR-4 dual-knob remote included
- Line-level processor: not a speaker-level LOC
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. This model requires a line-level signal. Use the appropriate converter/interface if the factory system supplies only speaker-level outputs.

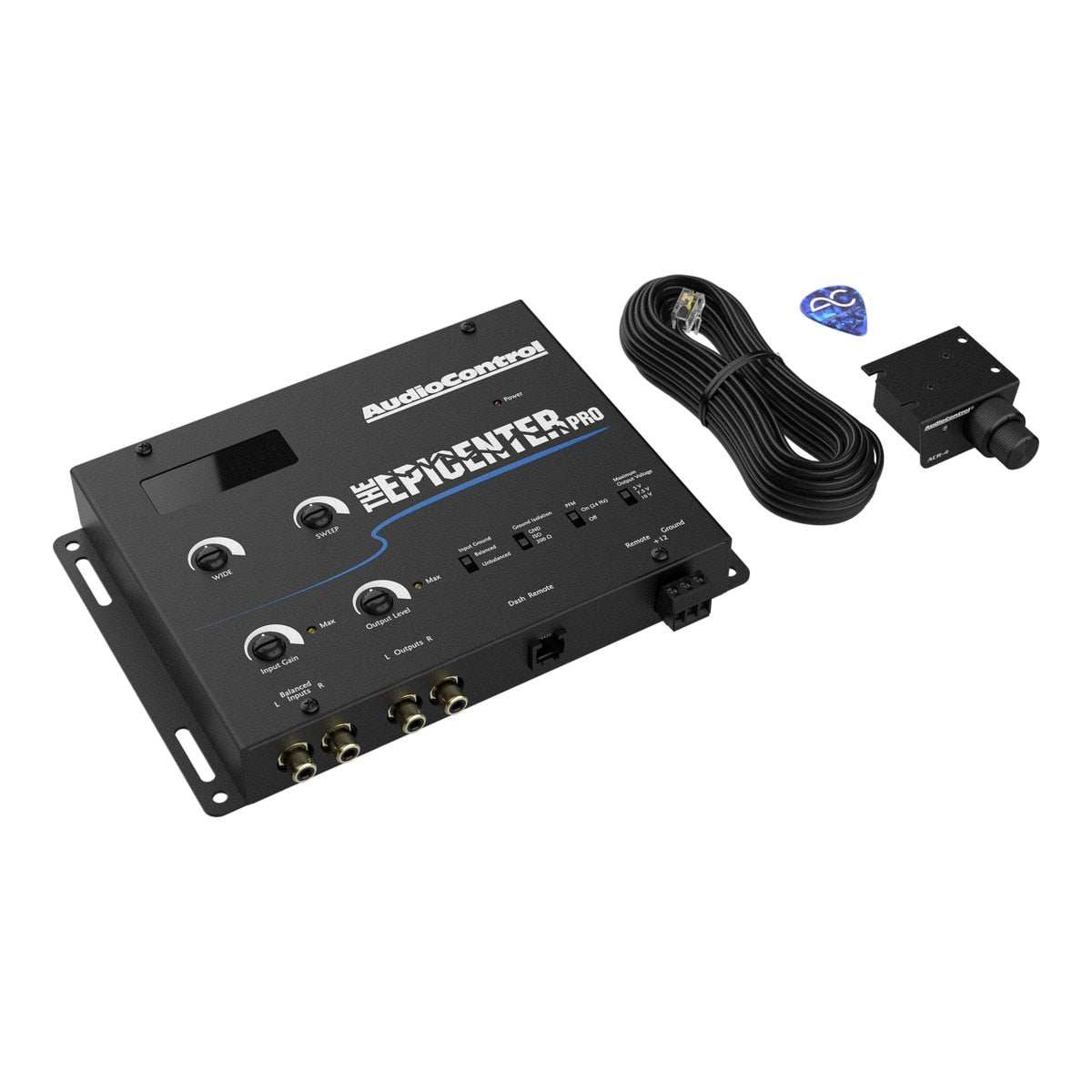

Included Equipment
- The Epicenter PRO
- ACR-4 remote and cable
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | Epicenter Pro |
| UPC | 810194210112 |
| Sold as | Each (one product) |
| Maximum RCA input | 10 Vrms |
| Maximum output, THD under 1% | 9 Vrms / 13 V peak |
| Input / output impedance | 7 kOhms / 150 ohms |
| PFM filter | 24 Hz or bypass |
| Current draw / recommended fuse | 300 mA / 1 A |
| Dimensions, W x D x H | 8 x 5.5 x 1.2 inches; connectors excluded |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
