AudioControl The Epicenter Micro PRO Bass Restoration Processor & LOC
AudioControl The Epicenter Micro PRO Bass Restoration Processor & LOC
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

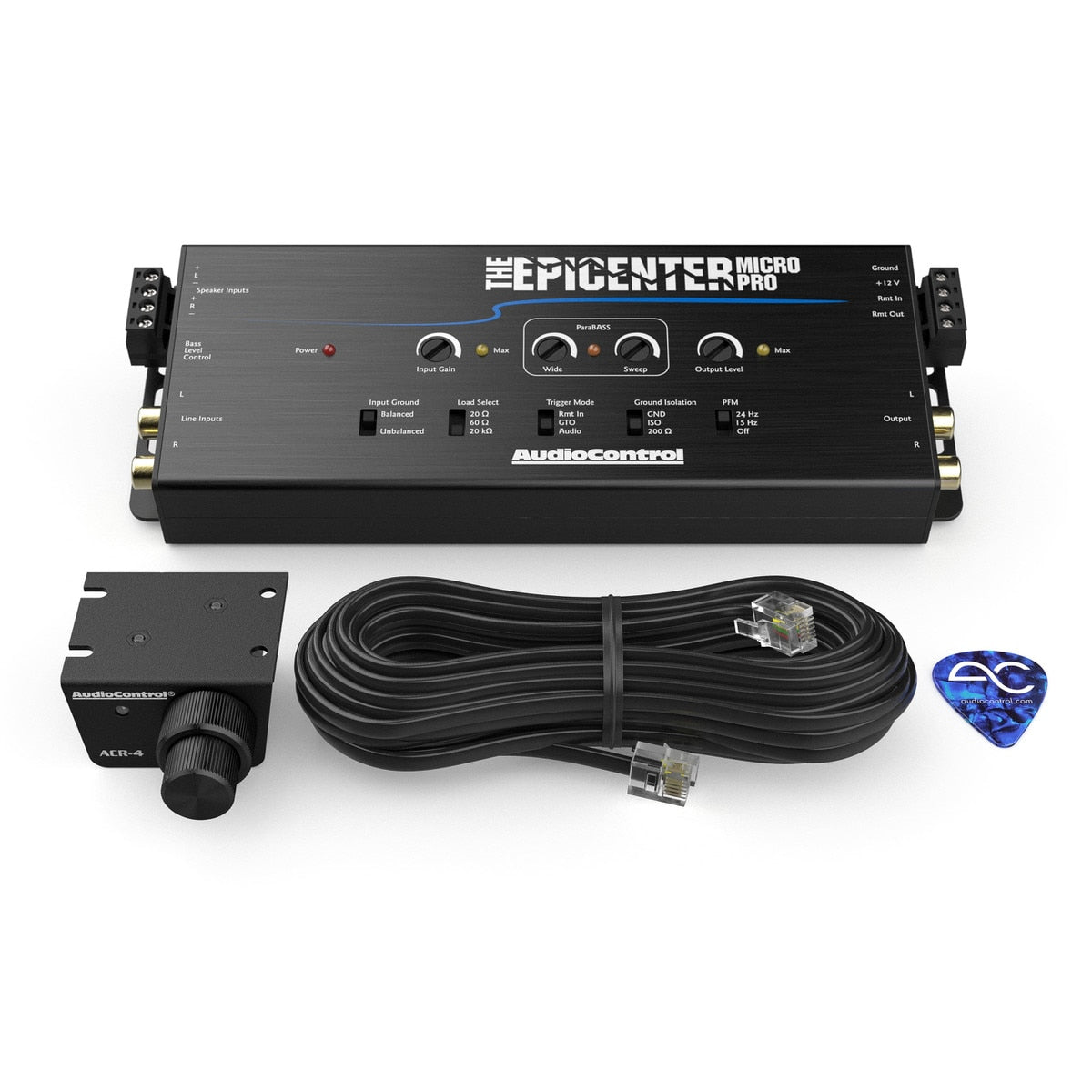

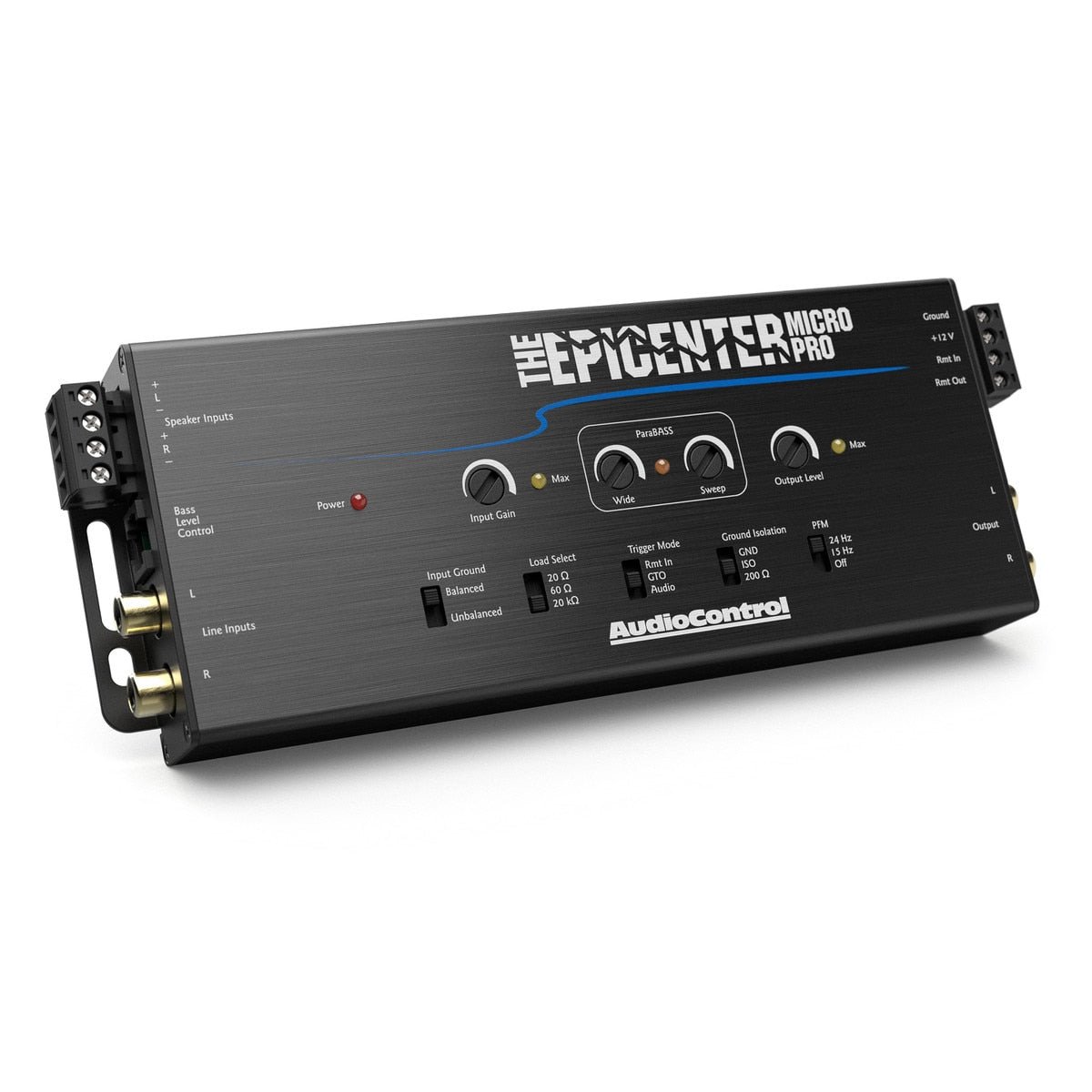

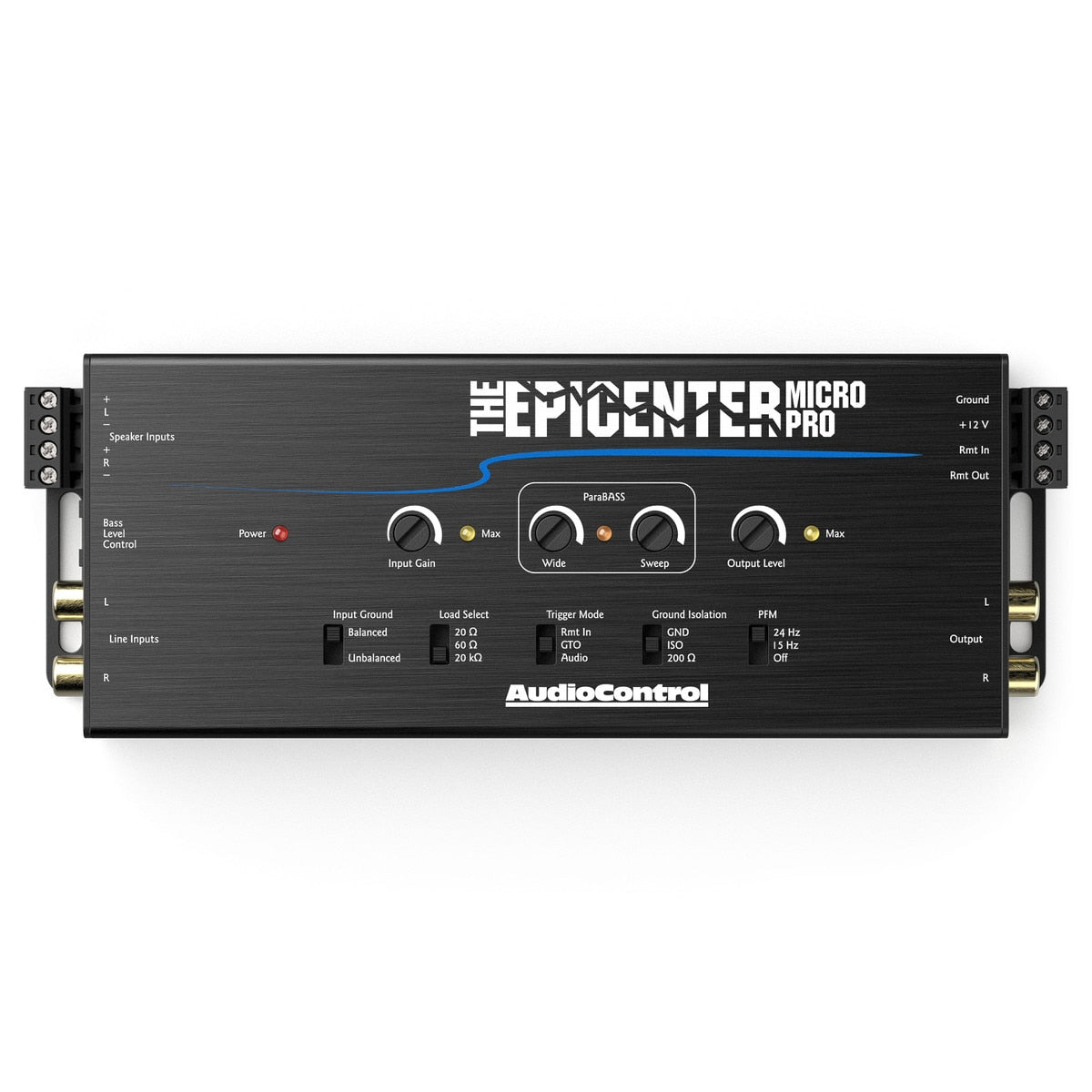

Add bass restoration while converting a compatible factory audio signal with The Epicenter Micro PRO. Speaker-level and balanced line-level inputs, selectable loading and multiple turn-on modes give the installer more options than a simple passive converter.
At a Glance
- Speaker-level and balanced RCA inputs
- Bass restoration with ParaBASS controls
- Selectable loading, ground isolation and PFM filter bypass
- GTO or audio-sensing turn-on
- ACR-4 dual-knob remote included
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. Match the loading and output settings to the actual factory system and amplifier. A conformally coated circuit board does not make the unit waterproof.
Included Equipment
- The Epicenter Micro PRO
- ACR-4 remote and cable
- Speaker/power connectors
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | EPICENTER MICRO PRO |
| UPC | 850038647858 |
| Sold as | Each (one product) |
| Input types | Speaker-level and line-level |
| Maximum line-level input | 10 Vrms |
| Maximum speaker-level input | 40 Vrms / 400 W at the 20 kOhm setting |
| Remote | ACR-4 included |
| PCB treatment | Conformal coating; no waterproof rating claimed |
| Dimensions, W x D x H | 8 x 3 x 1 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
