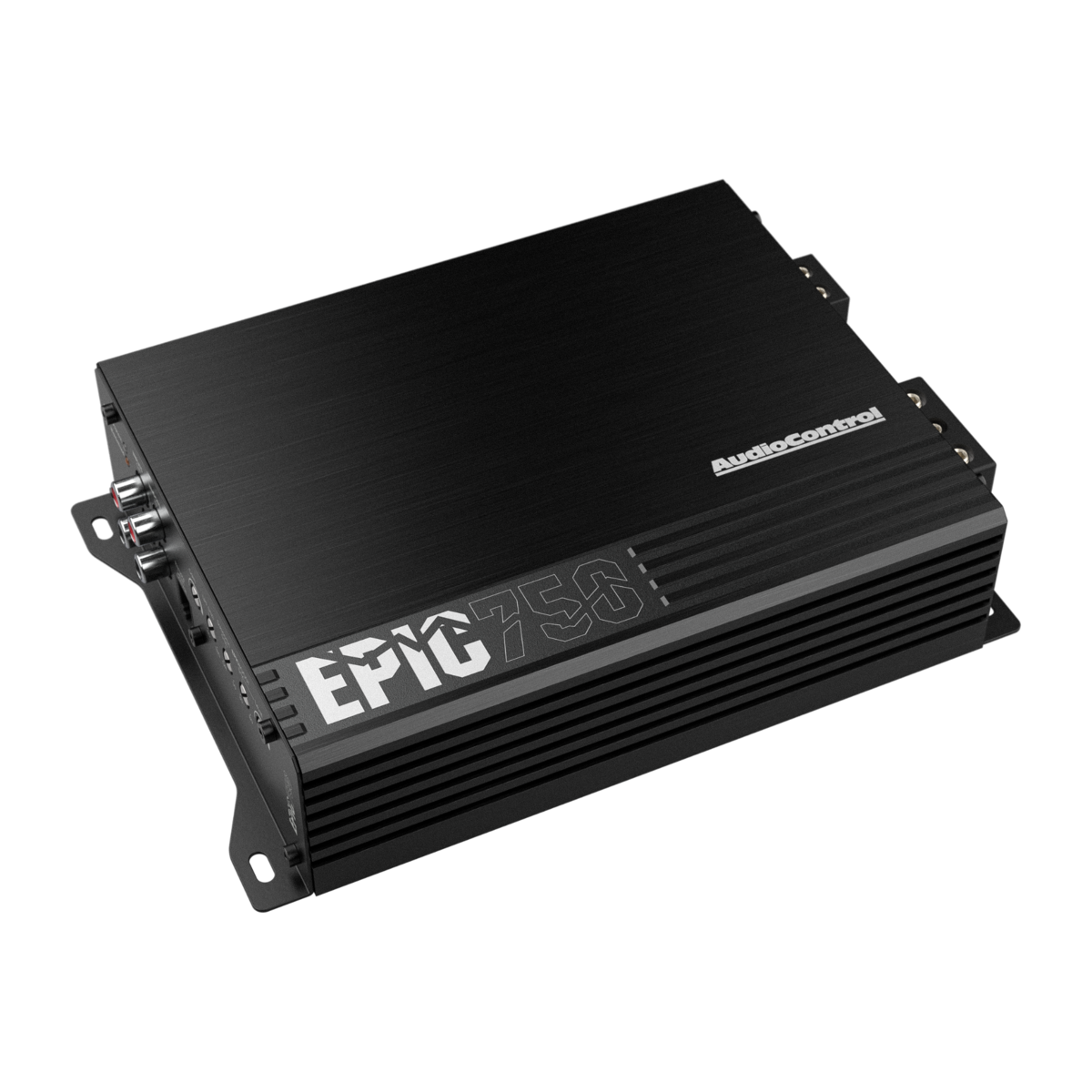

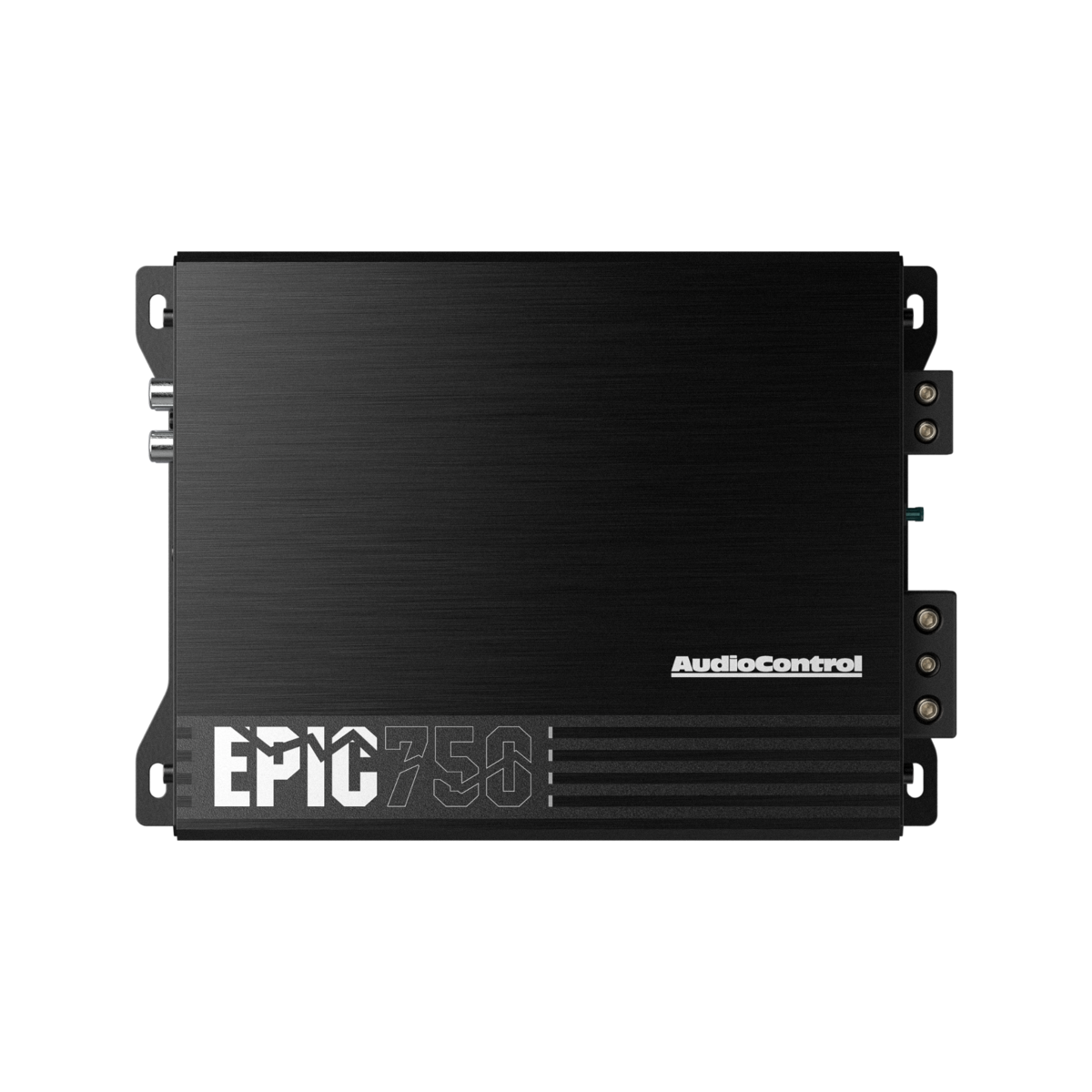

AudioControl EPIC750 Monoblock Subwoofer Amplifier with Bass Remote
AudioControl EPIC750 Monoblock Subwoofer Amplifier with Bass Remote
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Give a compatible subwoofer system its own amplifier with the AudioControl EPIC750. Adjustable low-pass and subsonic filtering help shape the operating range, and the included ACR-E remote lets the driver trim bass level without opening the amplifier controls.
At a Glance
- 300 W at 4 ohms; 500 W at 2 ohms; 750 W at 1 ohm
- Class D monoblock subwoofer design

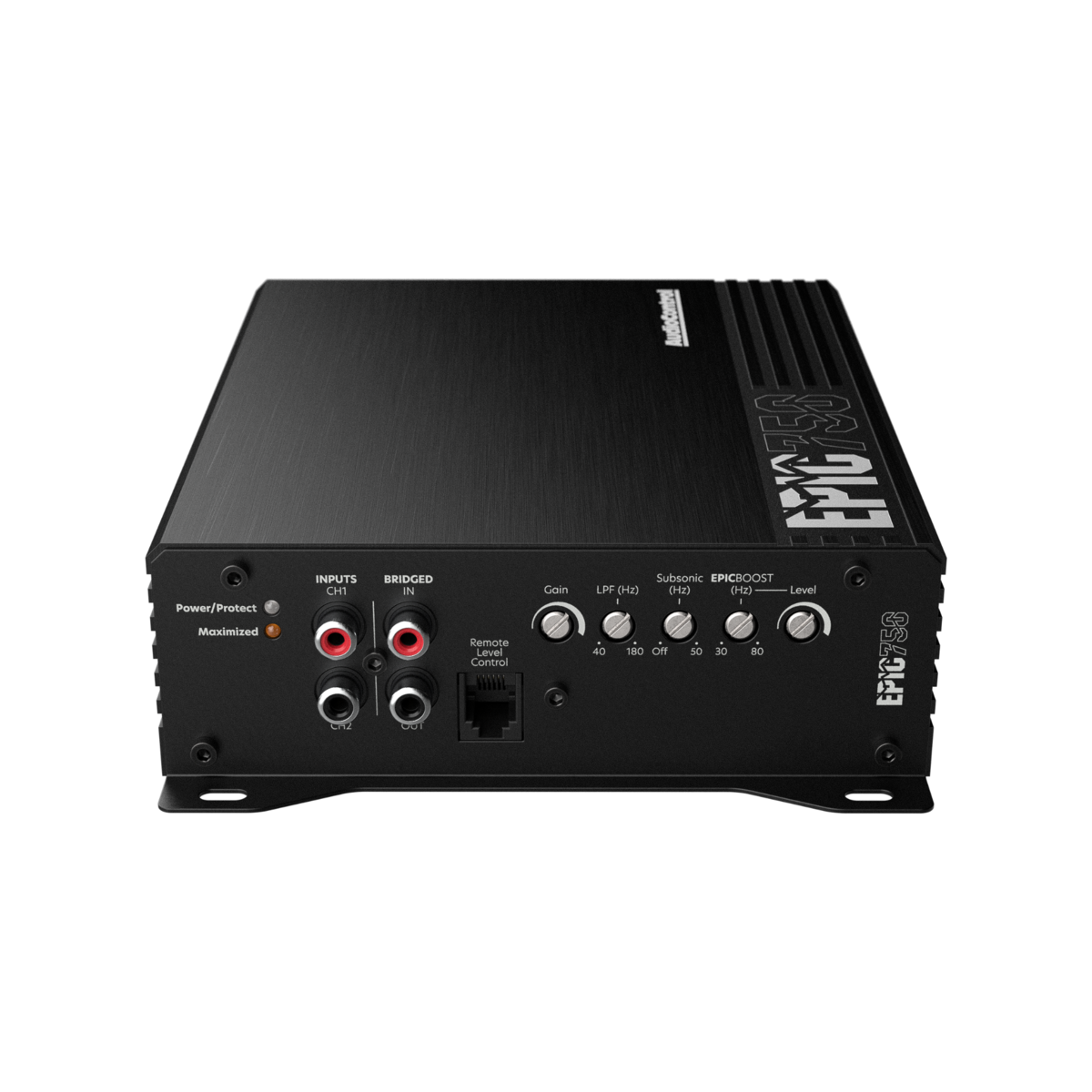

- Adjustable low-pass and subsonic filters
- ACR-E level remote included
- EPICENTER Link for a separately sold bass restoration processor
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit. Final load depends on subwoofer voice-coil wiring. The Epicenter processor is sold separately; EPICENTER Link does not mean bass restoration is built into the amplifier.
Included Equipment
- EPIC750 amplifier
- ACR-E remote level control
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | EPIC750 |
| UPC | 850038647759 |
| Sold as | Each (one product) |
| Continuous RMS power at 14.4 V | 300 W x 1 at 4 ohms; 500 W x 1 at 2 ohms; 750 W x 1 at 1 ohm |
| Minimum stated speaker load | 1 ohm |

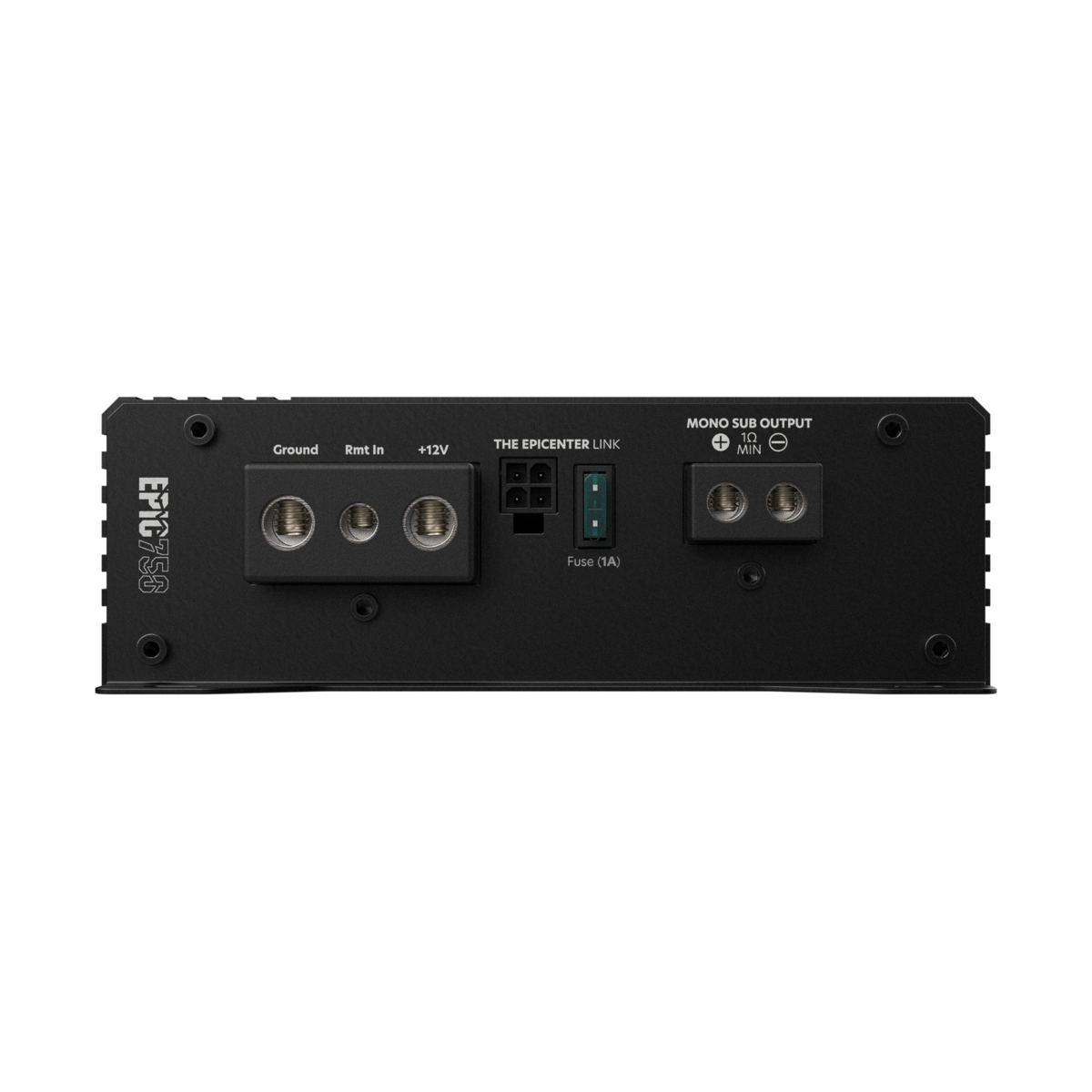

| Power / speaker terminals | 4 AWG power; 8 AWG speaker |
| Chassis dimensions, L x W x H | 8.58 x 6.1 x 2.09 inches |
| Bass boost | Adjustable up to 12 dB |
| Remote level control | ACR-E included |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
