AudioControl EPIC4000 4,000W RMS Monoblock Subwoofer Amplifier
AudioControl EPIC4000 4,000W RMS Monoblock Subwoofer Amplifier
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
The AudioControl EPIC4000 is designed for a high-current subwoofer installation, rated at 4,000 watts RMS into a 1-ohm load. Plan the vehicle's electrical supply and cable routing before purchase: this model requires dual 0-AWG power and ground connections, not a typical small-amplifier wiring kit.
At a Glance
- 1,000 W at 4 ohms, 2,000 W at 2 ohms or 4,000 W at 1 ohm
- Dual 0-AWG power and ground connections required

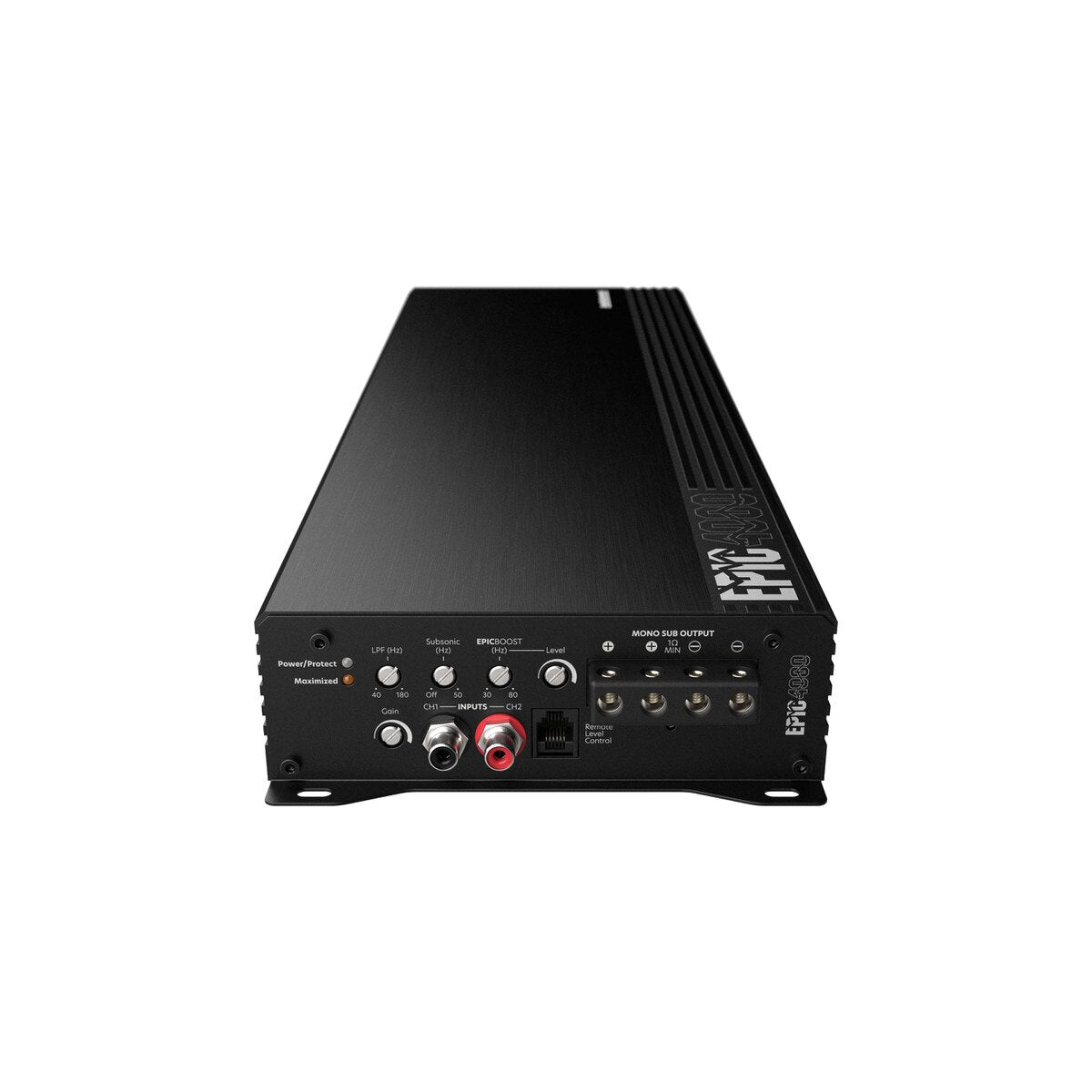

- Variable low-pass, subsonic and bass-boost controls
- ACR-E remote and EPICENTER Link harness included
- Secure vehicle mounting required; do not mount to a subwoofer enclosure
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit. Follow the exact dual-feed installation requirements in the manual. The manufacturer says not to mount this amplifier on a subwoofer enclosure and to disable the vehicle's start-stop function while it operates.
Included Equipment
- EPIC4000 amplifier
- Wrench and screws
- ACR-E remote and cable
- 1-meter EPICENTER Link harness
- Manual
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | EPIC4000 |
| UPC | 810194210075 |
| Sold as | Each (one product) |
| RMS power at 14.4 V, under 1% THD | 1,000 W x 1 at 4 ohms; 2,000 W x 1 at 2 ohms; 4,000 W x 1 at 1 ohm |
| Line-level input | 0.5–12 Vrms |
| Low-pass filter | 12 dB/octave Linkwitz-Riley, 40–180 Hz |
| Subsonic filter | 12 dB/octave; off to 50 Hz |

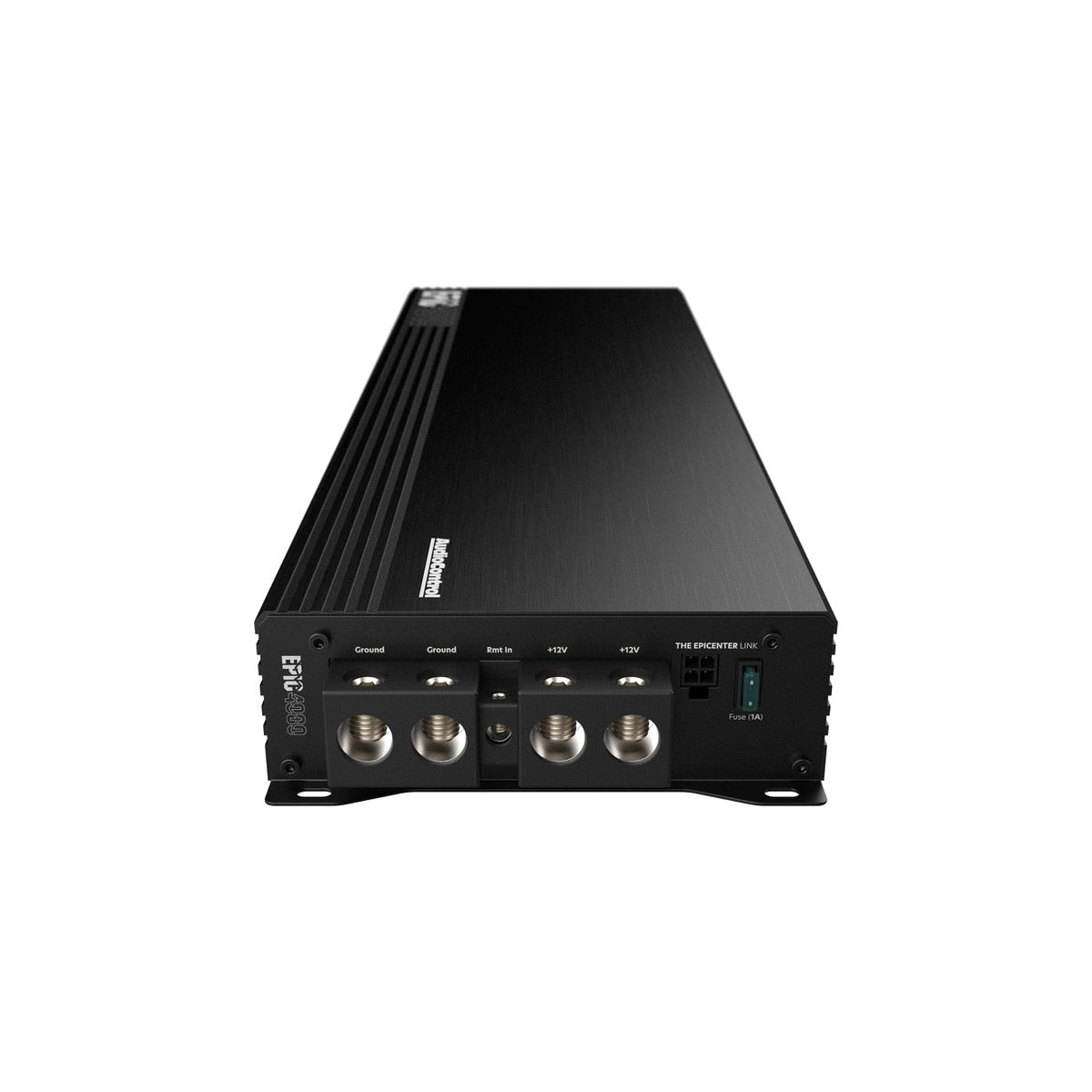

| Power / ground connections | Two 0-AWG power wires and two 0-AWG ground wires; OFC cable |
| Fusing | Each 0-AWG positive feed requires a 200 A fuse within 12 inches of its battery connection |
| Speaker terminal gauge | 8 AWG |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
