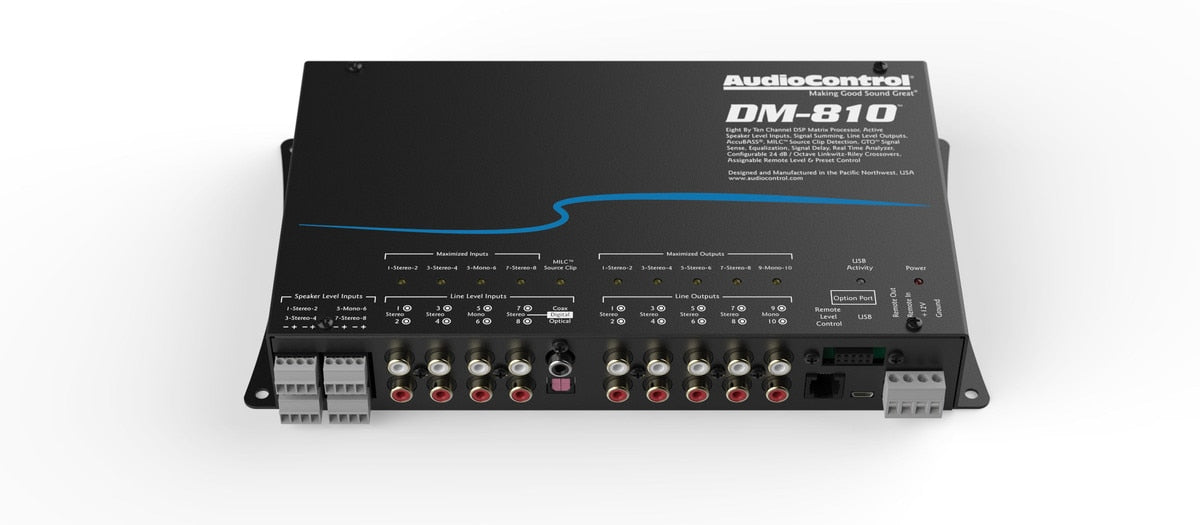

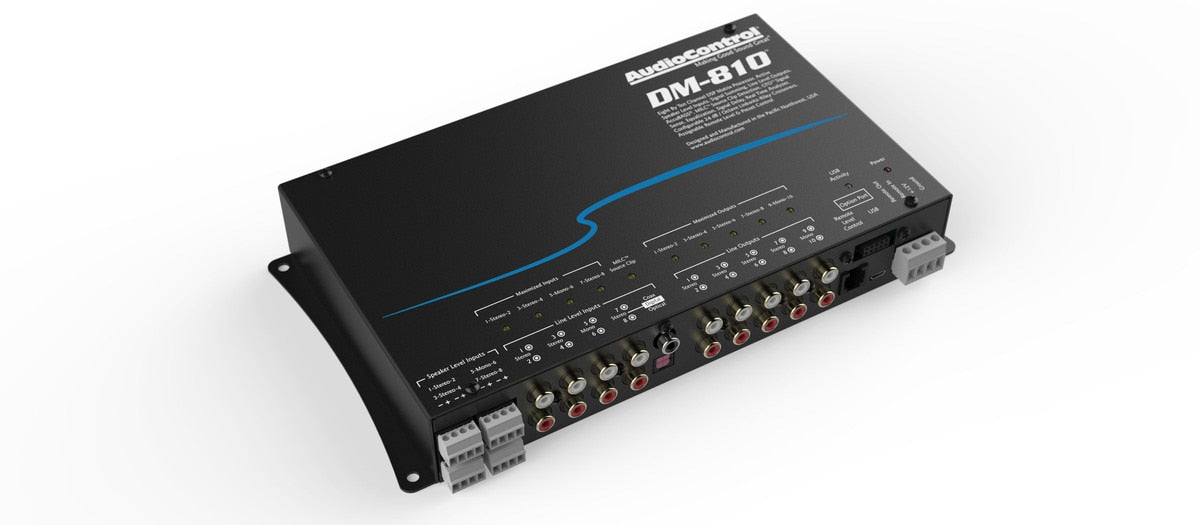

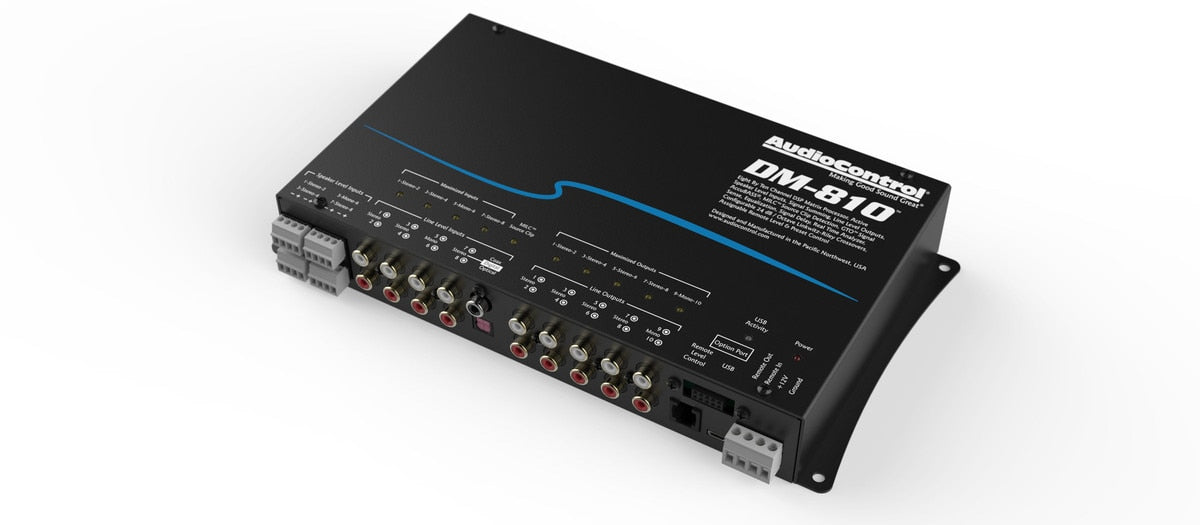

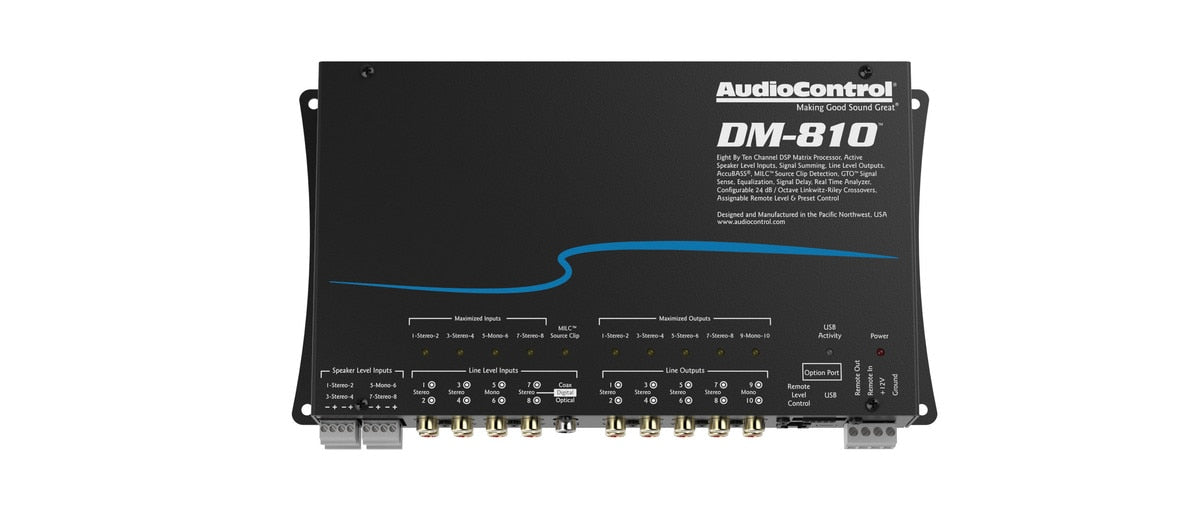

AudioControl DM-810 8-Input / 10-Output Digital Signal Processor
AudioControl DM-810 8-Input / 10-Output Digital Signal Processor
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Build a tuned multi-amplifier system around the AudioControl DM-810. Its eight analog input channels and ten preamp outputs support flexible signal routing, while DM Smart DSP software provides equalization, time alignment, summing and crossover control.
At a Glance
- Eight analog input channels and ten preamp outputs
- Speaker-level, line-level, optical and coaxial input options
- 30-band equalization with delay and signal summing
- Input/output RTA and MILC clip detection
- Optional ACR-3 control and AC-BT24 Bluetooth module sold separately
Compatibility & Installation Requirements
Use with a compatible factory or aftermarket audio signal and downstream amplifier. Verify input voltage, channel routing and grounding for the actual system. This active unit requires appropriate fused power and ground wiring; it is not a vehicle-specific plug-and-play harness. This is a signal processor, not a speaker-power amplifier. Separate power amplifiers and tuning/configuration are required. Bluetooth requires the optional module.
Included Equipment
- DM-810 processor
- Power/speaker connectors
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | DM-810 |
| UPC | 855814005969 |
| Sold as | Each (one product) |
| Analog input channels | 8 high-level / 8 low-level |
| Digital inputs | Optical Toslink and coaxial |
| Preamp output channels | 10 |
| Crossovers | 12 / 24 dB/octave Linkwitz-Riley |
| Current draw / recommended fuse | 1 A / 3 A |
| Dimensions, W x D x H | 10.5 x 5.7 x 1.6 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
