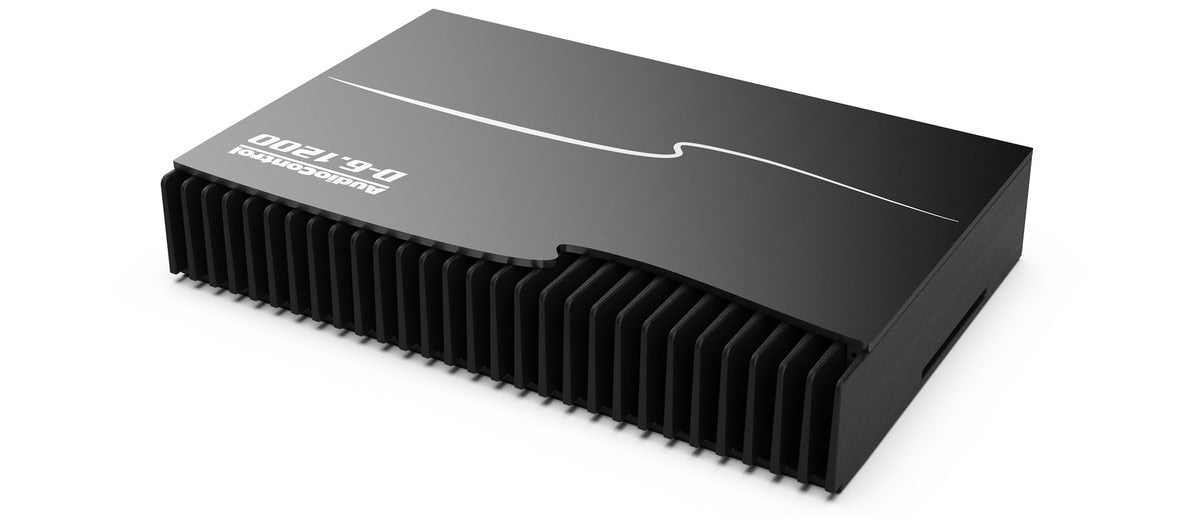

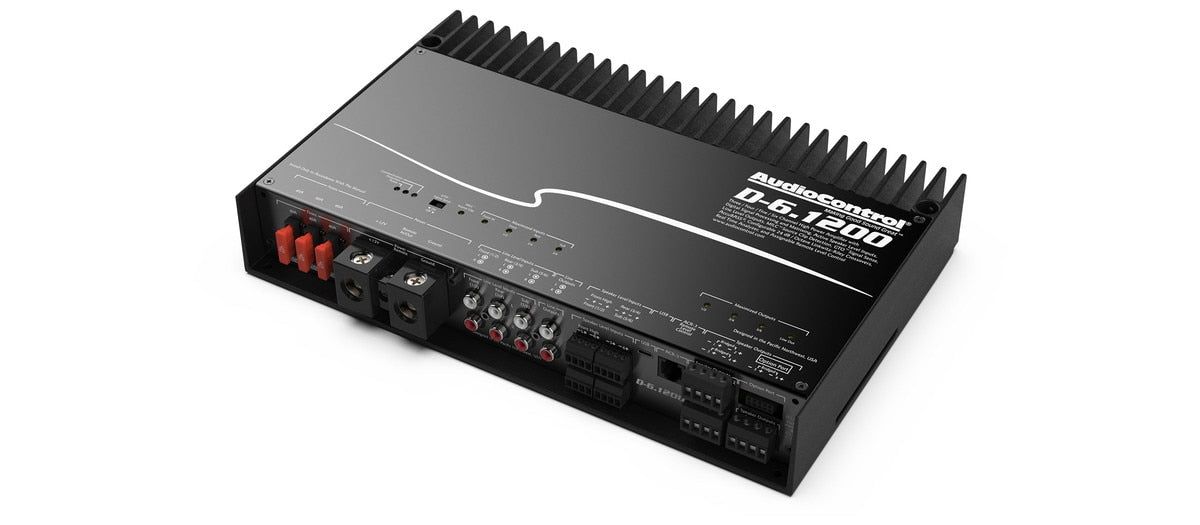

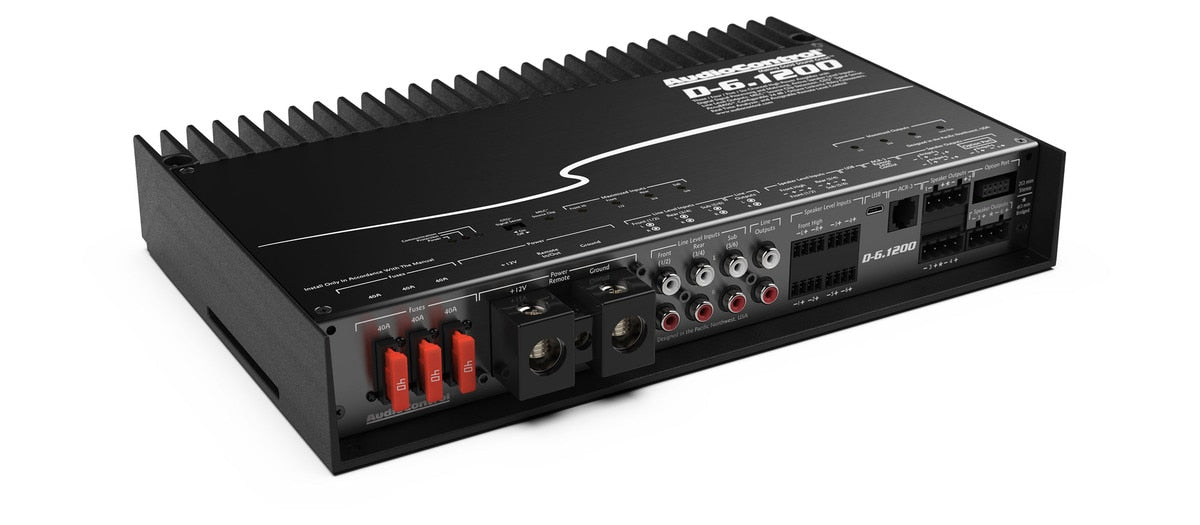

AudioControl D-6.1200 6-Channel Amplifier with Matrix DSP
AudioControl D-6.1200 6-Channel Amplifier with Matrix DSP
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Combine 6-channel amplification and system tuning in one chassis with the AudioControl D-6.1200. Its built-in Matrix DSP provides equalization, delay and crossover control through DM Smart DSP software, making it a practical foundation for a carefully configured factory-radio integration or aftermarket system.
At a Glance
- 6 x 125 W RMS at 4 ohms; 6 x 200 W RMS at 2 ohms
- Built-in 30-band equalization and input/output delay

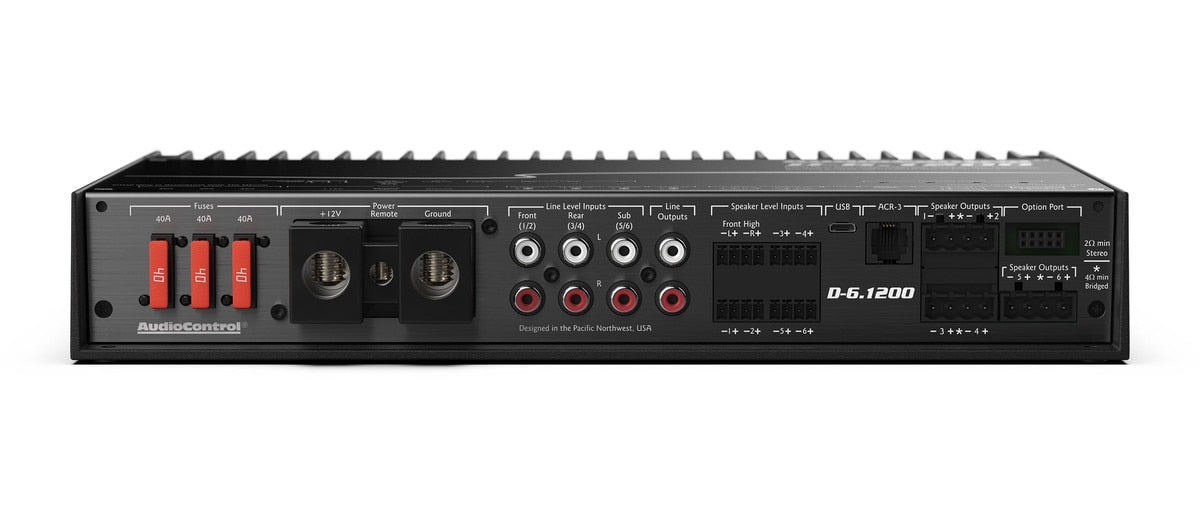

- 8 speaker-level inputs and 6 balanced preamp inputs
- Two assignable preamp outputs
- Input/output RTA and AccuBASS processing
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit. DSP configuration and gain/crossover setup are required. Bluetooth streaming/programming requires the optional AC-BT24; it is not built in or included.
Included Equipment
- D-6.1200 amplifier
- Speaker connectors
- Fuses
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | D-6.1200 |
| UPC | 851523007218 |
| Sold as | Each (one product) |
| RMS power at 14.4 V | 125 W x 6 at 4 ohms; 200 W x 6 at 2 ohms |
| Bridged RMS power | 400 W at 4 ohms per supported bridged output |
| Speaker-level input range | 3–40 Vrms |
| Preamp input range | 0.25–8 Vrms |
| Maximum preamp output | 8.5 Vrms |
| DSP crossovers | 12 and 24 dB/octave Linkwitz-Riley |
| Power / ground terminals | 8–3 AWG |
| Fuse rating | 3 x 40 A |
| Chassis dimensions, W x D x H | 12 x 8 x 2.1 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
