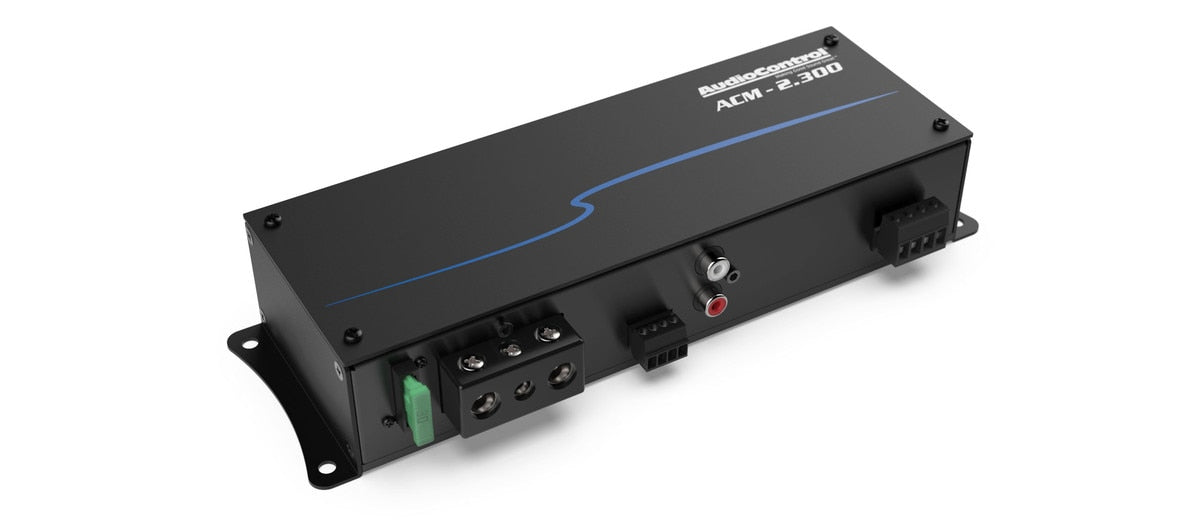

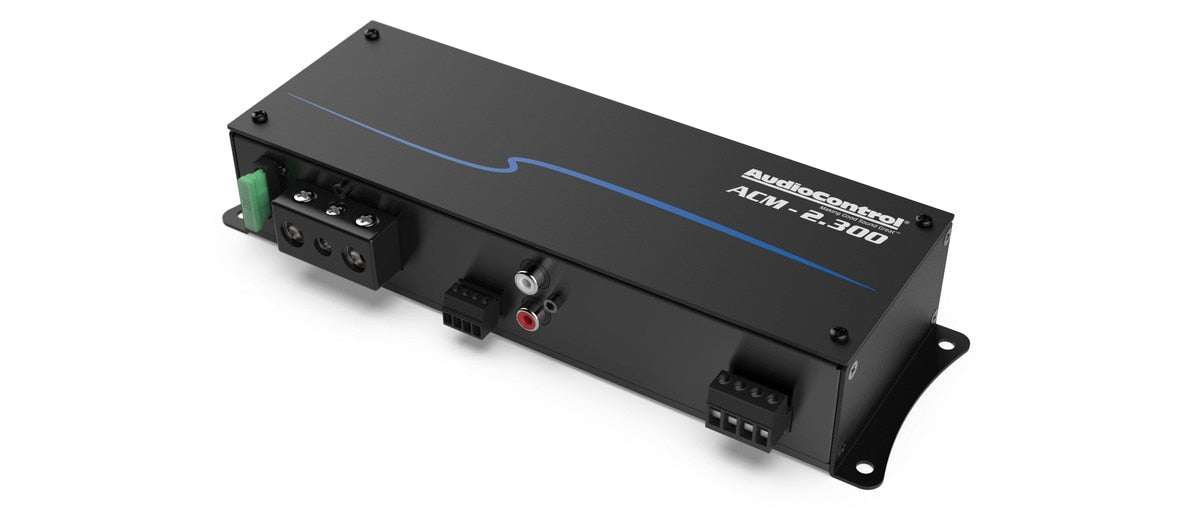

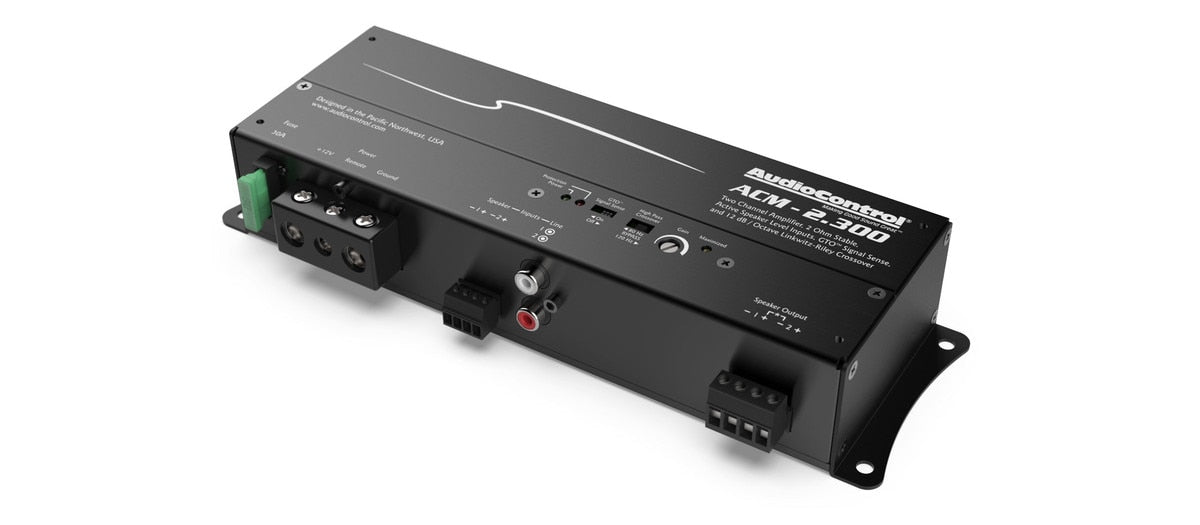

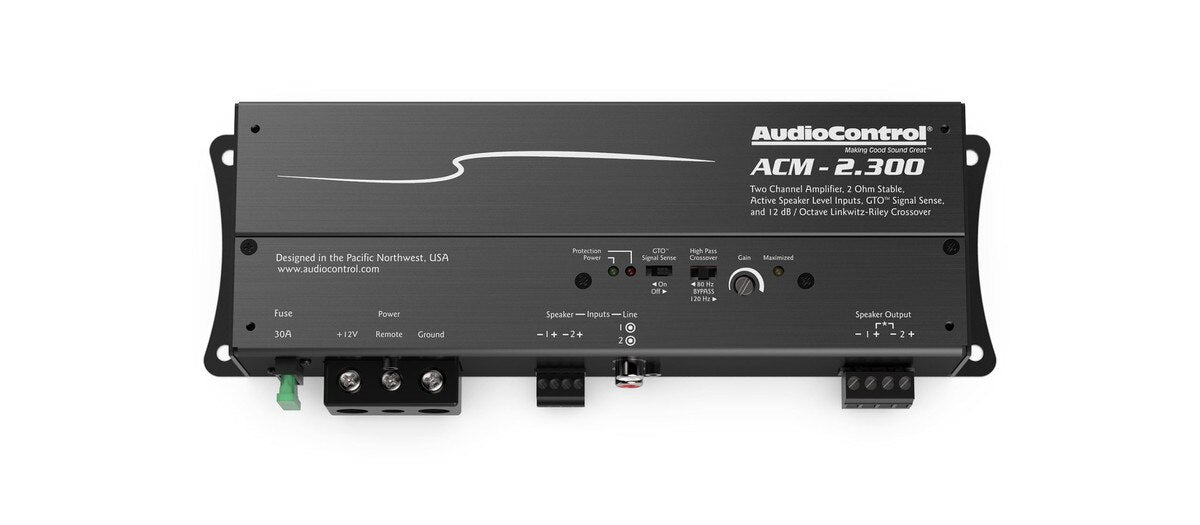

AudioControl ACM-2.300 2-Channel Micro Amplifier
AudioControl ACM-2.300 2-Channel Micro Amplifier
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fit dedicated amplification into a constrained installation with the AudioControl ACM-2.300. Its narrow chassis, reversible cover and speaker-level or RCA inputs help an installer work around limited space while maintaining a properly matched signal path.
At a Glance
- 75 W x 2 at 4 ohms; 150 W x 2 at 2 ohms; 300 W at 4 ohms bridged
- Speaker-level and balanced RCA inputs
- GTO signal-sensing turn-on
- Reversible cover plate
- Bridgeable two-channel output
Compatibility & Installation Requirements
Universal amplifier installation requires a compatible audio signal, suitable speakers, correctly sized fused power and ground wiring, and a secure ventilated mounting location. Wiring and vehicle-specific integration parts are selected separately. Match speaker impedance and output power before installation; this is not a vehicle-specific plug-and-play kit.
Included Equipment
- ACM-2.300 amplifier
- Speaker connectors
- Fuse
- Manufacturer documentation
Technical Specifications
| Brand | AudioControl |
|---|---|
| Model | ACM-2.300 |
| UPC | 851523007478 |
| Sold as | Each (one product) |
| RMS power at 14.4 V | 75 W x 2 at 4 ohms; 150 W x 2 at 2 ohms; 300 W at 4 ohms bridged |
| Speaker-level input range | 3–40 Vrms |
| Preamp input range | 0.5–6 Vrms |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz / 120 Hz / bypass |
| PFM filter | 32 Hz |
| Power / ground terminals | 10–4 AWG |
| Fuse | 30 A |
| Chassis dimensions, W x D x H | 9.4 x 3 x 1.75 inches |
Manufacturer Resources & Warranty
One-year manufacturer warranty, subject to AudioControl eligibility and installation terms. Extended professional-installation coverage is not automatically included with a shipped product. View manufacturer warranty terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle, factory or aftermarket radio, speakers and planned amplifier configuration. Contact us for help checking the signal path and installation requirements before you order.
