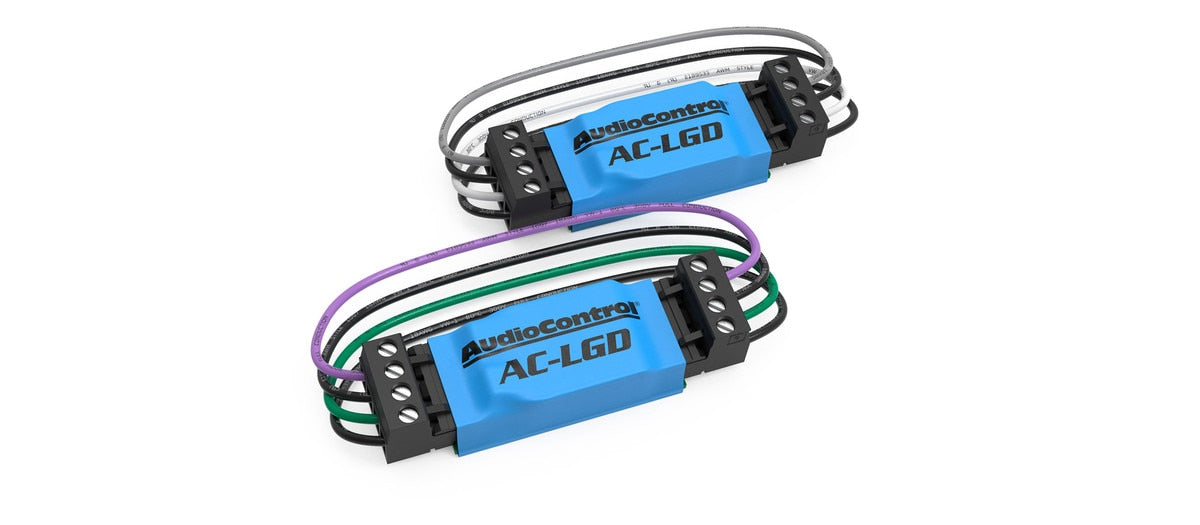

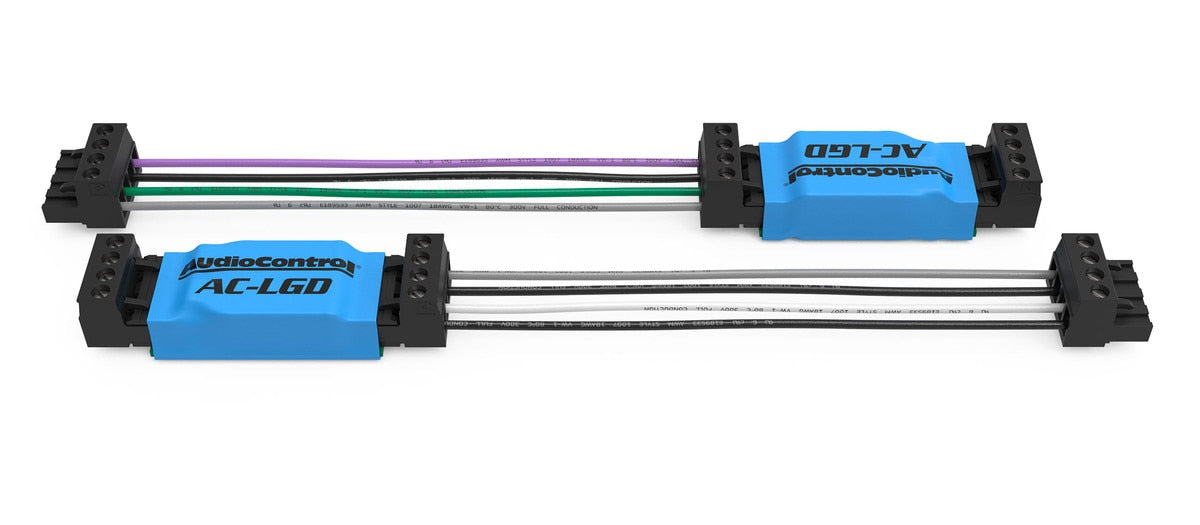

AudioControl AC-LGD Load Generating Device & Signal Stabilizer (Pair)

The AudioControl AC-LGD Load Generating Device & Signal Stabilizer (Pair) helps a compatible factory radio or amplifier continue producing a stable audio signal after its original speaker load is removed. Install the pair between the factory speaker outputs and a line output converter, DSP, or amplifier with speaker-level inputs when the exact application calls for this load value.

At a Glance

• One matched pair of load-generating devices for two stereo channels
• Helps prevent factory-audio muting, distortion, noise, and unstable output caused by load-sensing protection
• Prewired EIA color-coded leads and removable AudioControl-style connectors
• 2 kΩ from 20 Hz-20 kHz / 40 Ω above 20 kHz operating load; 20 Vrms / 100 watts maximum input
• Blue identification helps distinguish it from other AC-LGD values
• Not a line output converter, amplifier interface, or substitute for the vehicle-specific connection harness

Exact Vehicle Applications

Use the table below to choose the correct load value for the listed factory-audio connection. Match the vehicle, model year, factory-audio details, and PAC harness in the same row. If your installation differs, contact MCOR before ordering.

Compatibility & What You Need

• Factory system: OEM sound systems that require a speaker load.
• Connection point: Install between the factory speaker outputs and the speaker-level inputs of the converter, processor, or amplifier.
• Correct value matters: AC-LGD, AC-LGD-20, and AC-LGD-60 are not interchangeable in every vehicle. Use the part listed for the exact application.
• System parts: The compatible PAC harness, line output converter or processor, amplifier, and amplifier power wiring are sold separately.
• Professional installation and gain setting are strongly recommended.

Technical Specifications

What's Included

• One pair of genuine AudioControl AC-LGD load-generating devices
• Prewired color-coded leads and connectors
• Manufacturer instructions

Fitment disclaimer: A vehicle may use a different load value depending on whether the signal comes from a factory radio or factory amplifier. Confirm the complete application row before ordering; do not select solely by vehicle year and model.
