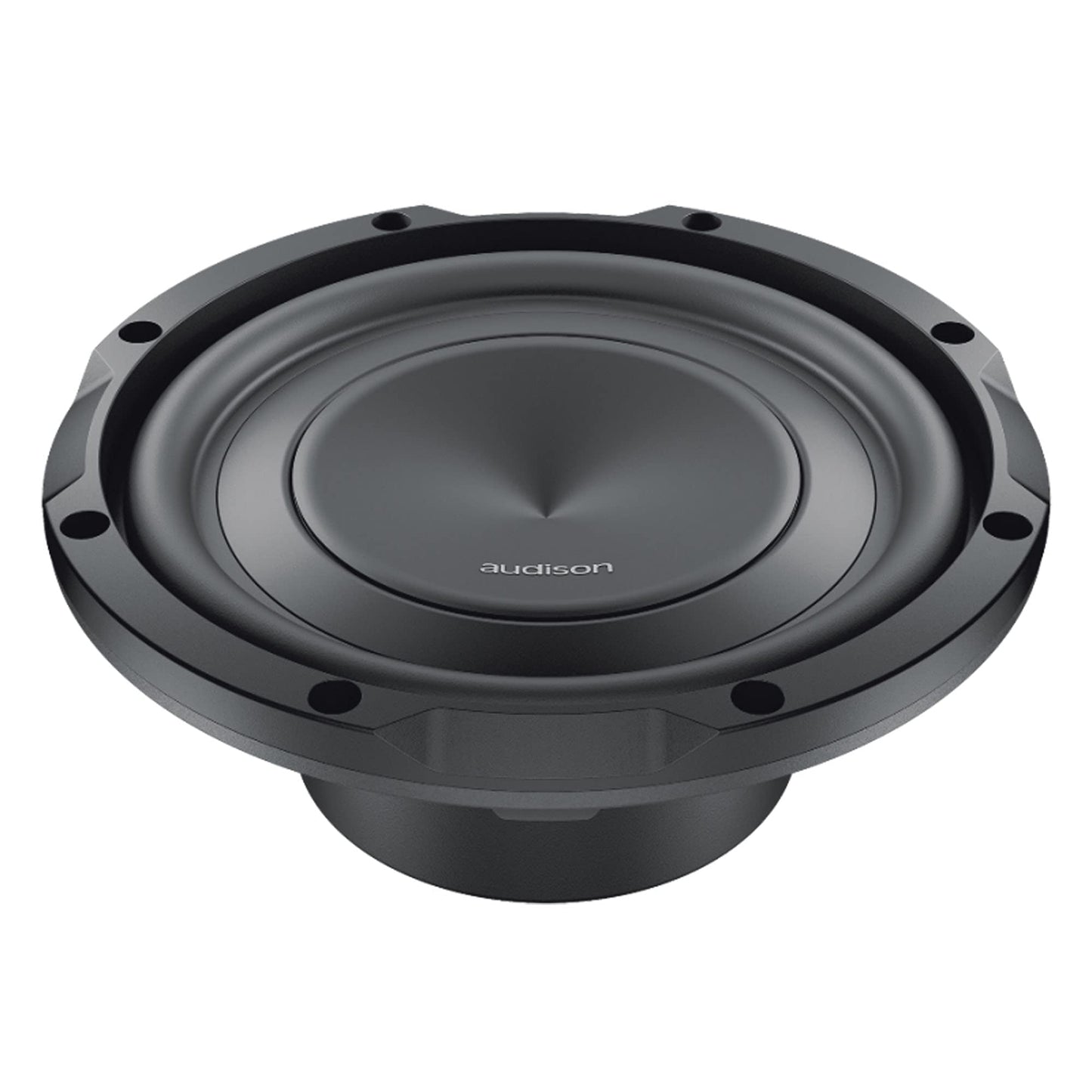

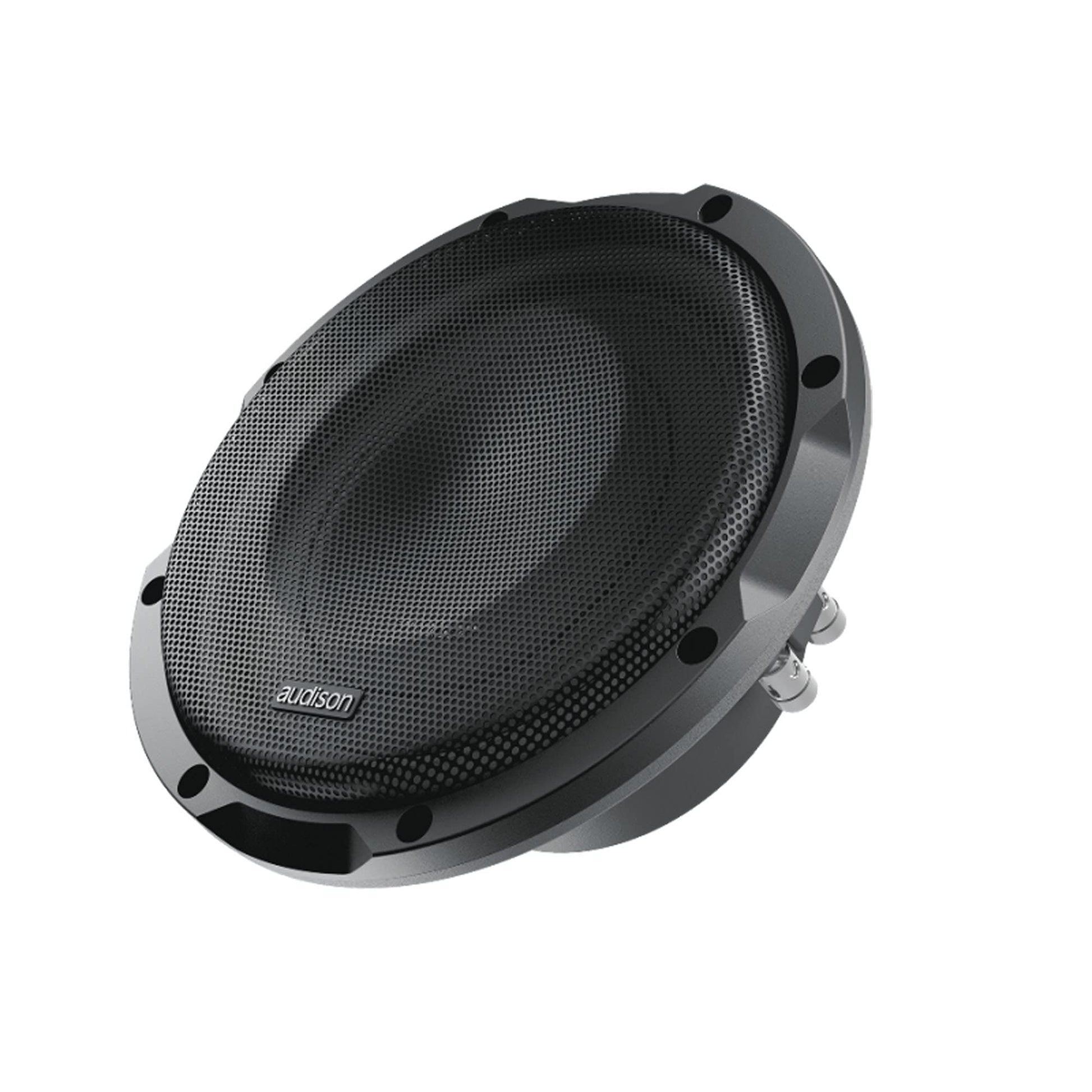

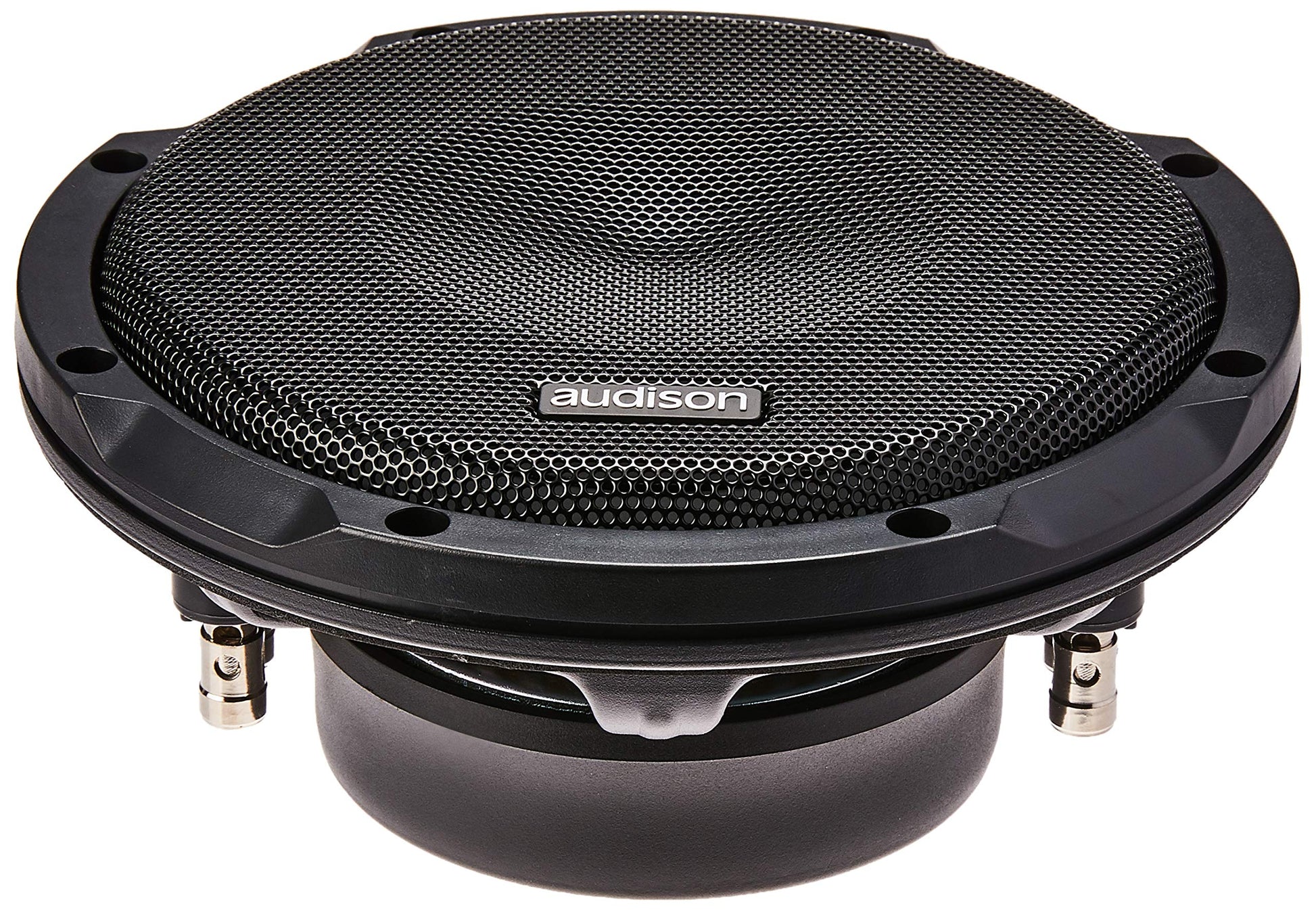

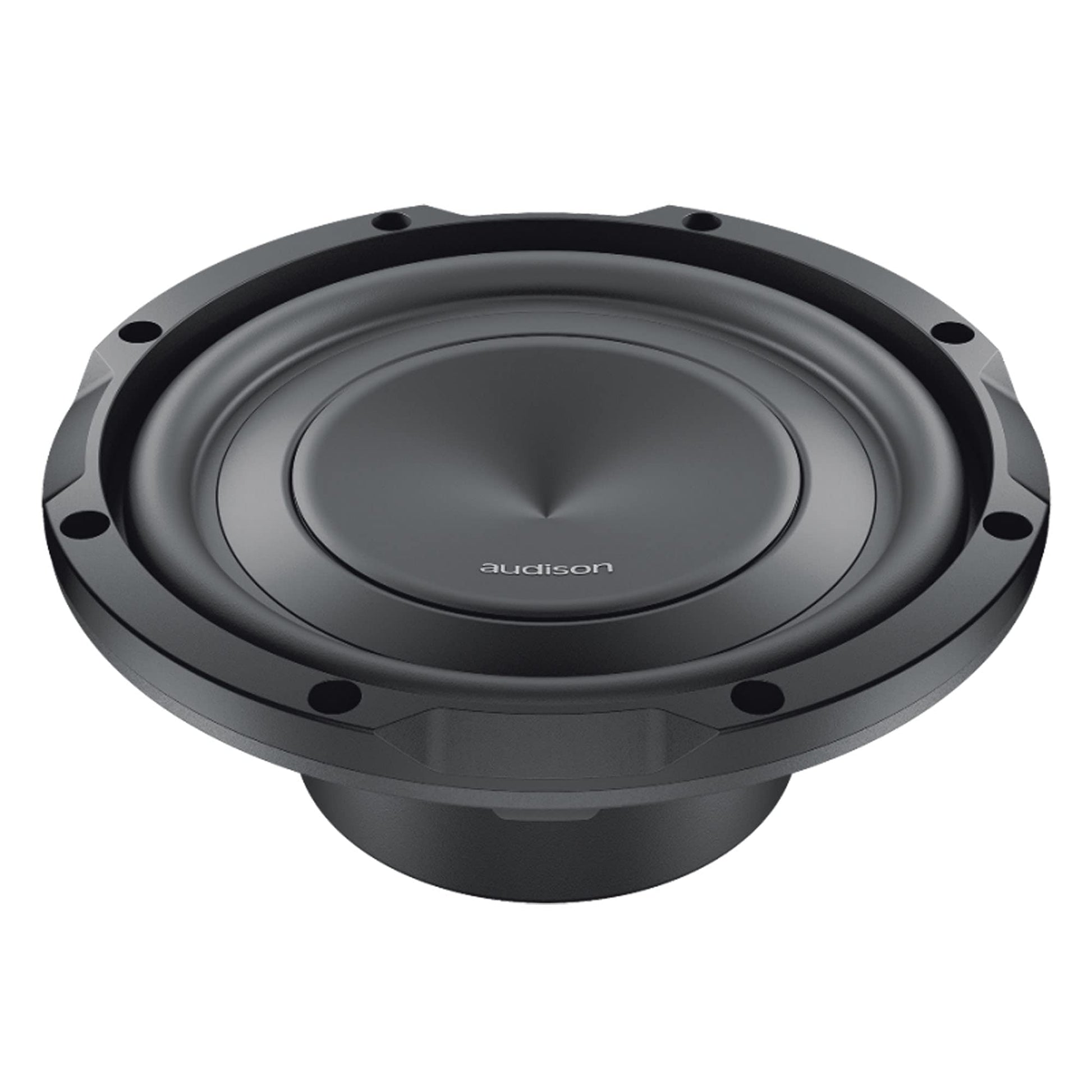

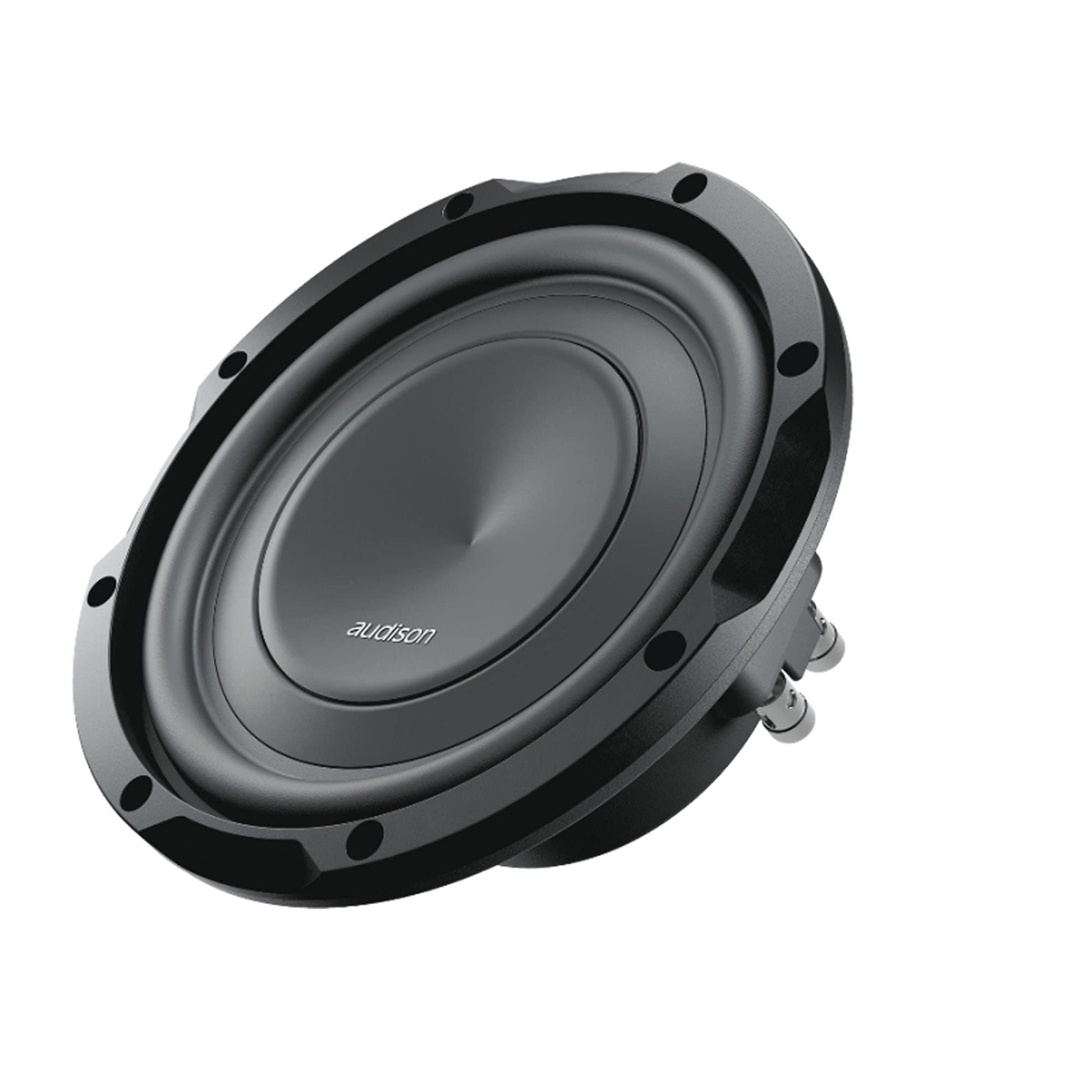

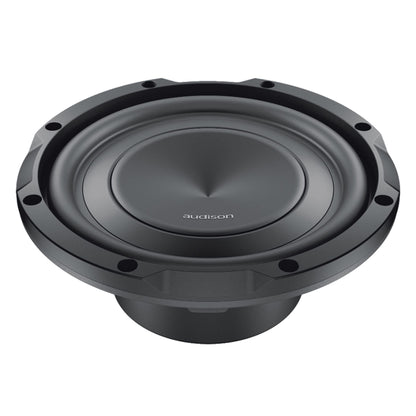

Audison APS 8D Prima Series 8" Subwoofer Driver | 500 W Peak Power | 200 mm | 4 + 4 ohm

Product Overview

APS 8 D - SUBWOOFER 200mm 4+4Ohm The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces.

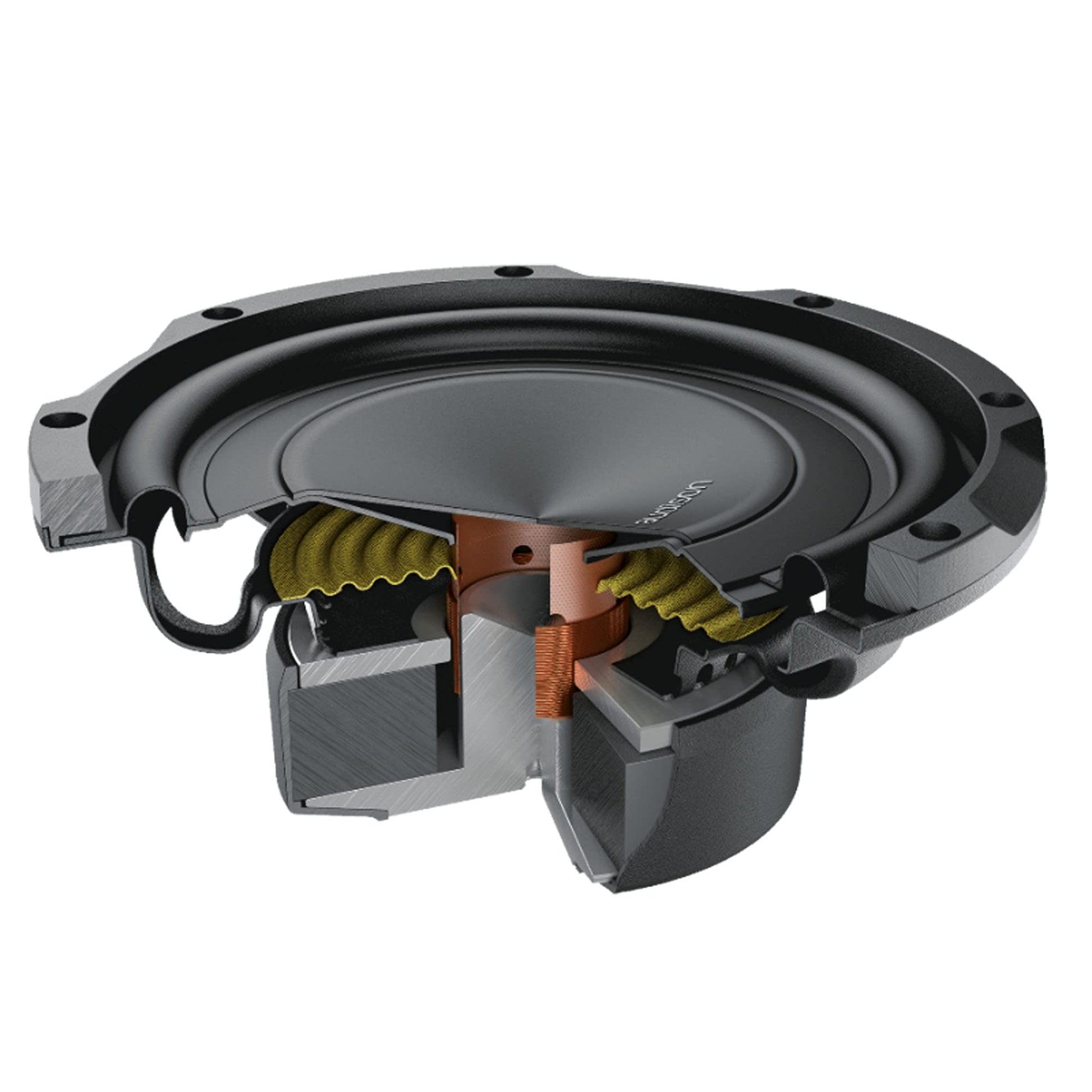

Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum.

 The surround and spider have been carefully designed to
prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features - Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility. Designed to deliver maximum performance in a sealed enclosure starting from 7.5 lt. Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.

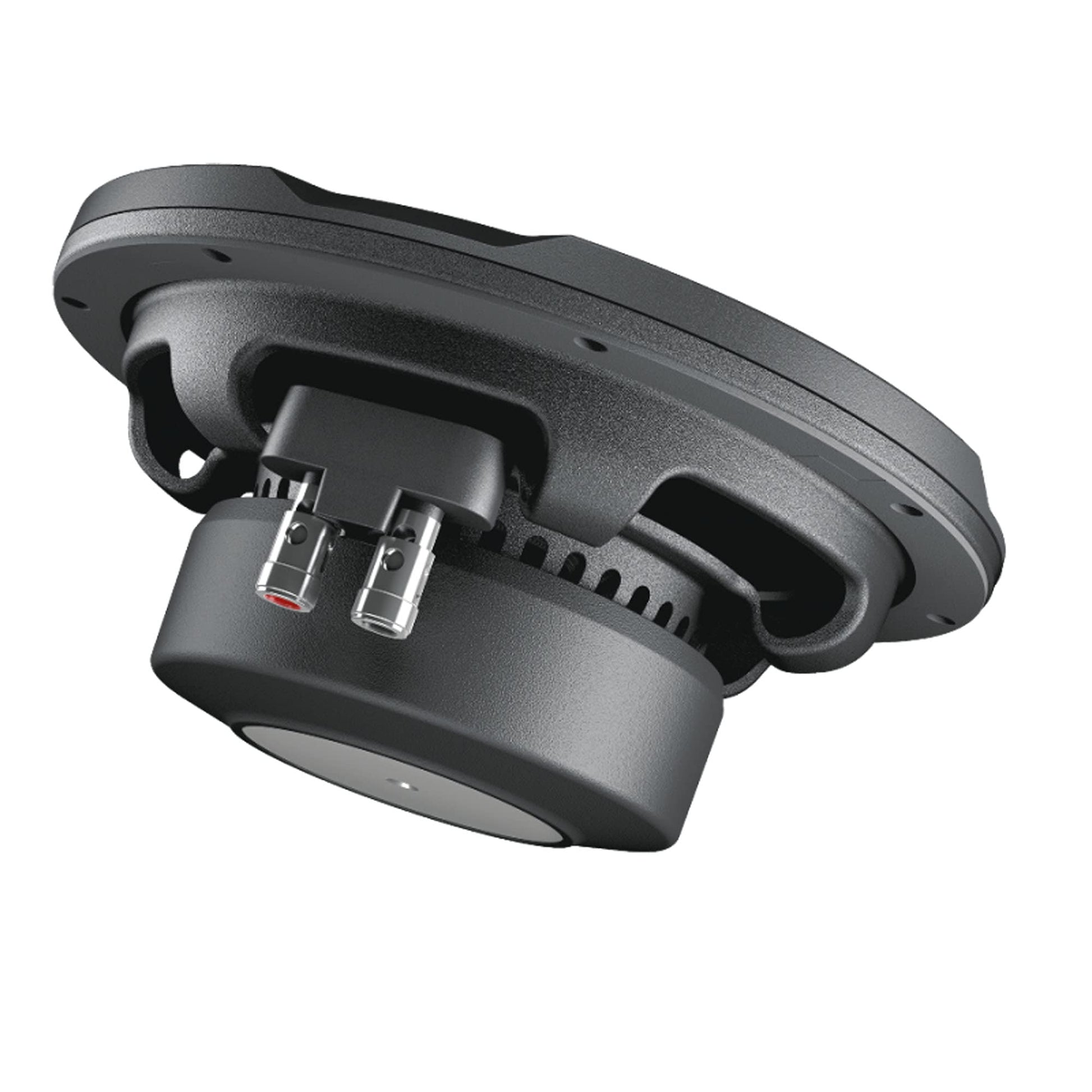

Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure. Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion
conditions.

Water-repellent pressed paper 8 in. cone featuring a profile developed with simulation and optimized with the Klippel Scan Vibrometer. Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged)
amplifiers.

Technical Specs

Nominal diameter	200 mm (8 in)
Impedance	4+4 Ohm
Power Handling - Peak	500 W
Power Handling - Continuous	250 W
Sensitivity	83.5 dB
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	120 x 50 x 28 mm (in.)
Cone Material	WATER REPELLENT PRESSED PAPER
Xmax	8.8 mm (0.35 in)
Xmech	16.5 mm (0.65 in)
Voice Coil Winding Height	40 mm (1.57 in)
Driver Displacement Volume	0.67 l (0.024 ft)

Electric-acoustic Specs

Re	2.1 Ohm
Fs	30 Hz
Le	1.1 mH
Vas	25.5 l (0.901 ft)
Mms	85 g (2.998 oz)
Cms	0.3 mm/N
BL	8.8 T•m
Qts	0.44
Qes	0,46
Qms	5.1

General

Weight

3.1 kg

Dimensions

Dimension A	222 mm (8.74 in)
Dimension B	187 mm (7.36 in)
Dimension C	94.6 mm (3.72 in)
Dimension D	79 mm (3.11 in)
Dimension C1	104 mm
