For the vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

Features

• Water-repellent treated paper cone, featuring a profile developed
  with FEM (Finite Element Method) simulation technology and
  optimized with the Klippel Scan Vibrometer.
• No passive crossover required to maximize efficiency: dome
  profile optimized with Klippel R&D Scan Vibrometer to obtain a
  calibrated mechanical low-pass cut-off frequency.
• Reduced mounting depth, providing ease of installation in OEM
  placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive
  shallow “Triple Wave” profile, for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratch-proof
  coating, the motor affixed with damping epoxy adhesive.

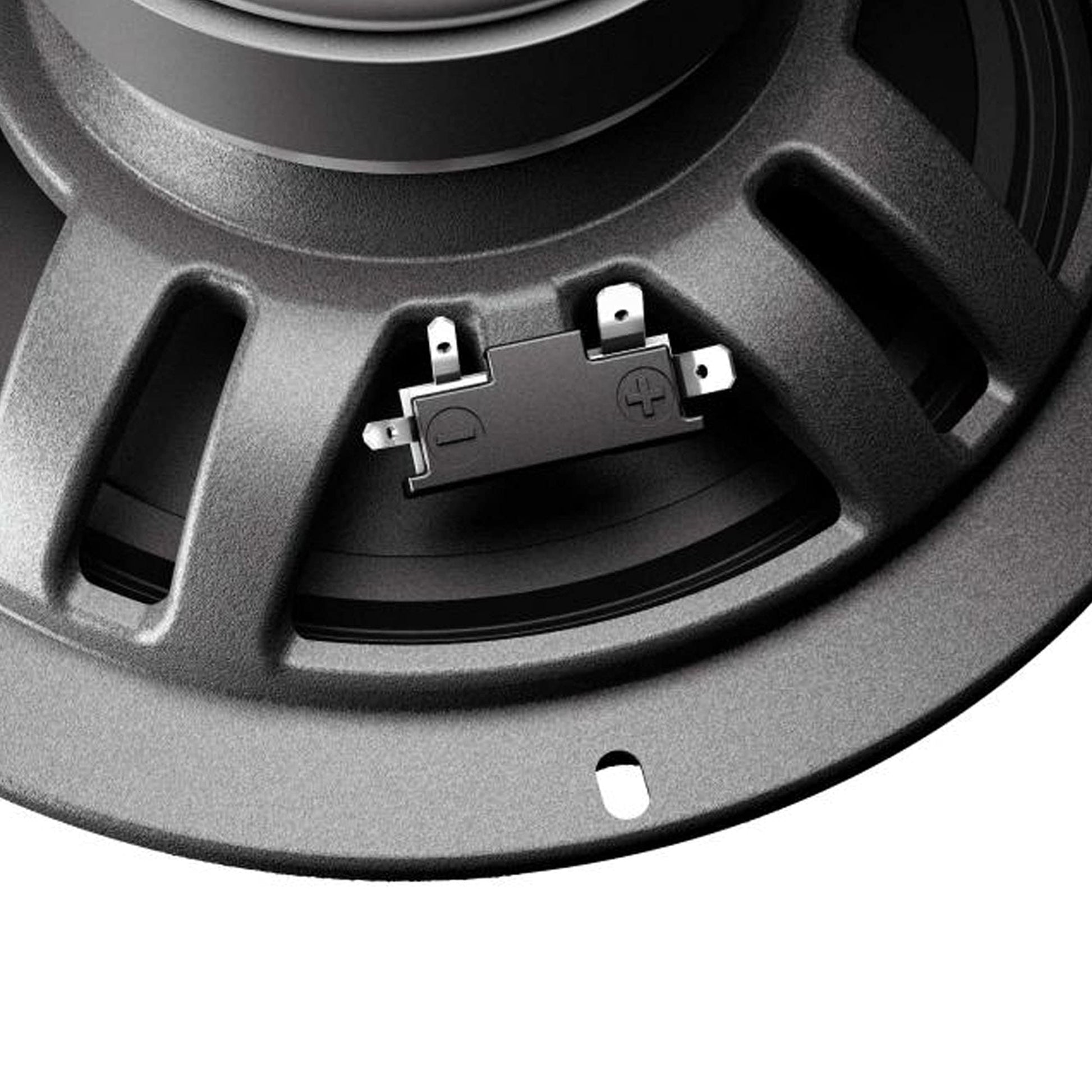

• High current fast-on terminal with double contact on positive
  and negative poles for high flexibility and quick connection. The
  terminal features a temperature resistant plastic cover, protecting
  it against accidental short circuits.
• Developed with the KLIPPEL suite.
  *Grille included

Technical Specs

Nominal diameter	200 mm (8 in)
Impedance	4 Ohm
Power Handling - Peak	300 W
Power Handling - Continuous	100 W
Sensitivity	93.5 dB
Frequency Response	35 ÷ 3k Hz
Voice Coil Ø	25 mm
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet size D x d x h	90 x 40 x 17 mm (in.)
Xmax	3.3 mm (0.13 in)

Electric-acoustic Specs

Re	3.1 Ohm
Fs	60 Hz
Le	0.3 mH
Vas	20 l (0.706 ft)
Mms	19 g (0.67 oz)
Cms	0.35 mm/N
BL	5.4 T•m
Qts	0.7
Qes	0,8
Qms	5

General

Weight

1.2 kg

Dimensions

Dimension A	209 mm (8.23 in)
Dimension B	174 mm (6.85 in)
Dimension C	70 mm (2.76 in)
Dimension D	66 mm (2.6 in)
