Audison

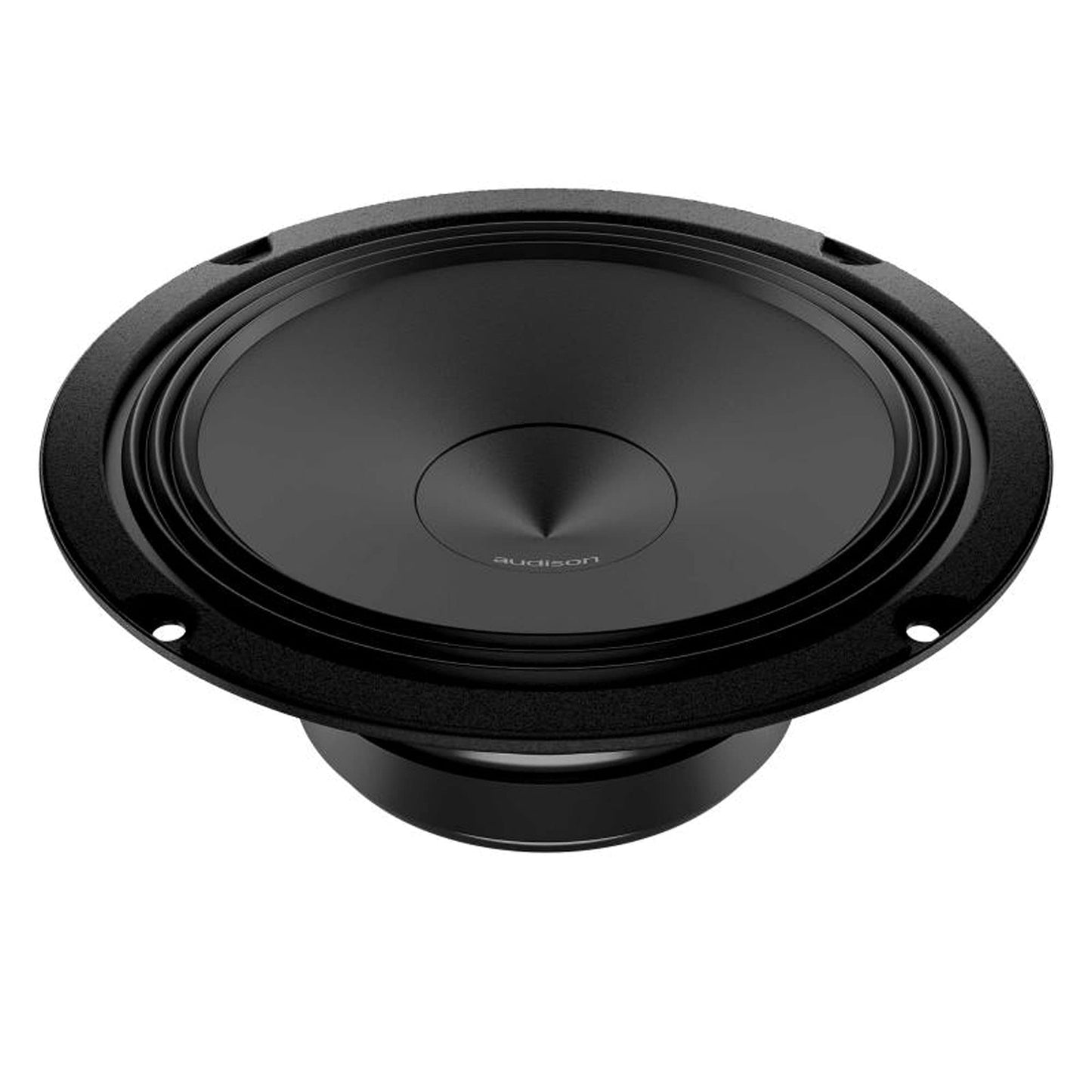

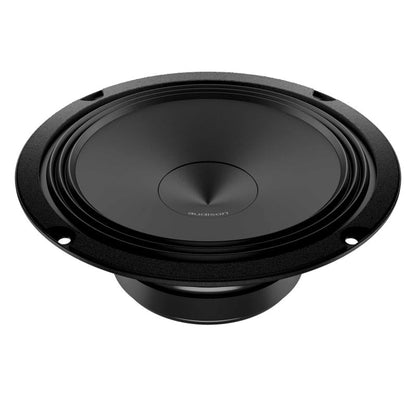

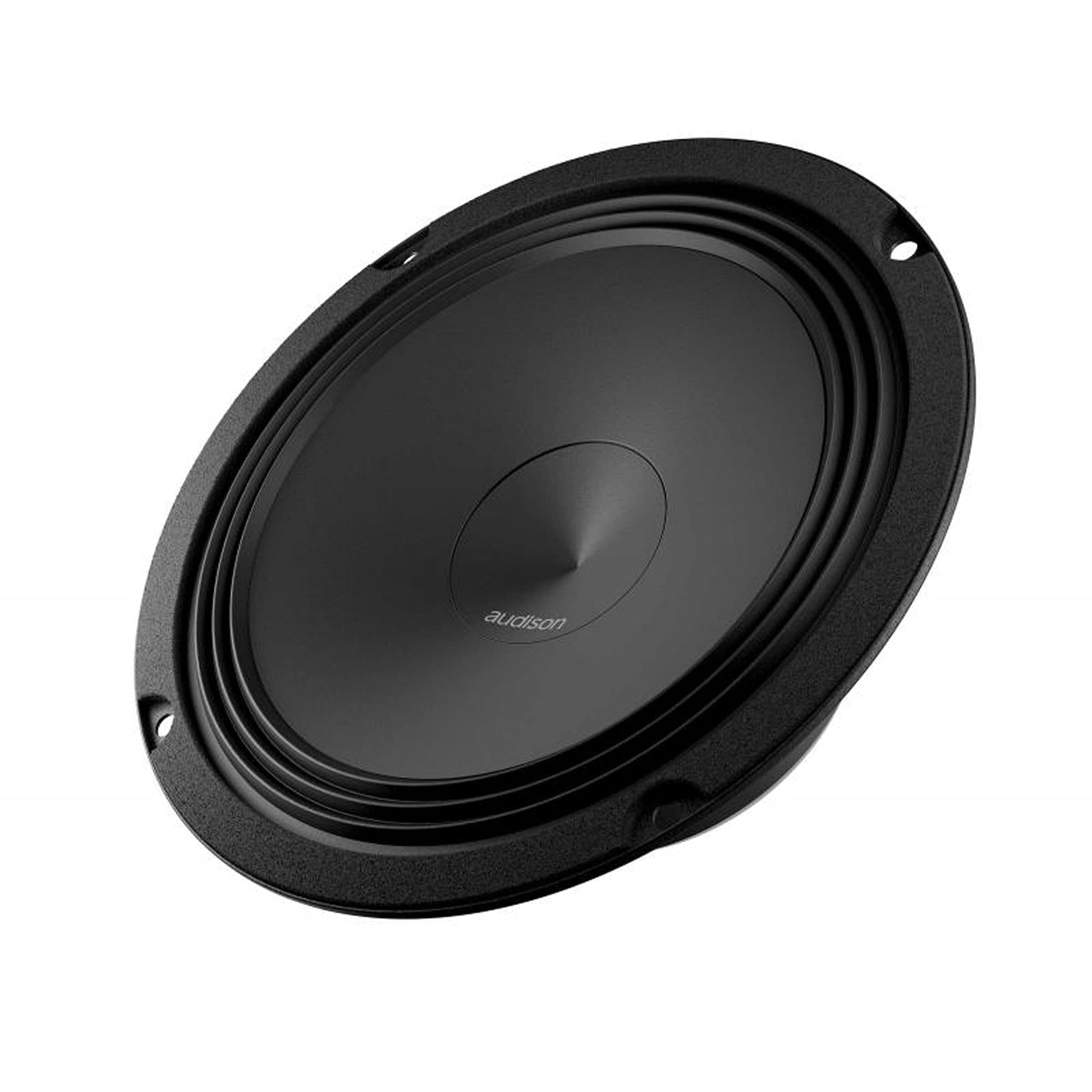

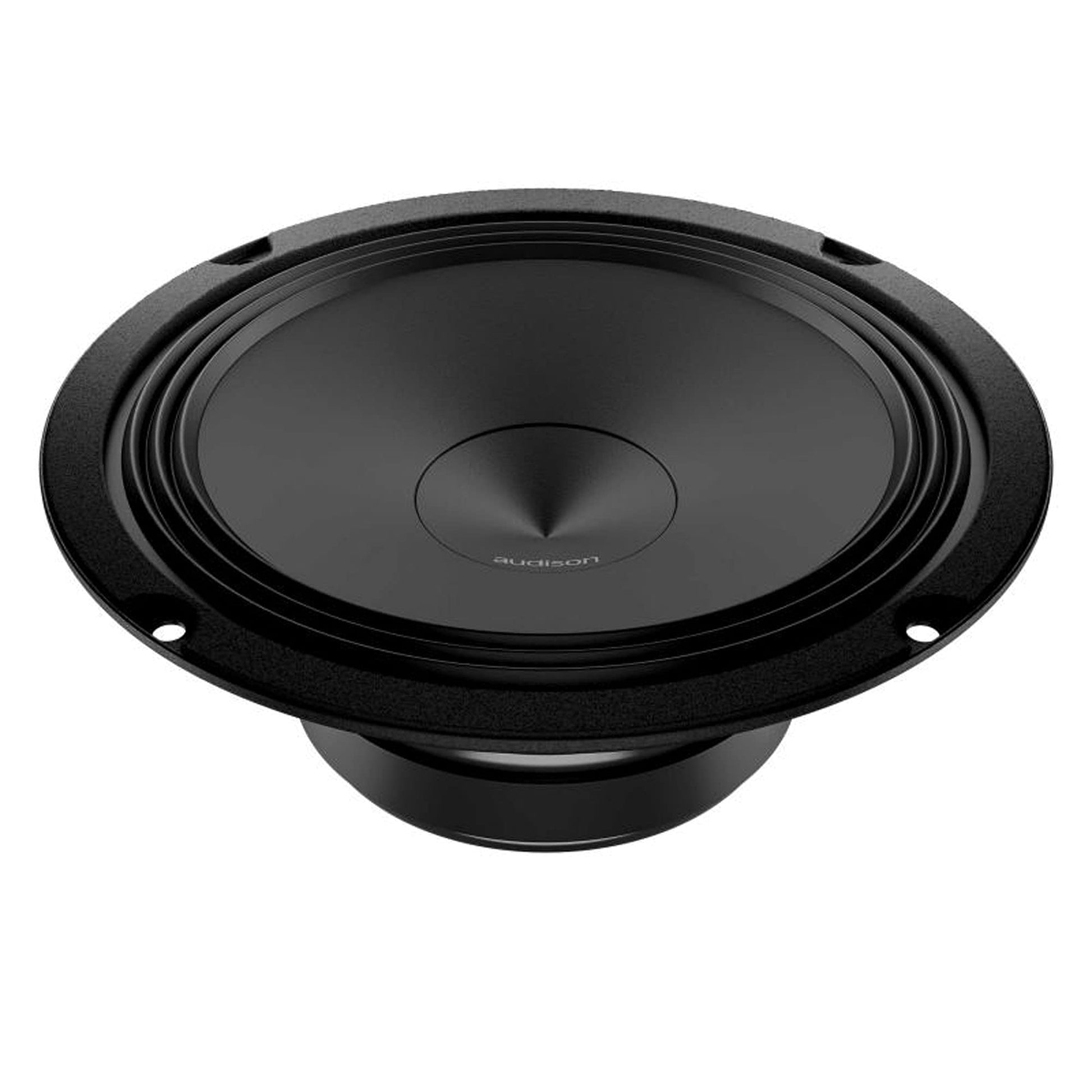

Audison AP 6.5 Prima Series 6.5" (165mm) Woofers (Pair)

Audison AP 6.5 Prima Series 6.5" (165mm) Woofers (Pair)

Regular price $249.99 USD
Regular price $249.99 USD Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.


Audison AP 6.5 Prima Series Woofer | 210 W Peak Power | 165 mm | 4 ohm - Pair


Product Overview

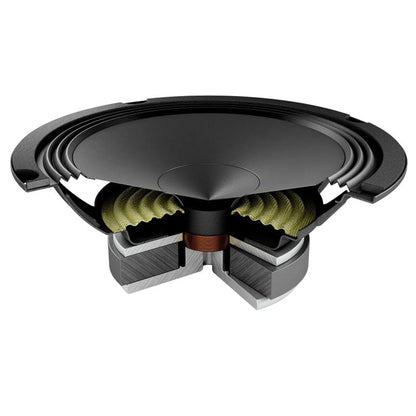

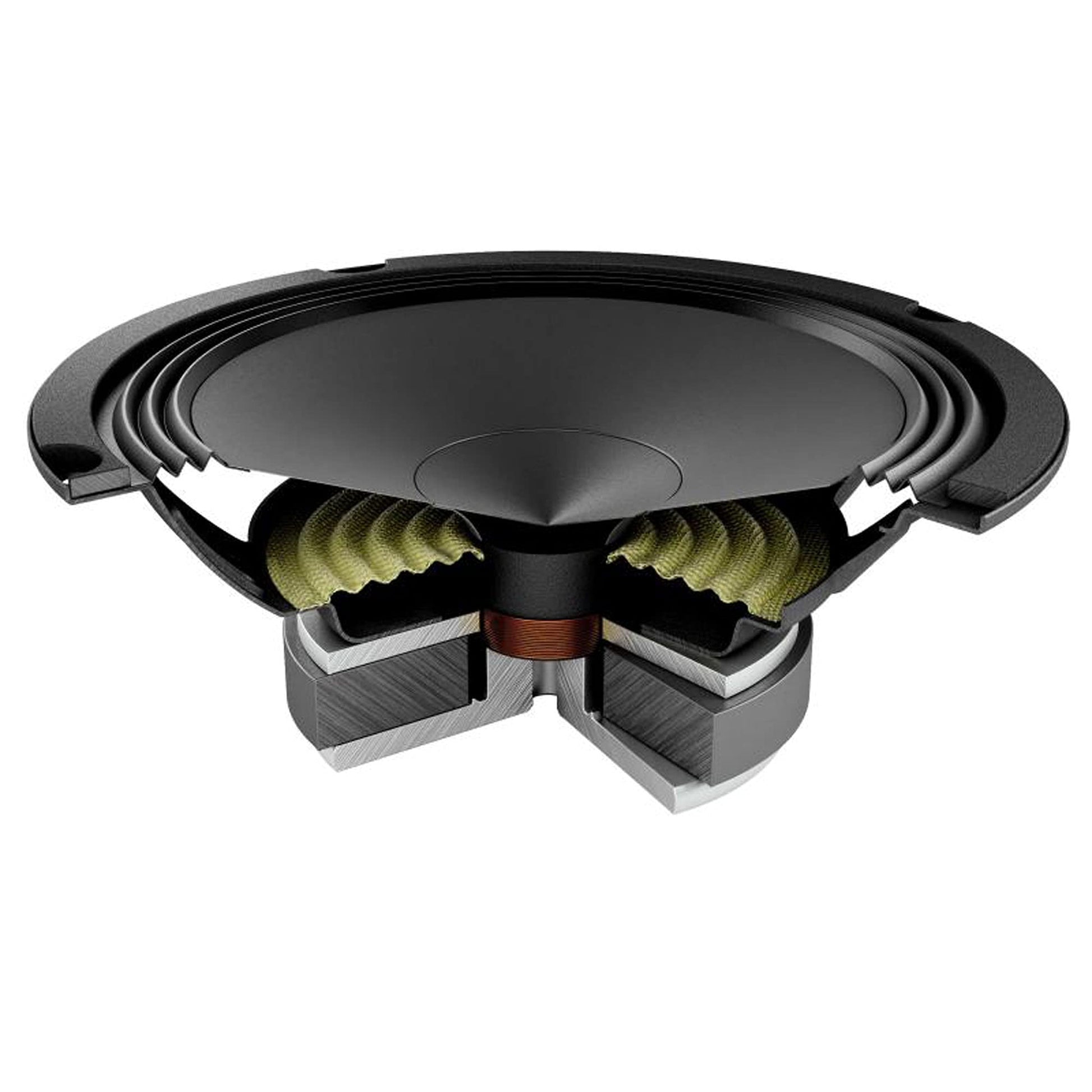

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don't employ any filter, to maximize efficiency: the dome profile has been optimized with Klippel R & Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.



Features

  • 32 mm pure copper mobile voice coil, for high power handling and outstanding low-frequency control.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • No passive crossover is required to maximize efficiency: the cone is optimized with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
  • Reduced mounting depth, providing ease of installation in OEM placements.
    TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor is affixed with damping epoxy adhesive.
  • High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
  • The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Technical Specs

Nominal diameter 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 210 W
Power Handling - Continuous 70 W
Sensitivity 93.5 dB
Frequency Response 60 ÷ 5k Hz
Voice Coil Ø 32 mm
Magnet size D x d x h 85 x 40 x 15 mm (in.)
Xmax 2.5 mm (0.1 in)

Electric-acoustic Specs

Re 3.1 Ohm
Fs 80 Hz
Le 0.23 mH
Vas 7.6 l (0.268 ft)
Mms 12 g (0.423 oz)
Cms 0.31 mm/N
BL 4.7 T•m
Qts 0.7
Qes 0,8
Qms 4.7

General

Weight 0.78 kg

Dimensions

AP 6.5
Dimension A 165 mm (6.5 in)
Dimension B 141 mm (5.55 in)
Dimension C 60 mm (2.36 in)
Dimension D 56 mm (2.2 in)
