The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response.

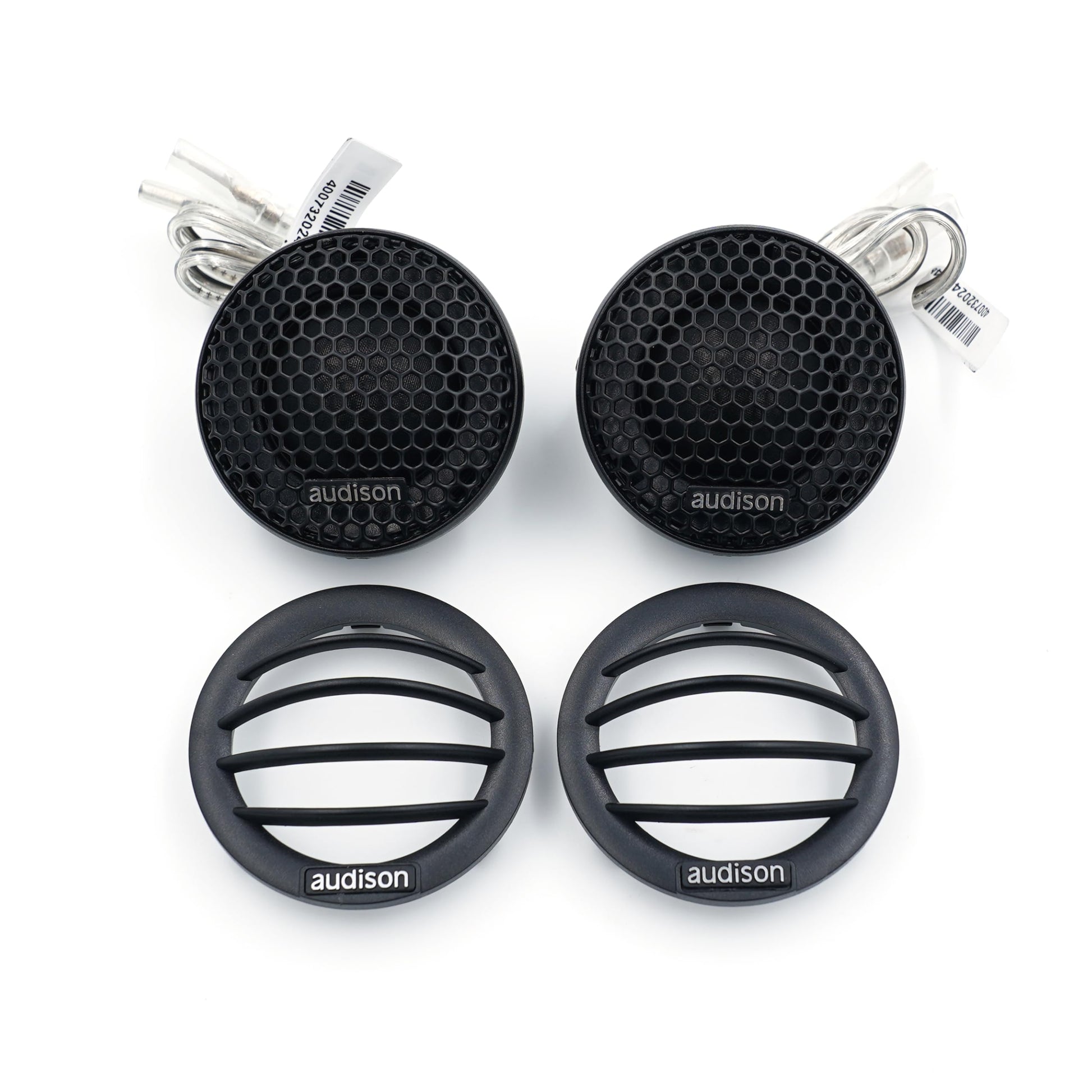

AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:

1. OEM, for an easy and correct factory placement

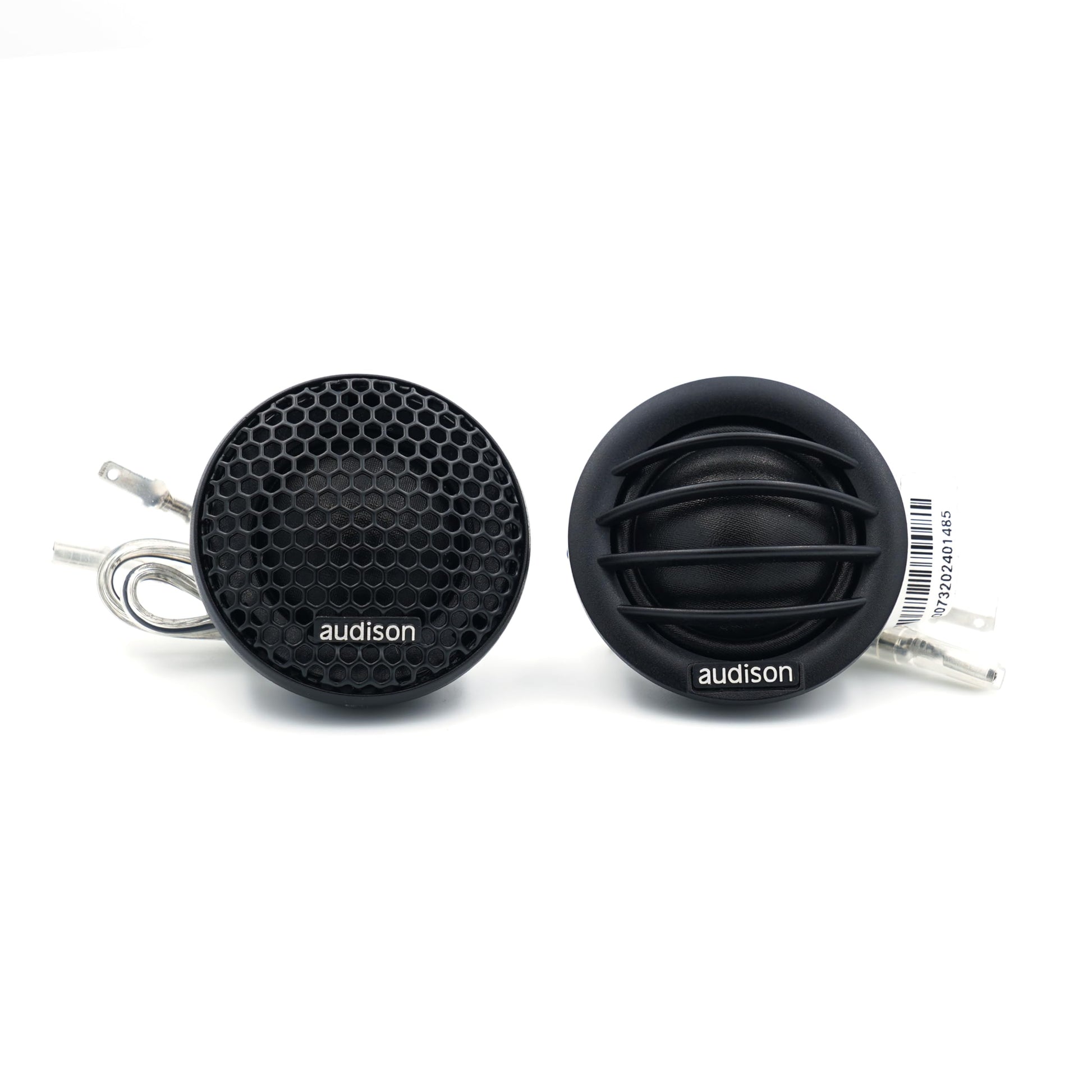

2. Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.

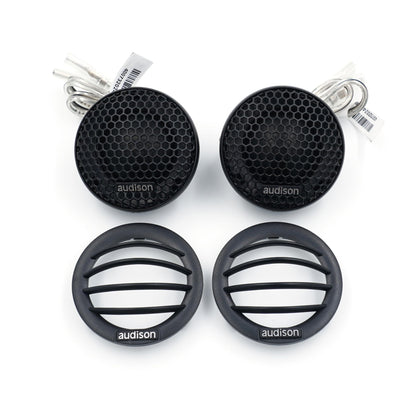

3. Spoke grille: for maximum acoustic performance with a-pillar installations

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario.

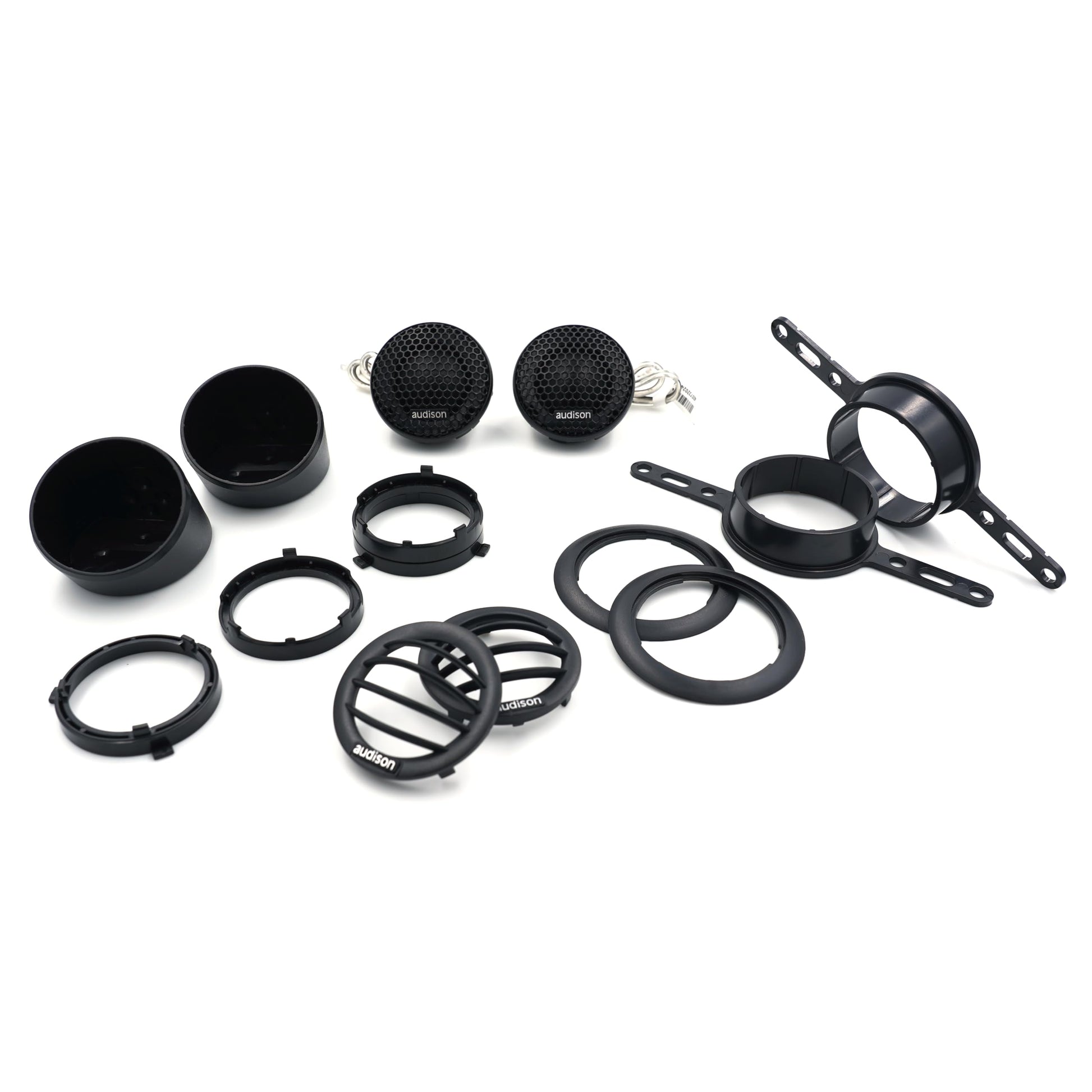

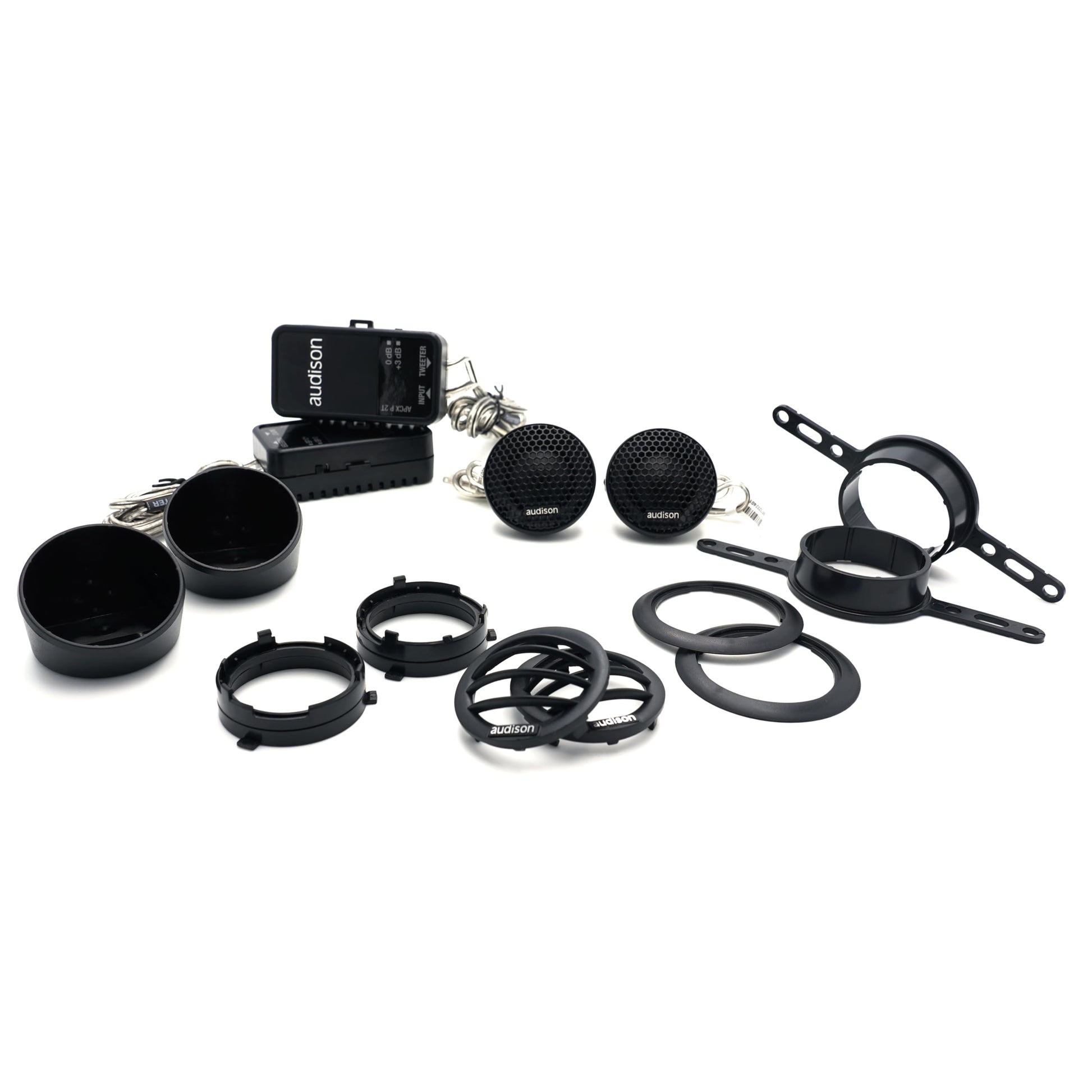

It is supplied with three mounting accessories that make the AP 1P install a breeze:

1. Watch band;
2. Double-angle cup;
3. Flush Mounting Ring;
4. Metal mounting spring

Features

• AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
• Three mounting accessories are supplied to provide a solution for any type of installation.
• Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
• 1 in. CCAW voice coil for superior dynamic response.
• Dome profile optimized with FEM simulations for a wide off-axis dispersion

Technical Specs

Nominal diameter	29 mm (1.14 in)
Impedance	8 Ohm
Power Handling - Peak	150 W
Sensitivity	92 dB
Frequency Response	1,2 ÷ 25k Hz
Voice Coil Ø	25 mm (0.98 in)
Magnet Material	NEODYMIUM
Magnet size D x d x h	22 x 2,5 (0.87 x 0.1) mm (in.)
Dome Material	TETOLON FIBRE
Power Handling Crossover	Hi-pass filtered @2.5 kHz 12dB/oct

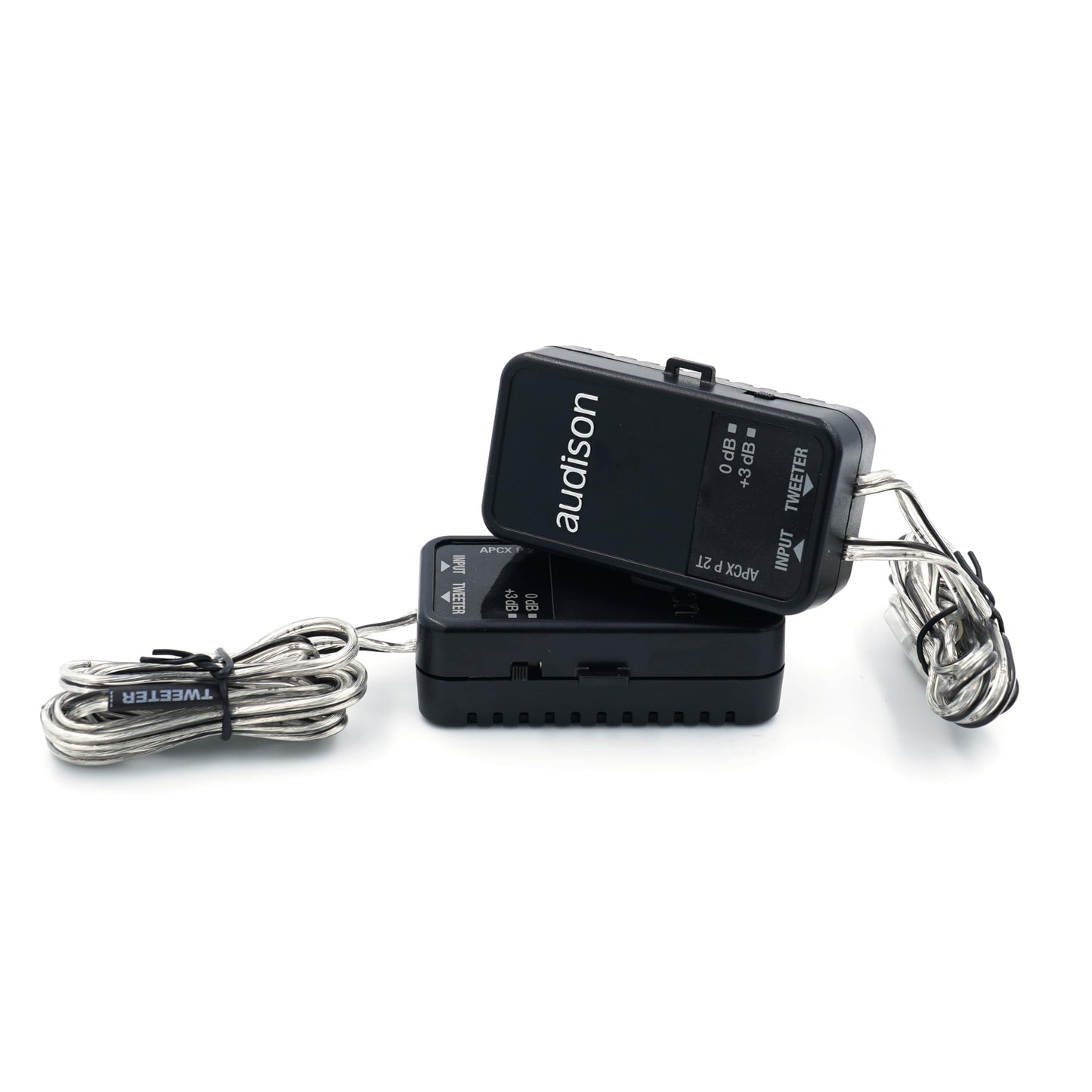

Crossover name	APCX P 2T
Crossover Type	High Pass 12 dB/oct.
Crossover adjustment	Tweeter Level: 0 / +3 dB

Electric-acoustic Specs

Re	5.75 Ohm
Fs	1600 Hz
Le	0.04 mH
Mms	0.23 g
Cms	0.05 mm/N
BL	2.7 T•m
Qts	1.21
Qes	1.74
Qms	4

General

Weight	0.067 kg
Crossover Weight	0.065 kg

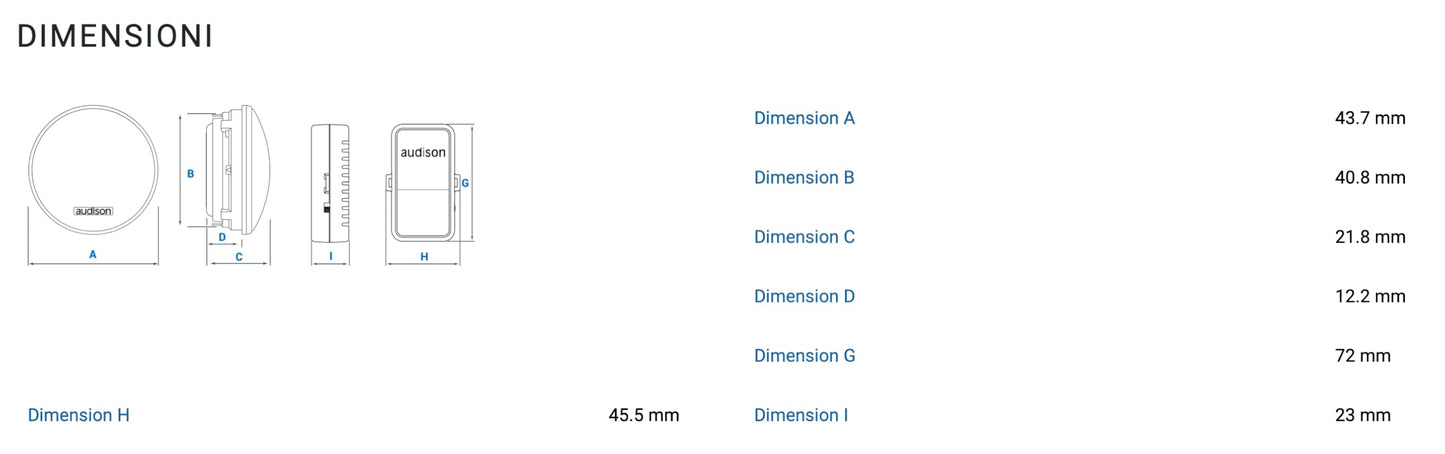

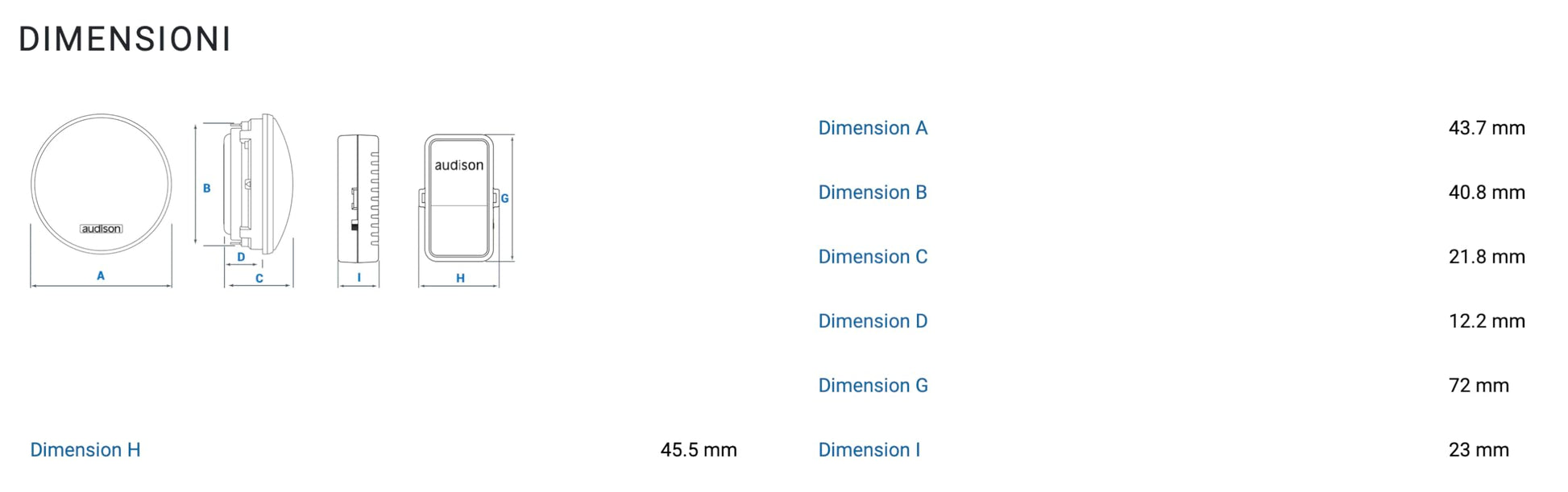

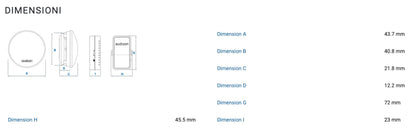

Dimensions

Dimension A	43.7 mm (1.72 in)
Dimension B	40.8 mm (1.61 in)
Dimension C	21.8 mm (0.86 in)
Dimension D	12.2 mm (0.48 in)
Dimension G	72 mm
Dimension H	45.5 mm
Dimension I	23 mm
