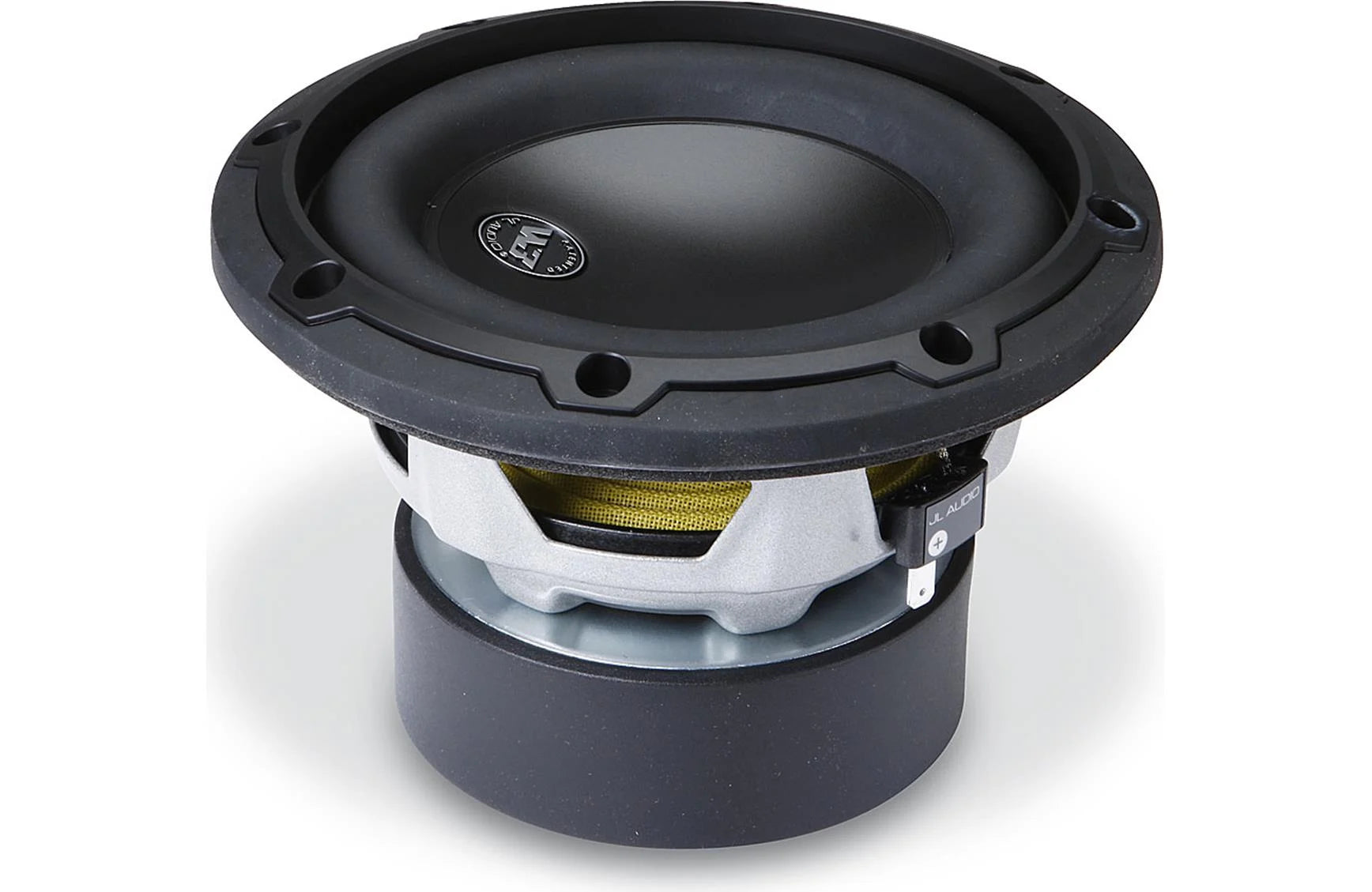

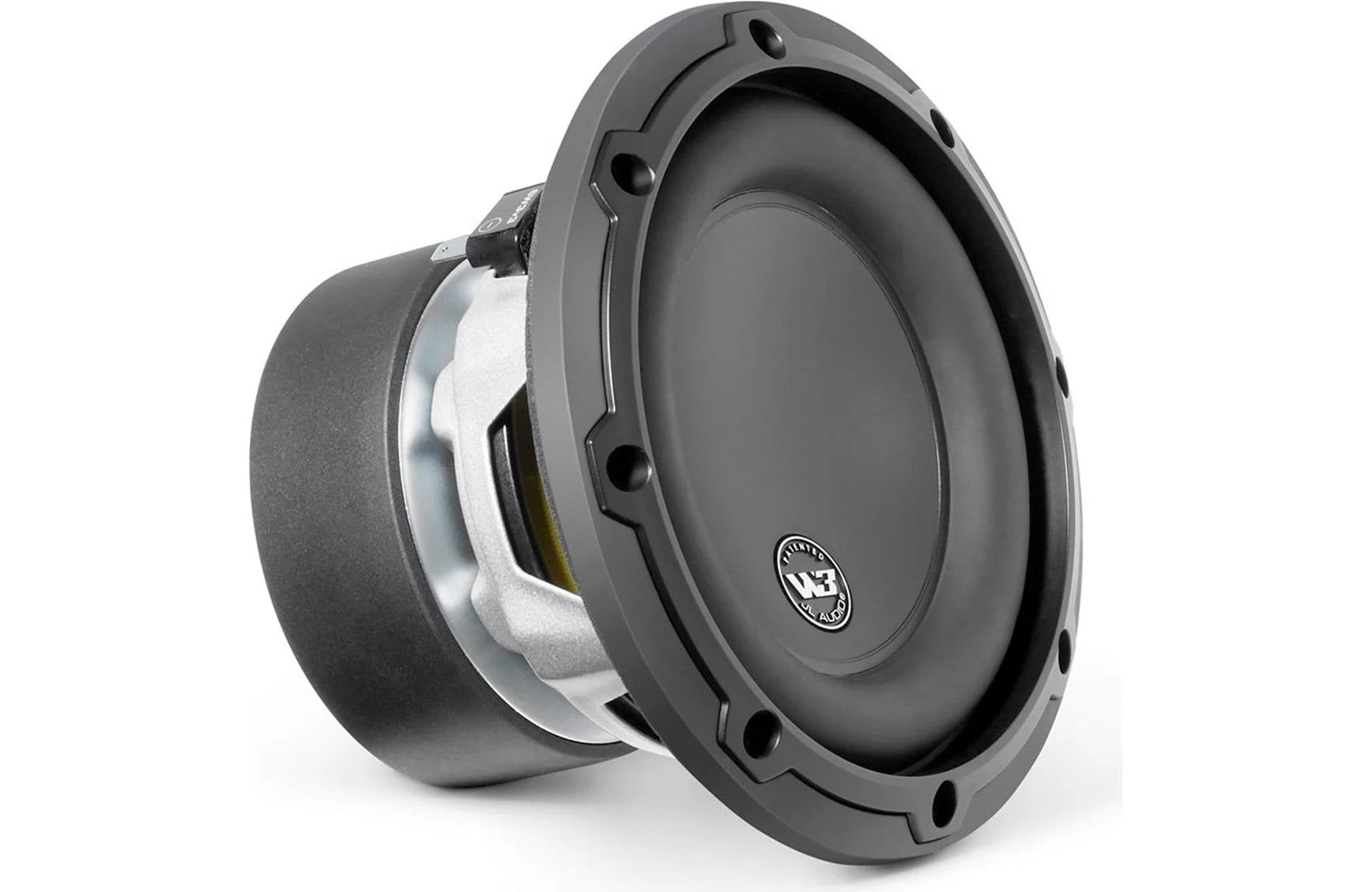

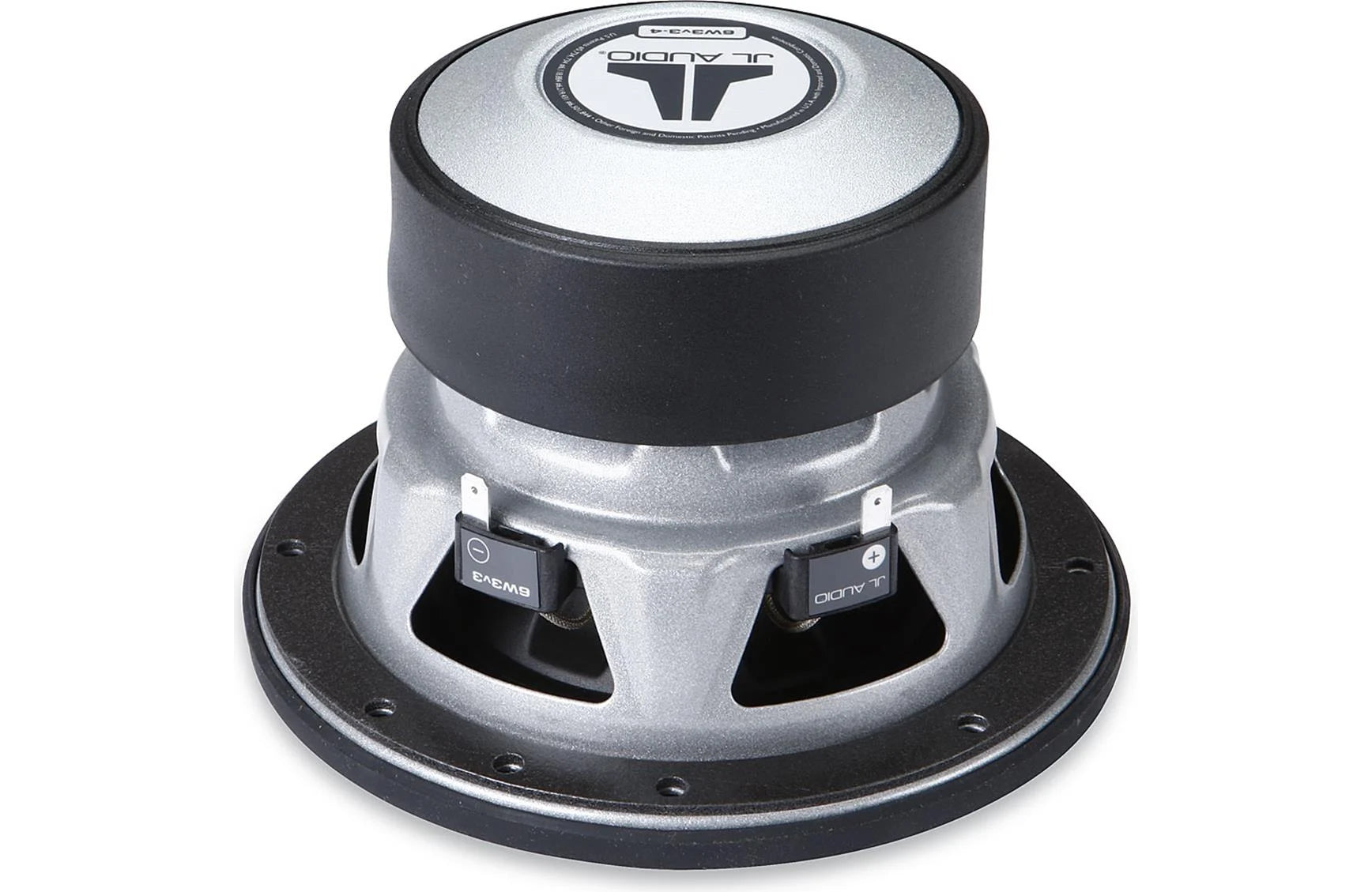

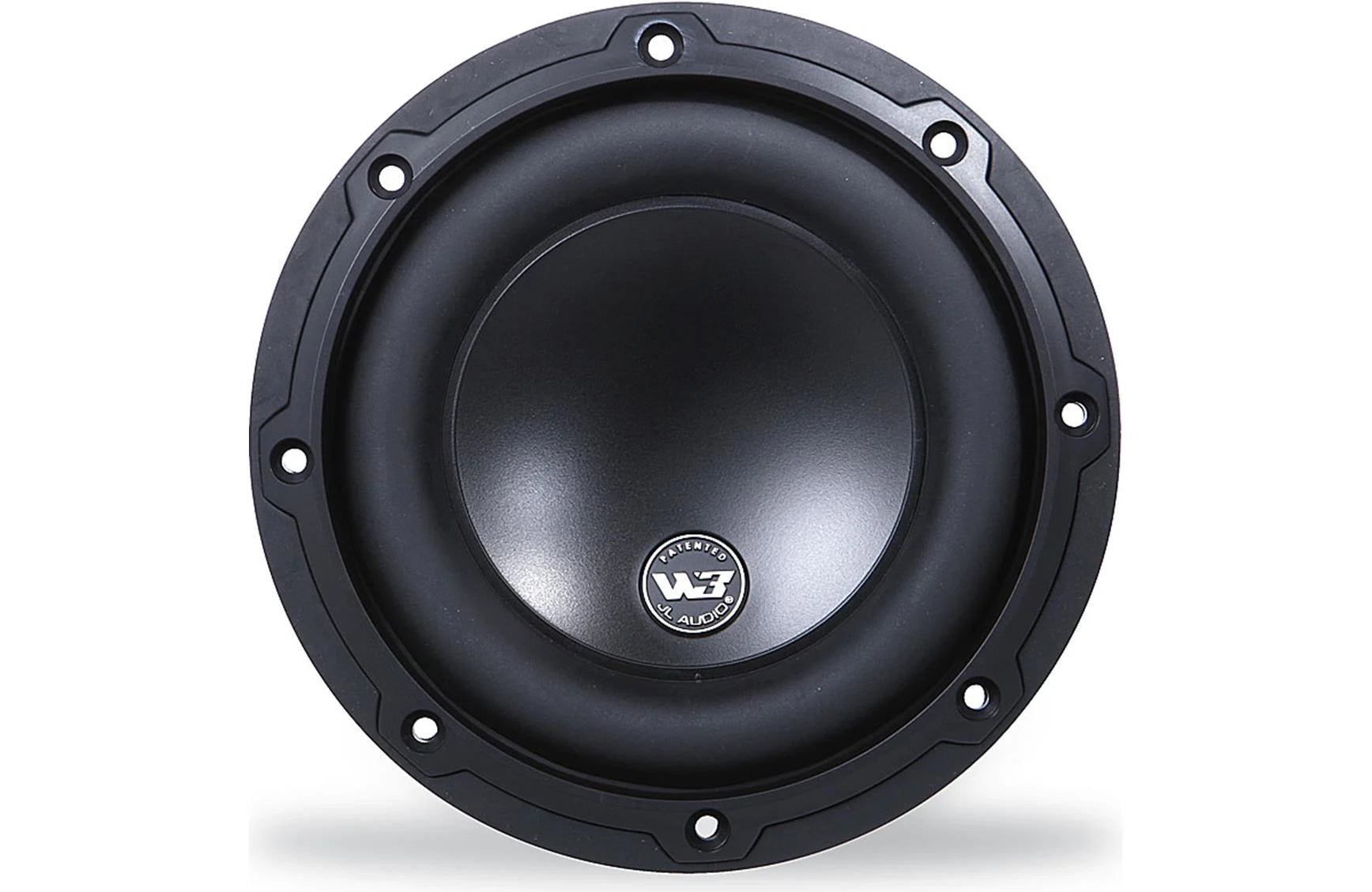

JL Audio 6W3v3-4 6" inch Subwoofer, 4 Ohm, Single Voice Coil, 150 Watts 92145

JL Audio 6W3v3-4 6" inch Subwoofer, 4 Ohm, Single Voice Coil, 150 Watts 92145

$319.99 USD
$319.99 USD $319.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03035-00

W3v3 6.5-inch Subwoofer (150 W, 4 Ω)

If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.

The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Power Chart for 6W3v3 Subwoofer with ideal Power Range of 50 - 150 W
Continuous Power Handling (RMS) 150 W
Recommended Amplifier Power (RMS) 50 - 150 W
Nominal Impedance (Znom) 4 Ω



Physical Specifications

Lineart Bottom-View and Side-View of 6W3v3 Subwoofer with dimension labels A-E
Nominal Diameter 6.5 in / 165 mm
Overall Diameter (A) 6.85 in / 174 mm
Mounting Hole Diameter (B) 5.5 in / 140 mm
Bolt Hole Circle Diameter (C) 6.125 in / 156 mm
Motor Outer Diameter (D) 4.25 in / 108 mm
Mounting Depth (E) 4.25 in / 108 mm
Driver Displacement 0.02 cu ft / 0.57 L
Net Weight 6.1 lb / 2.8 kg



Parameters

Free Air Resonance (Fs) 41.80 Hz
Electrical “Q” (Qes) 0.533
Mechanical “Q” (Qms) 11.027
Total Speaker “Q” (Qts) 0.508
Equivalent Compliance (Vas) 0.181 cu ft / 5.13 L
One-Way Linear Excursion (Xmax)* 0.35 in / 8.89 mm
Reference Efficiency (no) 0.07%
Efficiency (1 W / 1 m)** 80.49 dB SPL
Effective Piston Area (Sd) 17.36 sq in / 0.0112 sq m
DC Resistance (Re) 3.476 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.5 in / 13 mm
Front Baffle Thickness 0.5 in / 13 mm
Volume (net int.) 0.15 cu ft / 4.2 L
External Width (W) 8.5 in / 216 mm
External Height (H) 8.5 in / 216 mm
External Depth (D) 6.25 in / 159 mm
F3 58.43 Hz
Fc 62.11 Hz
Qtc 0.7548

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of 1/2 in (13 mm) thick material. Do not use any material with a thickness of less than 1/2 in (13 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
* When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).



Ported Enclosure Specifications

Lineart diagram of empty slot-ported enclosure for 6W3v3 with Height (H), Width (W) and Depth (D) and slot width (SW), slot length (SL) and slot height (SH) dimension labels
Wall Thickness 0.5 in / 13 mm
Front Baffle Thickness 0.5 in / 13 mm
Volume (net int.) 0.25 cu ft / 7.1 L
External Width (W) 14.50 in / 368 mm
External Height (H) 10.125 in / 257 mm
External Depth (D) 5.25 in / 133 mm
Internal Slot Port Width (SW) 4.25 in / 108 mm
Internal Slot Port Height (SH) 0.5 in / 13 mm
Internal Slot Port Length (SL) 14.75 in / 374 mm
Port Extension Length (EL) 13 in / 330 mm
Tuning Frequency (Fb) 38 Hz
F3 34.92 Hz

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of 1/2 in (13 mm) thick material. Do not use any material with a thickness of less than 1/2 in (13 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
