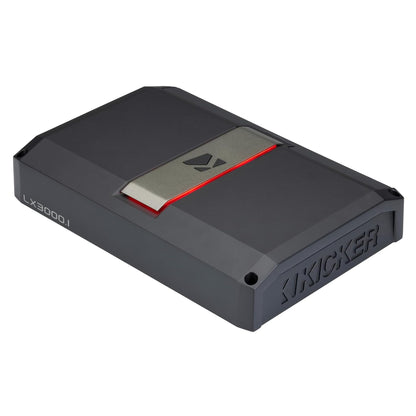

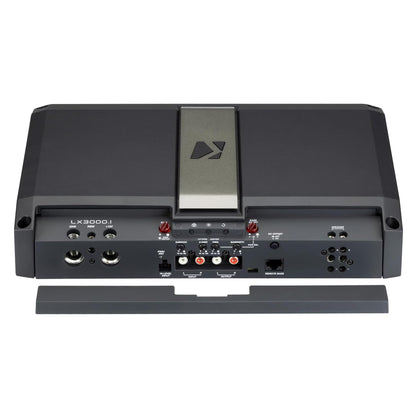

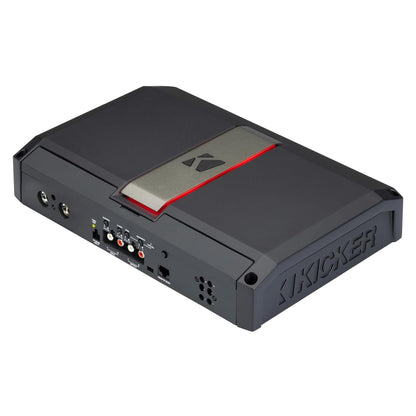

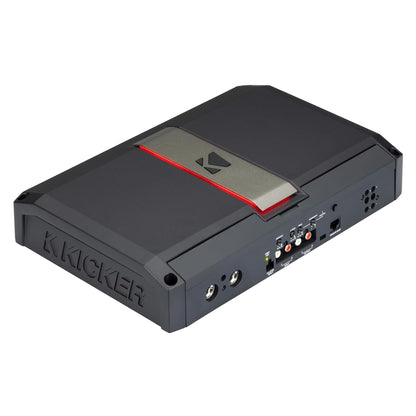

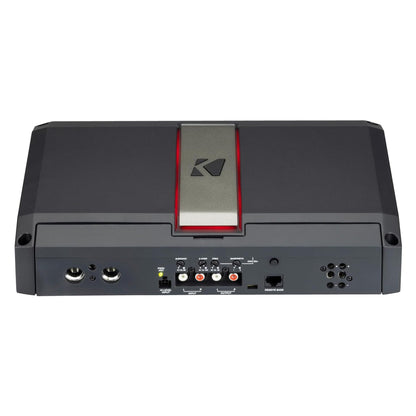

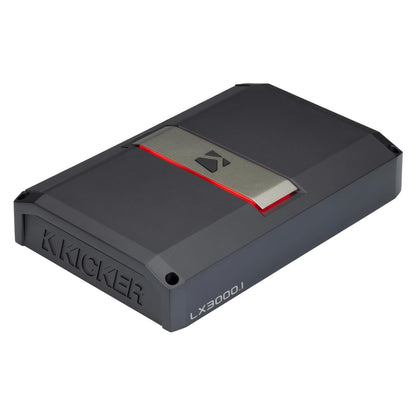

Kicker LX 51LX30001 Mono Class D Subwoofer Amplifier, 3000W RMS

Kicker 51LX30001 is an LX Series mono Class D subwoofer amplifier designed for high-output subwoofer systems requiring substantial RMS power and advanced control.

Key Performance Features

• Mono Class D subwoofer amplifier
• 3000 W RMS at 1 Ω

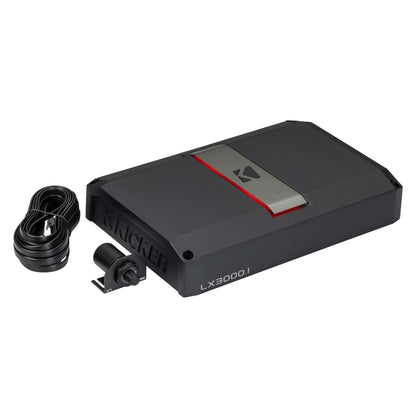

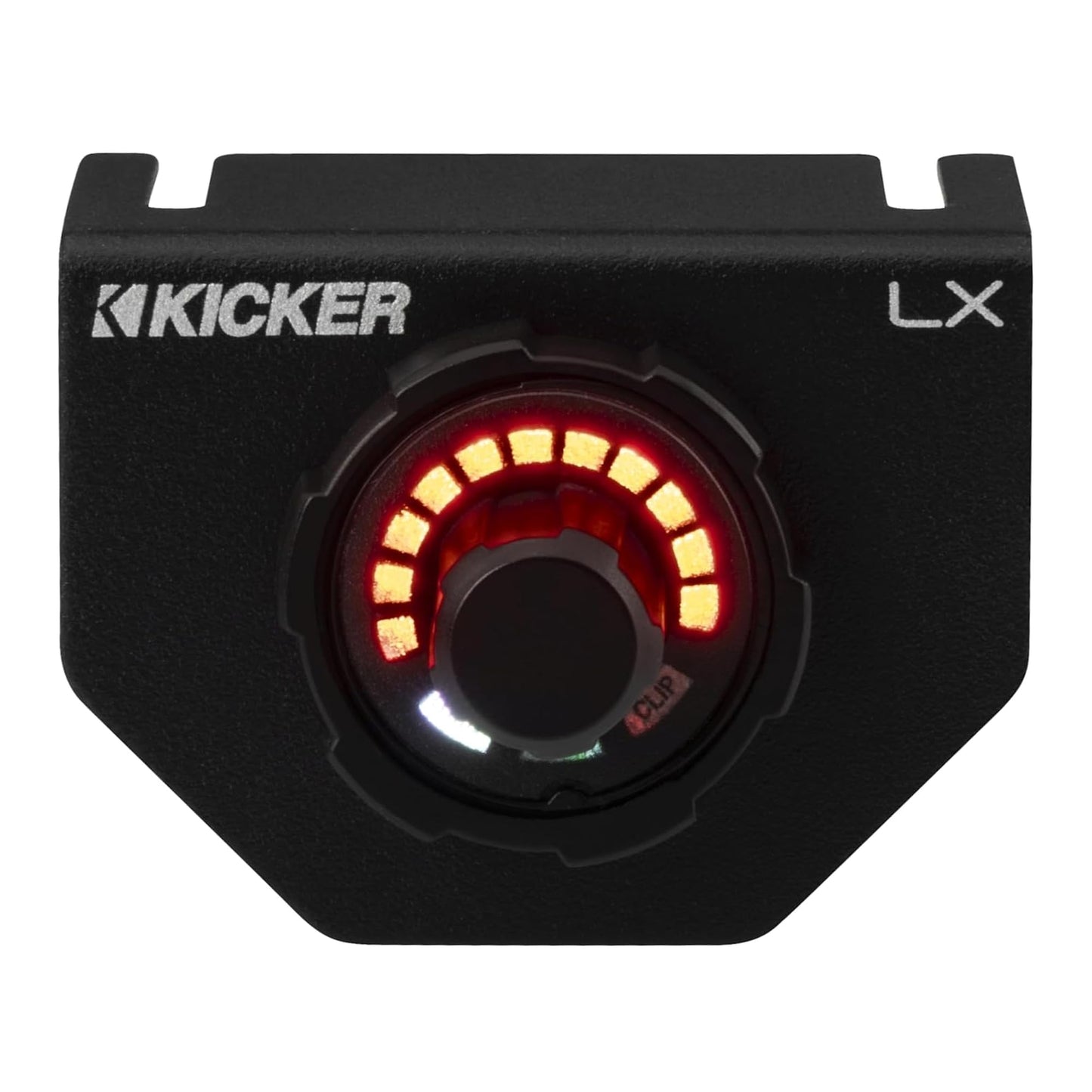

• Includes LXRC dash remote
• SHOCwave2.0 bass restoration
• FIT+ technology accepts low-level and high-level signals up to 40 V
• Gain-match LEDs for setup support

System Configuration & Flexibility

• Type: Mono subwoofer amplifier
• Application: High-output subwoofer systems
• Amplifier Class: Class D
• Minimum Load: 1 Ω mono

Power Output

• RMS @ 1Ω Mono: 3000 W
• RMS @ 2Ω Mono: 2000 W
• RMS @ 4Ω Mono: 1100 W

Signal Control & Protection

• Variable low-pass crossover
• Variable subsonic filter
• KickEQ+ parametric bass boost
• LXRC remote bass control functions
• Protection monitoring for thermal, circuit, and voltage stability

Installation Notes

• Use proper power and ground wiring sized for amplifier current demand
• Mount in a ventilated location with clearance around the chassis
• Professional installation and gain setup are required for high-power subwoofer systems

Technical Specifications

• Brand: Kicker
• Series: LX Series
• Model: 51LX30001
• Amplifier Type: Mono subwoofer amplifier
• Amplifier Class: Class D
• Frequency Response: 10 Hz – 160 Hz
• Dimensions: 12-5/8 in. L x 8-7/16 in. W x 2-3/8 in. H

Identifiers & Packaging

• MPN: 51LX30001
• UPC: 713034020264
• Sold As: Each
• Included Components: Amplifier, LXRC dash remote, mounting hardware, documentation
