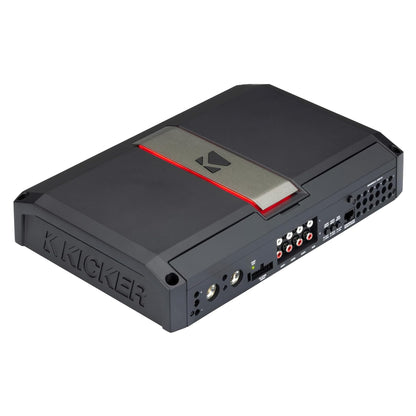

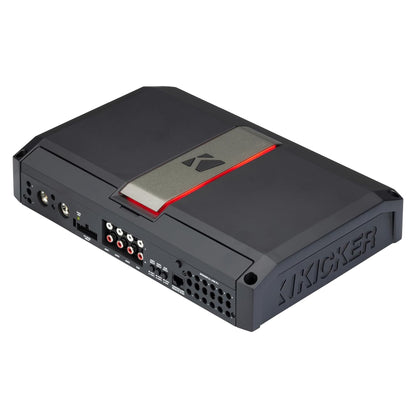

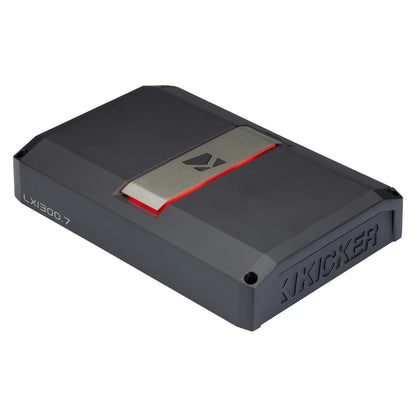

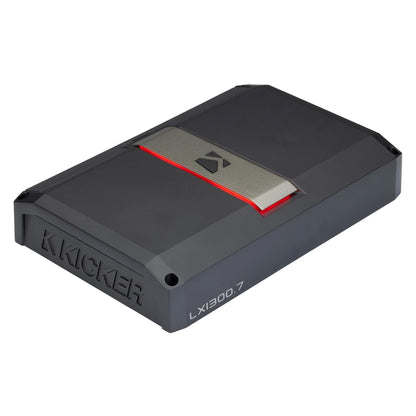

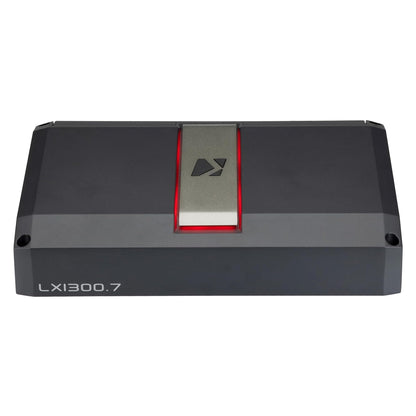

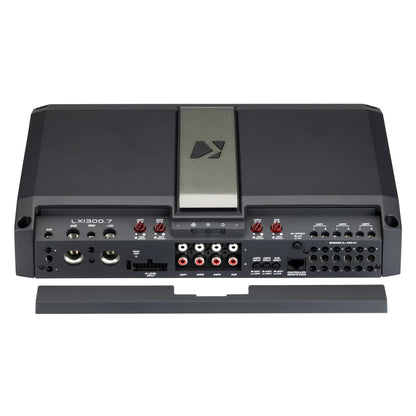

Kicker LX1300.7 7-Channel Amplifier - 4-Channels Full Range 51LX13007
Kicker LX1300.7 7-Channel Amplifier - 4-Channels Full Range 51LX13007
Regular price
$949.99 USD
Regular price
$949.99 USD
Sale price
$949.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuring SHOCwave2.0™.
From the Ground Up
The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.
- Incrementally dial in entire system with the included LX Control Center
- Monitor and adjust sub section with the included LXRC Dash Remote
- Class-D design for lower current draw, longer playing times, and lower operating temperatures
- Gain-match LEDs show you perfect gain setting
- Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
- Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
- LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

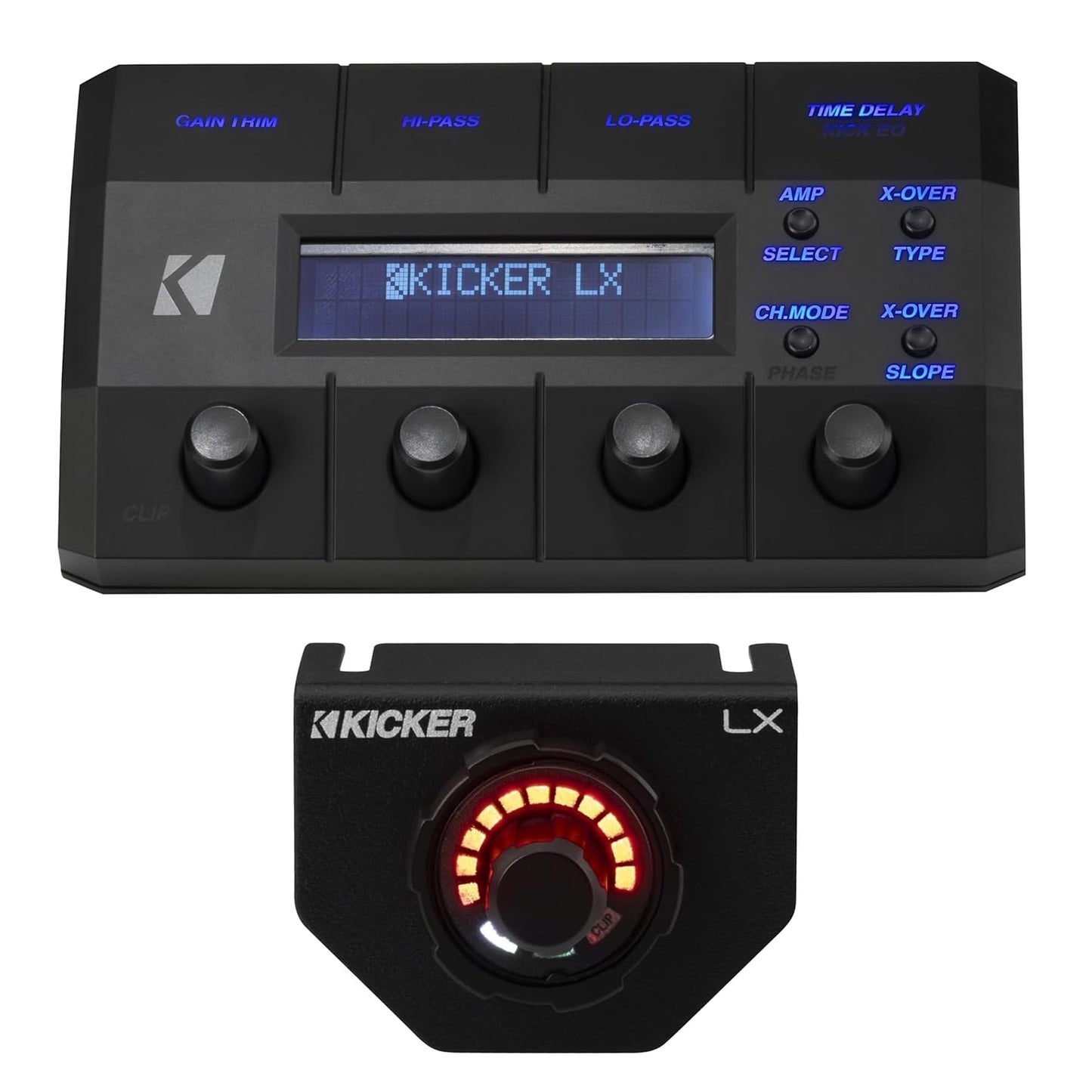

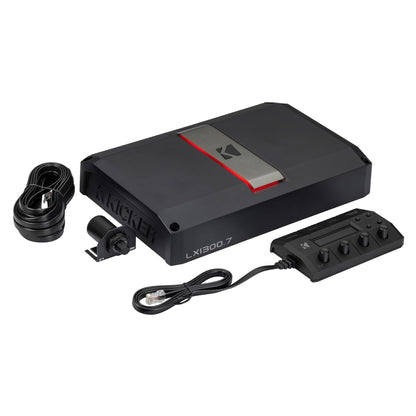

Comes with the LX CONTROL CENTER (LXCC)
- Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
- Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
- Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel
- Cable Length – integrated 3.28 feet (1m), directly into amp
Comes with the LX REMOTE CONTROL (LXRC)
- Dynamic fingertip dash remote of bass level adjustment
- Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
- Displays battery voltage in fuel-gauge-style readout
- Control of its RGB LED brightness
- Output clipping indicator to prevent distortion and protect your system
- Cable Length – 19.75 feet (6m) RJ45 cable
Specifications
| LX 1300.7 white paper |
| 51LX13007 Whitepaper PDF |
| RMS Power [Watts/Channel] @ 14.4V |
|
Amp 1 & Amp 2 (Stereo Channels): 2Ω Stereo: 150 x 4 4Ω Stereo: 125 x 4 4Ω Bridged: 250 x 2 Amp 3 (Stereo Pair): 2Ω Stereo: 65 x 2 4Ω Stereo: 65 x 2 4Ω Bridged: 130 x 1 Sub Channel: 1Ω mono: 700W 2Ω mono: 550W 4Ω mono: 300W |
| Dynamic Power [Watts] |
| 1500 |
| Frequency Response [Hz] |
| Stereo Channels: 20–20k Sub Channel: 10–160 (+0/-1dB) |
| Signal-to-Noise Ratio (a-weighted, re: rated power) |
| >95dB |
| Signal-to-Noise Ratio (ref: 1W output) |
| >75dB |
| Dimensions [in, cm] |
| Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm) Length: 12-5/8 (32 cm) |
| Input Sensitivity |
| High level 1V–40V Low level 125mV–5V |
| Variable Electronic Crossover |
|
Amp 1 & Amp 2, Amp 3 (Stereo Channels): Off/HP/LP/BP HP: 20–5kHz LP: 40–5kHz Sub Channel: LP 40–160Hz, 24dB/octave Linkwitz-Riley Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley |
| Variable Subsonic Filter |
| 24dB/octave Linkwitz-Riley, variable hi-pass @ 10–80Hz (sub channel only) |
| KickEQ+™ (Sub Channel) |
|
0–6dB, variable center 20–80Hz,
|
