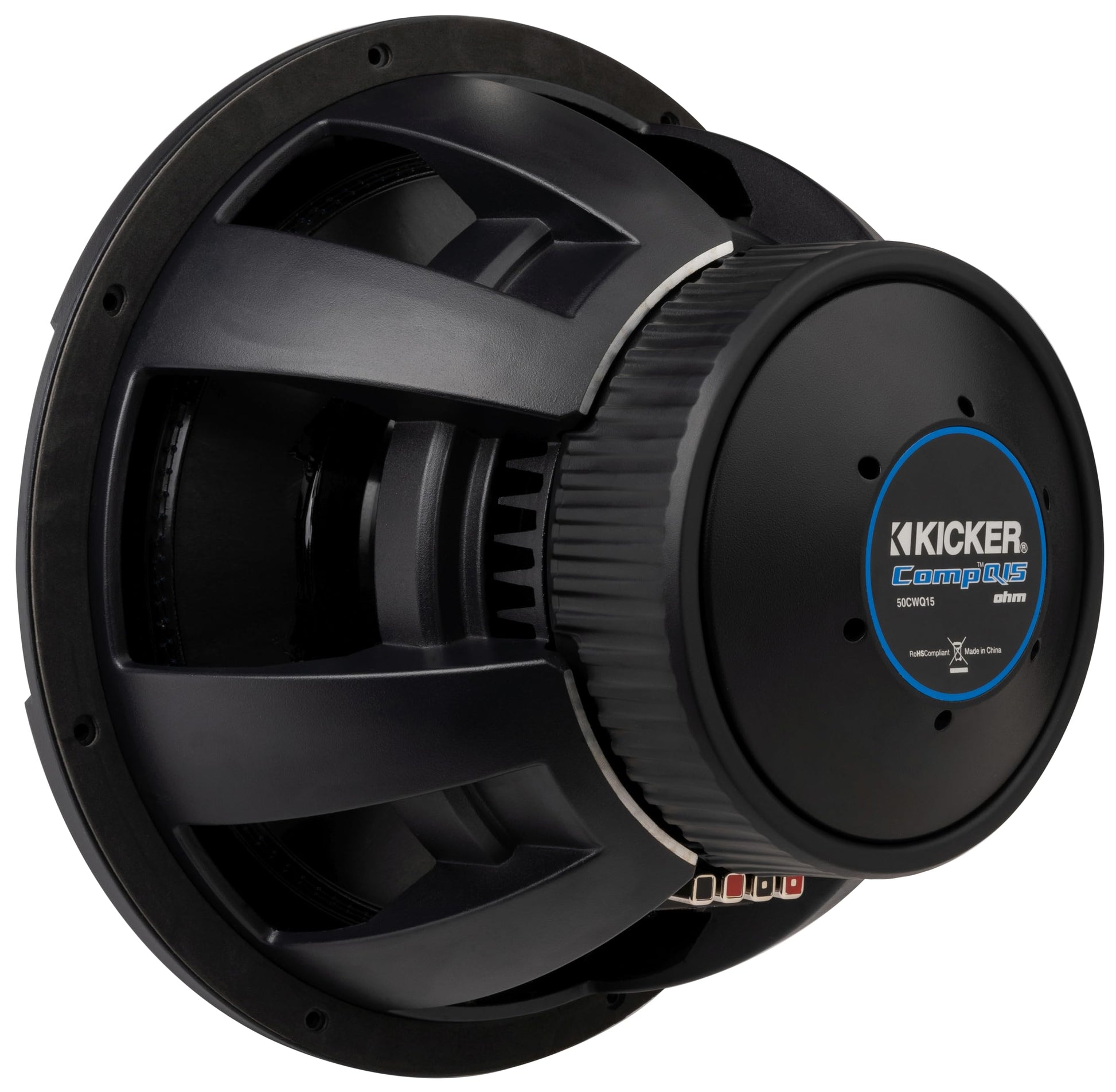

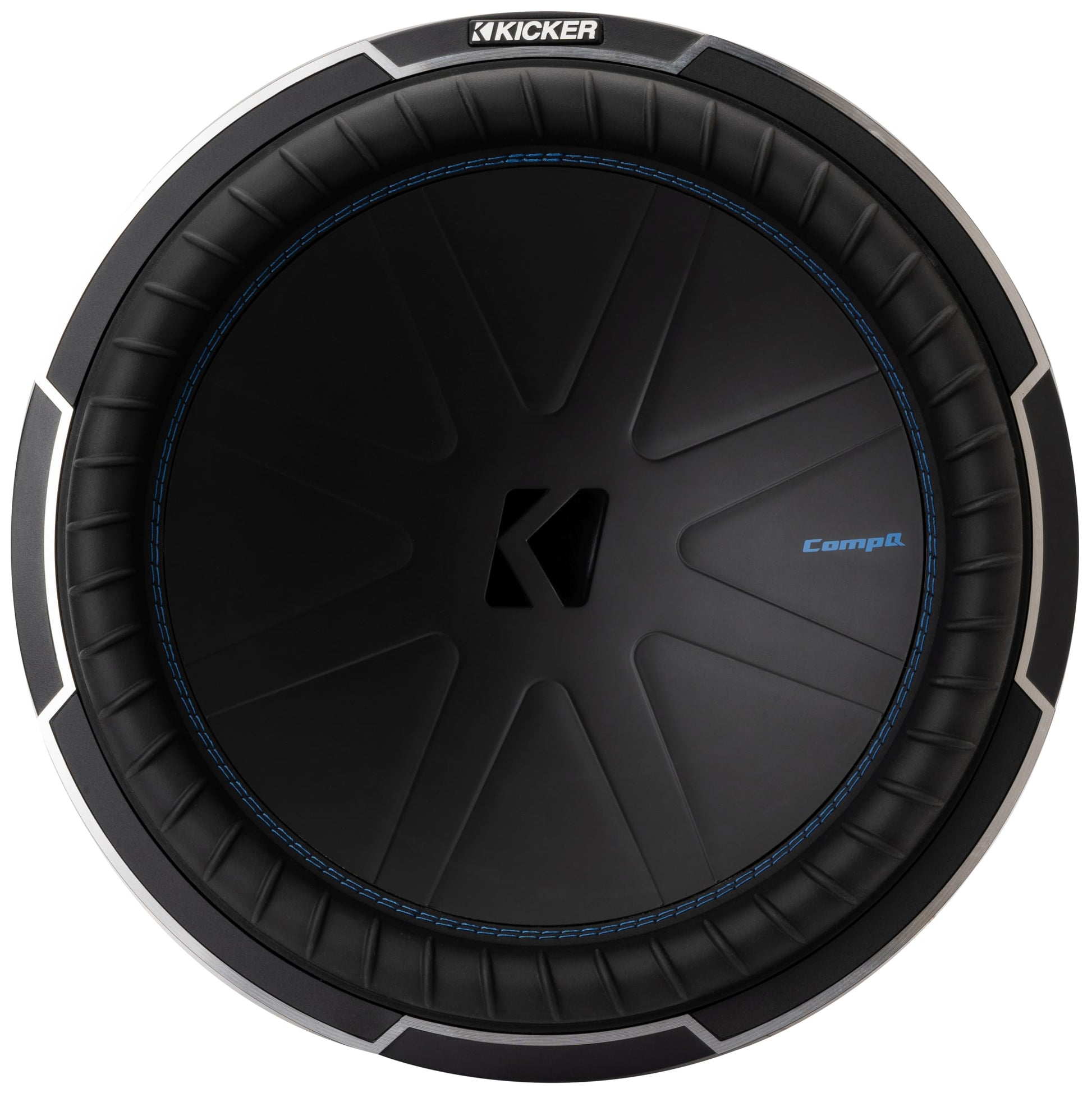

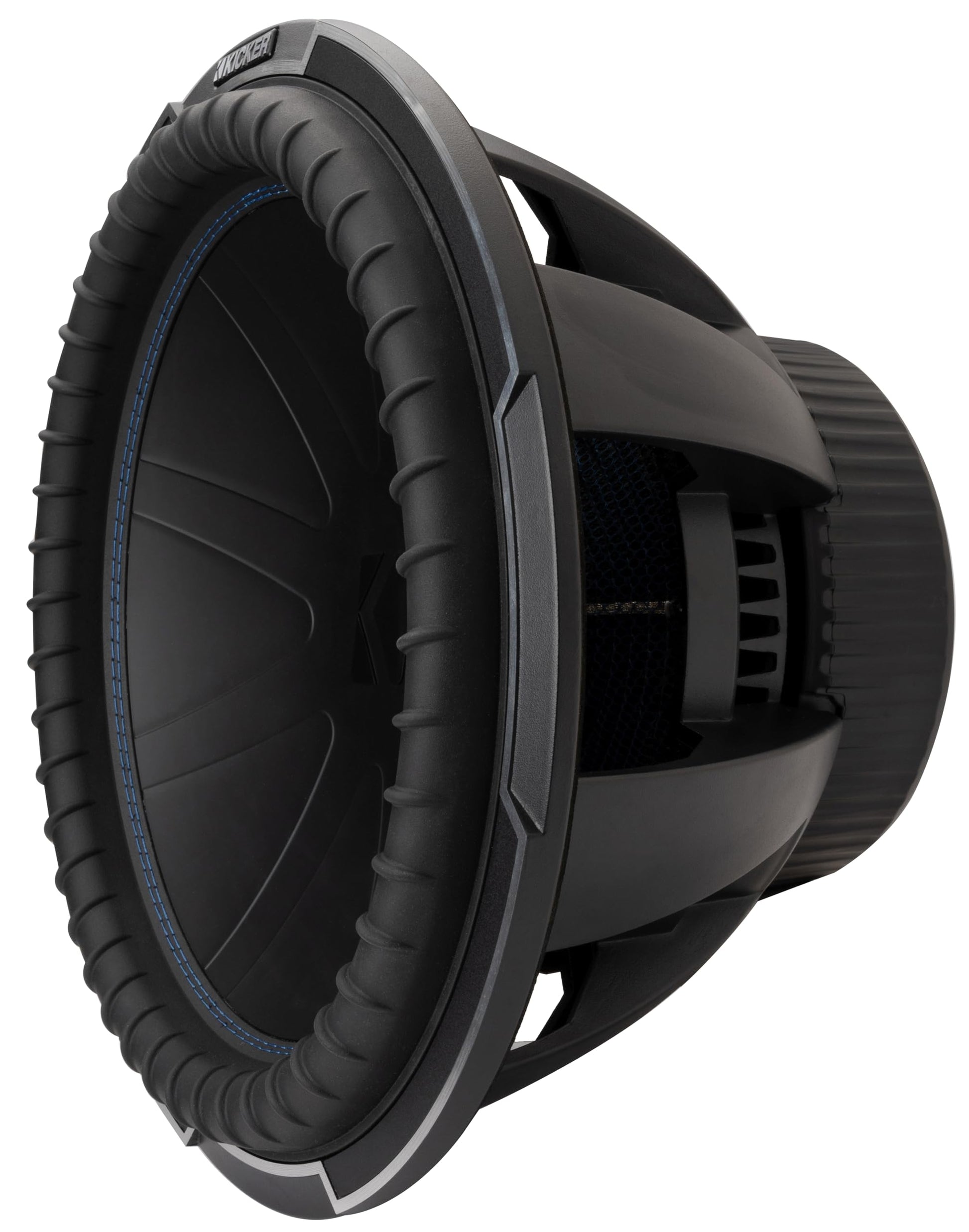

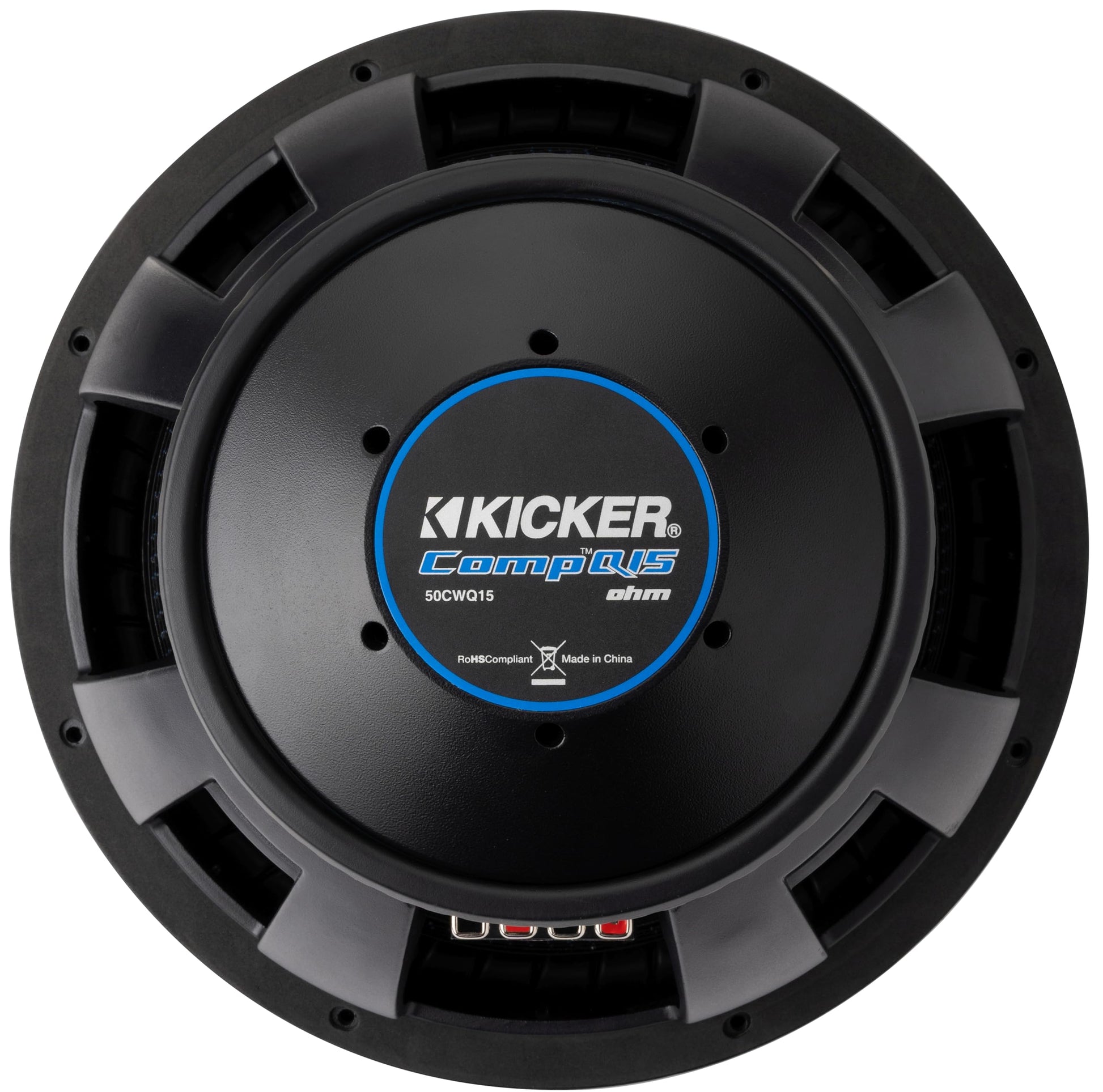

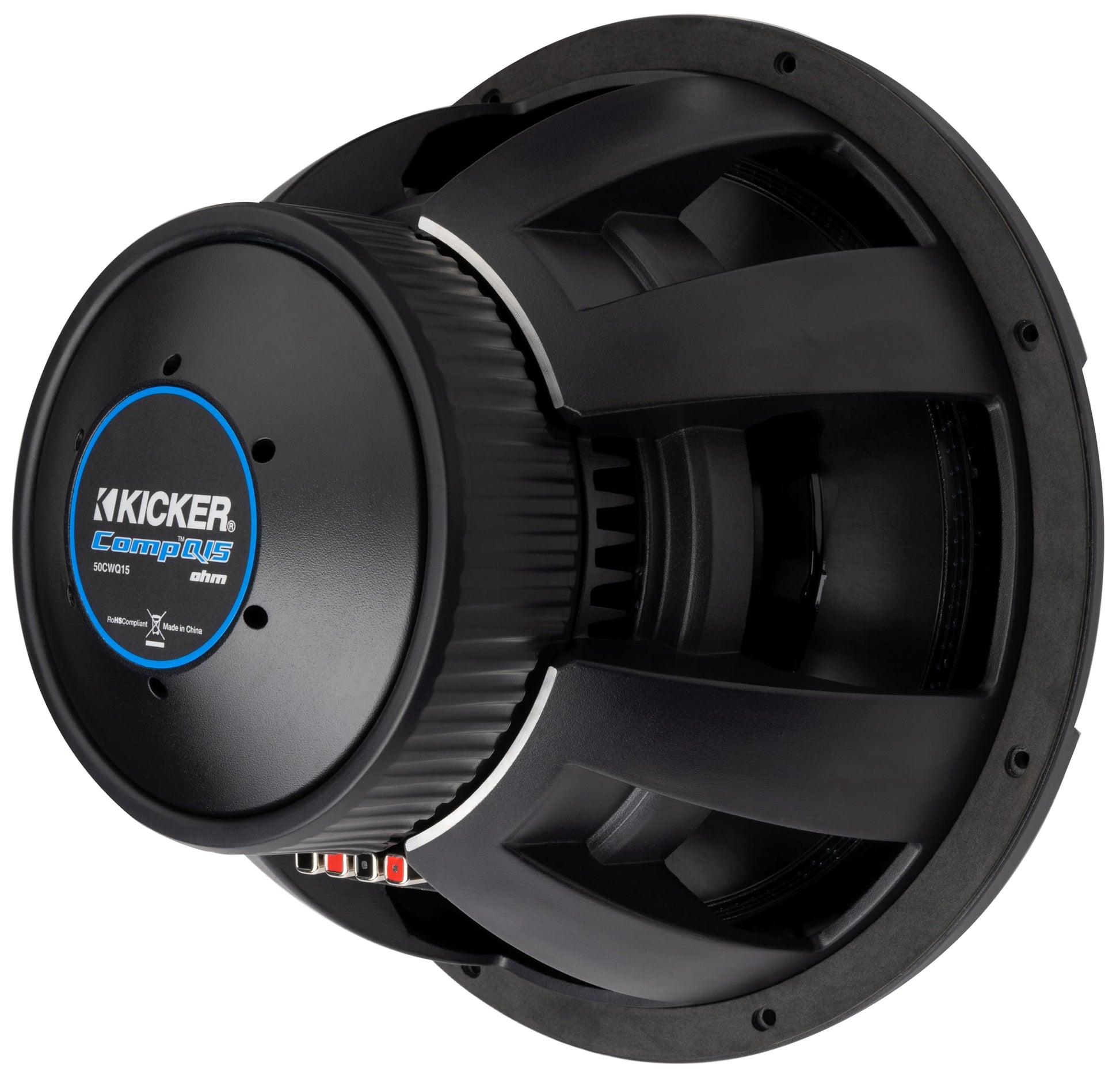

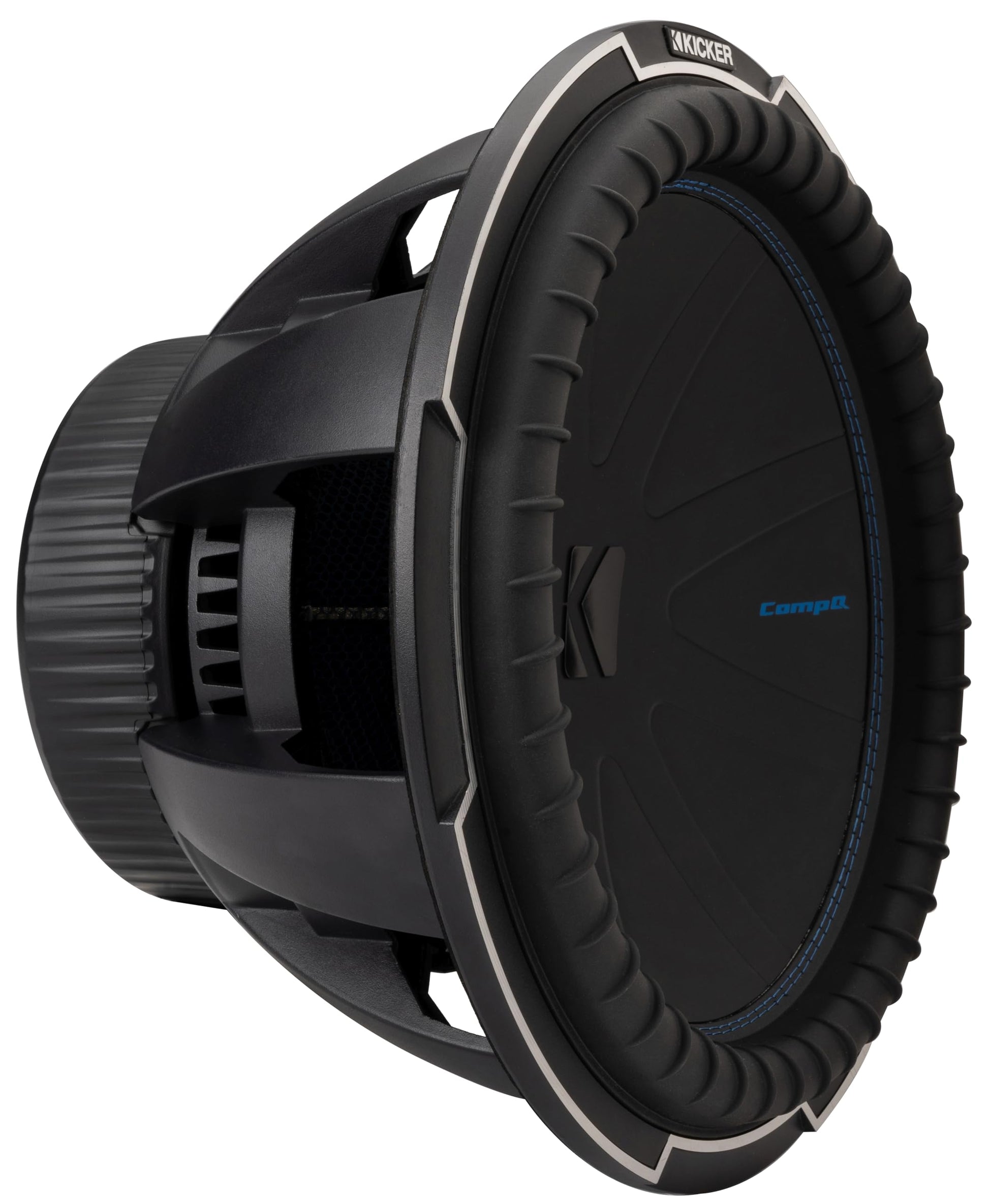

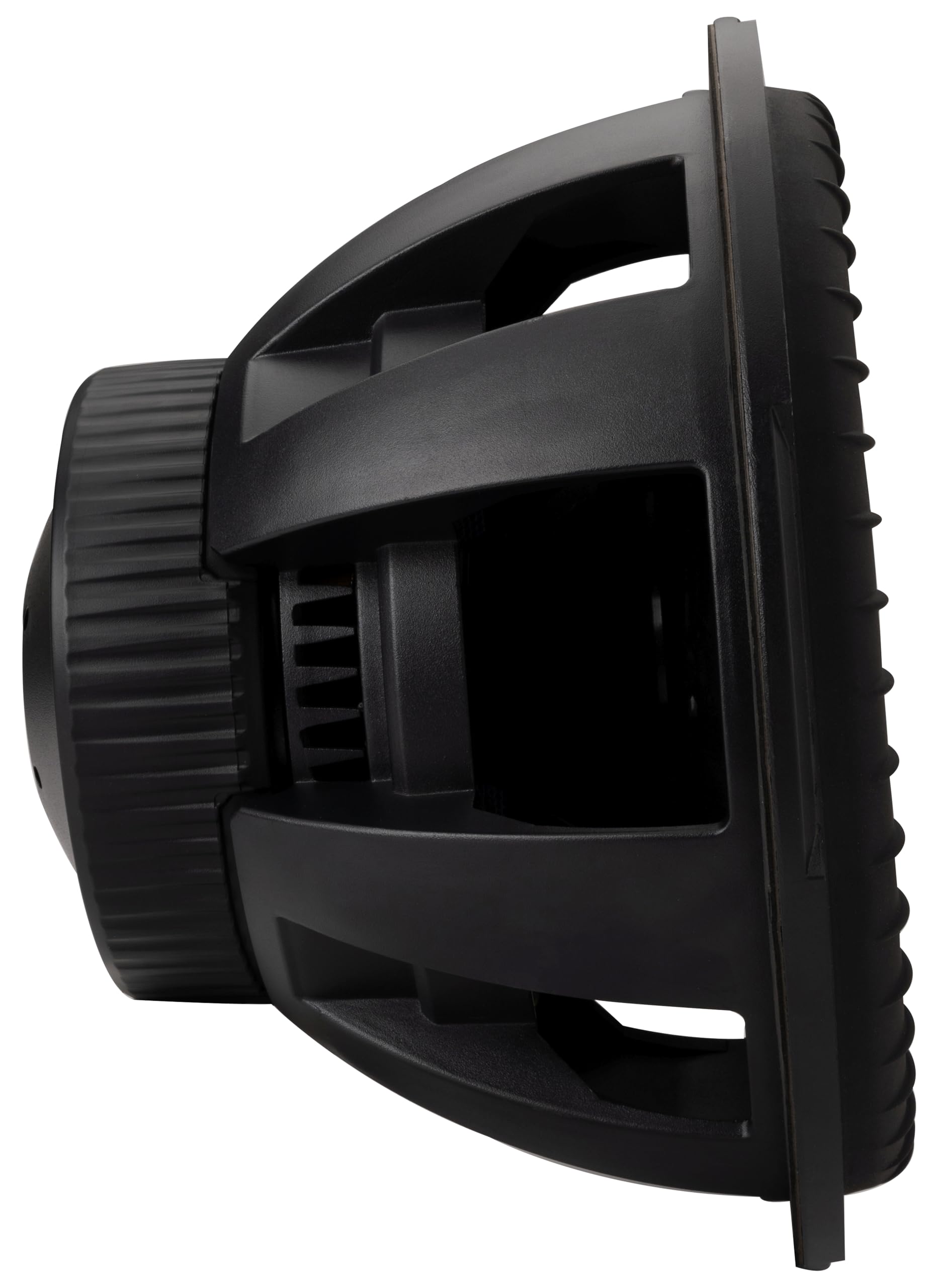

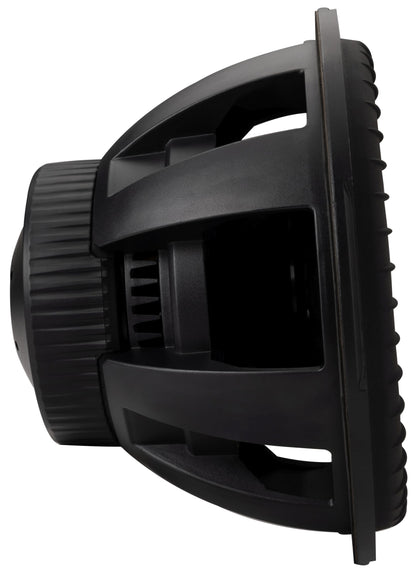

Kicker 51CWQ152 CompQ Q-Class 15" Subwoofer, Dual 2-Ohm

The 15" CompQ 2-Ohm

The CompQ 15" Subwoofer is the pinnacle of our round speaker line, with nearly identical construction and performance as our L7 square subs.

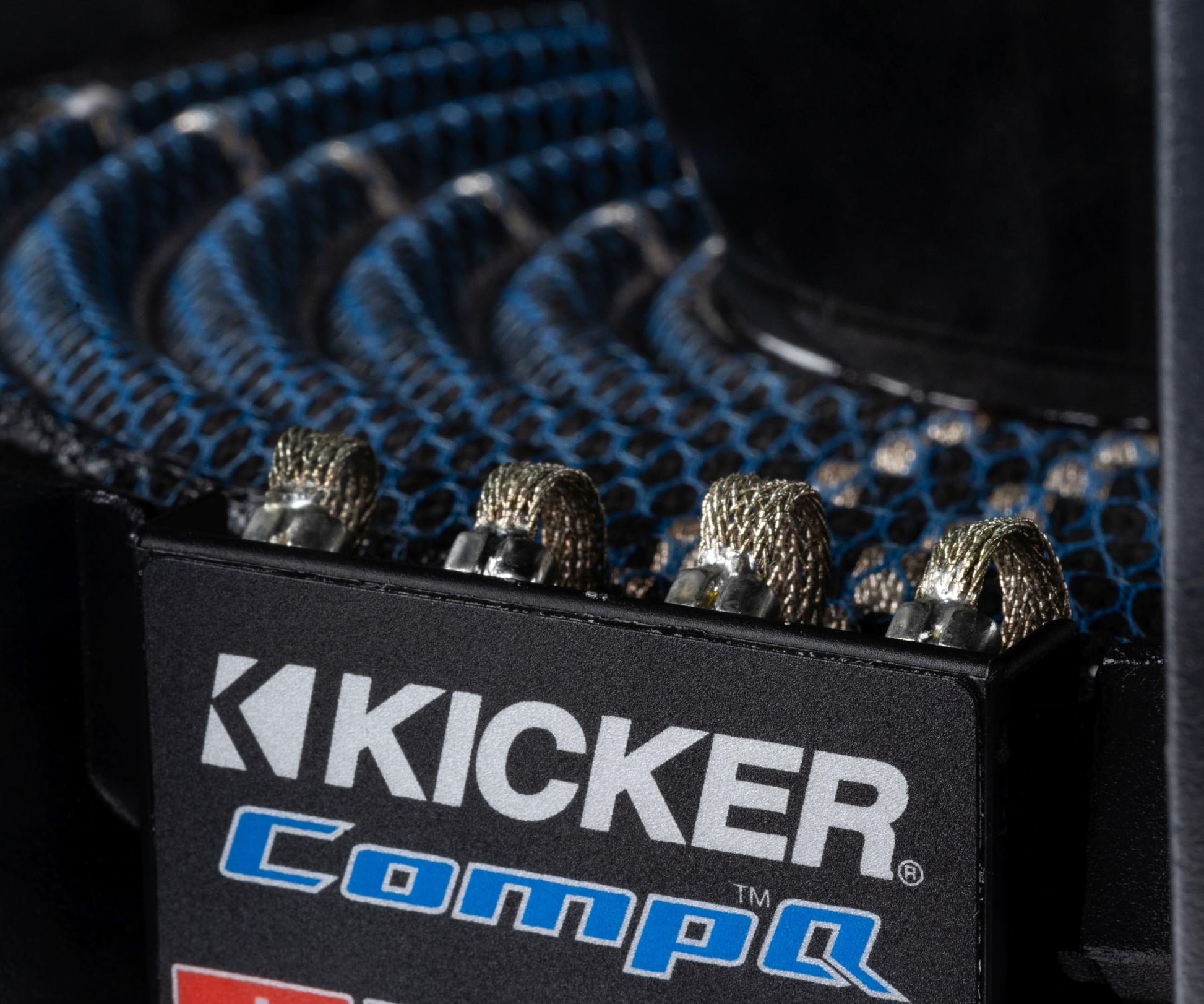

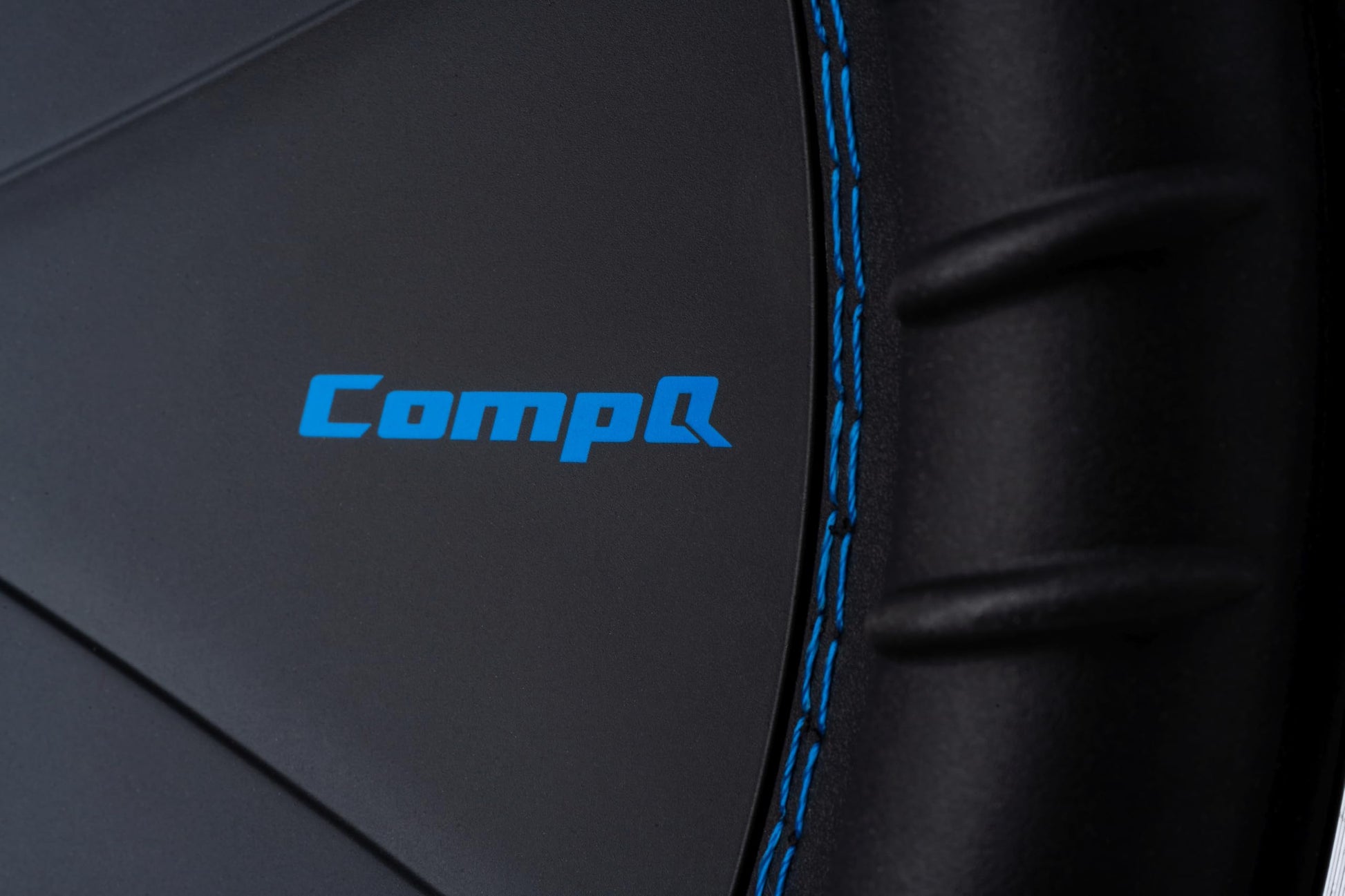

Built for high power handling and extremely accurate bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.

The CompQ 15" works best with a sealed or ported enclosure with 1200 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters

51CWQ152 T/S Parameters

Product Dimension Sheet

51CWQ15 Dimensions

Woofer (in, mm)

15, 38

Impedance (Ohms)

2 DVC

Recommended Amp Power (watts RMS)

600-1200

Frequency Response (Hz)

18-100

Sensitivity (1W, 1m)

88

Xmax (mm)

23.7

Mounting Depth (in, mm)

8-15/1, 22.6

Mounting Diameter (in, mm)

13-7/8, 35.2

Sealed Enclosure Specs

Sealed Enclosure Volume Min (cu. ft., L)

1.5, 42.5

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

Box Volume [ft³, L]

1.5, 42.5

Panel A [in, cm]

16.5x16.5, 41.9x41.9

Panel B [in, cm]

16.5x11.5, 41.9x29.2

Panel C [in, cm]

15x11.5, 38.1x29.2

Sealed Enclosure Volume Max (cu. ft., L)

6.0, 170

Vented Enclosure Volume Min (cu. ft., L)

3.0, 85

Vented Enclosure Volume Max (cu. ft., L)

6.0, 170
