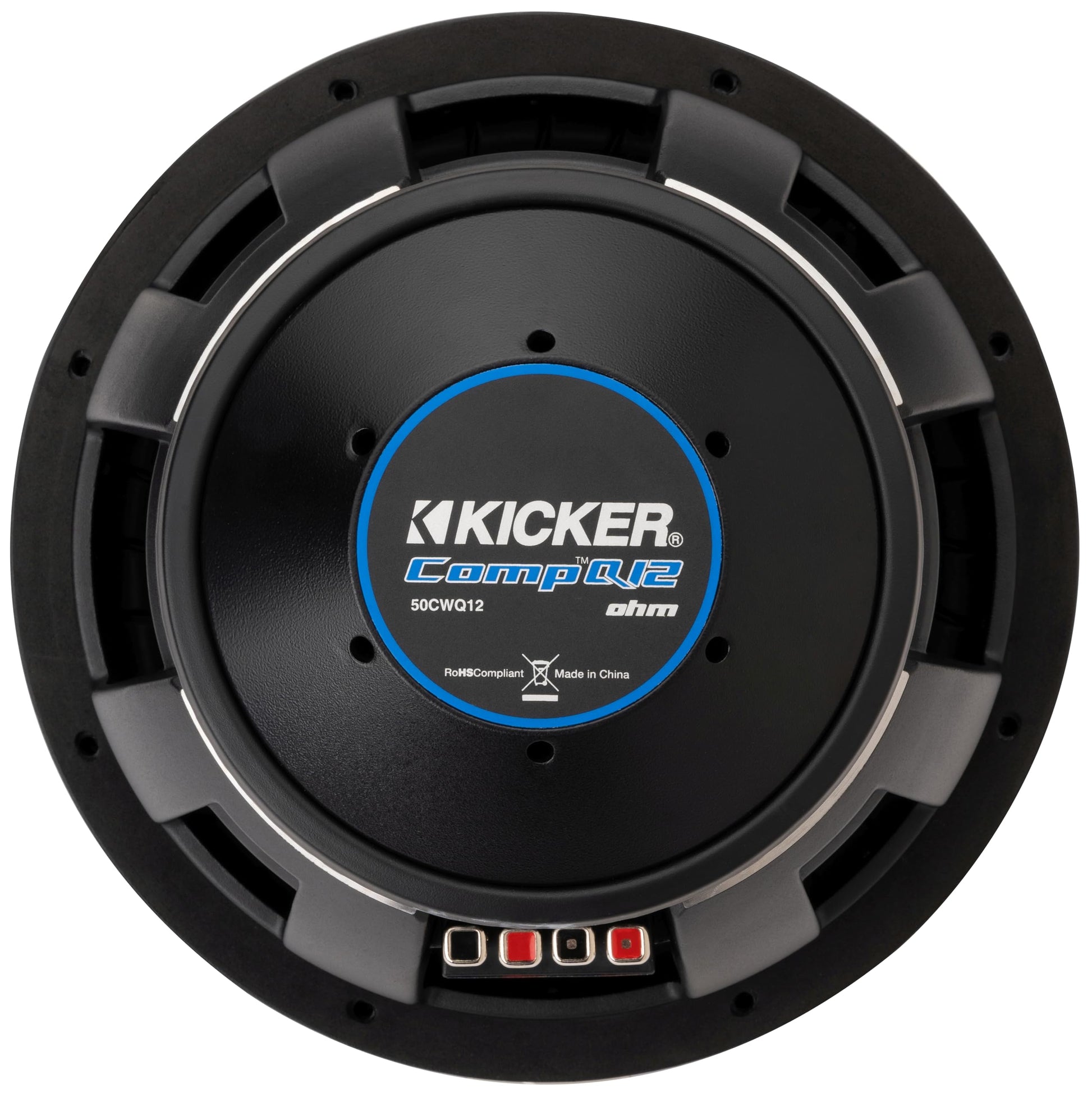

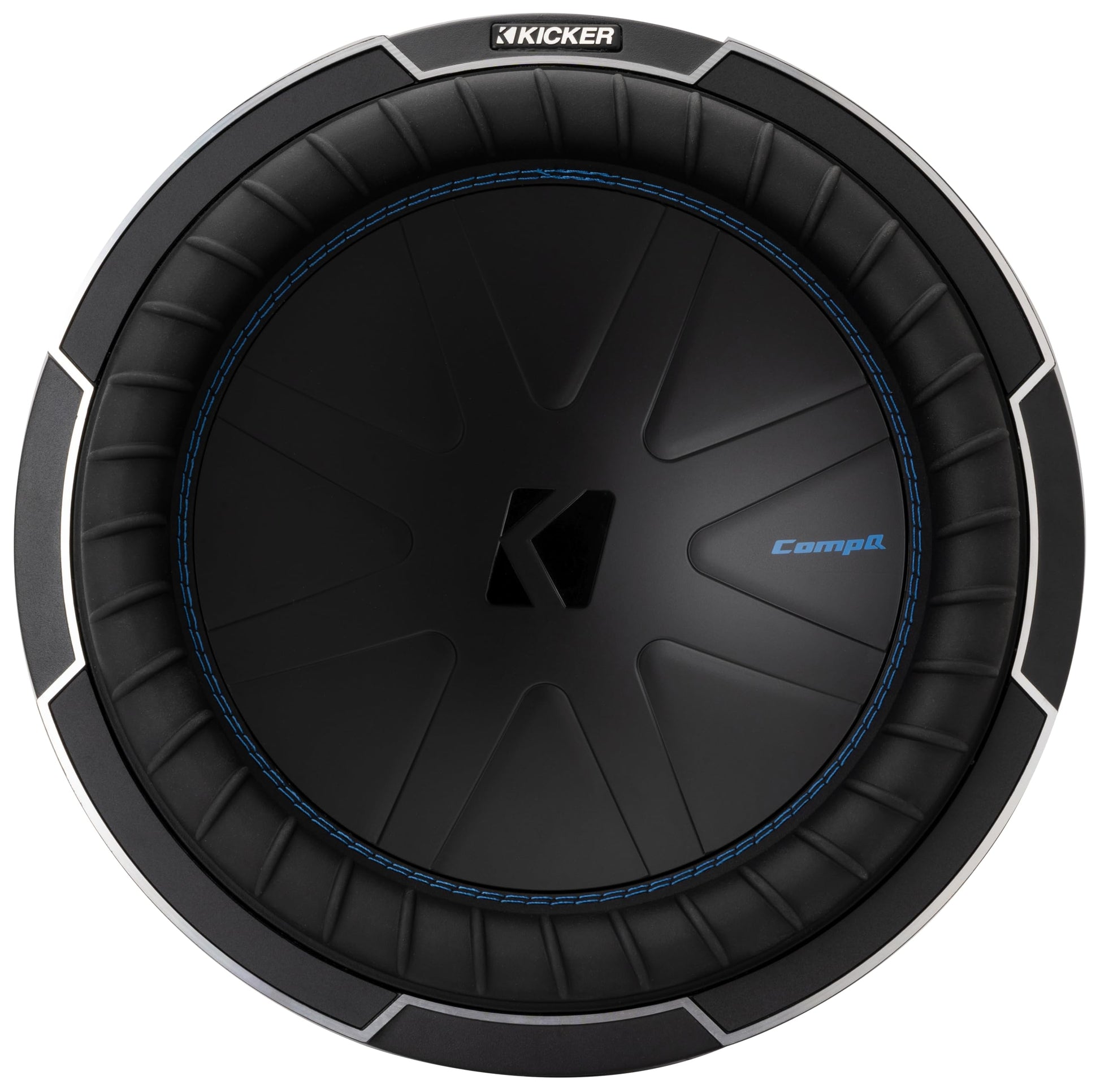

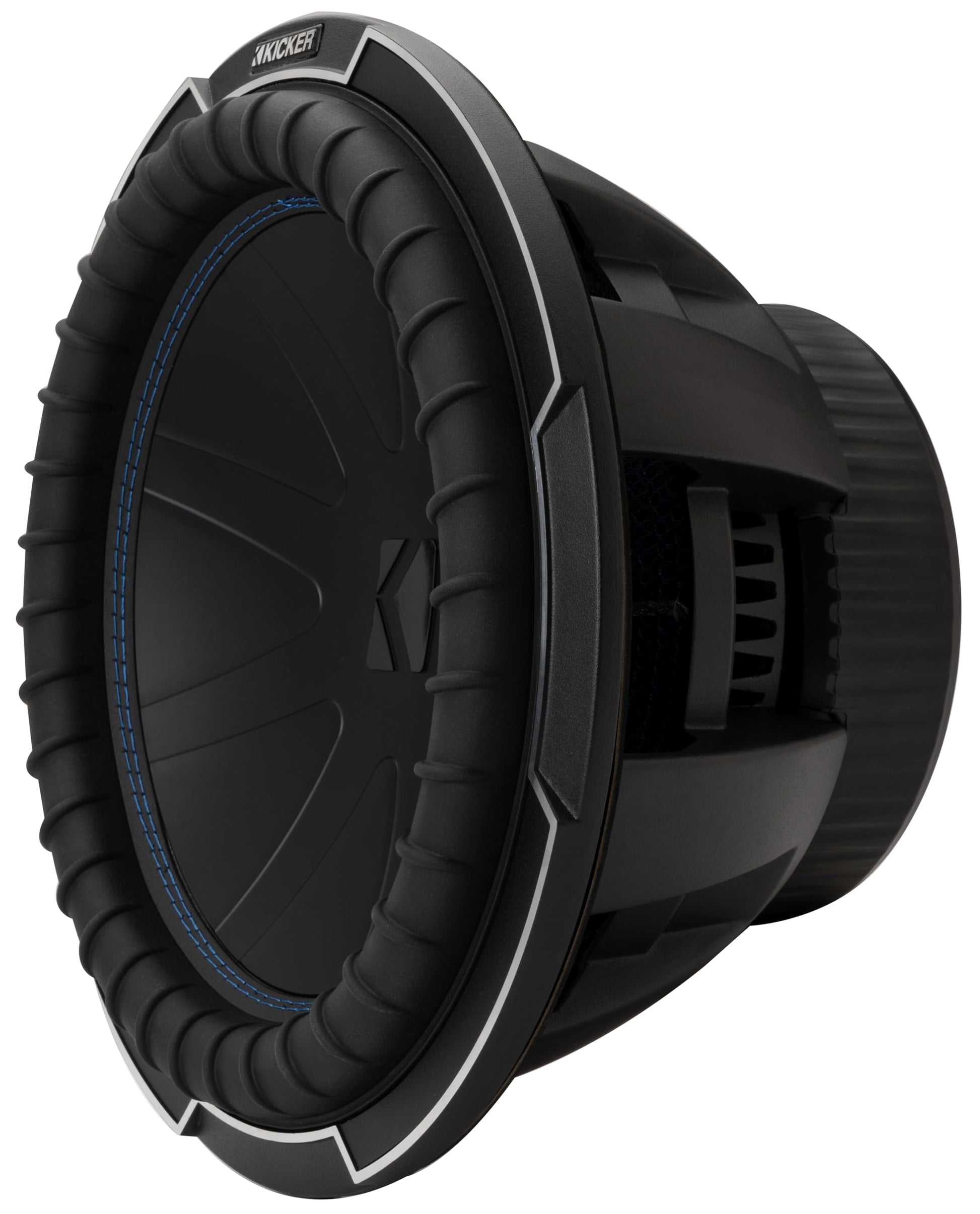

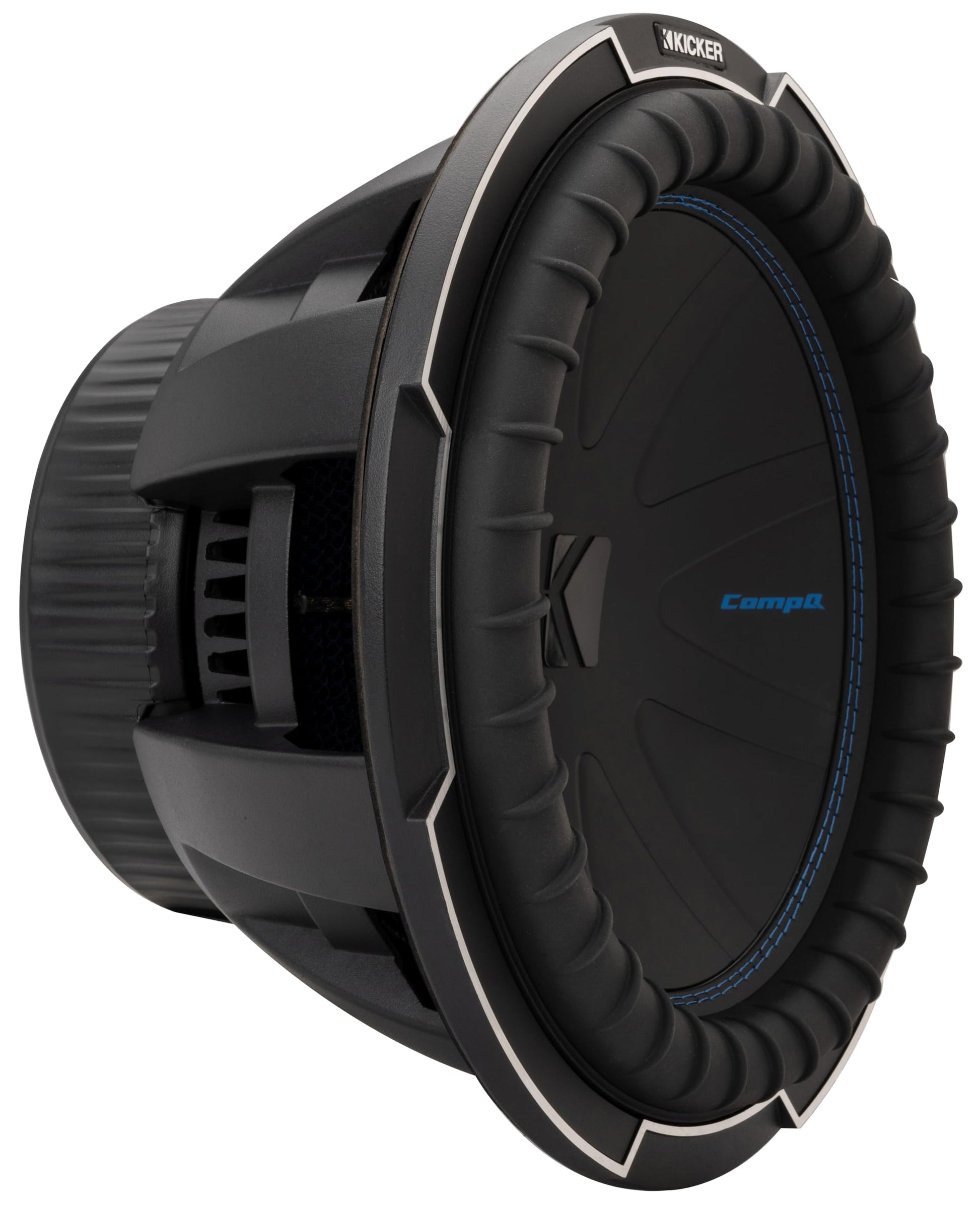

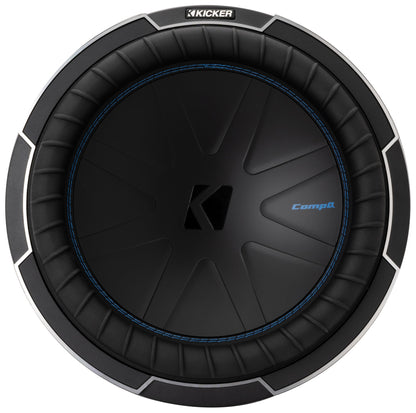

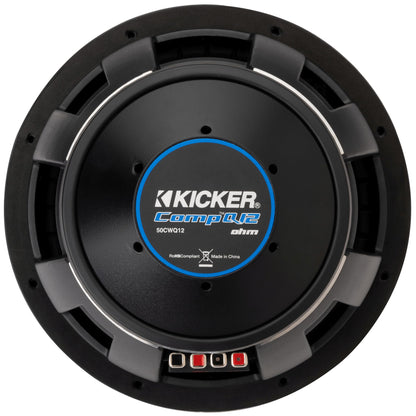

Kicker 51CWQ122 CompQ Q-Class 12" Subwoofer, Dual 2-Ohm

The 12" CompQ 2-Ohm

The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs.

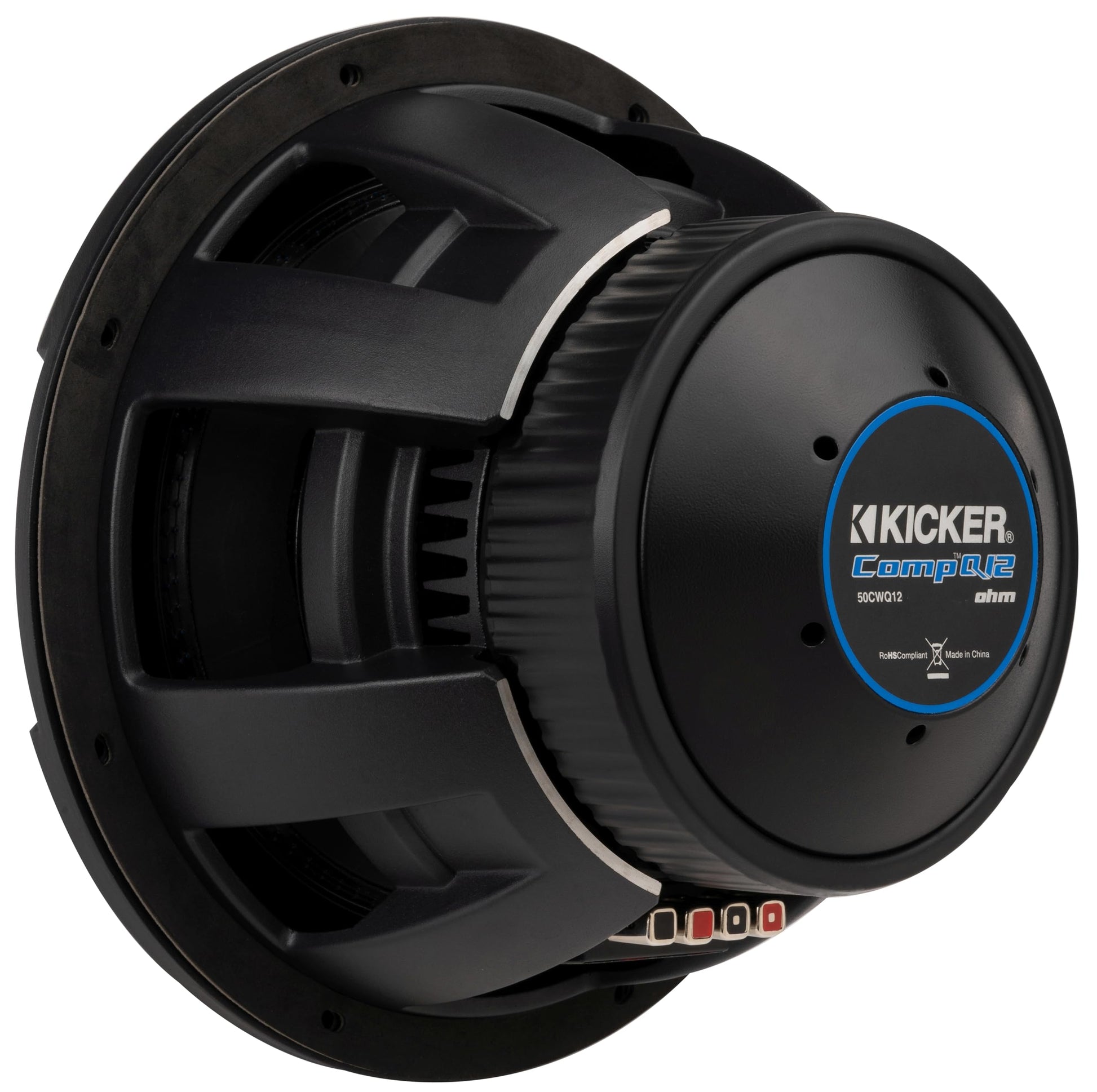

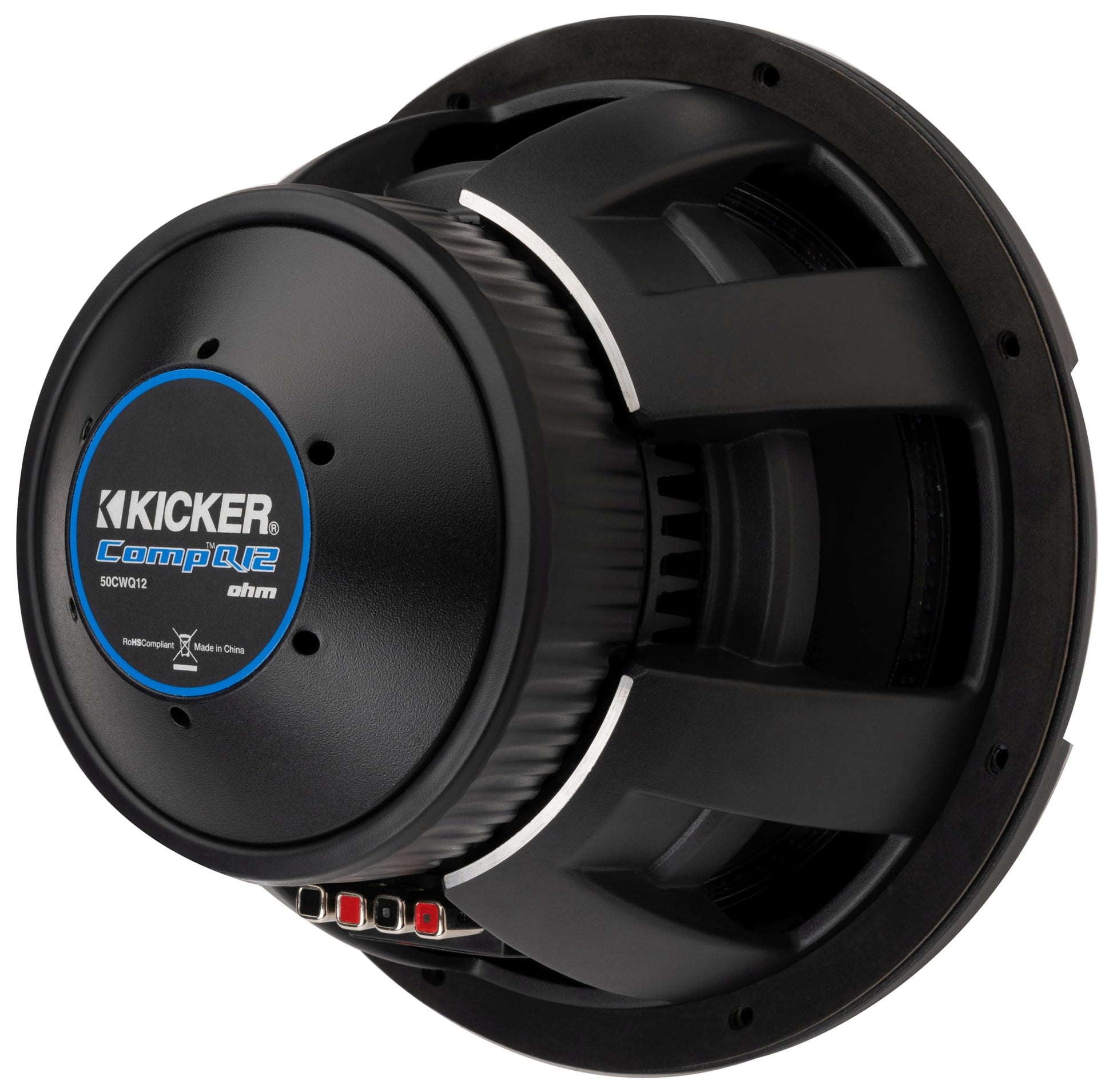

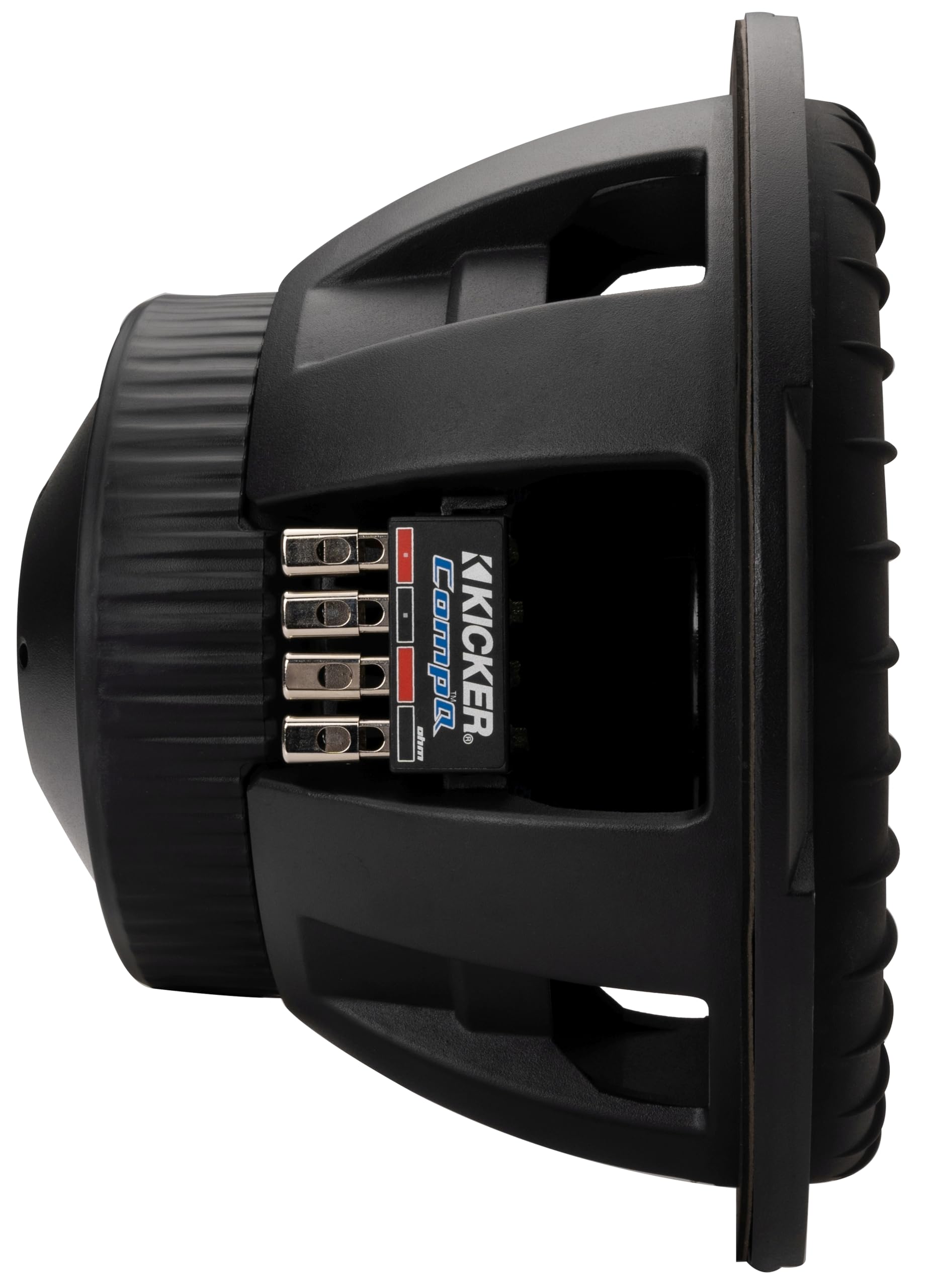

A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded.

The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 1000 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters

51CWQ122 T/S Parameters

Product Dimension Sheet

51CWQ12 Dimensions

Woofer (in, mm)

12, 30

Impedance (Ohms)

2 DVC

Recommended Amp Power (watts RMS)

500-1000

Frequency Response (Hz)

20-100

Sensitivity (1W, 1m)

85.4

Xmax (mm)

23

Mounting Depth (in, mm)

7-1/8, 18.1

Mounting Diameter (in, mm)

11-1/16, 28.1

Sealed Enclosure Specs

Sealed Enclosure Volume Min (cu. ft., L)

0.88, 24.9

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

Box Volume [ft³, L]

0.88, 24.9

Panel A [in, cm]

13.5x13.5, 34.3x34.3

Panel B [in, cm]

13.5x10.5, 34.3x26.7

Panel C [in, cm]

12x10.5, 30.5x26.7

Sealed Enclosure Volume Max (cu. ft., L)

2.0, 56.6

Vented Enclosure Volume Min (cu. ft., L)

1.75, 49.6

Vented Enclosure Volume Max (cu. ft., L)

3.25, 92
