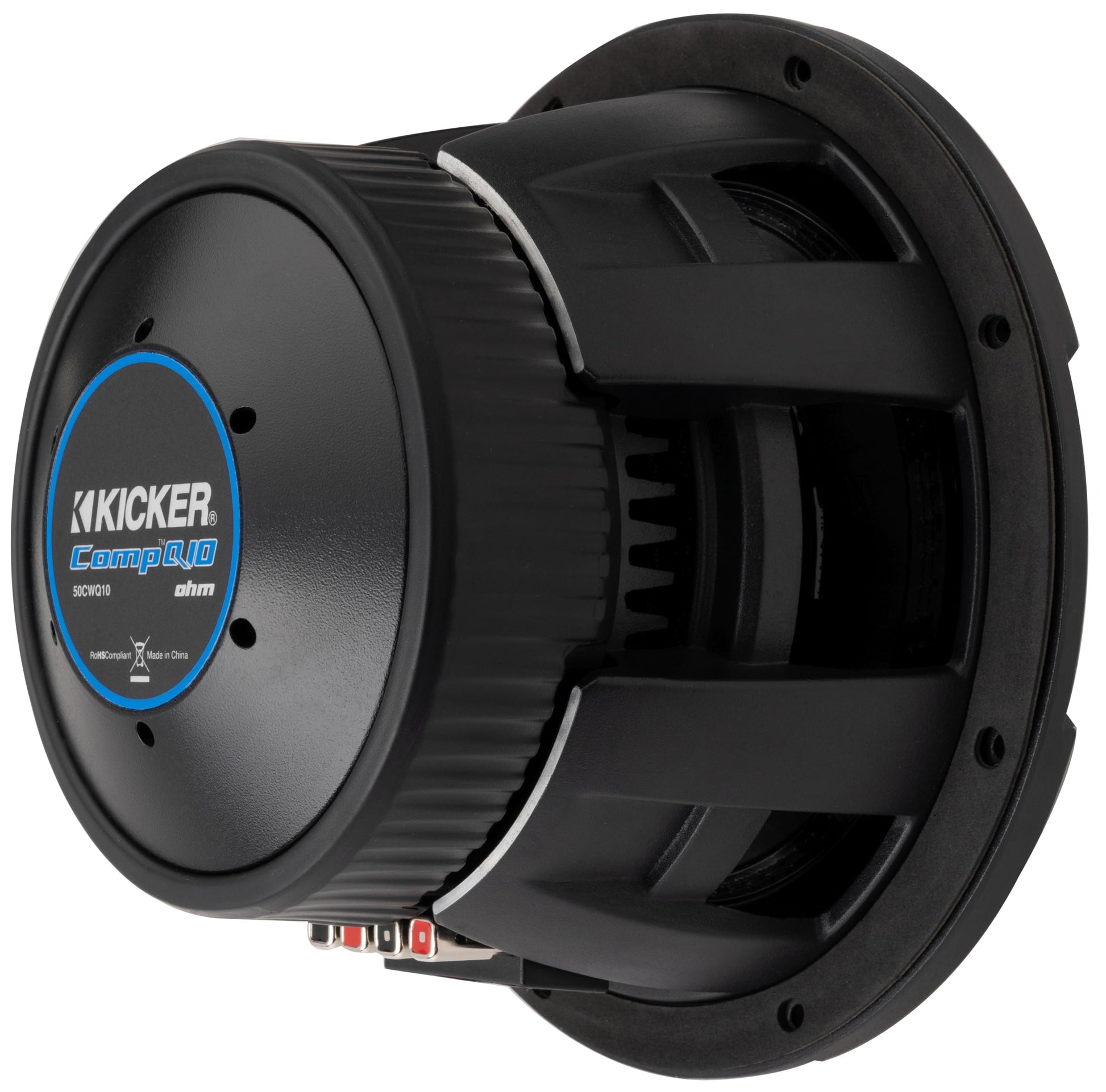

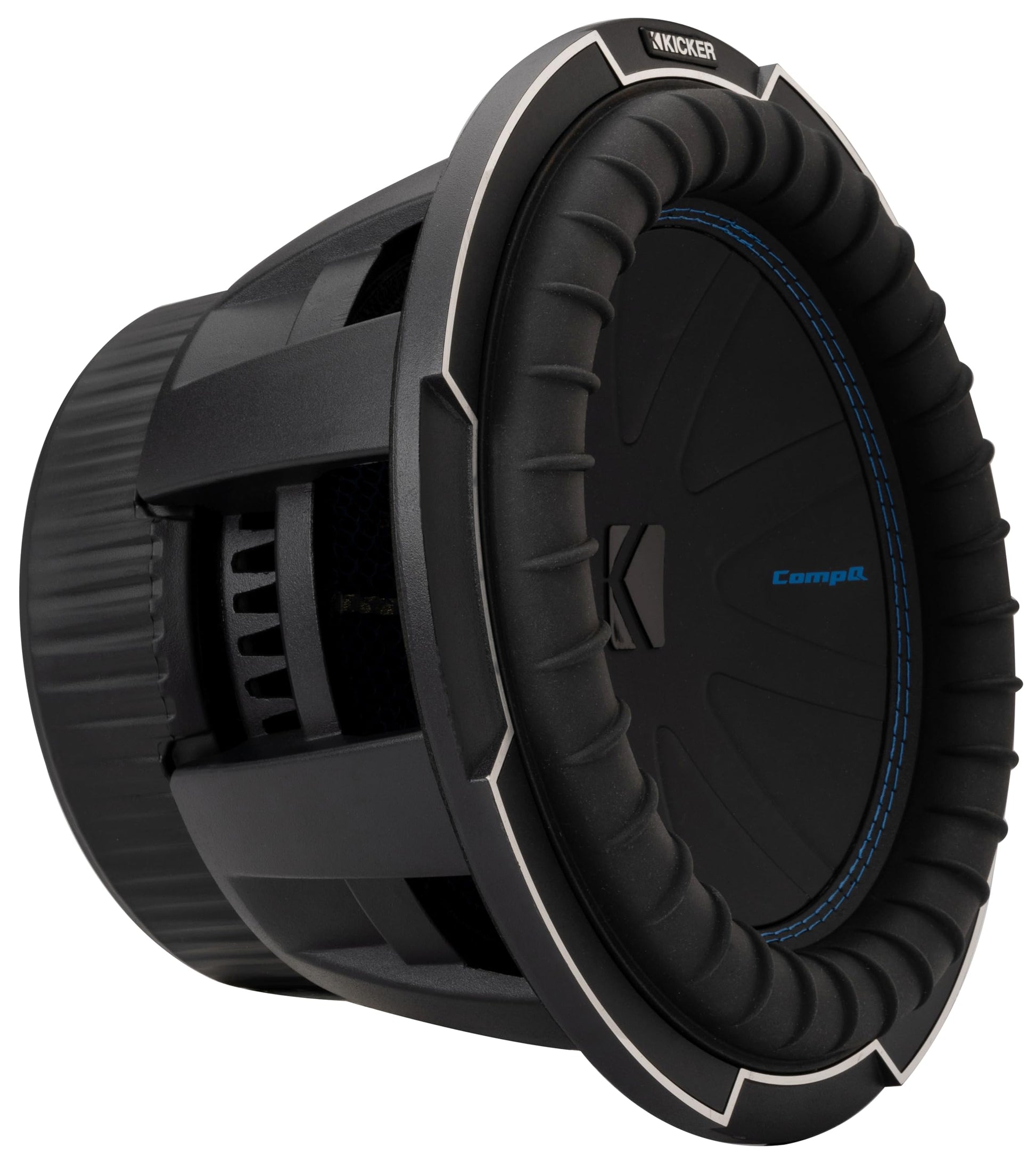

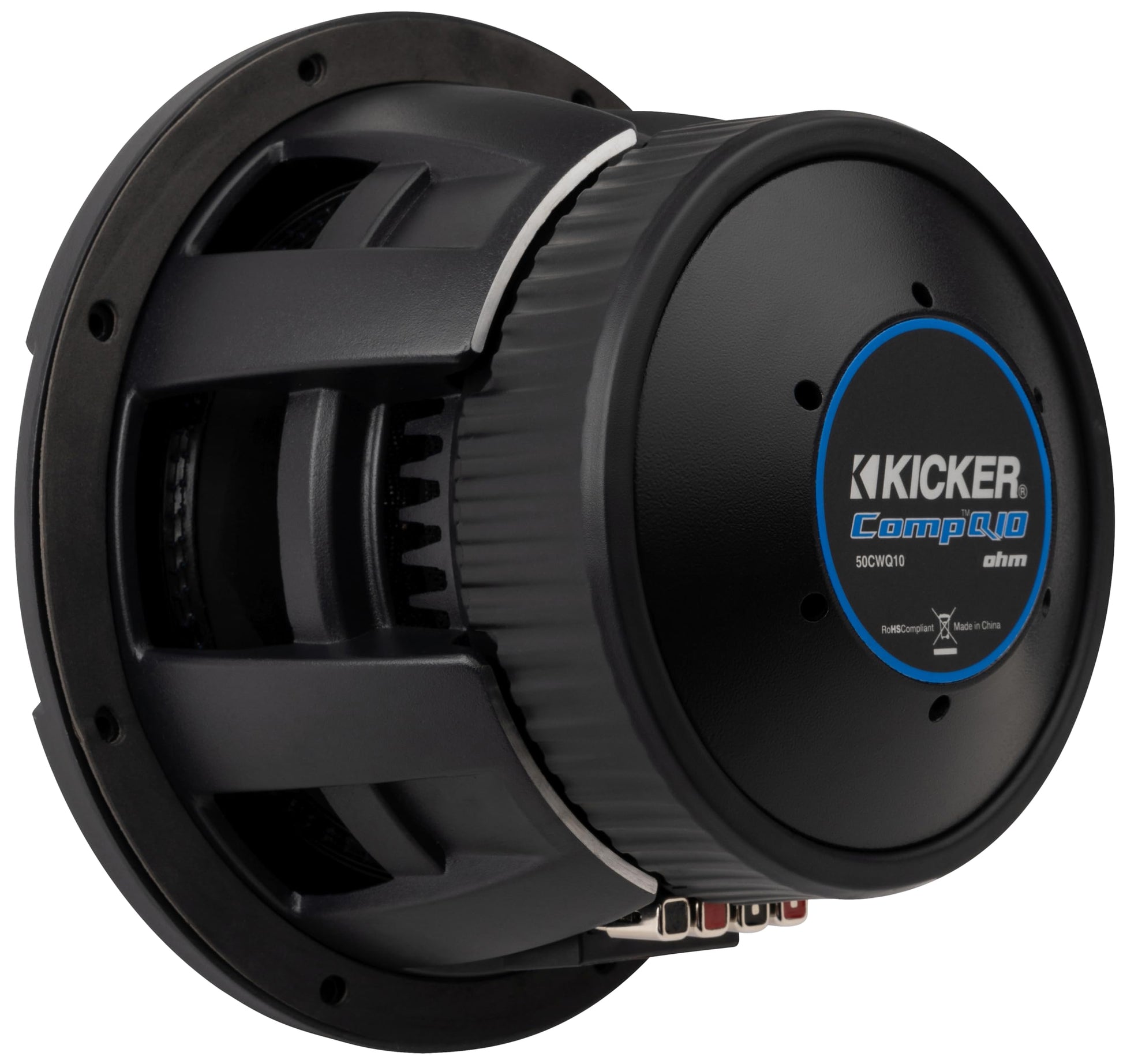

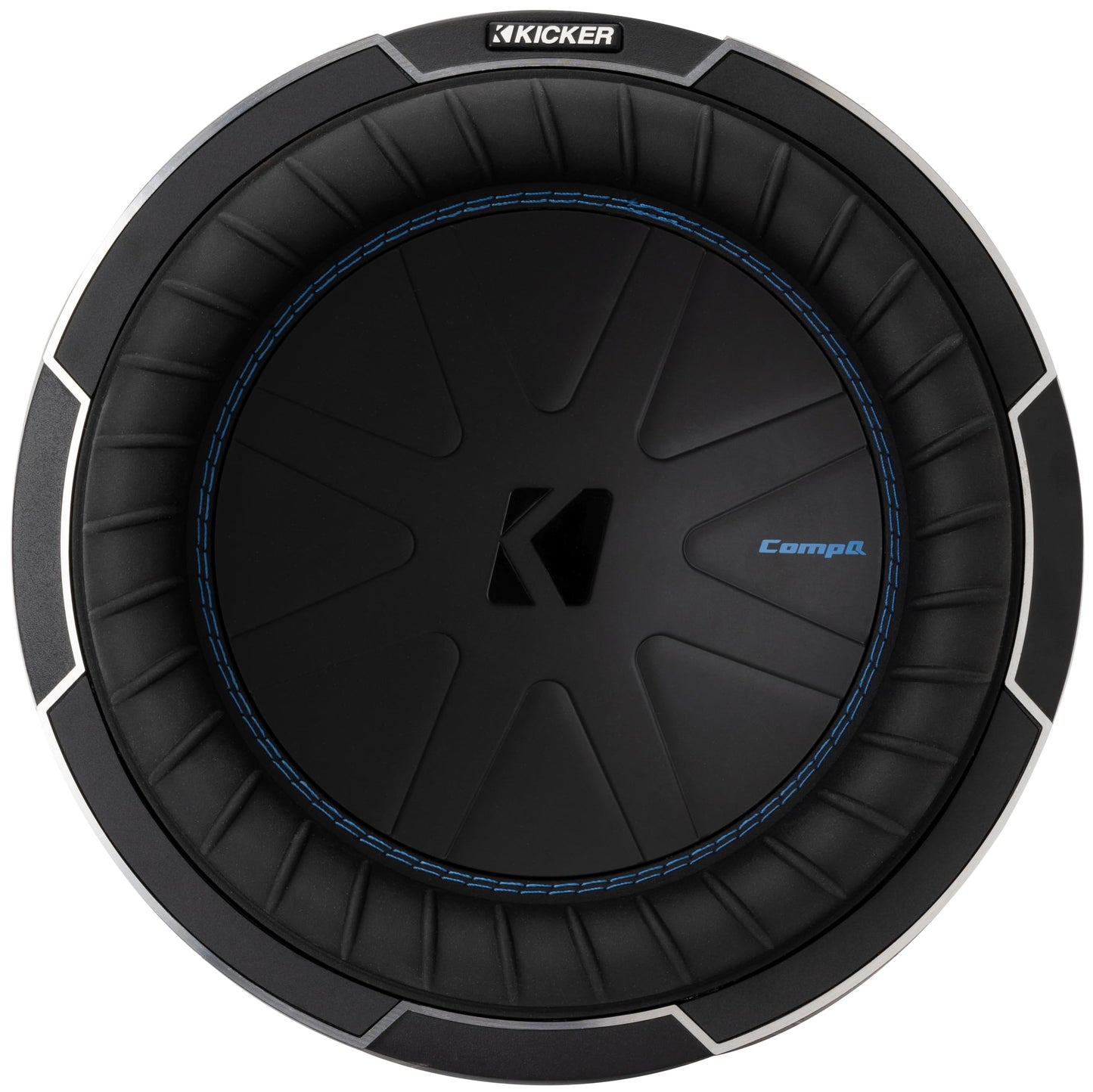

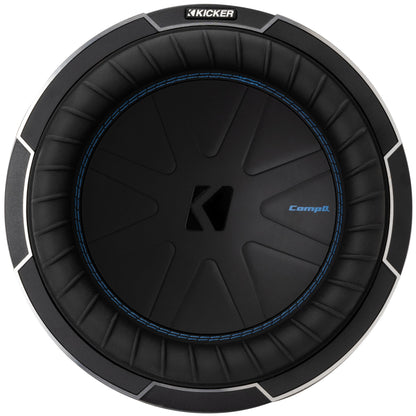

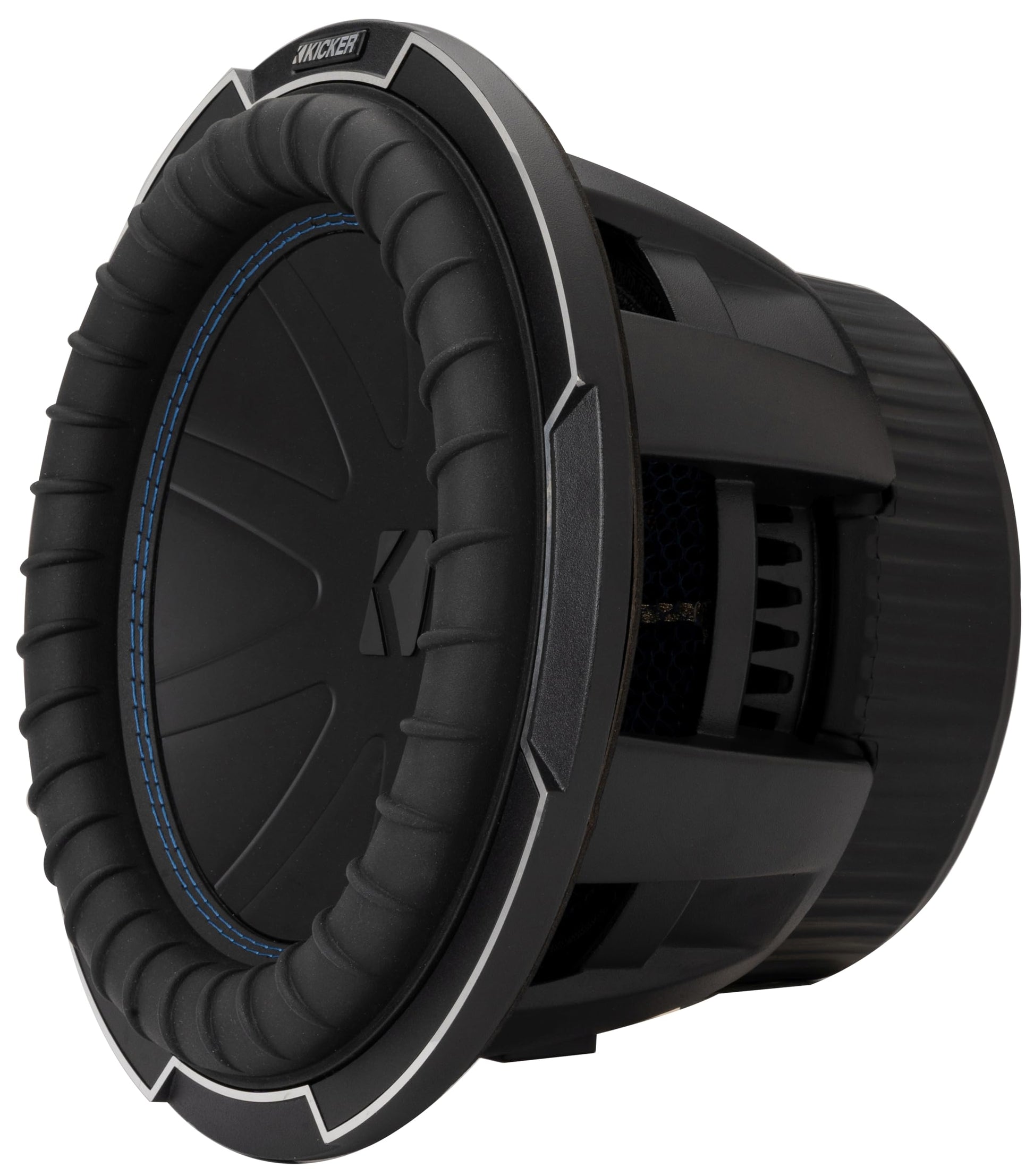

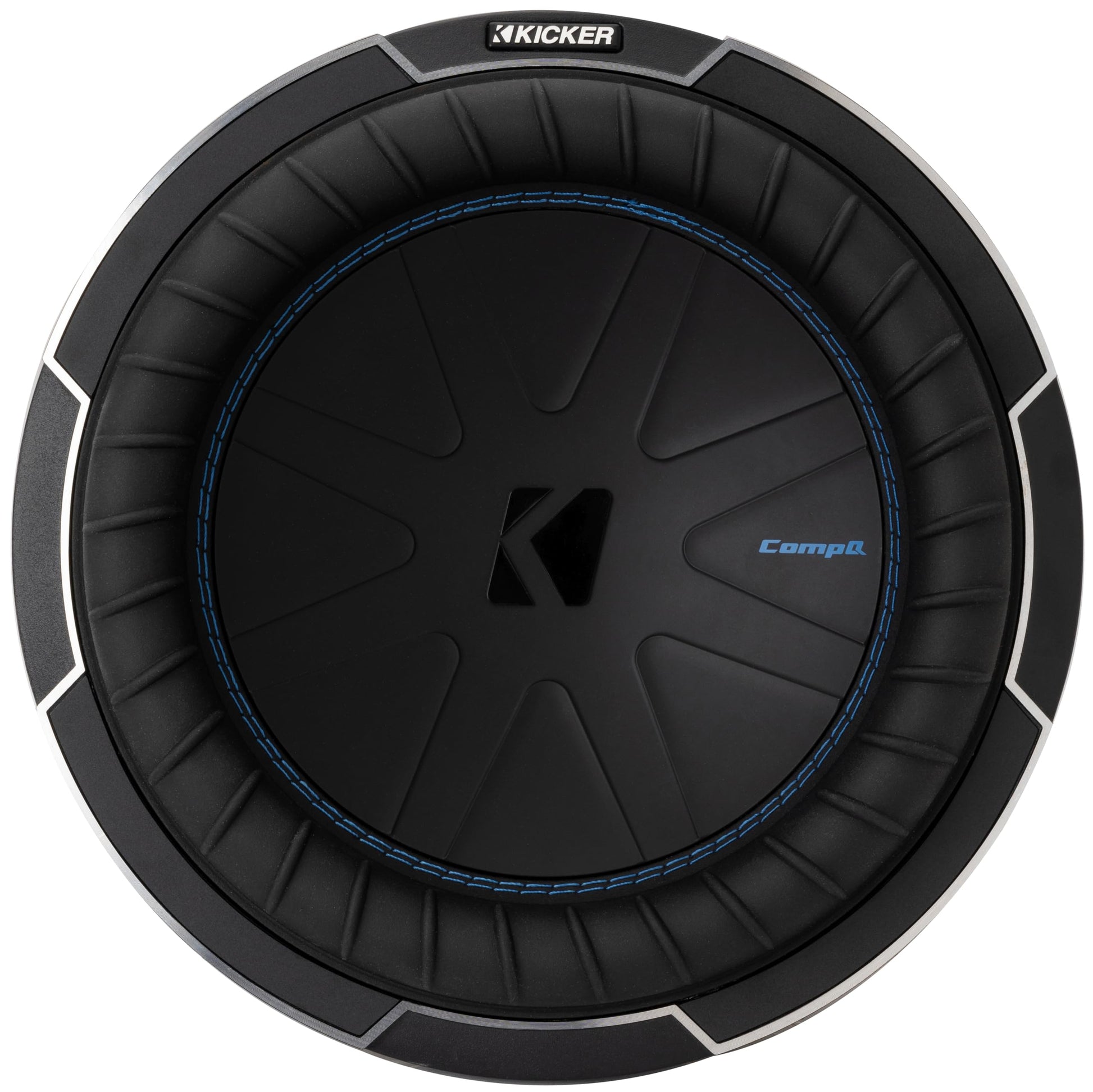

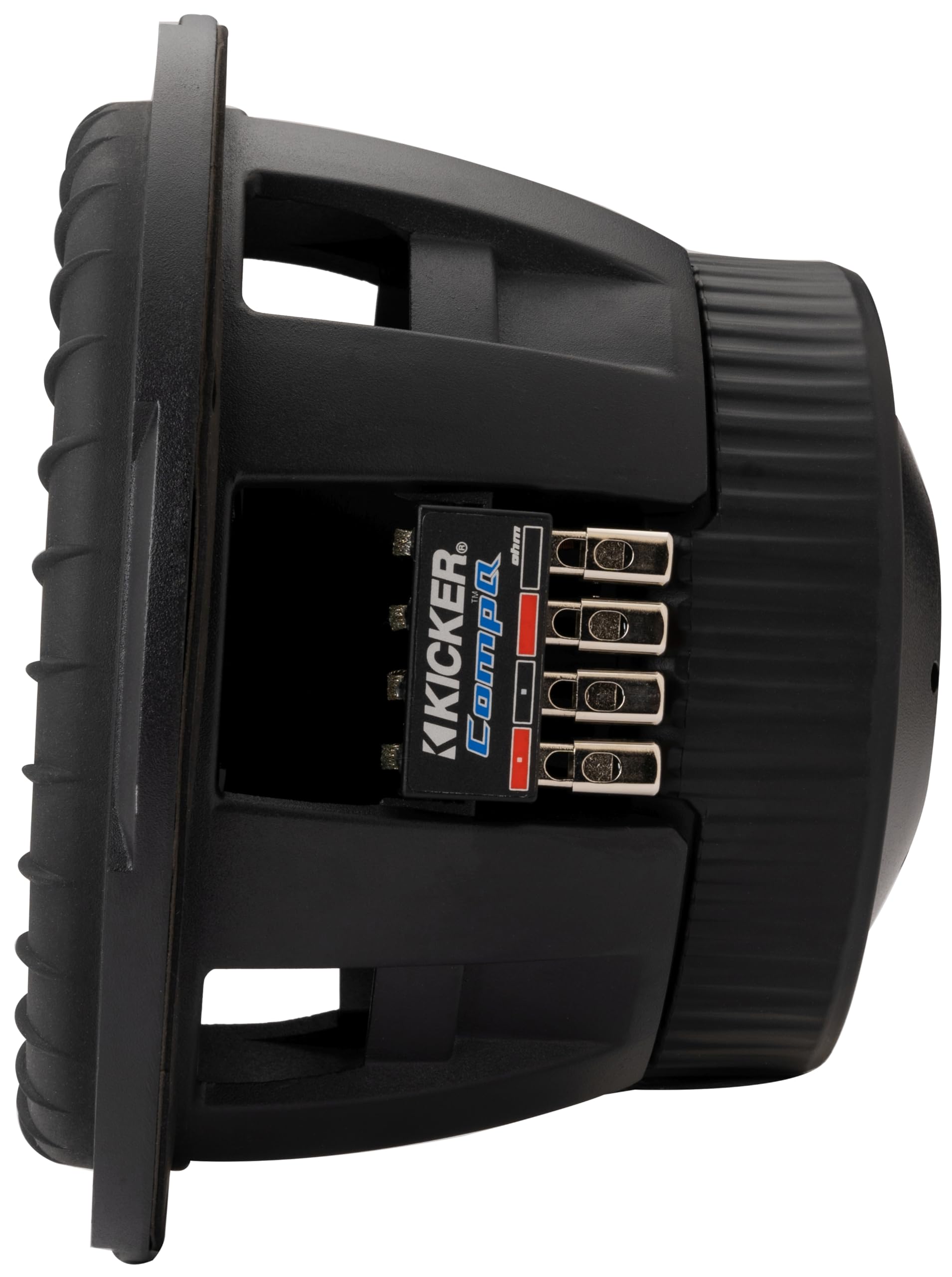

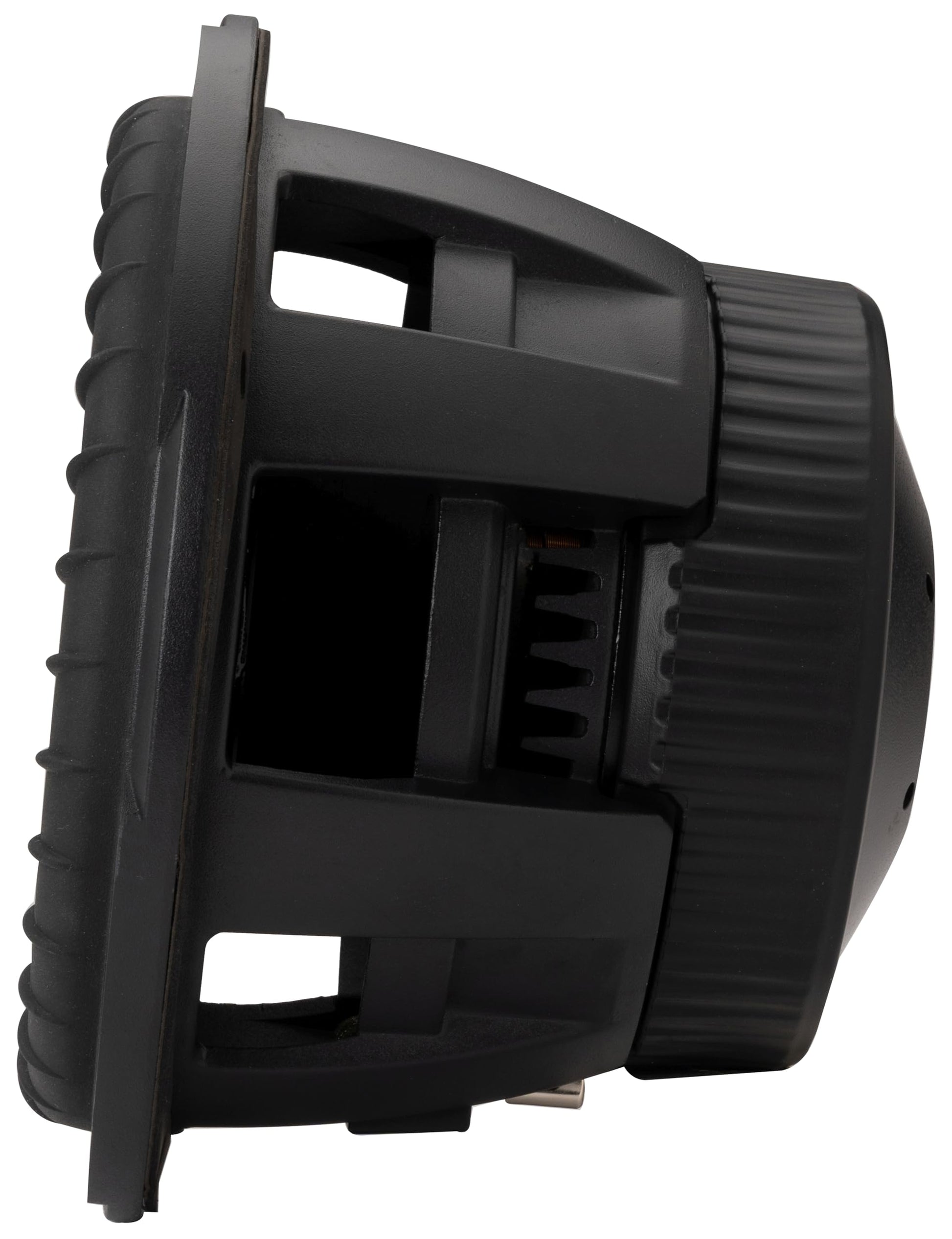

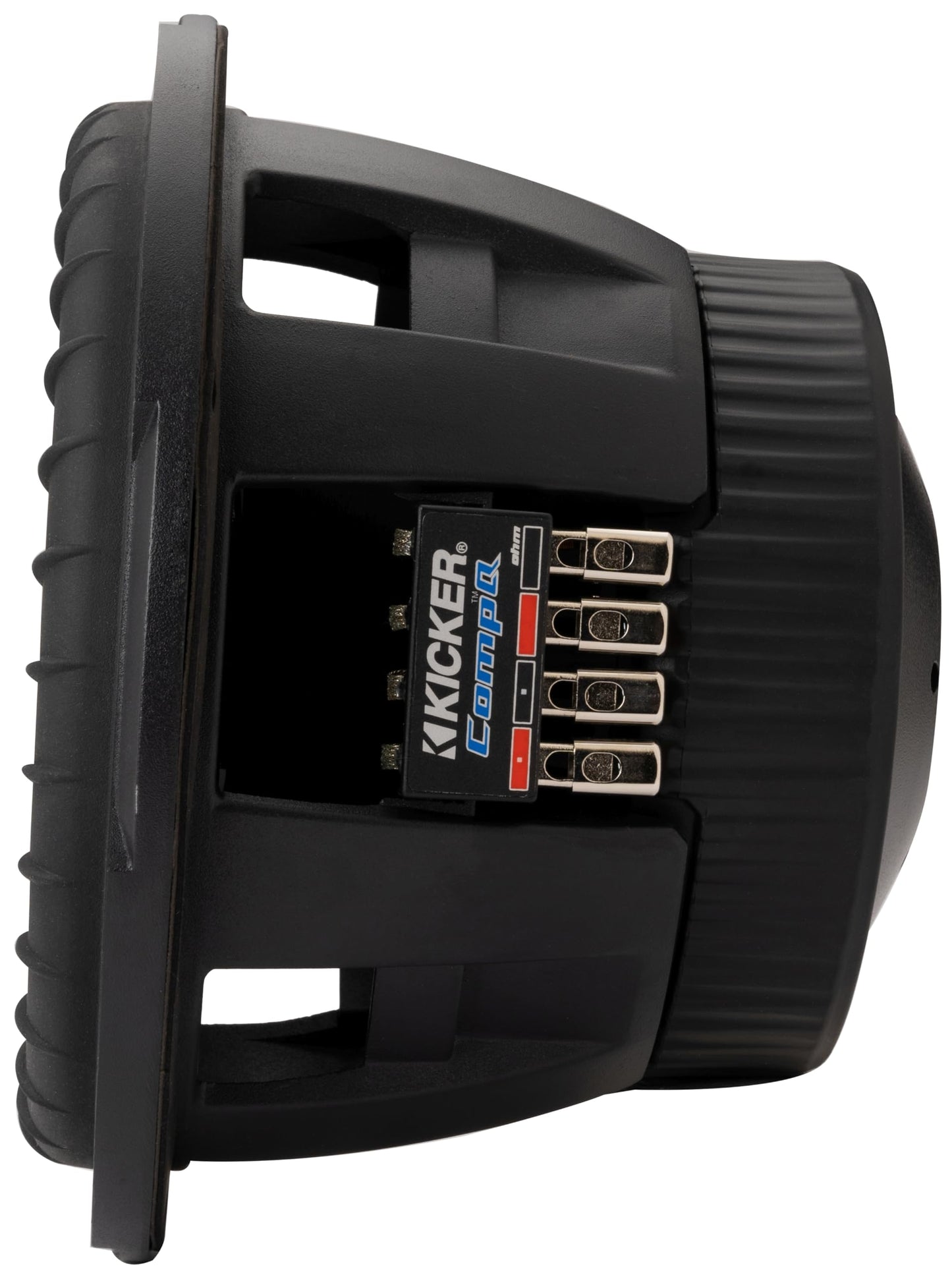

Kicker 51CWQ104 CompQ Q-Class 10" Subwoofer, Dual 4-Ohm

The 10" CompQ 4-Ohm

The CompQ 10" Subwoofer is a perfect selection for strong, tight bass that deliver unparalleled accuracy, with extremely musical bass.

An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.

The CompQ 10-Inch Subwoofer works best with a sealed or ported enclosure with 800 watts of recommended power. See below for more details.

Thiele/Small Parameters

51CWQ104 T/S Parameters

Product Dimension Sheet

51CWQ10 Dimensions

Woofer (in, mm)

10, 25

Impedance (Ohms)

4 DVC

Recommended Amp Power (watts RMS)

400-800

Frequency Response (Hz)

24-100

Sensitivity (1W, 1m)

84.5

Xmax (mm)

19.7

Mounting Depth (in, mm)

6-3/8, 16.2

Mounting Diameter (in, mm)

9-3/16, 23.4

Sealed Enclosure Specs

Sealed Enclosure Volume Min (cu. ft., L)

0.66, 18.7

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

Box Volume [ft³, L]

.66 (18.7)

Panel A [in, cm]

12x12, 30.5x30.5

Panel B [in, cm]

12x10.5, 30.5x26.7

Panel C [in, cm]

10.5x10.5, 26.7x26.7

Sealed Enclosure Volume Max (cu. ft., L)

1.25, 35.4

Vented Enclosure Volume Min (cu. ft., L)

1.25, 35.4

Vented Enclosure Volume Max (cu. ft., L)

2.25, 63.7
