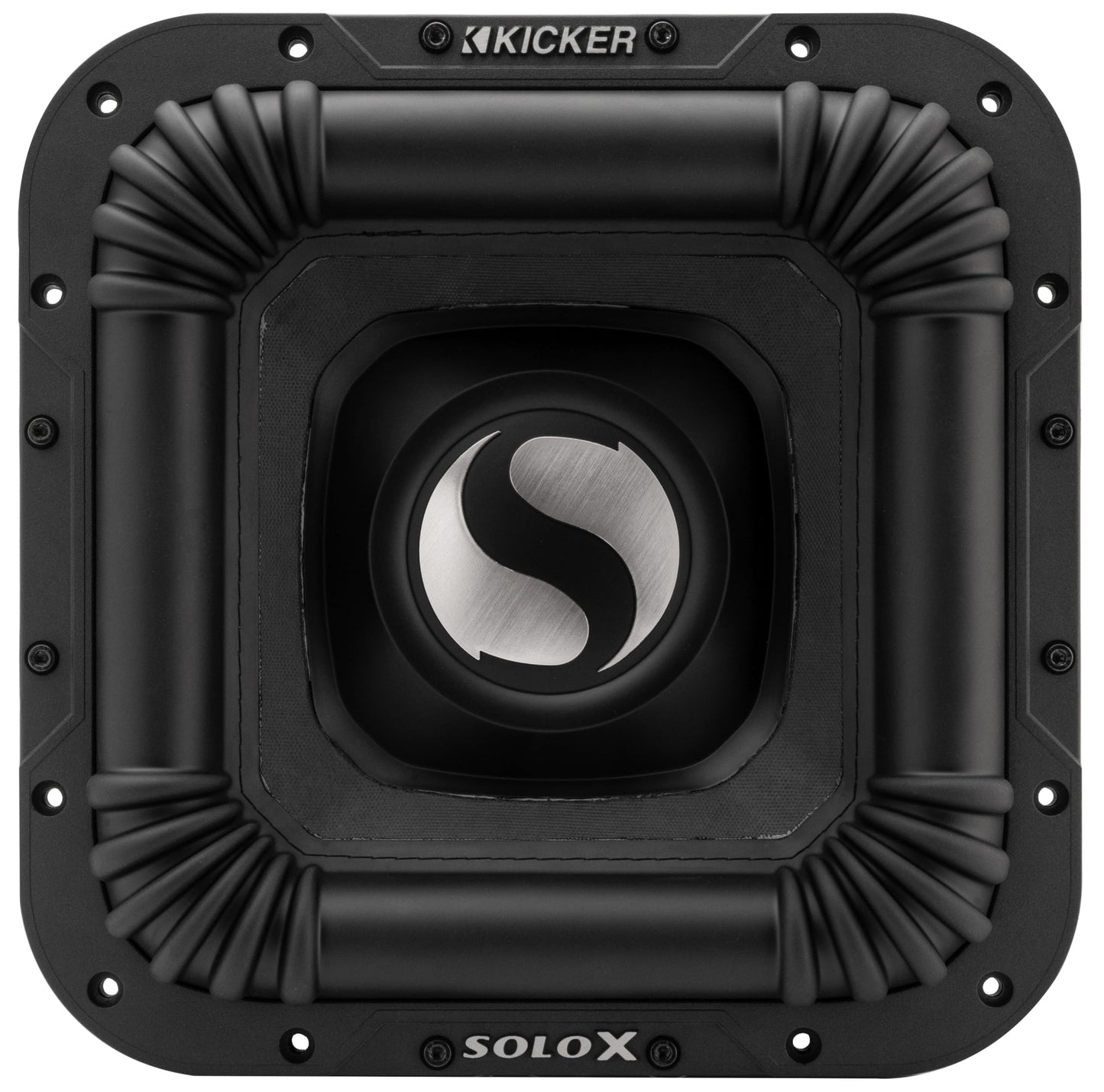

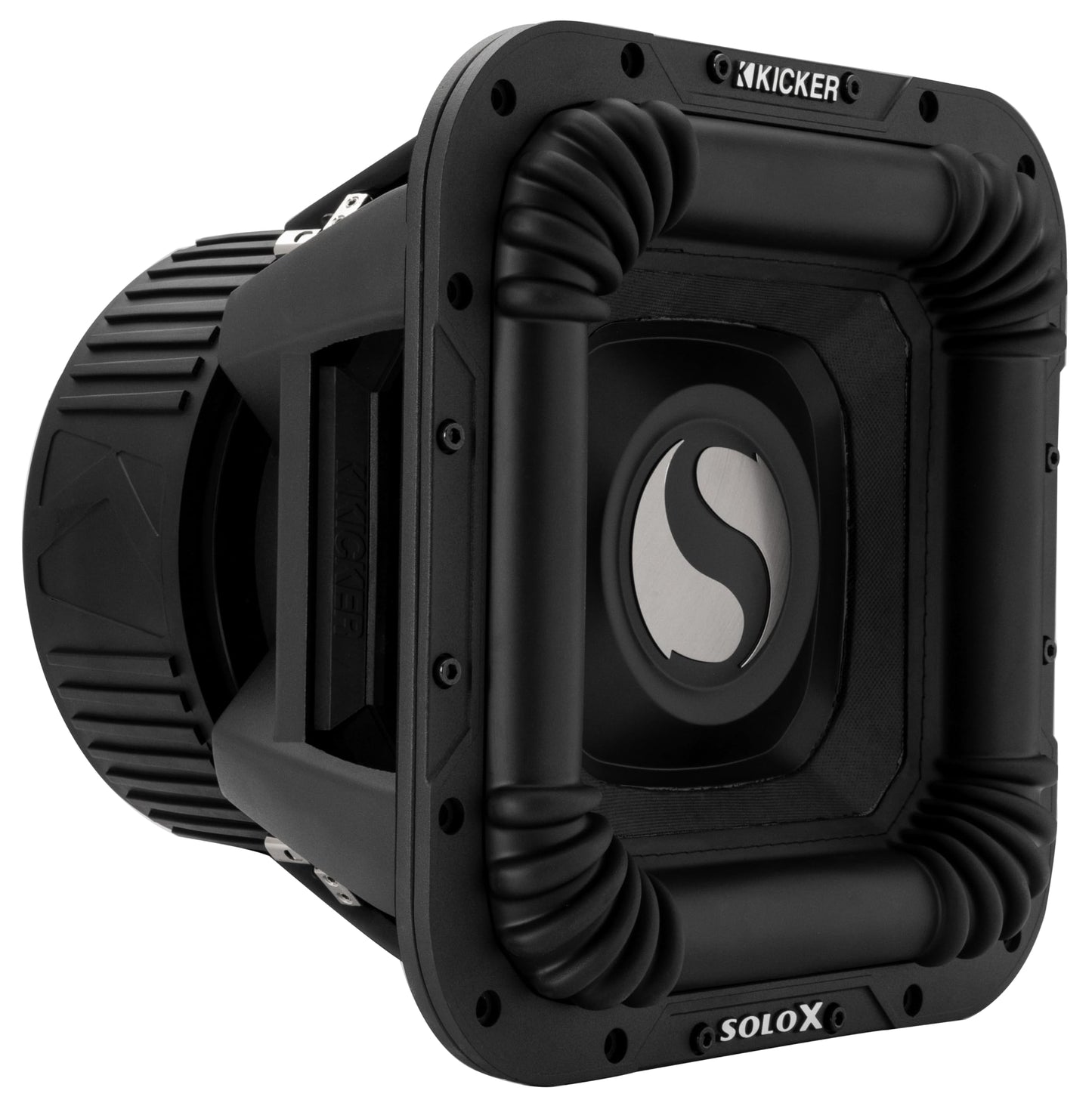

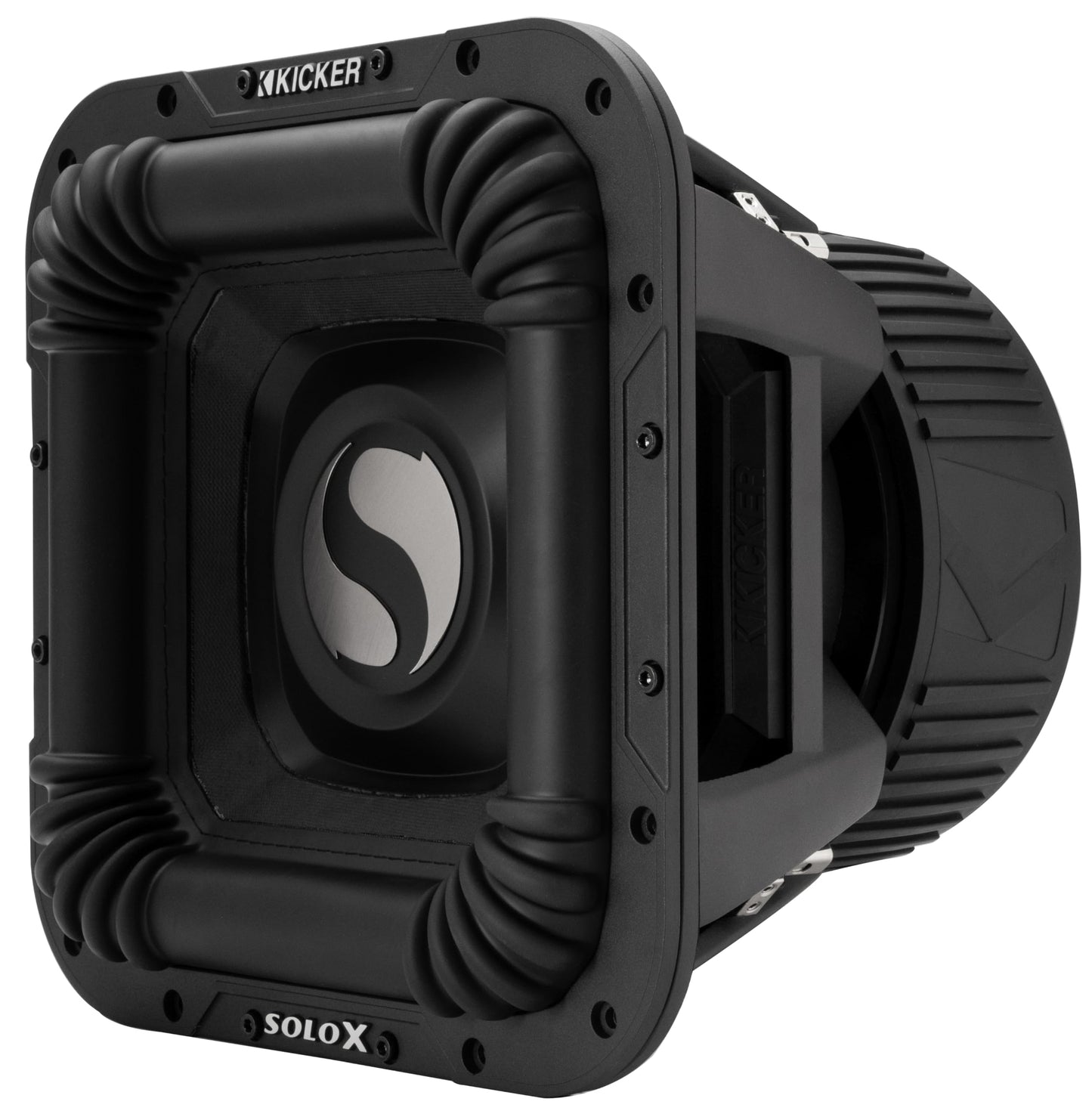

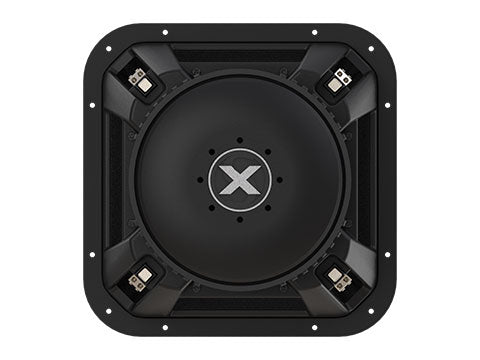

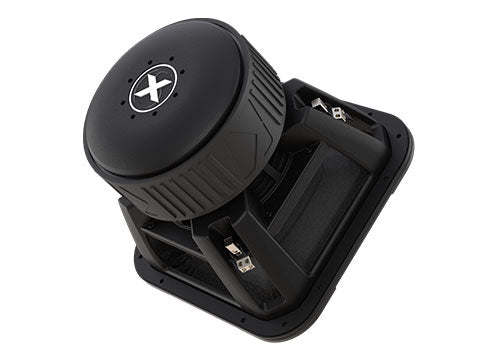

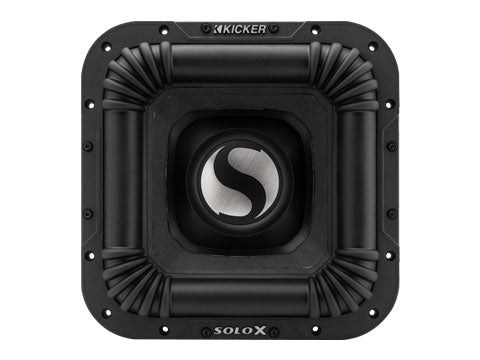

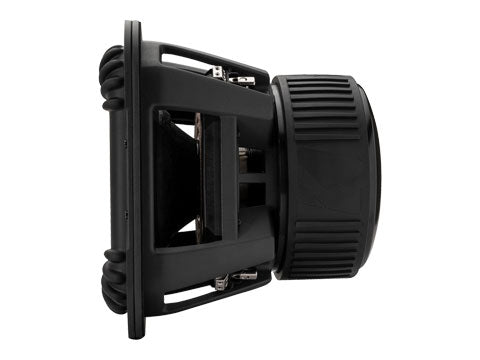

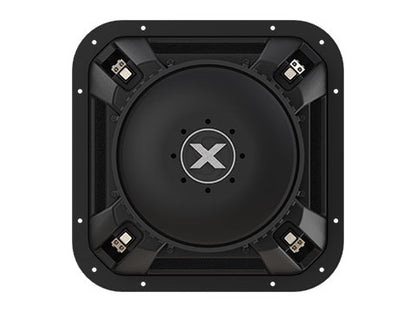

Kicker 49L7X122 - SoloX L7X 12-Inch (30cm), 3" Coil, Ferrite Competition Subwoofer
Kicker 49L7X122 - SoloX L7X 12-Inch (30cm), 3" Coil, Ferrite Competition Subwoofer
Regular price
$699.99 USD
Regular price
$699.99 USD
Sale price
$699.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The KICKER SoloX L7X is our most advanced bass technology with extreme power handling – made to turn heads!
SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.
Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
- Forced Air Cooling™
- Three-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone

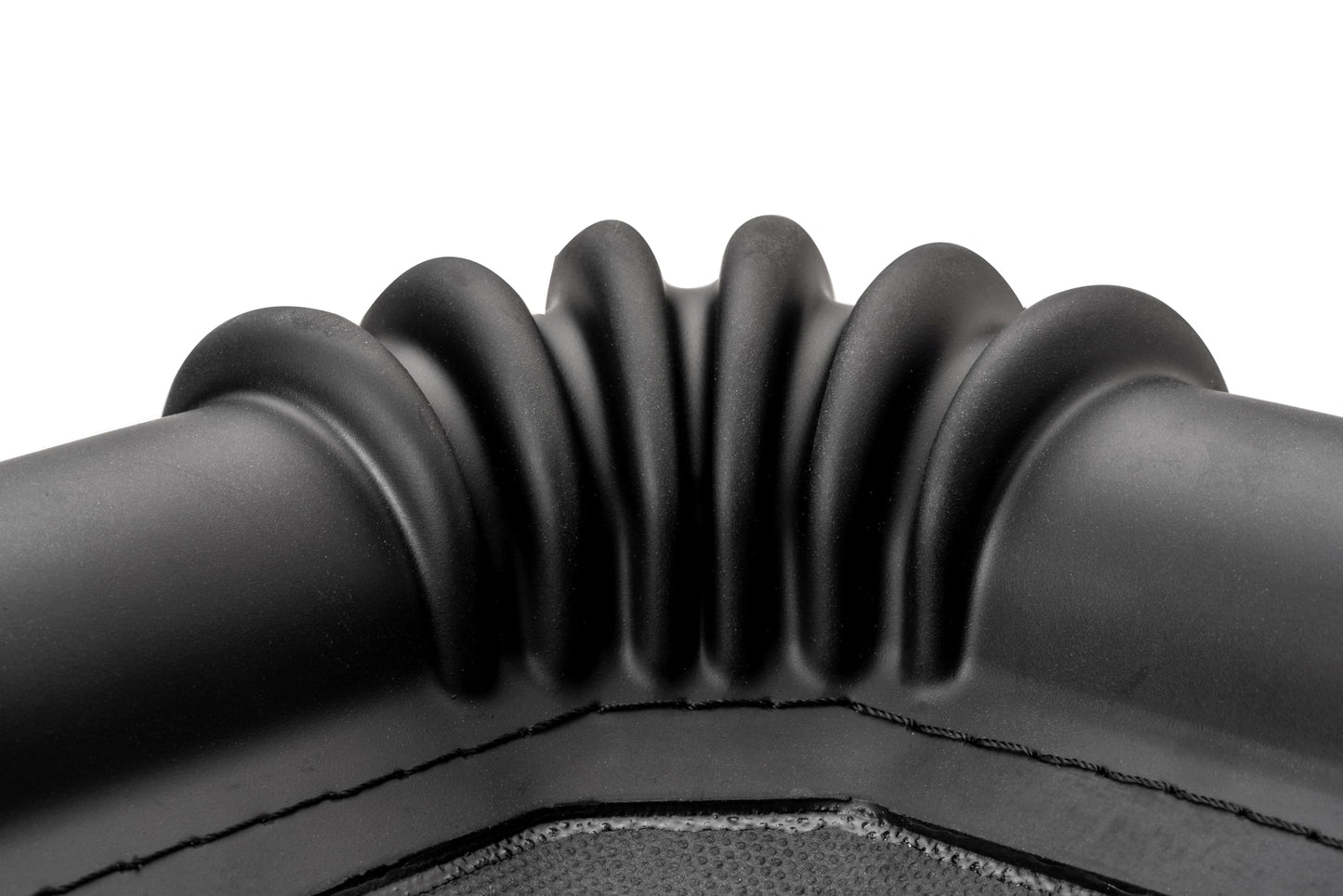

- Heavy-duty UV-resistant Santoprene surround

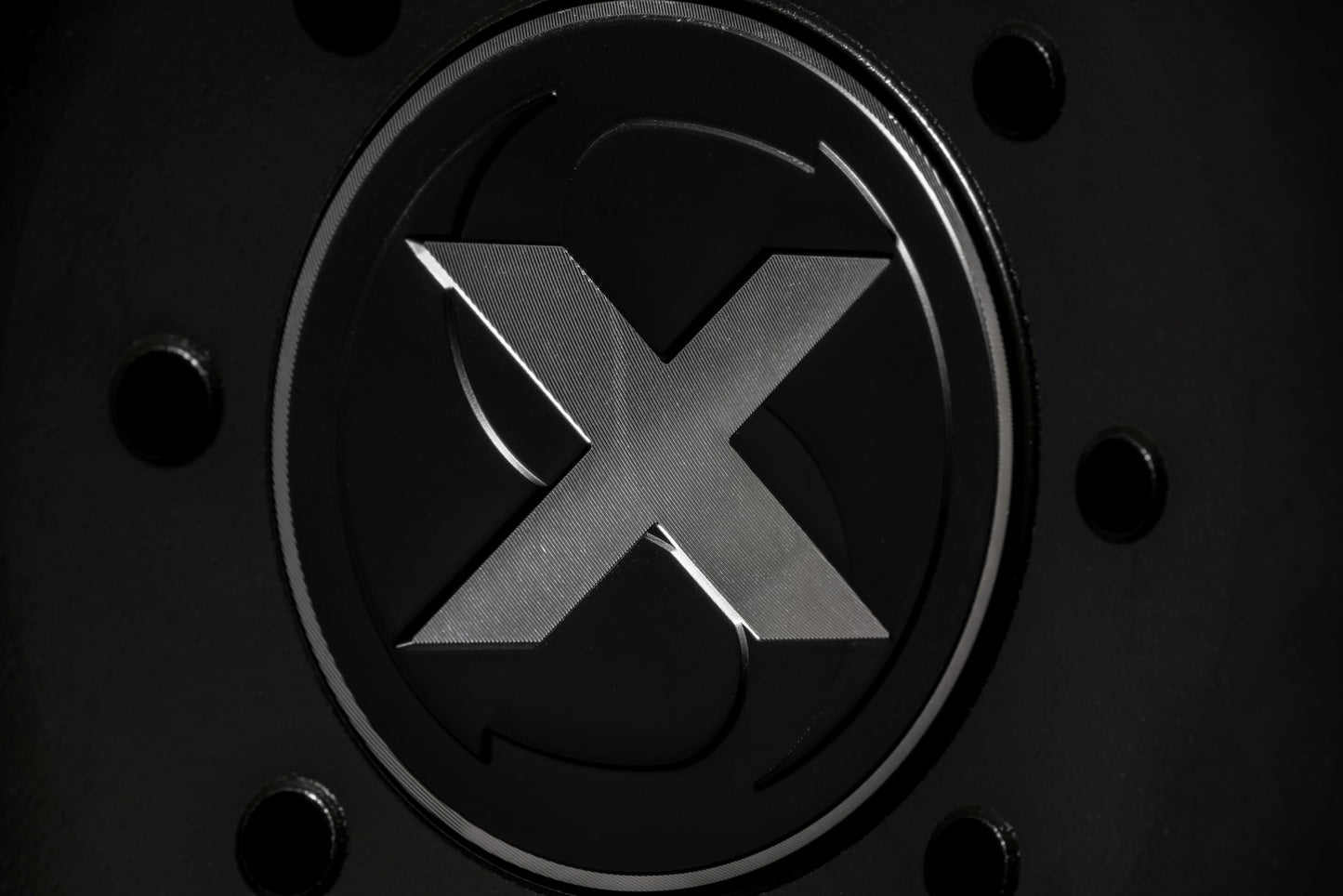

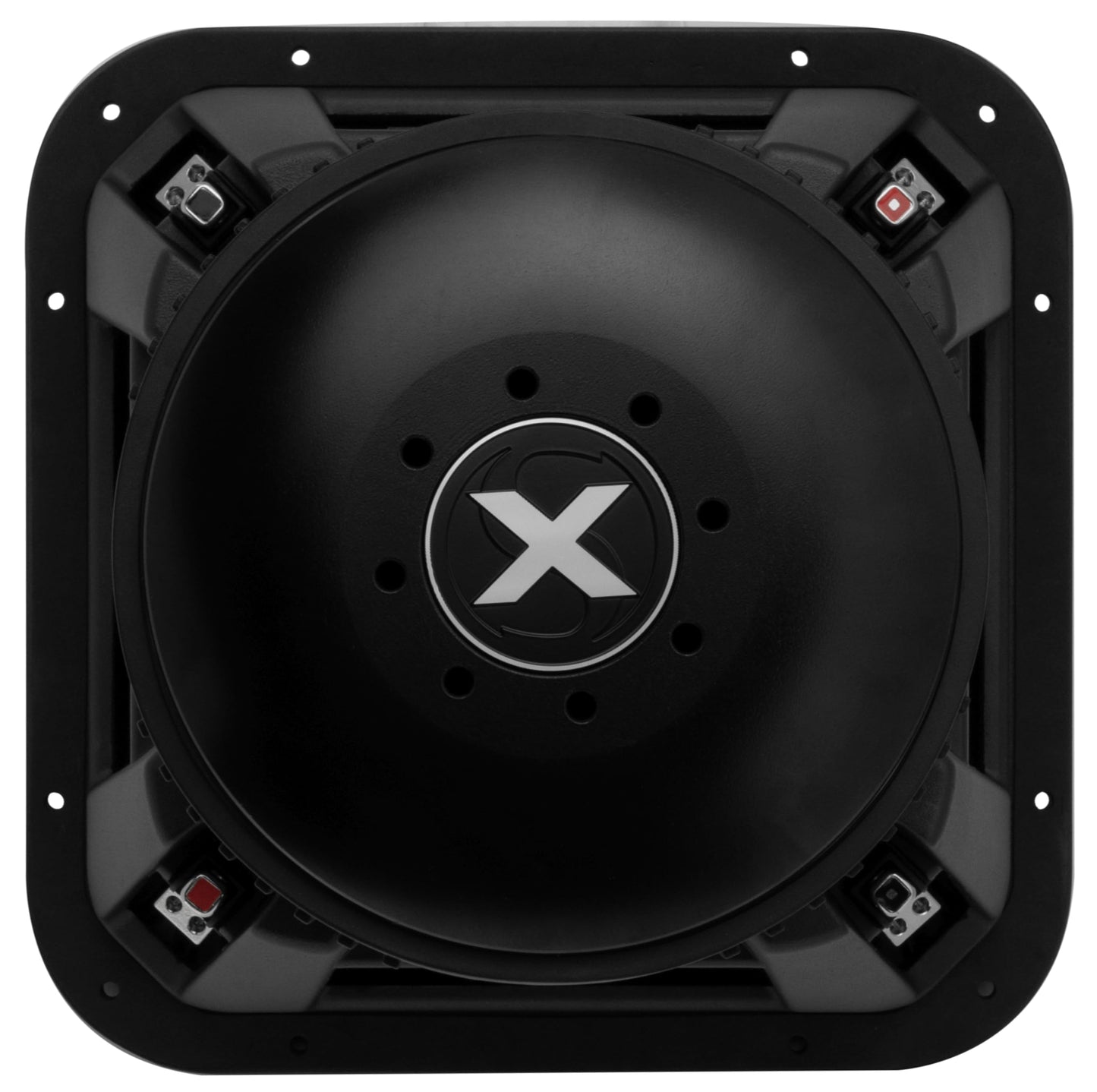

- Custom rubber magnet boot

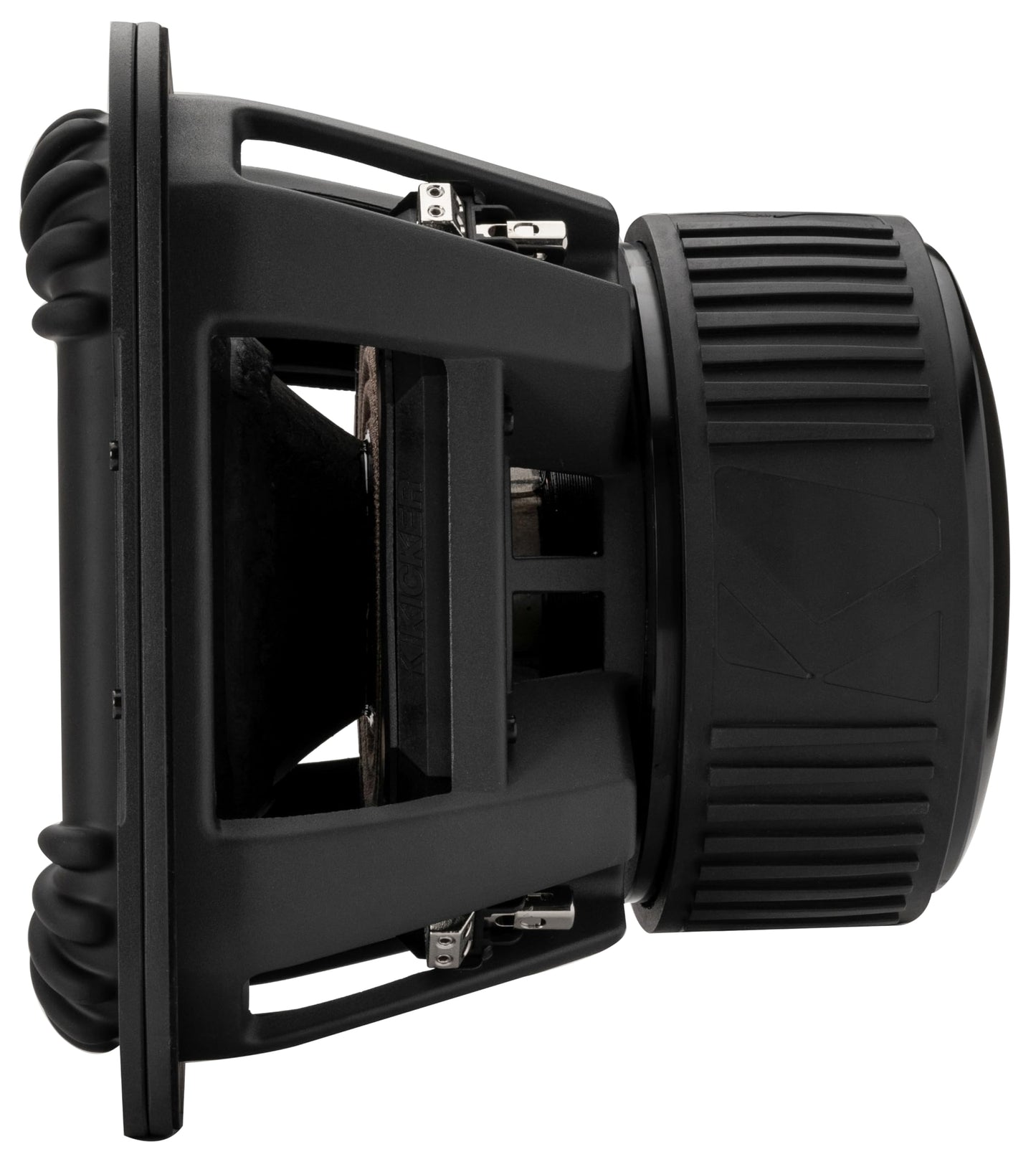

- Cast-aluminum basket

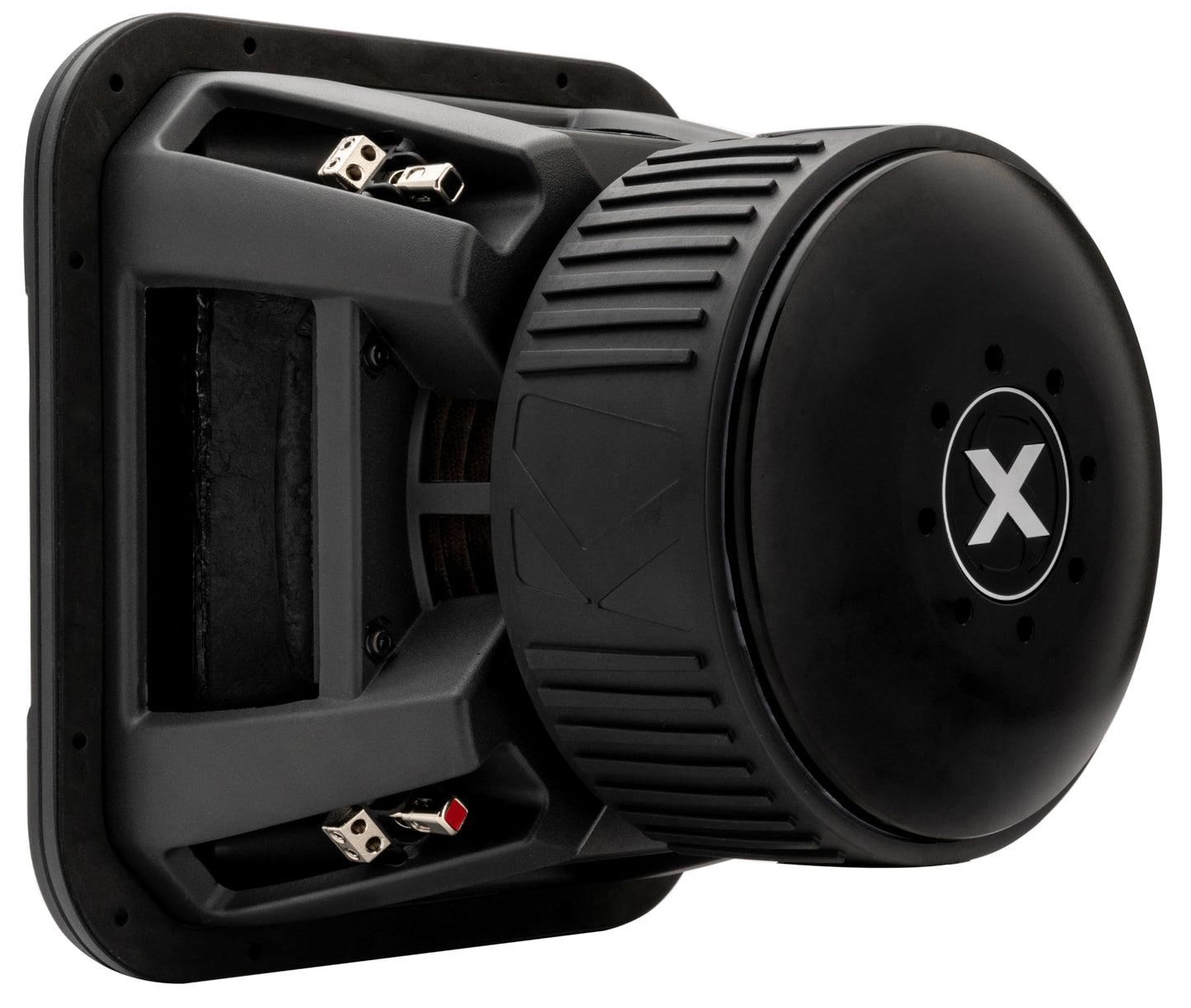

- Single 8 AWG terminal and dual 8 AWG terminal block
- Triple-Stacked Ferrite Magnet
Specifications
| Thiele/Small Parameters |
| 49L7X122 T/S Parameters |
| Size (in, cm) |
| 12, 30 |
| Rated Impedance (Ohms) |
| 2 DVC |
| Rec Amp Power rms |
| 1000-2000 |
| Frequency Response |
| 20-100 |
| Magnet Diameter (in, cm) |
| 8-11/16, 22 |
| Total Magnet Weight (oz, kg) |
| 406, 11.5 |
| Voice Coil Diameter (in, mm) |
| 3, 75 |
| Voice Coil Winding Width (in, mm) |
| 2.5, 62.5 |
| Product Dimension Sheet |
| 49L7X12 Dimensions |
| Top Plate Thickness (in, mm) |
| 0.5, 13 |
| Xmax (in, mm) |
| 1.25, 31.25 |
| Mounting Cutout (in, cm) |
| 11-1/16, 28.1 |
| Mounting Depth (in, cm) |
| 10-1/8, 25.7 |
| Recommended Vented Box Volume (Cu. Ft., L) |
| 3, 84.9 |
| Port Opening (in x in, cm x cm) |
| 3.5 x 13, 9 x 33 |
| Port Length (in, cm) |
| 36.5, 93 |
| Vented Enclosure Tuning Frequency (Hz) |
| 31 |
