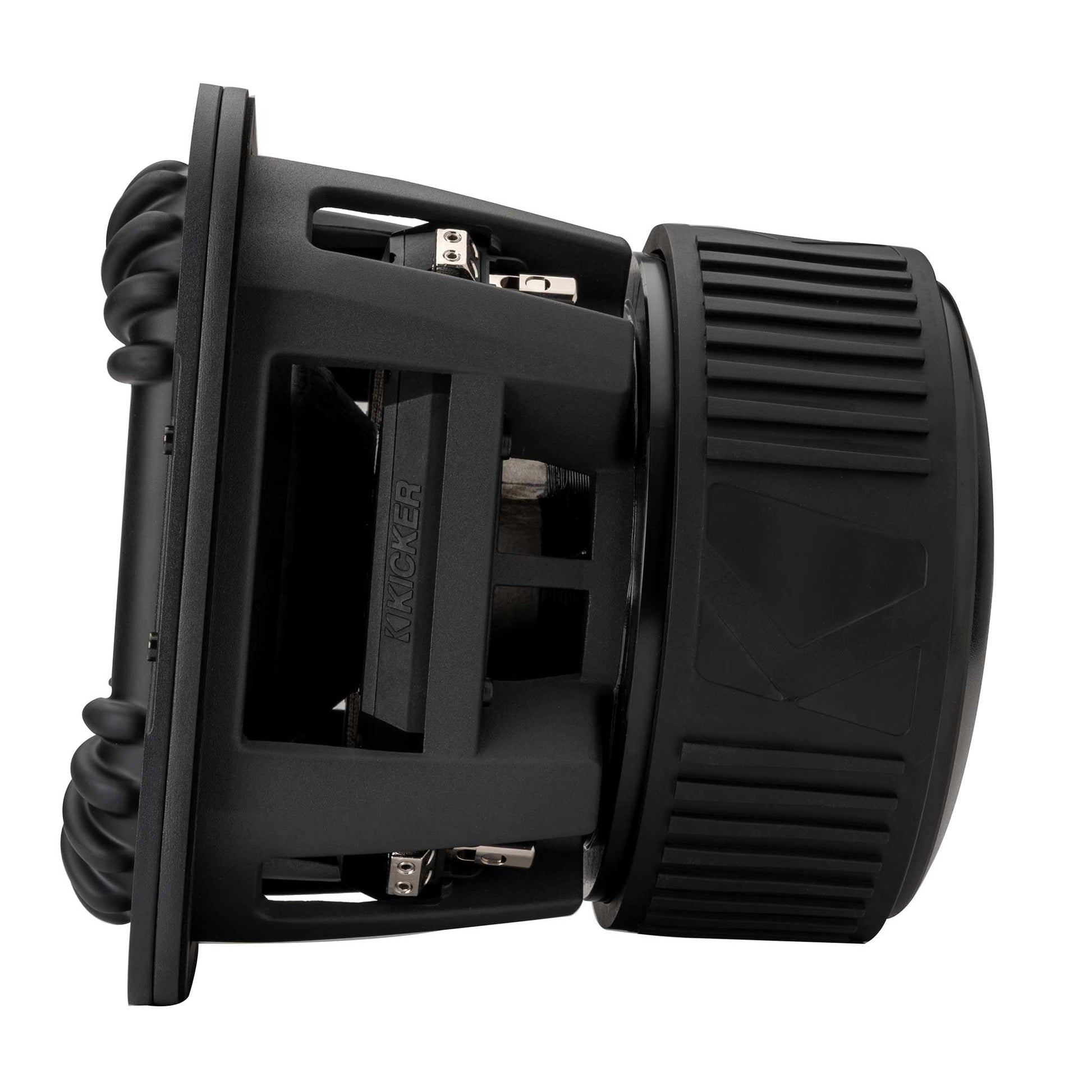

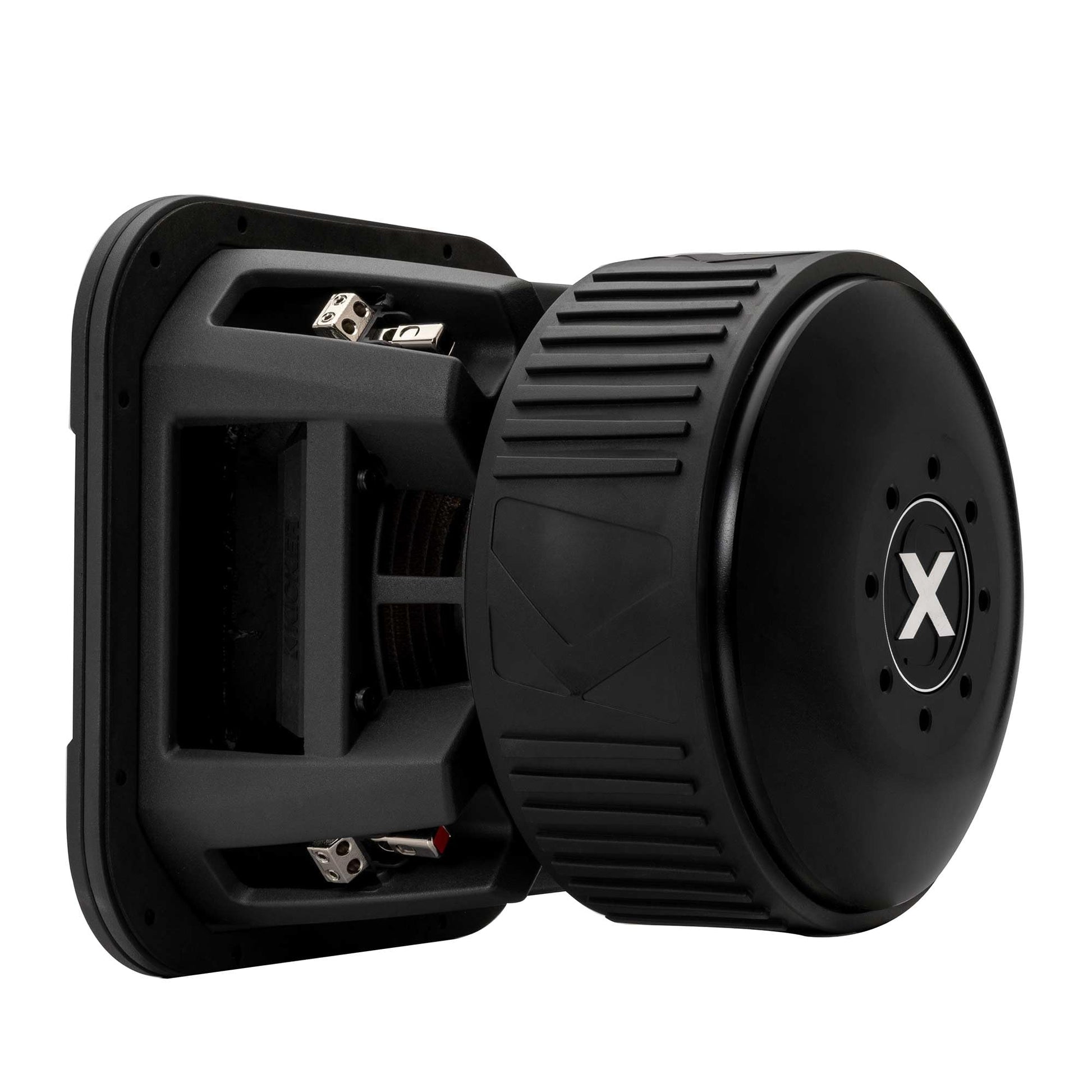

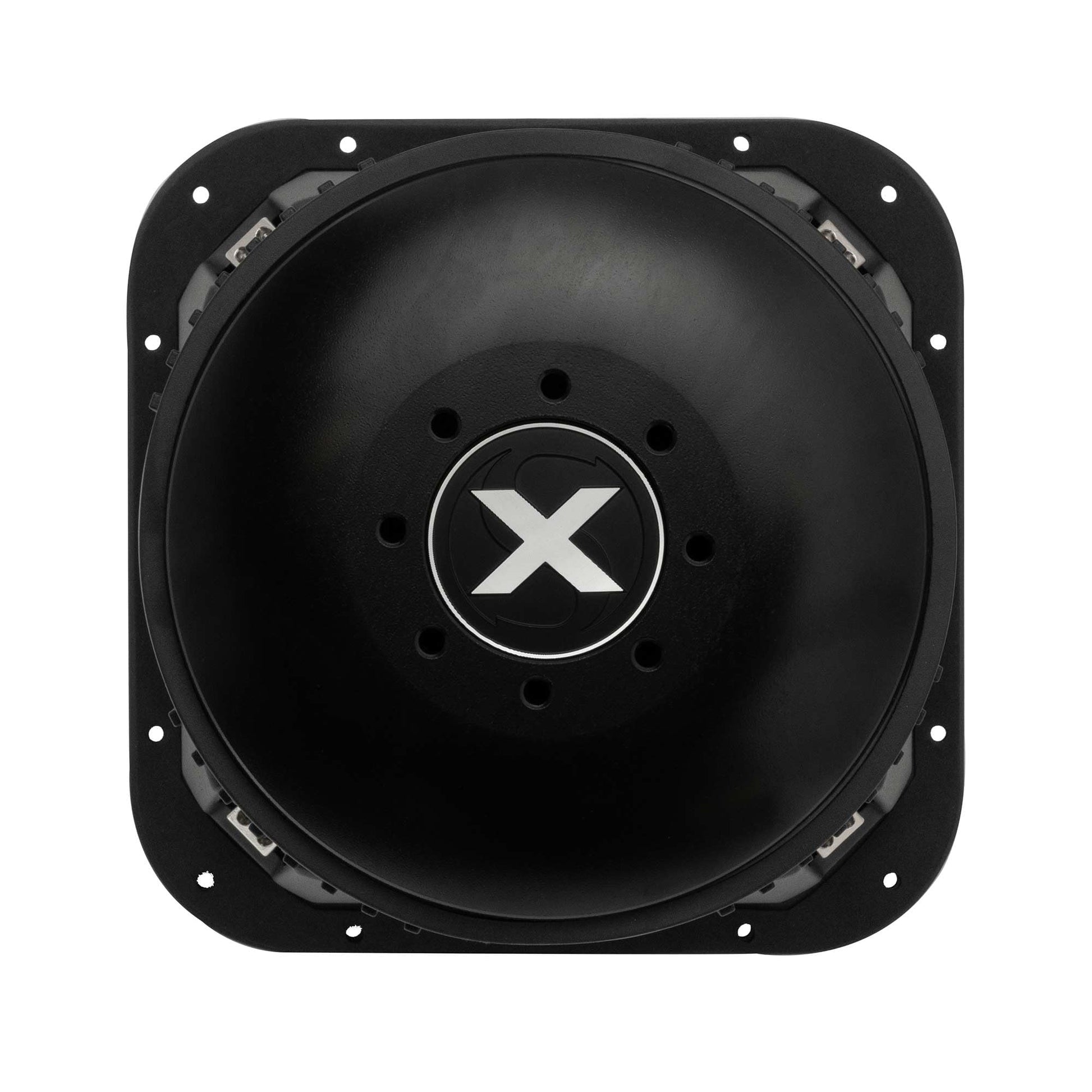

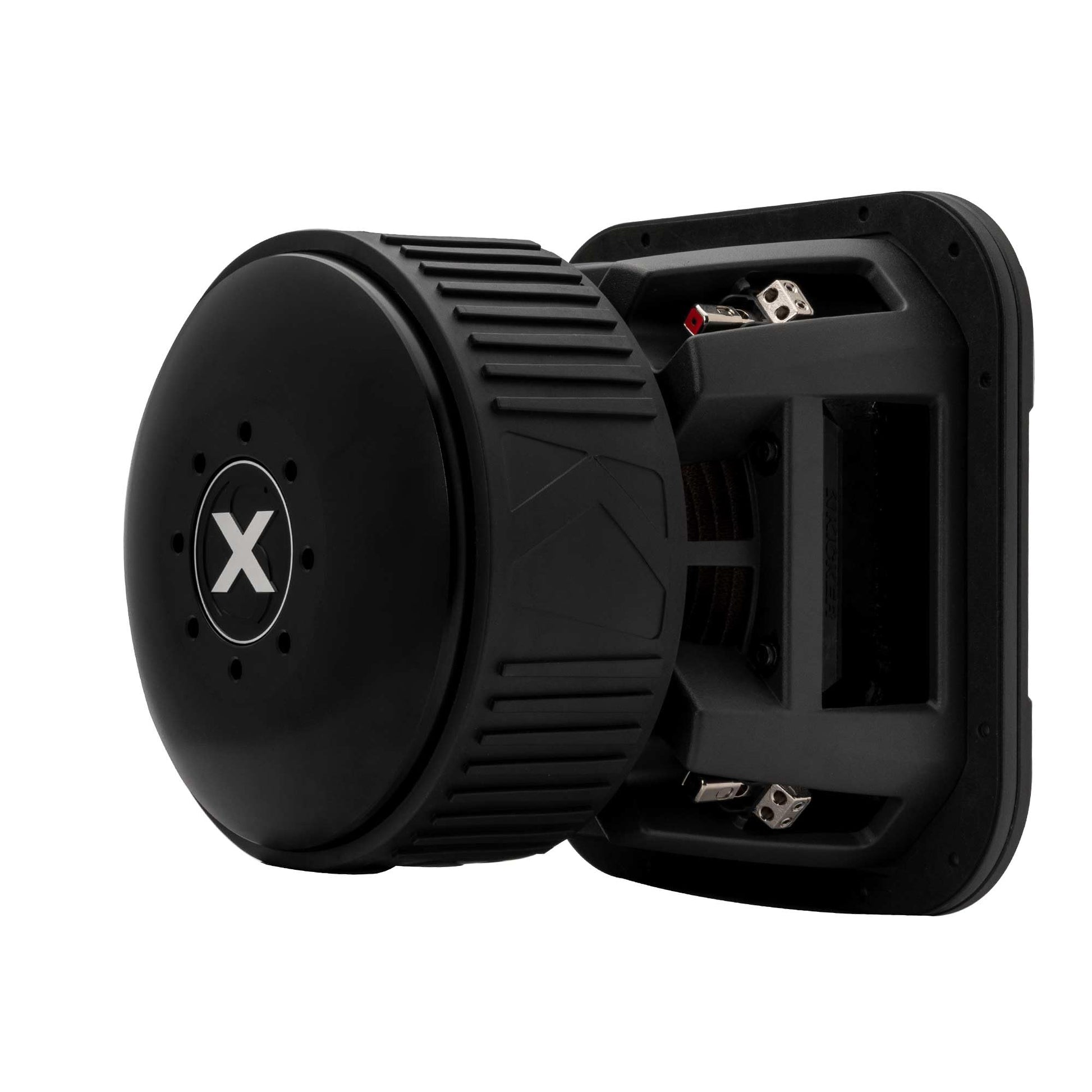

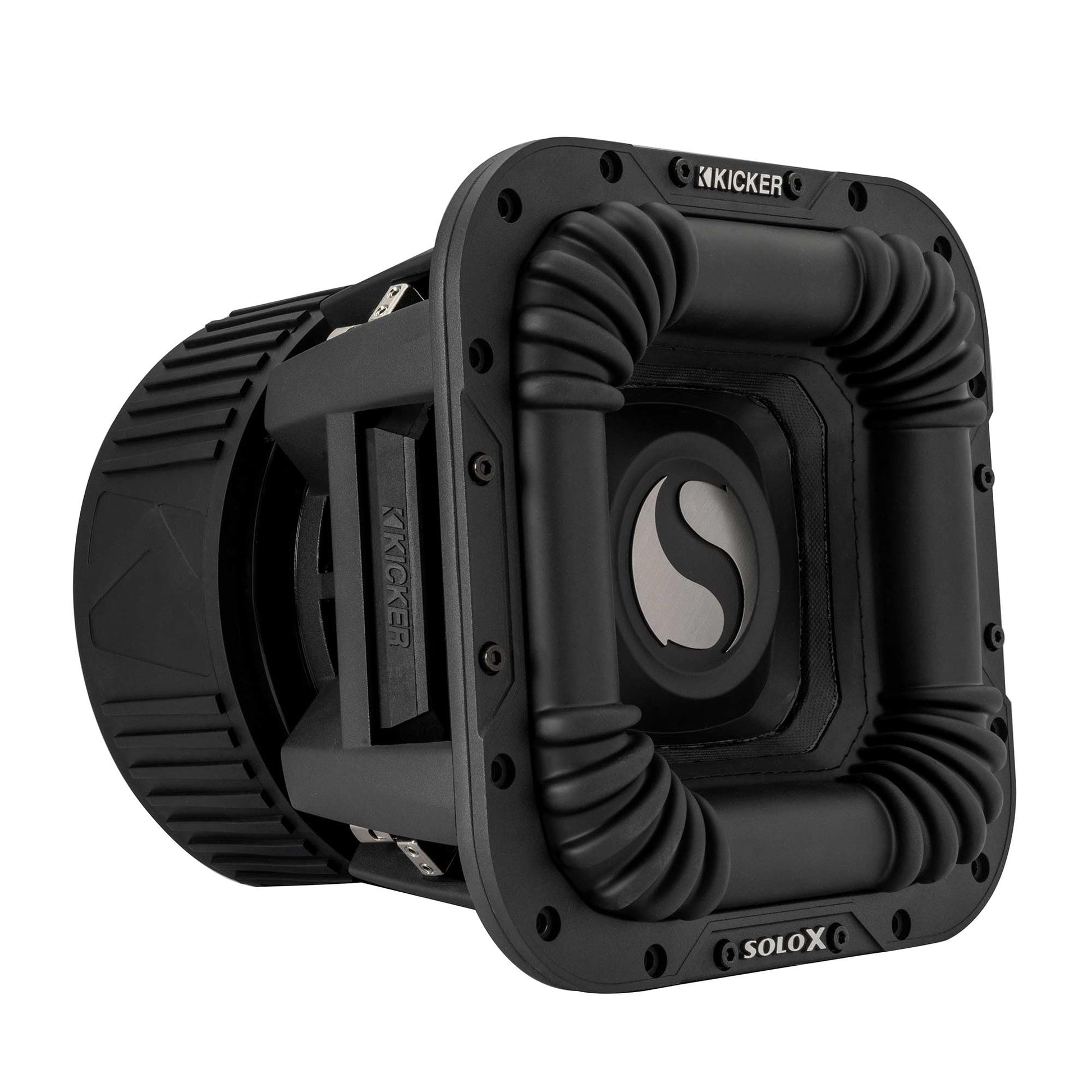

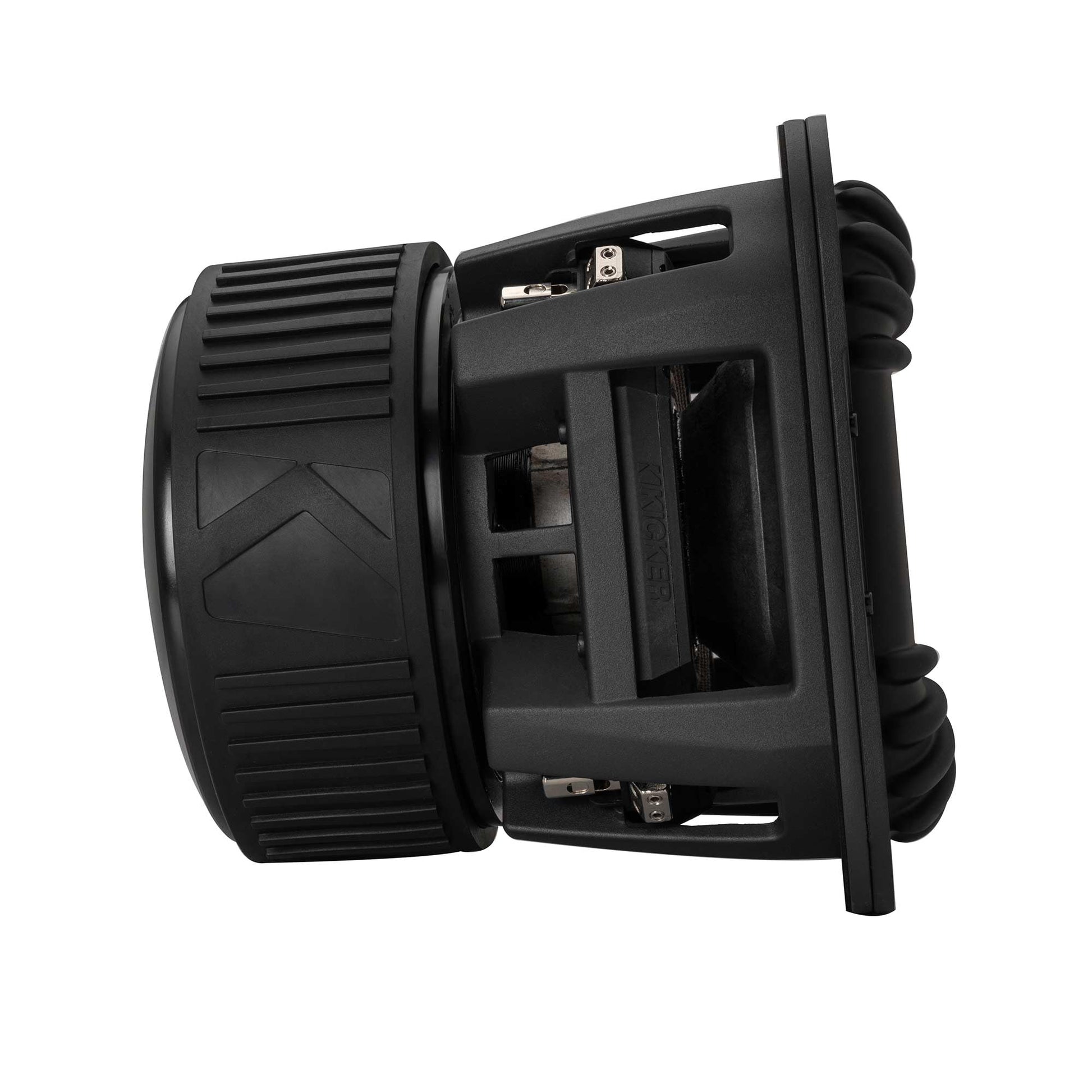

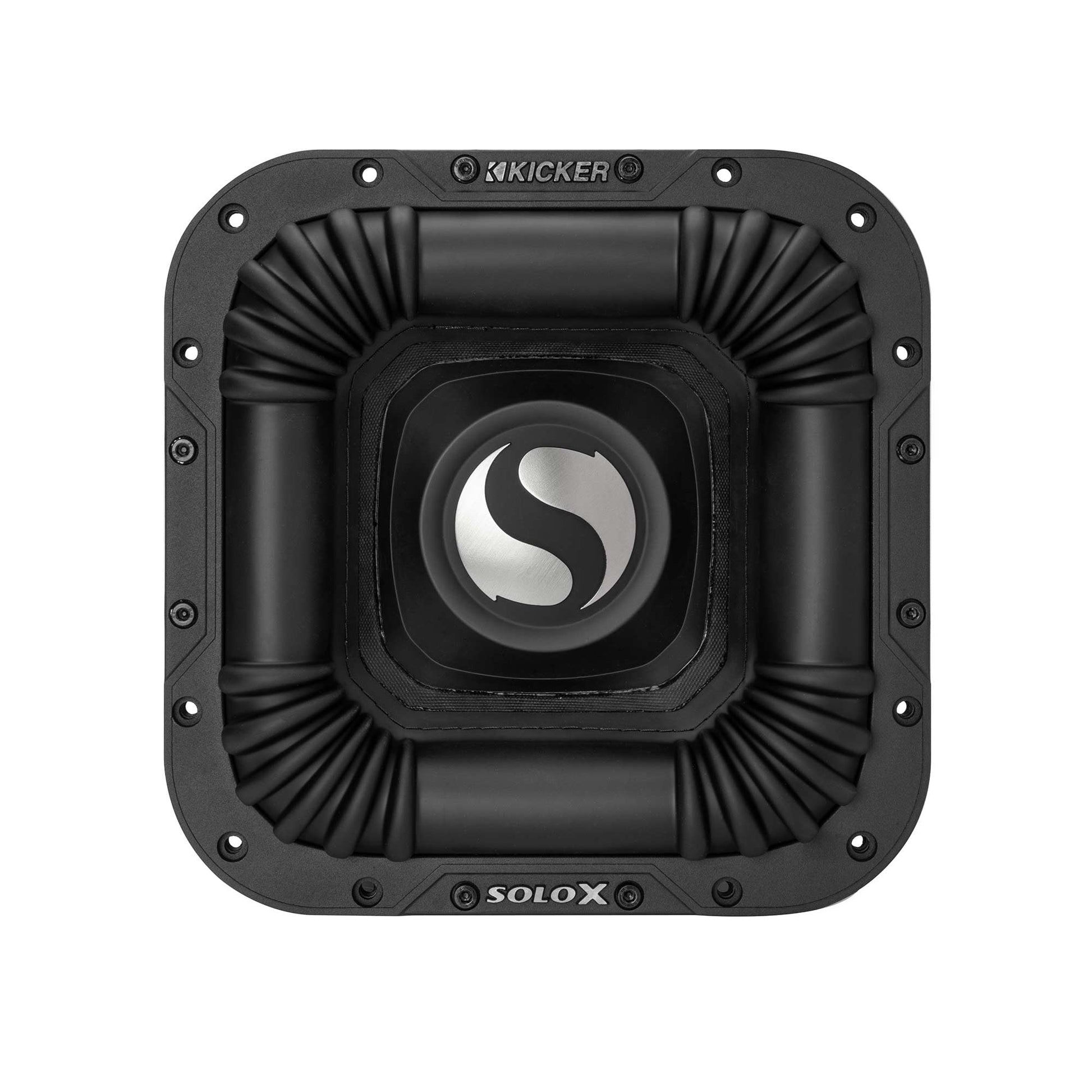

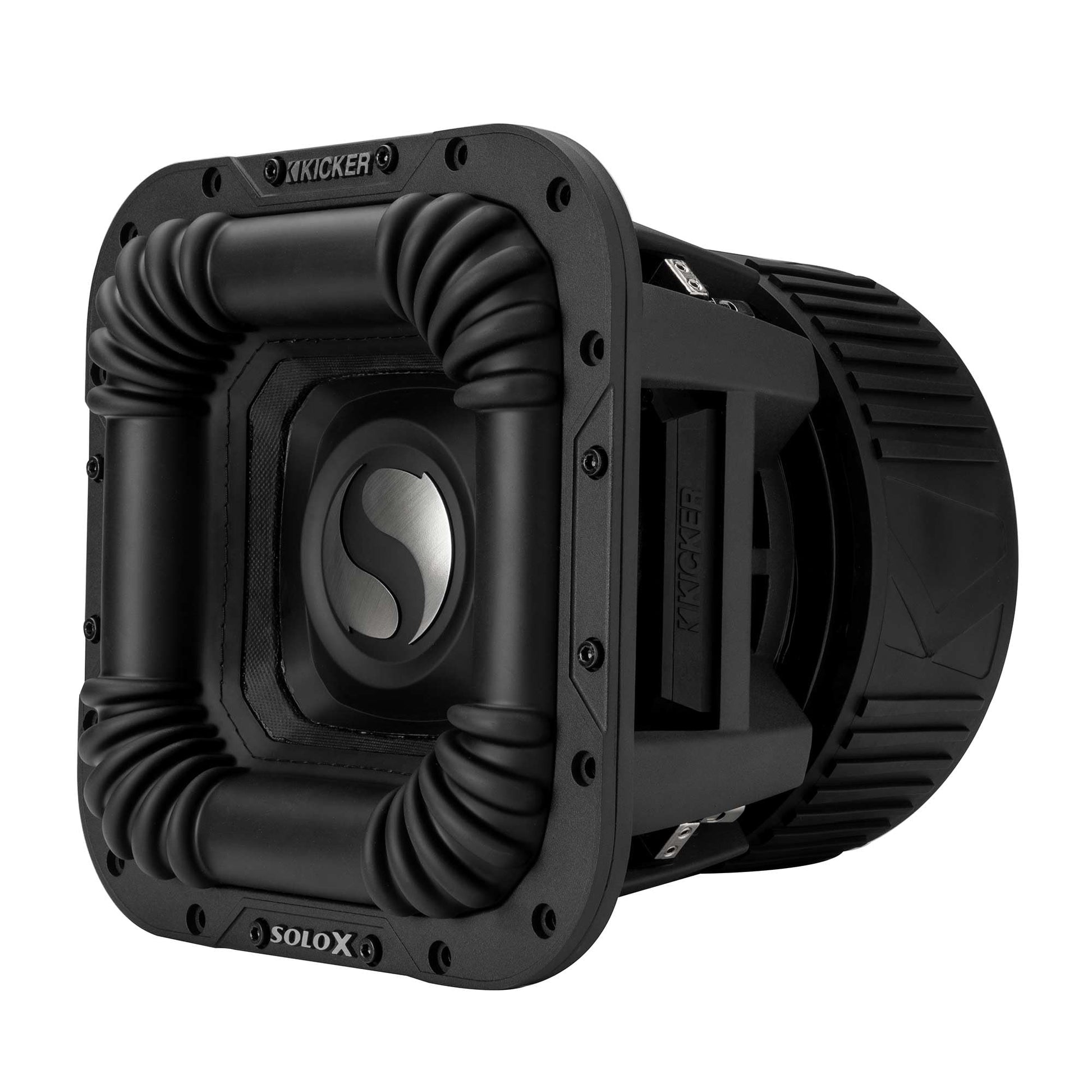

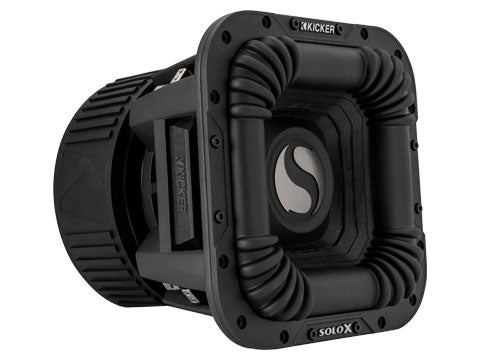

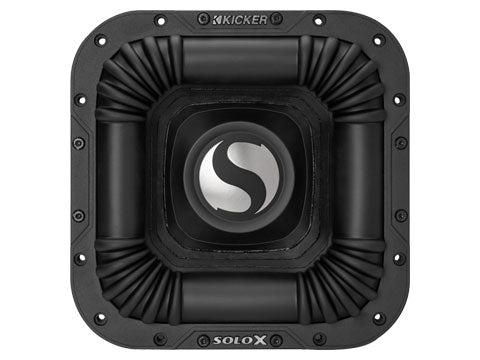

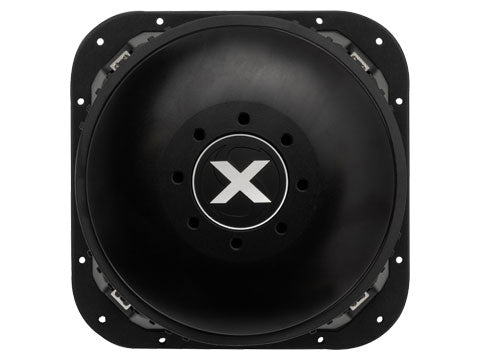

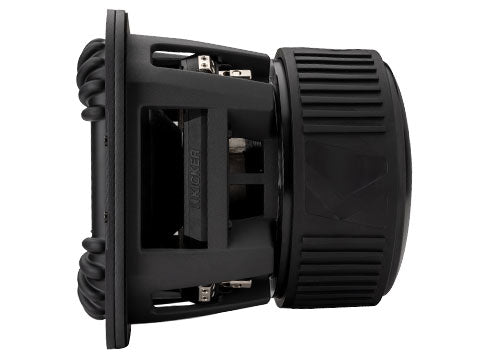

Kicker 49L7X102 - SoloX L7X 10-Inch (25cm), 3" Coil, Ferrite Competition Subwoofer
Kicker 49L7X102 - SoloX L7X 10-Inch (25cm), 3" Coil, Ferrite Competition Subwoofer
Regular price
$649.99 USD
Regular price
$649.99 USD
Sale price
$649.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Kicker 49L7X102 - SoloX L7X 10-Inch (25cm), 3" Coil, Ferrite Competition Subwoofer, 2-Ohm
The KICKER SoloX L7X is our most advanced bass technology with extreme power handling – made to turn heads!
SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.

Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
- Forced Air Cooling™
- Three-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone
- Heavy-duty UV-resistant Santoprene surround
- Custom rubber magnet boot
- Cast-aluminum basket
- Single 8 AWG terminal and dual 8 AWG terminal block
- Triple-Stacked Ferrite Magnet
*SoloX 12" shown in diagram.
Specifications
Thiele/Small Parameters |
49L7X102 T/S Parameters |
Size (in, cm) |
10, 25 |
Rated Impedance (Ohms) |
2 DVC |
Rec Amp Power rms |
1000-2000 |
Frequency Response |
25-100 |
Magnet Diameter (in, cm) |
8-11/16, 22 |
Total Magnet Weight (oz, kg) |
406, 11.5 |
Voice Coil Diameter (in, mm) |
3, 75 |
Voice Coil Winding Width (in, mm) |
2.5, 62.5 |
Product Dimension Sheet |
49L7X10 Dimensions |
Top Plate Thickness (in, mm) |
0.5, 13 |
Xmax (in, mm) |
1.25, 31.25 |
Mounting Cutout (in, cm) |
9-5/16, 23.7 |
Mounting Depth (in, cm) |
9-7/16, 24 |
Recommended Vented Box Volume (Cu. Ft., L) |
2, 56.6 |
Port Opening (in x in, cm x cm) |
2.5 X 12.25, 6 X 31 |
Port Length (in, cm) |
38.5, 98 |
Vented Enclosure Tuning Frequency (Hz) |
31 |
