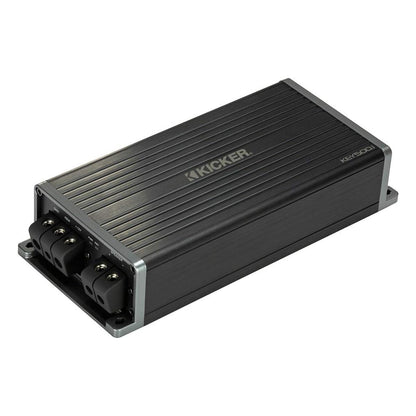

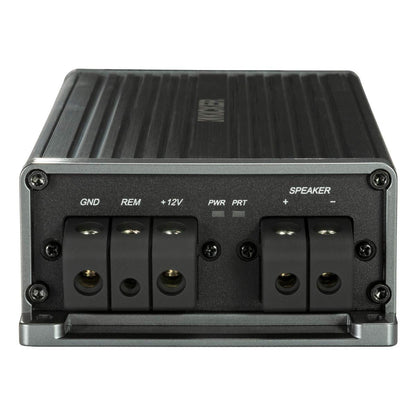

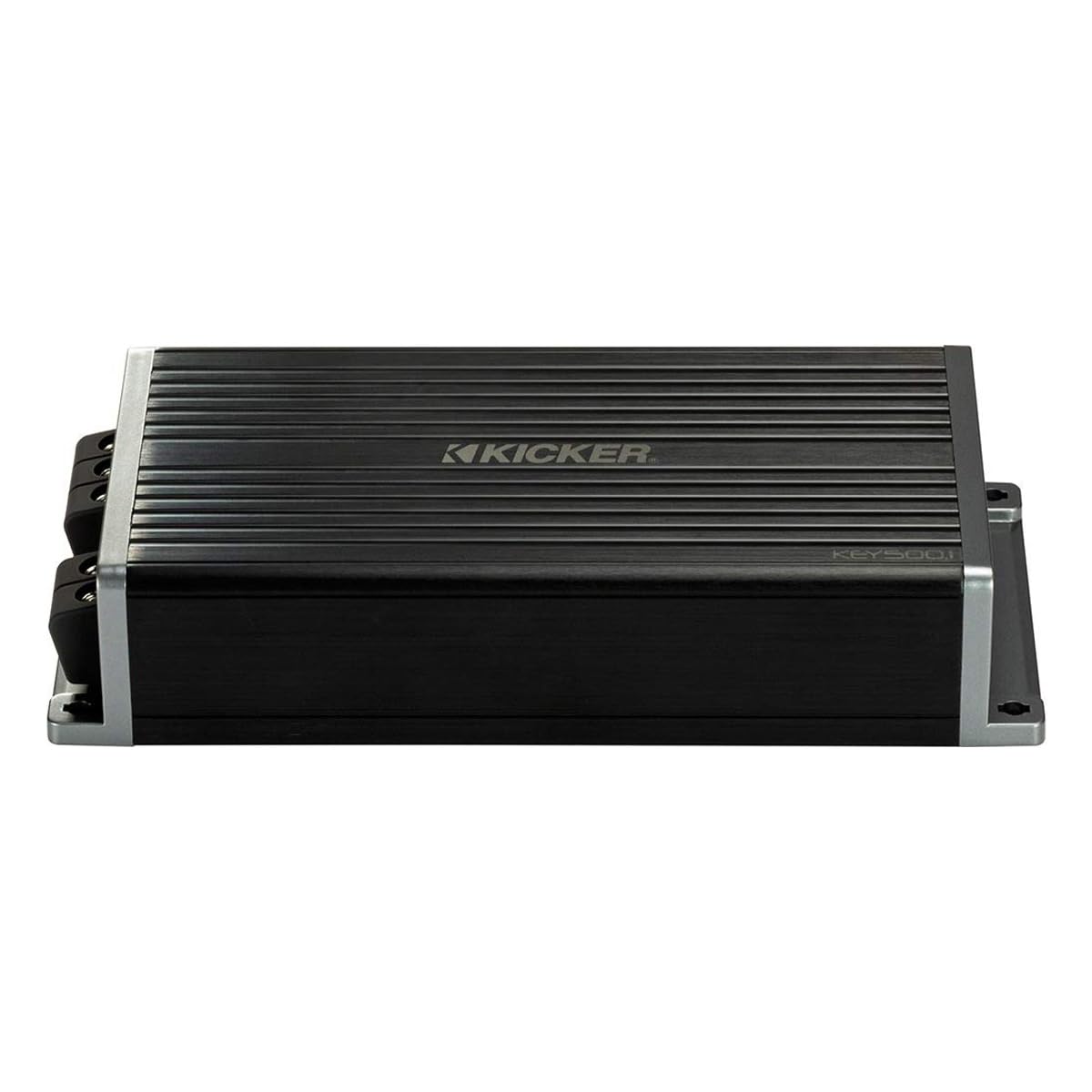

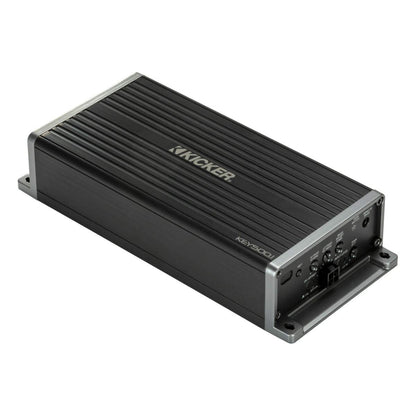

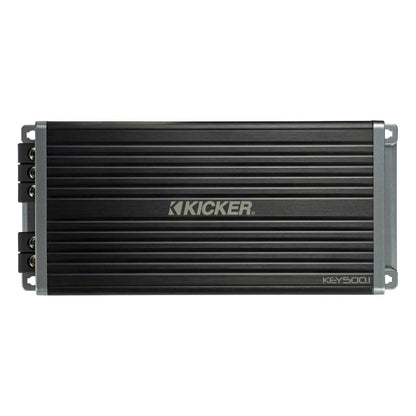

Kicker KEY5001 500w Mono Amplifier w/Bass Revealer Processor Smart Amp 47KEY5001
Kicker KEY5001 500w Mono Amplifier w/Bass Revealer Processor Smart Amp 47KEY5001
Couldn't load pickup availability
Model: 47KEY5001
AUTO EQ
Using KICKER’s supplied test tones (below), the KEY automatically analyzes the audio being fed into the amplifier. Once this signal has been analyzed, the amp will automatically fix peaks in the signal coming in and restore the low bass that is typically missing. In a matter of moments, you get a clean, even bass response from your amp!
Start with these FREE TEST TONES for easy setup!
ALL THE CONTROL

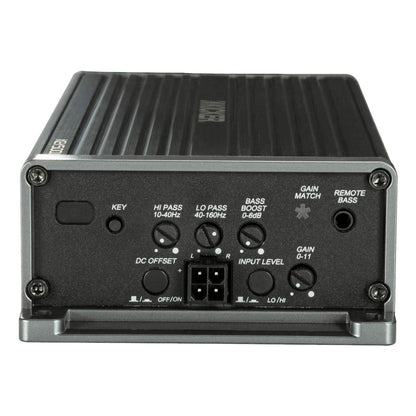

Craft your sound with ease! The KEY500.1 comes with 24dB sub-sonic and low-pass crossovers, bass boost and gain controls.
HIDDEN TREASURE
Measuring about eight inches long and less than two inches high, the KEY500.1 fits nearly anywhere. Mount it behind your glove box, under the seat, or in your trunk with ease.
START. DON’T STOP.
The amplifier also features FIT+™ (Fail-safe Integration Technology PLUS) – which provides nearly universal compatibility with stock or aftermarket radios. Another industry first, the KEY500.1 is uniquely suited to accept factory input signals as high as 40 volts (400 watts). The KEY amplifier will work with almost every car on the road today, whether you have a factory or aftermarket audio system.
SUGGESTED ENCLOSURES
While we suggest this list for the ultimate bass experience, KEY500.1 will actually work with all KICKER subwoofers up to 12 inches; see your sales associate for the ideal subwoofer in your particular system, because every system is unique.
4Ω = 150 Watts RMS
2Ω = 300 Watts RMS
1Ω = 500 Watts RMS
VCVR122
TCWRT82
TCWRT102
TCWRT122
TL7T122
TL7T102
TL7T82
CWTB102
CWTB82
TL7R102
TL7S102
TRTP122
TRTP102
TRTP82
CVTDF122
CVTDF102
Remote Control
Your KEY500.1 amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
| White Paper |
| 47KEY5001-wp.pdf |
| Power (watts/ch), 1 Ohm mono |
| 500 |
| Power (watts/ch), 2 Ohm mono |
| 300 |
| Power (watts/ch), 4 Ohm mono |
| 150 |
| Standard dimensions in.(H x W x L) |
| 1-11/16 x 4-1/8 x 8-1/8 |
| Metric dimensions cm(H x W x L) |
| 4.3 x 9.2 x 20.7 |
| Frequency Response (Hz): |
| 10-160 |
| Input Sensitivity: |
| high level: 1V-40V / low level: 125mV-5V |
| Signal-to-Noise Ratio: |
| >90dB, a-weighted, re: rated power |
| Selectable Electronic Crossover: |
| Variable Low Pass 40-160 Hz, Variable High Pass 10-40 Hz |
| What's in the Box: |
| 1 - fuse holder 1 - manual and installation hardware |
