Kicker 46L7T122 L7T L7-Thin 12-Inch (30cm) Subwoofer, Dual Voice Coil, 2-Ohm

Kicker 46L7T122 L7T L7-Thin 12-Inch (30cm) Subwoofer, Dual Voice Coil, 2-Ohm

$319.99 USD
$0.00 USD $319.99 USD
Sale Sold out
Shipping calculated at checkout.
The only thing thin about the L7T thin subwoofer is the mounting depth. These tough subs work perfectly in nearly anything with a motor.

12" L7T 2 Ohm

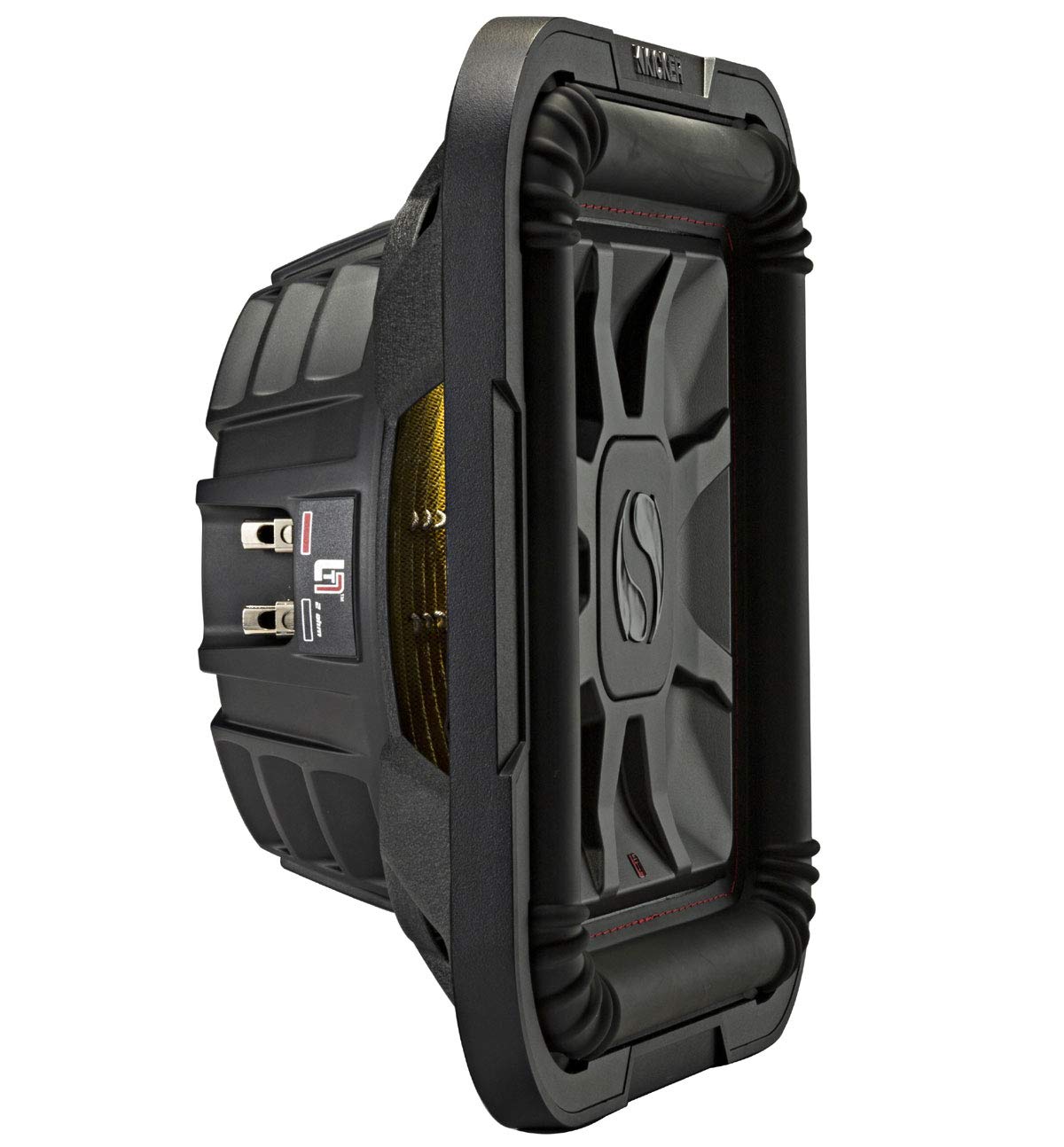

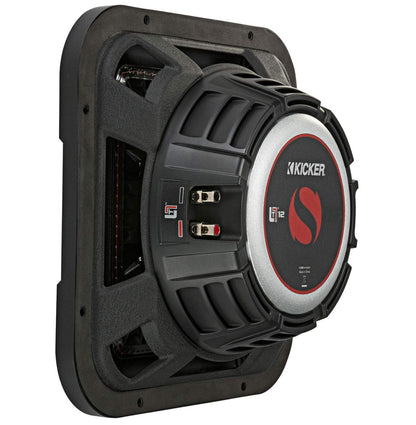

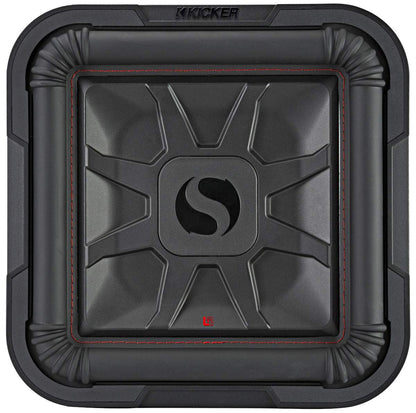

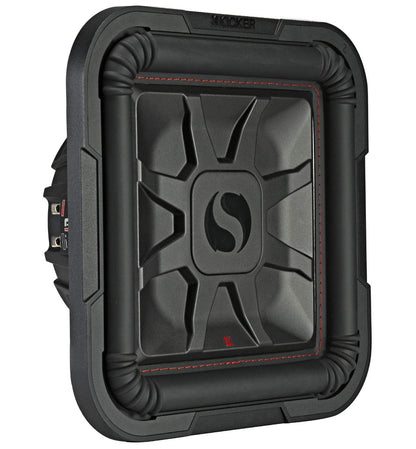

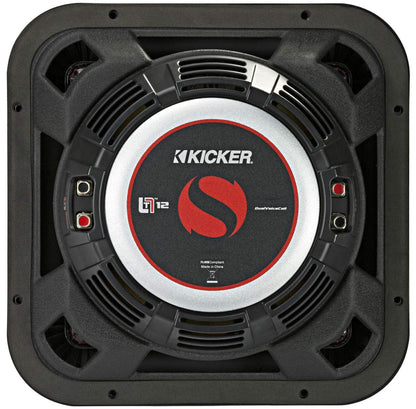

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.

Thin-mount and mean, the Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
46L7T122 T/S Parameters

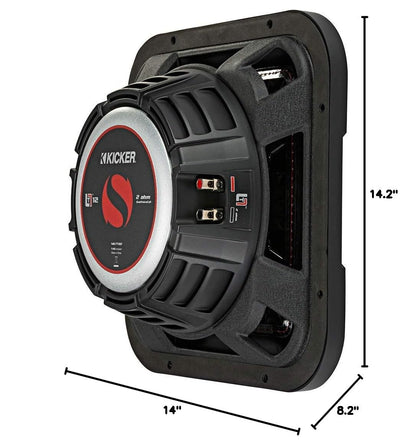

Product Dimension Sheet
46L7T12 Dimensions
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.54
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
4-1/8, 10.5
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
.55, 15.6
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.7
What's in the box?
one 12-inch subwoofer, one owner's manual, two stickers
