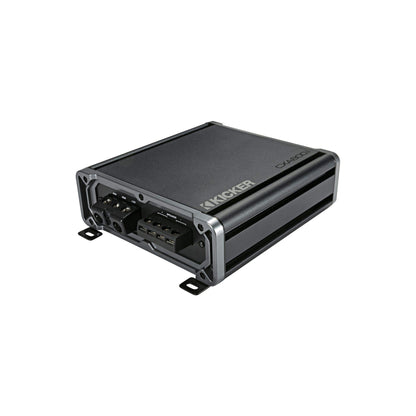

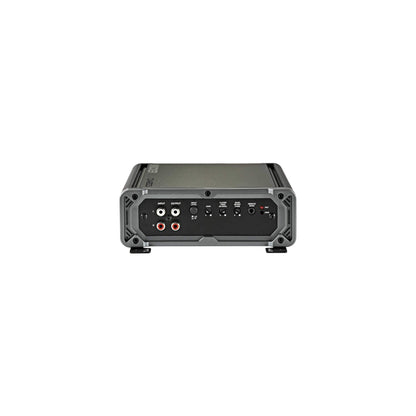

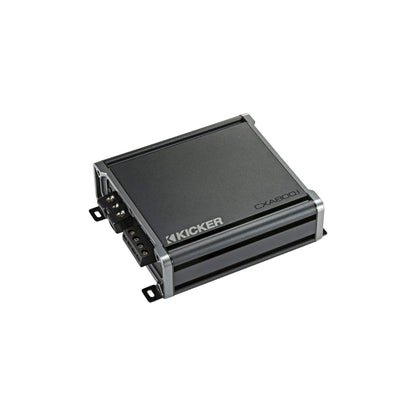

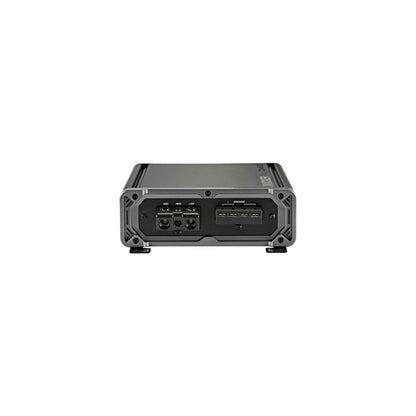

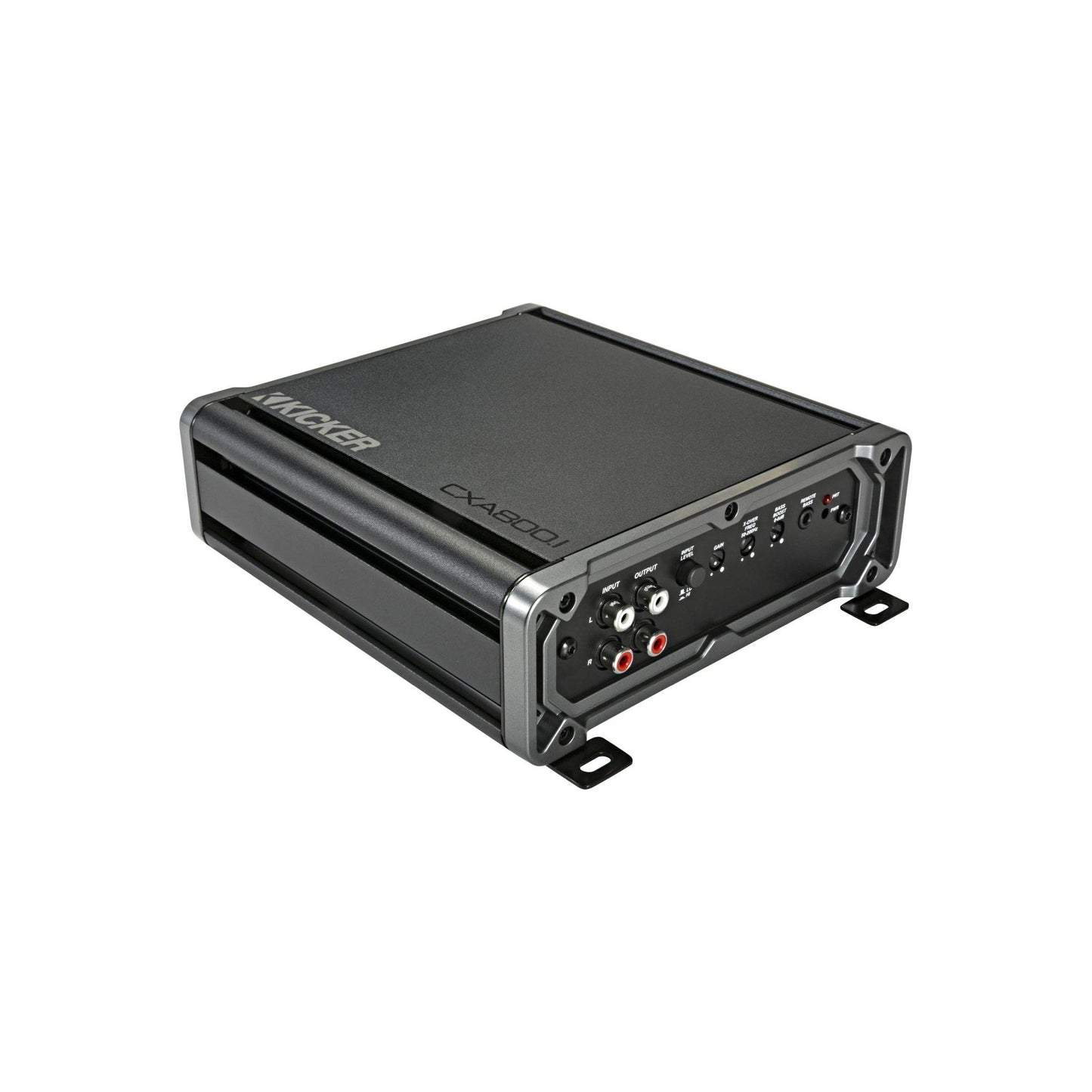

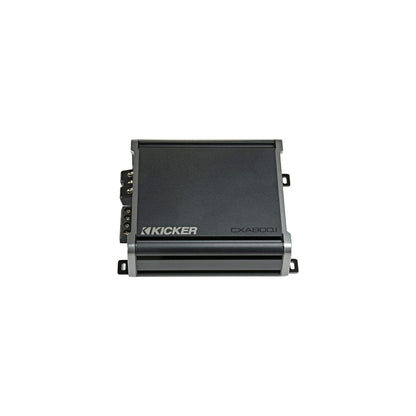

Kicker CXA 46CXA8001T Mono Class D Subwoofer Amplifier, 800W RMS

Kicker 46CXA8001T is a Mono Class D amplifier designed for subwoofer power in vehicle audio systems.

Key Performance Features

• Mono Class D amplifier for subwoofer systems
• 1-ohm stable operation for flexible subwoofer wiring
• FIT+ input technology supports integration with many factory and aftermarket radios
• Compatible with optional CXARC remote bass control

System Configuration & Flexibility

• Single-channel subwoofer amplifier
• Designed for subwoofer systems wired to a compatible final impedance
• Full-range RCA pass-through outputs support system expansion

Power Output

• RMS @ 4Ω: 300 W × 1
• RMS @ 2Ω: 600 W × 1
• RMS @ 1Ω: 800 W × 1

Signal Control & Protection

• Variable low-pass crossover from 50 Hz – 200 Hz at 12 dB/octave
• 24 dB/octave subsonic filter at 25 Hz
• KickEQ variable bass boost from 0–6 dB at 40 Hz
• Integrated protection and delayed turn-on/off behavior

Installation Notes

• Proper power, ground, and fuse protection required

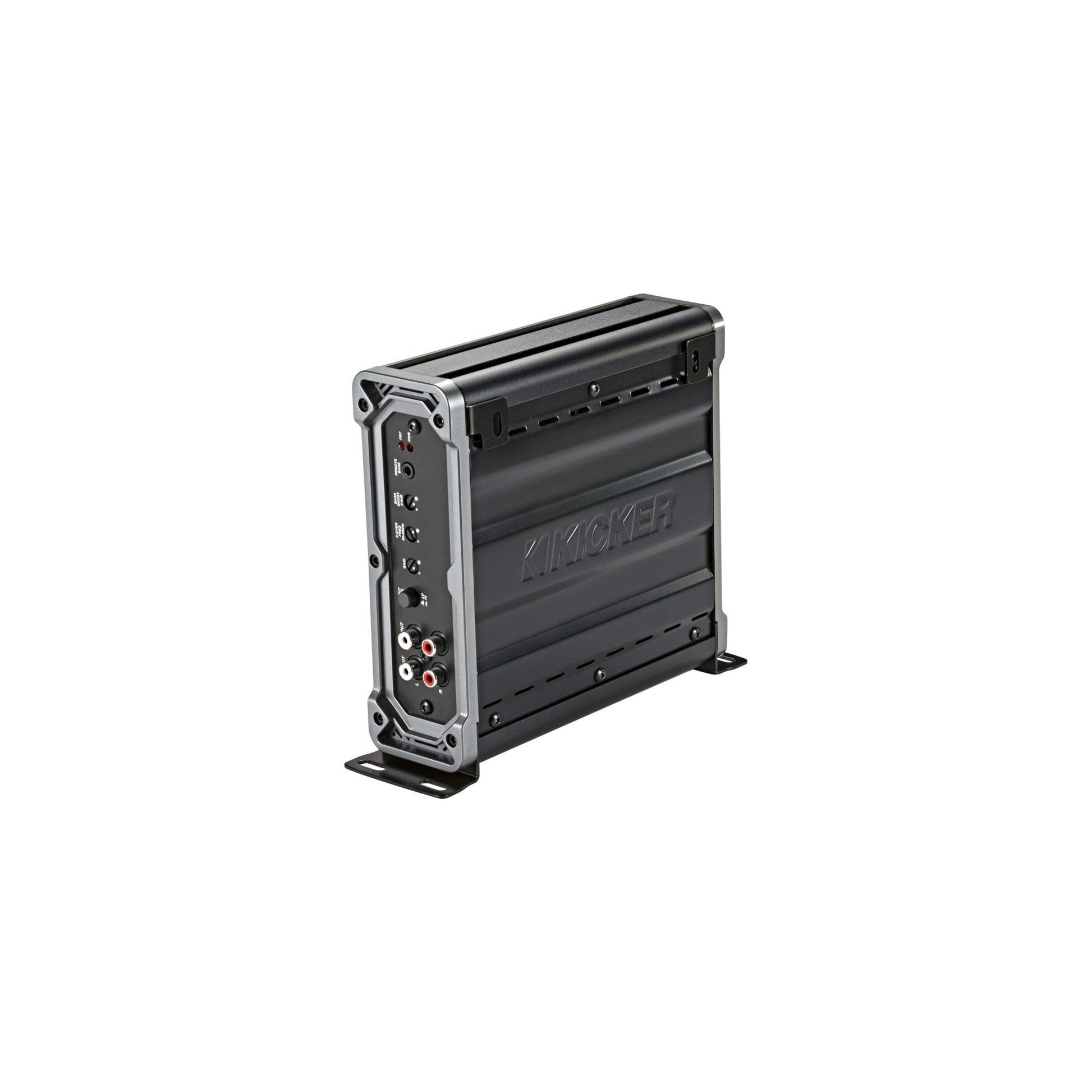

• Vertical mounting hardware included
• Remote bass control sold separately

Technical Specifications

• Brand: Kicker
• Series: CXA Series
• Model: 46CXA8001T
• Amplifier Class: Class D
• Channels: Mono
• RMS Power @ 4Ω: 300 W × 1
• RMS Power @ 2Ω: 600 W × 1
• RMS Power @ 1Ω: 800 W × 1
• Frequency Response: 25 Hz – 200 Hz
• Input Sensitivity: 125 mV – 5 V low level; 1 V – 40 V high level
• Signal-to-Noise Ratio: >95 dB
• Dimensions: 2-3/8" H × 6-3/4" W × 8-1/8" L

Identifiers & Packaging

• MPN: 46CXA8001T
• UPC: 713034012818
• Sold As: Each
• Included Components: Amplifier, mounting hardware, documentation
