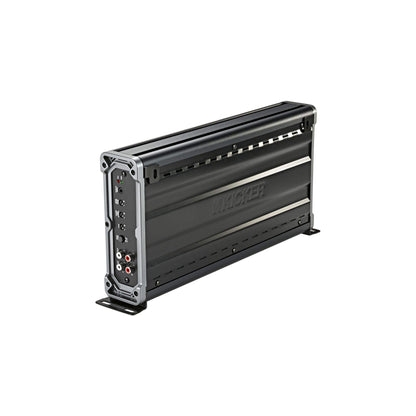

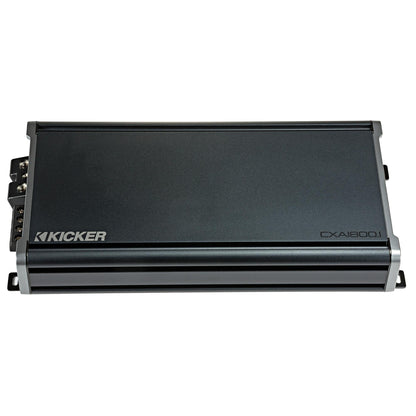

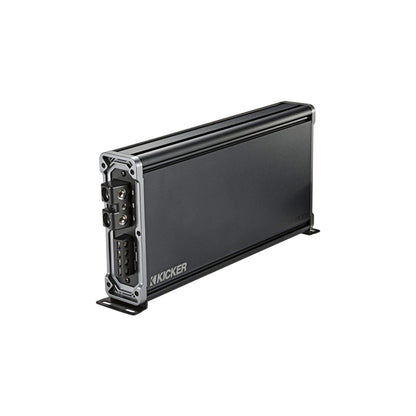

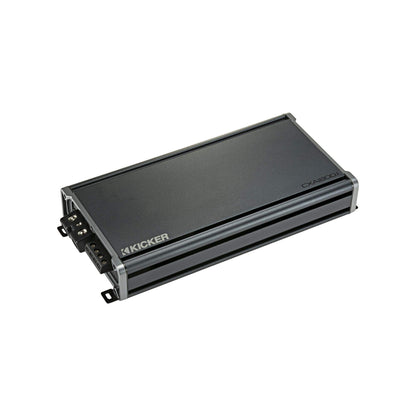

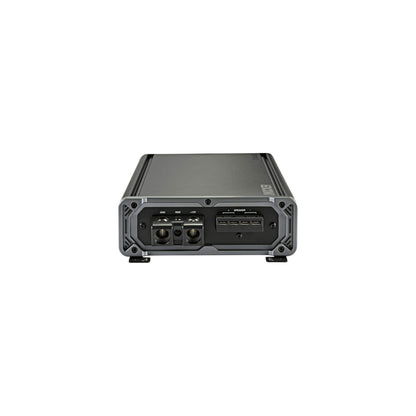

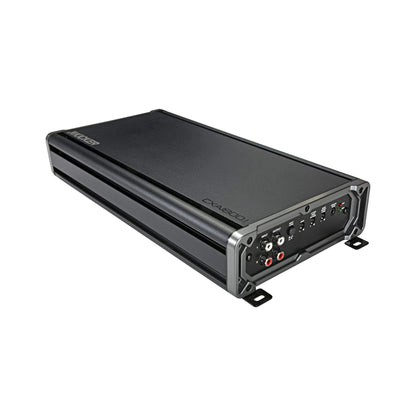

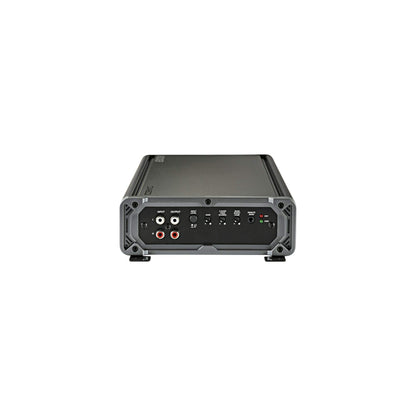

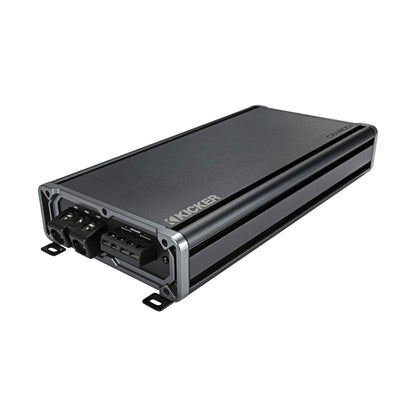

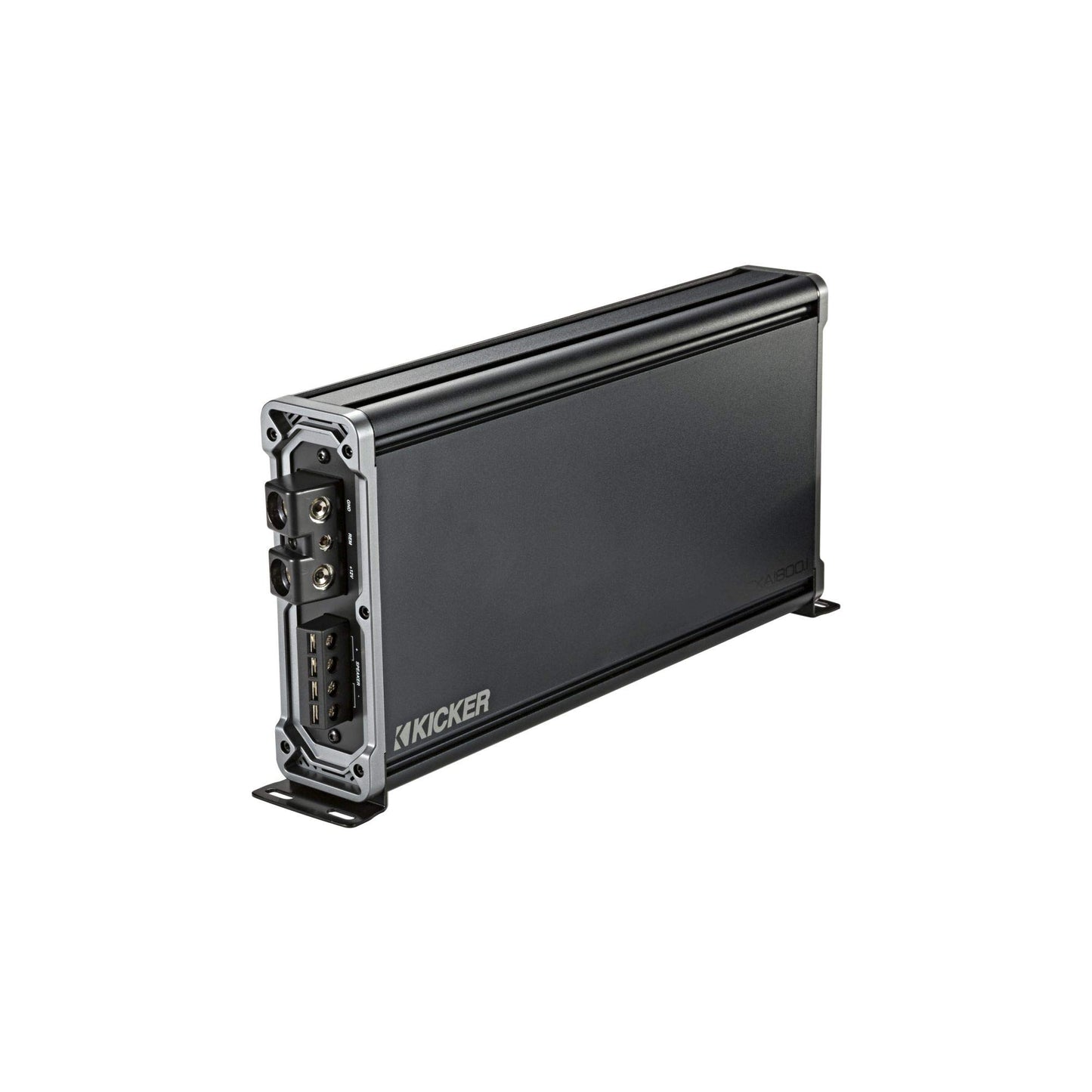

Kicker 46CXA18001 CXA18001-1800-Watt Mono Class D Subwoofer Amplifier
Kicker 46CXA18001 CXA18001-1800-Watt Mono Class D Subwoofer Amplifier
Couldn't load pickup availability
Power Station
The CXA1800.1 Mono Amplifier is built for big bass in a sleek, yet affordable package. Using a Class-D power package and FIT+™ (Fail-safe Integration Technology-PLUS) for superior dependability, this amp features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full range outputs to expand your system with other bass amps, or add a full range amp to complete your system.
This CX-Series Amplifier delivers as much as 1,800 watts into one bass channel. See below for more details.
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
- Vertical mounting hardware included for another unique look
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
| MODEL |
| CXA1800.1 |
| White Paper |
| 46CXA18001-wp.pdf |
| Power (watts/ch) 4 Ohm |
| 900x1 |
| Power (watts/ch) 2 Ohm |
| 1800x1 |
| Power (watts/ch) 1 Ohm |
| 1800x1 +/-10% |
| CXRC Remote Bass Capable (sold sep.) |
| yes |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) |
| 14-3/8, 36.4 |
| Frequency Response (Hz): |
| 25-200Hz |
| Input Sensitivity: |
| 125mV–5V (Low Level) 1V–40V (High Level) |
| Signal-to-Noise Ratio: |
| 95dB |
| Active Crossover: |
| Variable Lo-pass 50Hz–200Hz, 12dB/octave |
| Subsonic Filter: |
| 25Hz @24dB/octave |
| KickEQ™ Boost |
| Variable 0-6dB @40Hz |
