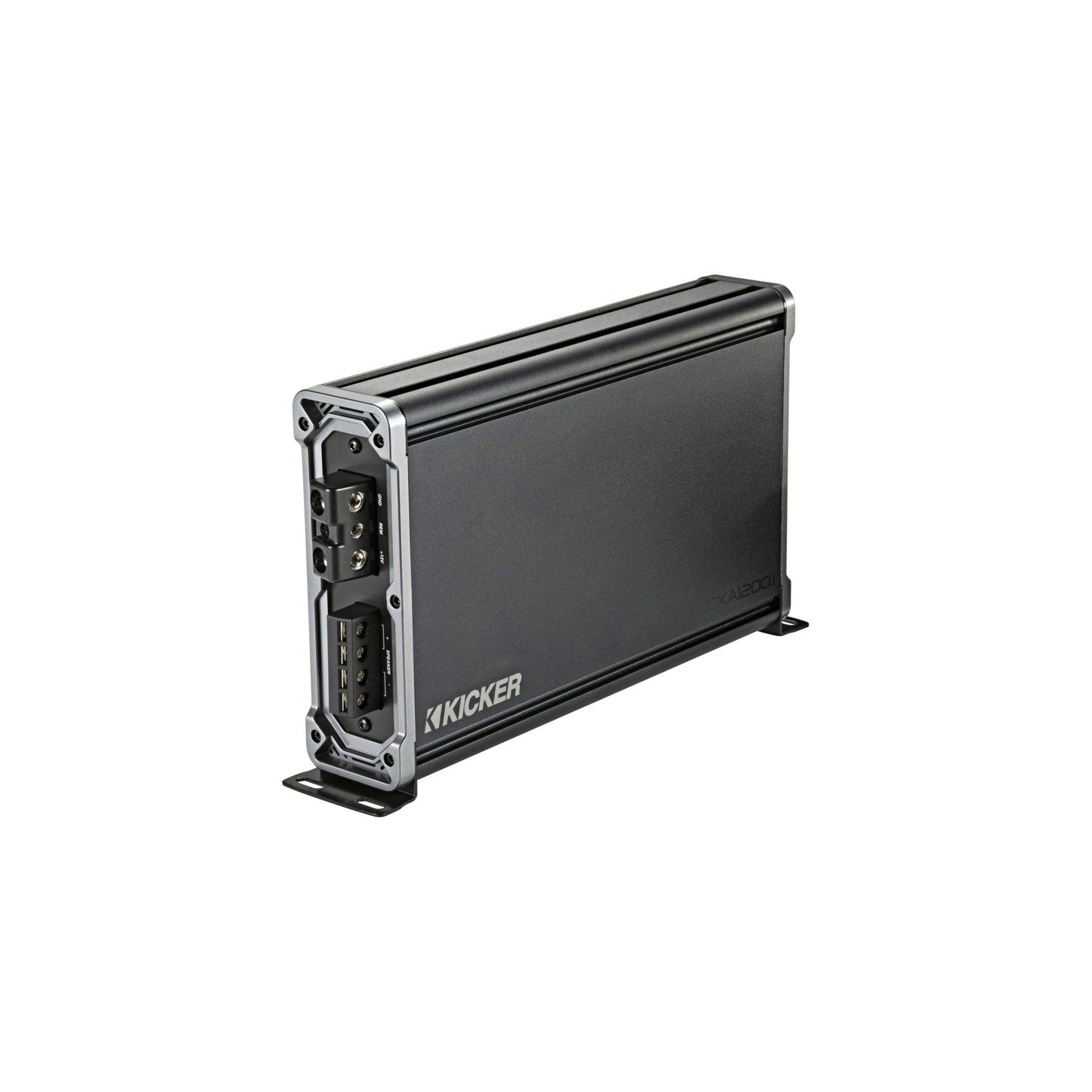

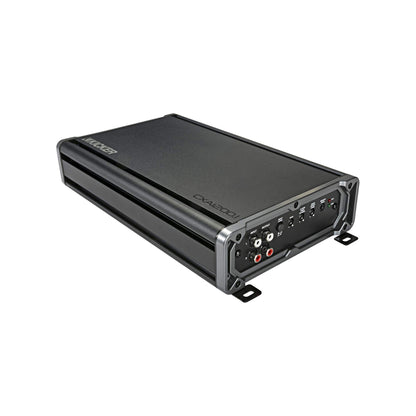

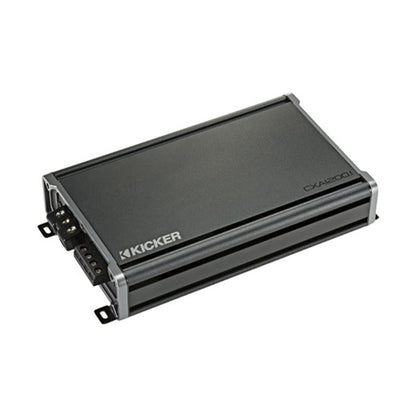

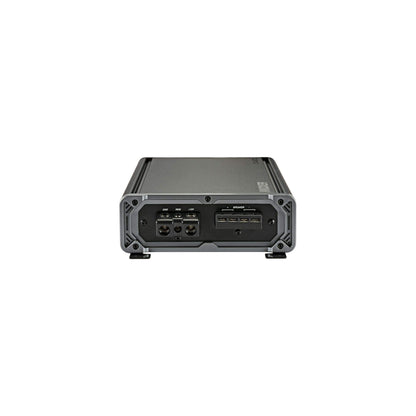

Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amplifier
Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amplifier
Couldn't load pickup availability
Mono Monster
This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! The Class-D CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.
This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control

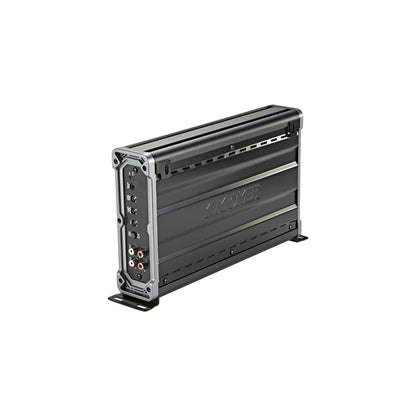

- Vertical mounting hardware included for another unique look
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
| MODEL |
| CXA1200.1 |
| White Paper |
| 46CXA12001-wp.pdf |
| Power (watts/ch) 4 Ohm |
| 600x1 |
| Power (watts/ch) 2 Ohm |
| 1200x1 |
| Power (watts/ch) 1 Ohm |
| 1200x1 +/-10% |
| CXRC Remote Bass Capable (sold sep.) |
| yes |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) |
| 12, 30.6 |
| Frequency Response (Hz): |
| 25-200Hz |
| Input Sensitivity: |
| 125mV–5V (Low Level) 1V–40V (High Level) |
| Signal-to-Noise Ratio: |
| 95dB |
| Active Crossover: |
| Variable Lo-pass 50Hz–200Hz, 12dB/octave |
| Subsonic Filter: |
| 25Hz @24dB/octave |
| KickEQ™ Boost |
| Variable 0-6dB @40Hz |
