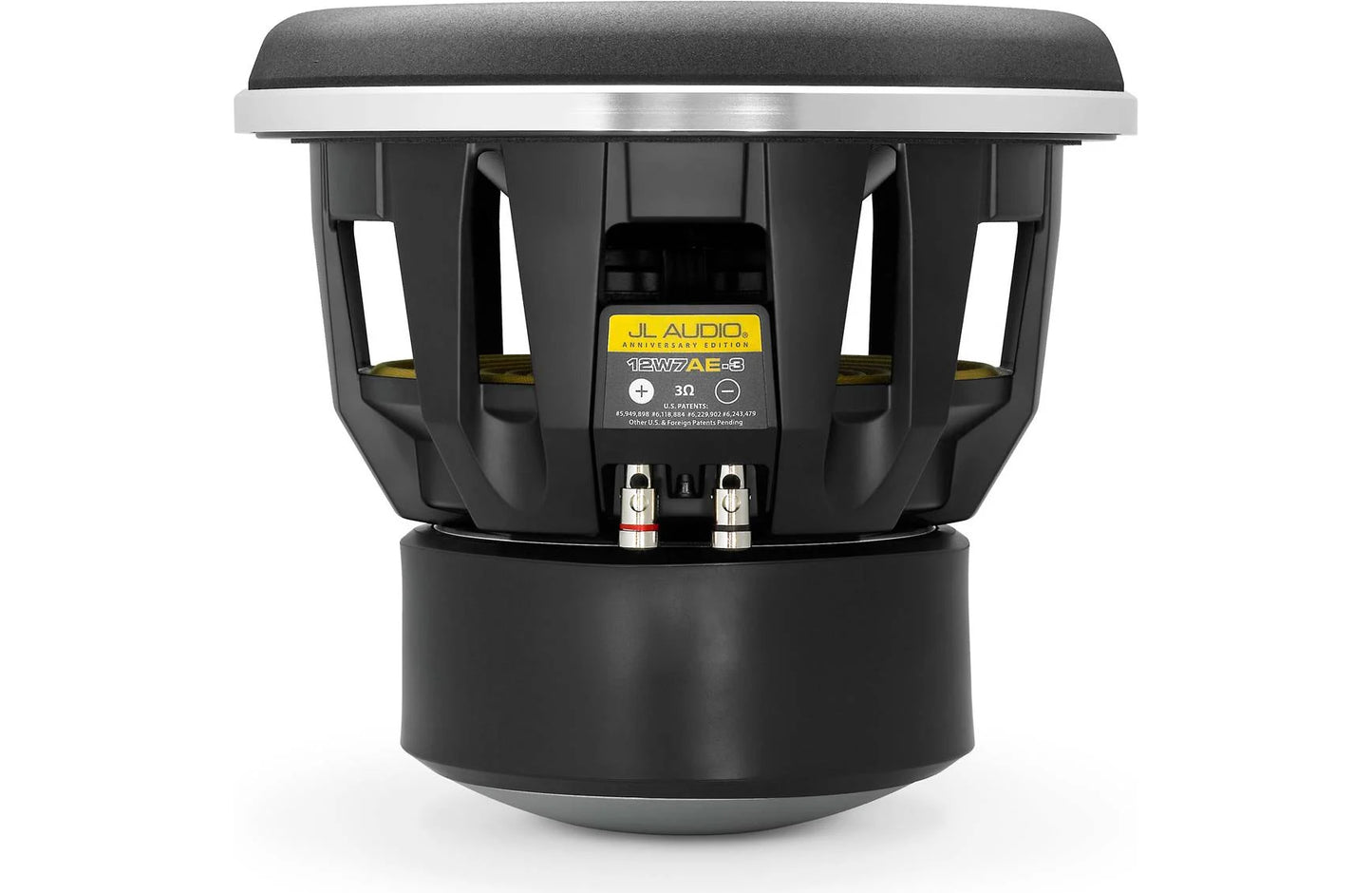

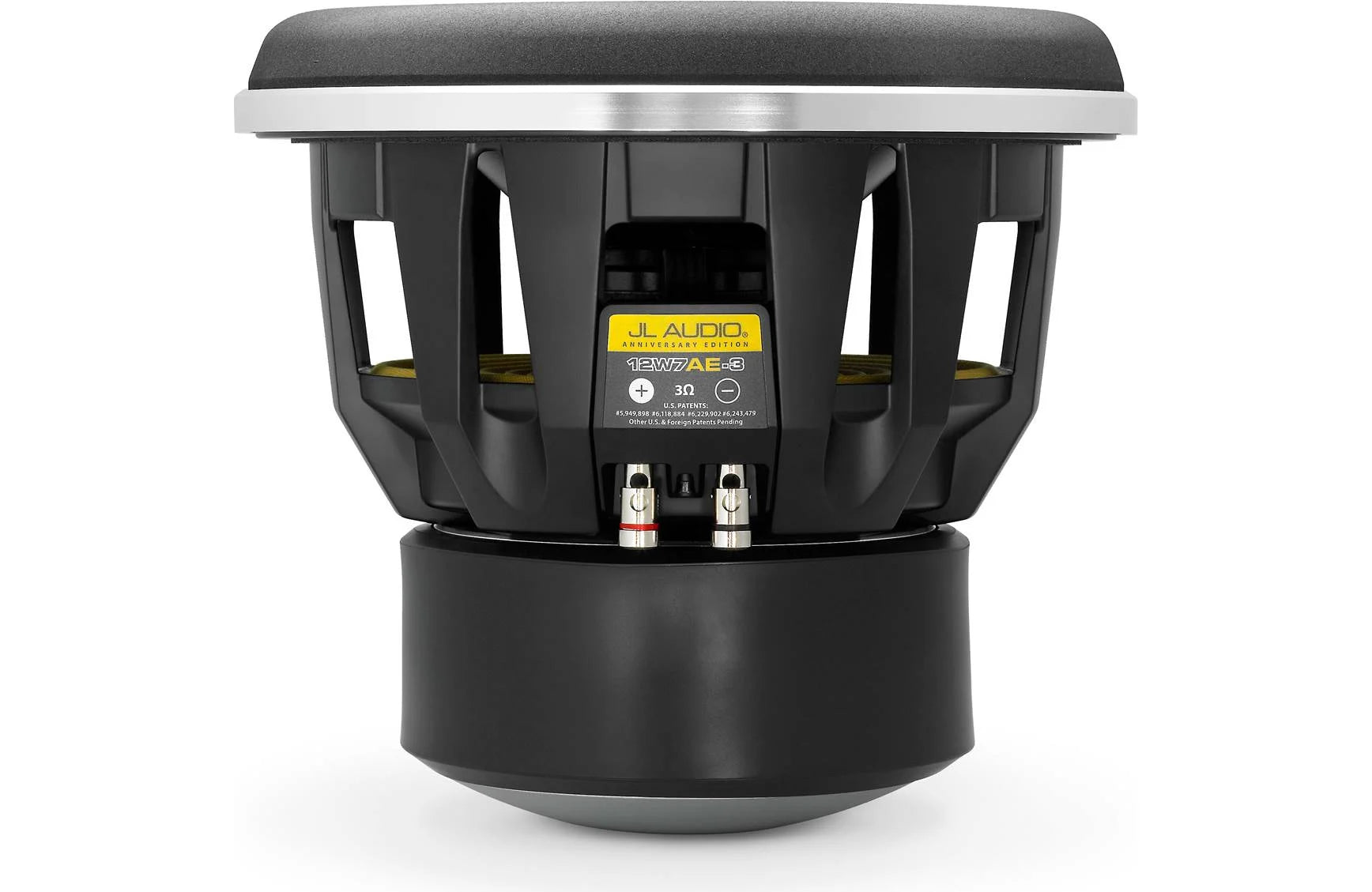

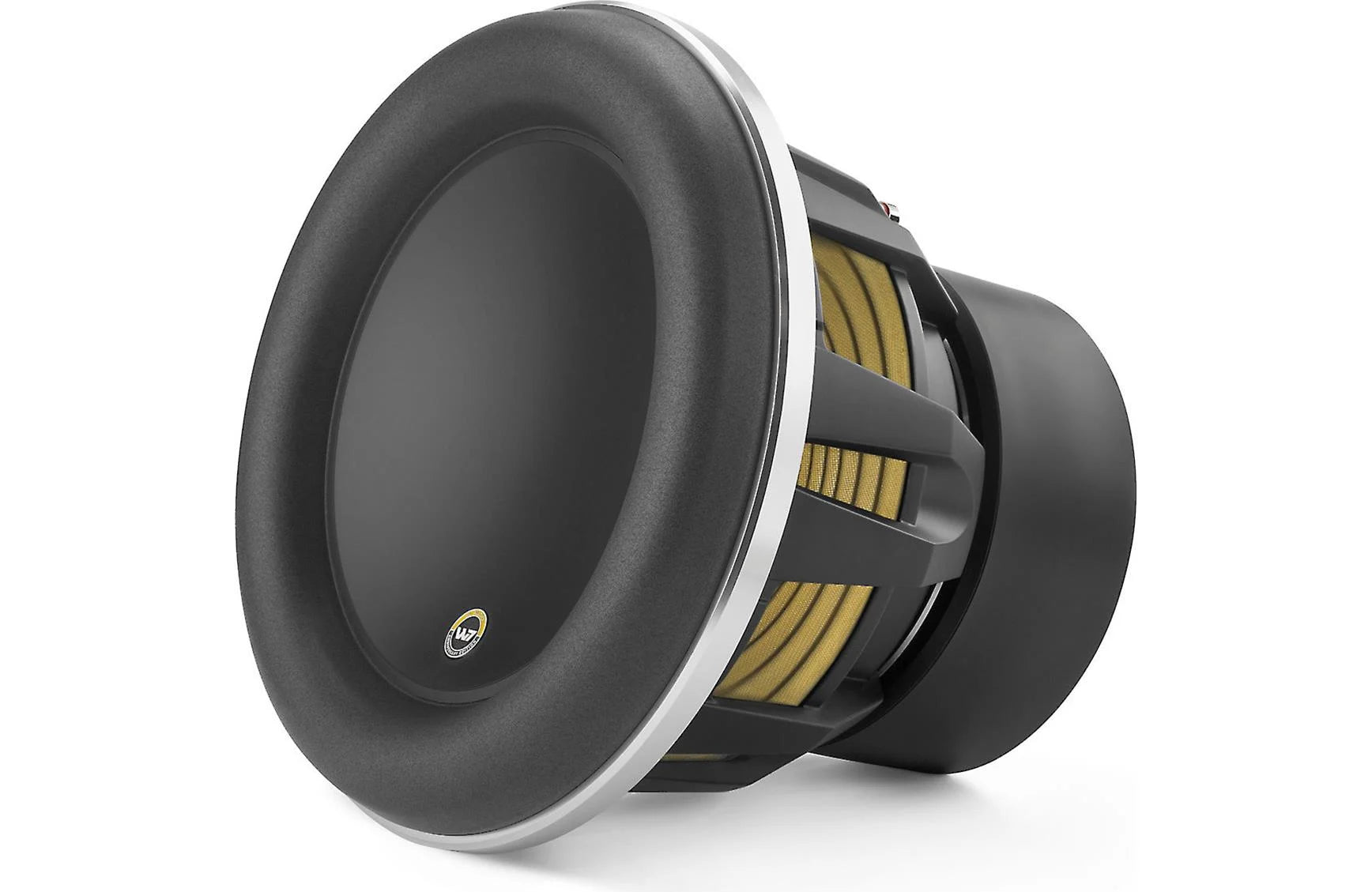

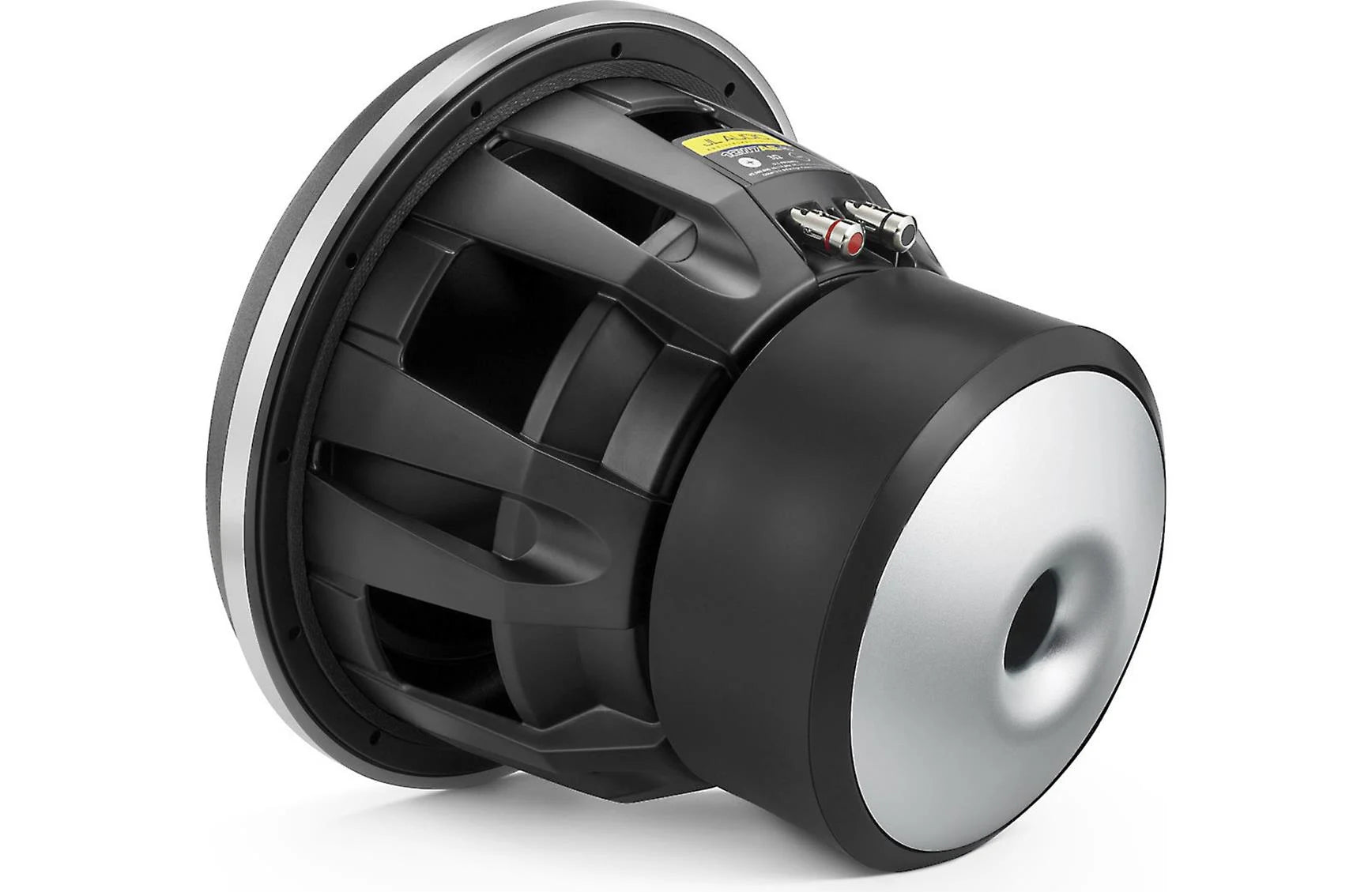

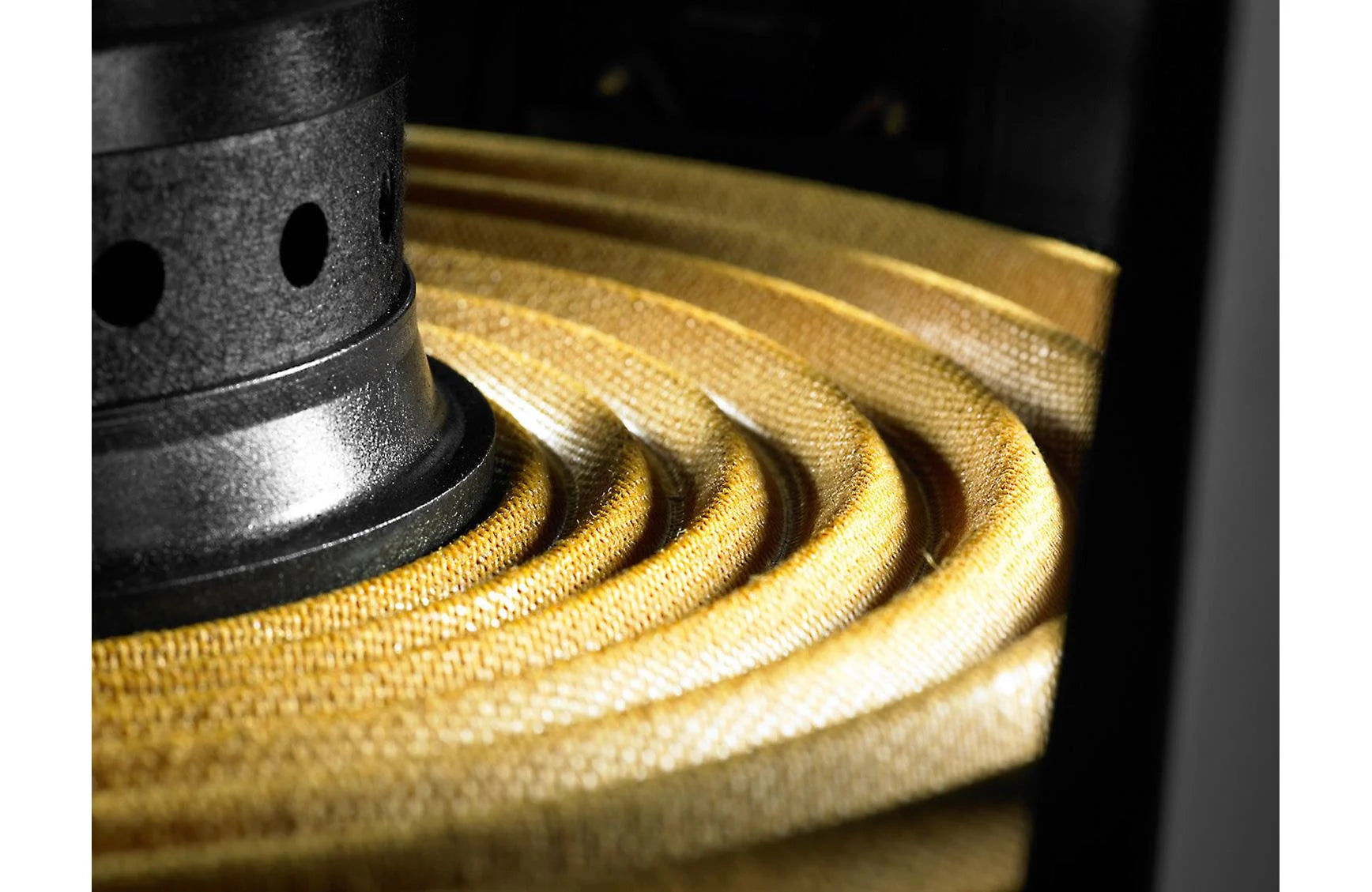

JL Audio 12W7AE-3 12" inch Subwoofer, 3 Ohm, Single Voice Coil, 1000 Watts 92115

10th Anniversary Edition - W7 12-inch Subwoofer (1000 W, 3 Ω)

The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.

This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

• Satin-Black Powdercoated Baskets
• Bright Anodized Surround Clamp Ring

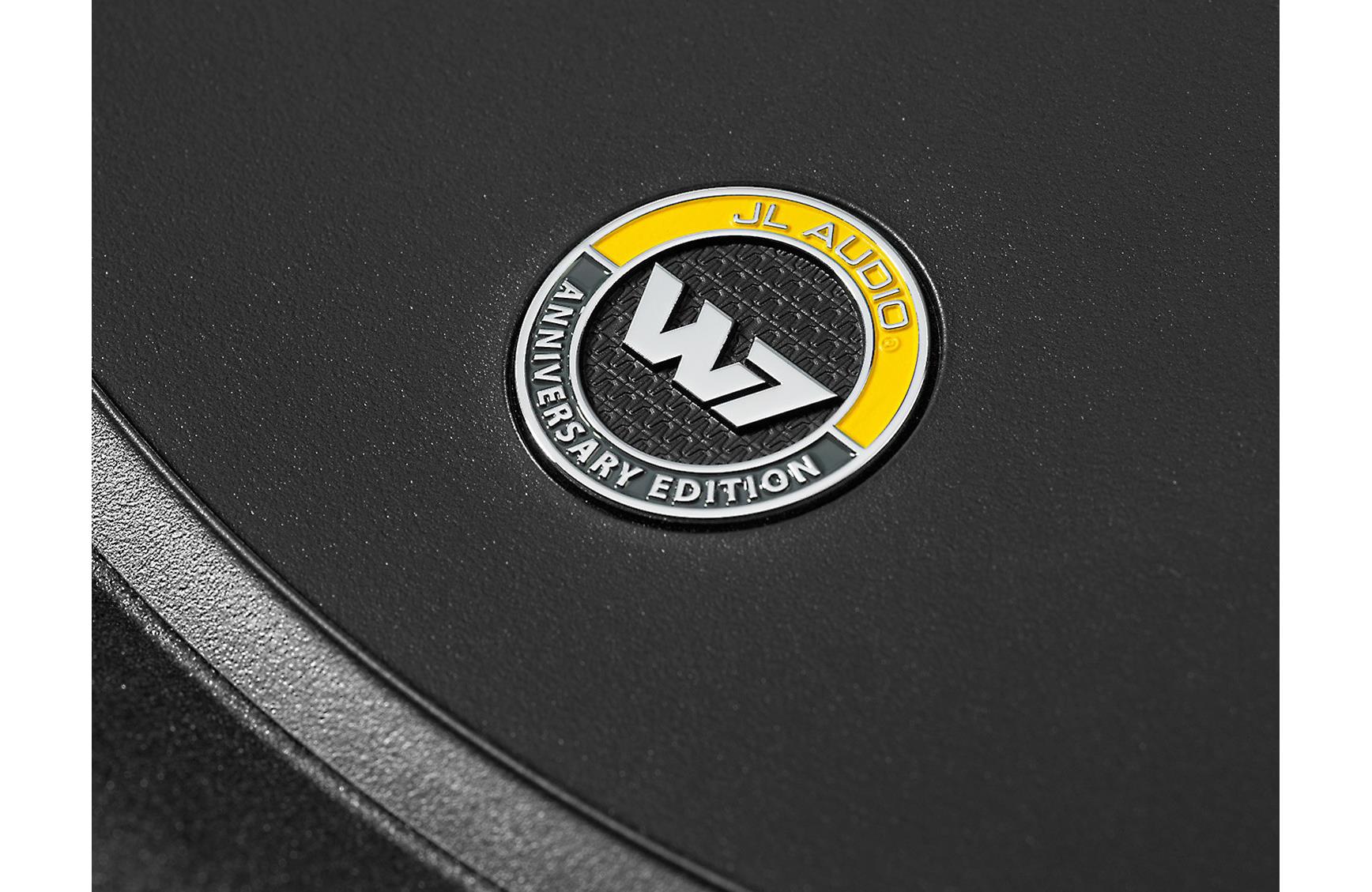

• Anniversary Edition Cone Badge
• Anniversary Edition Terminal Label

General Specifications

Continuous Power Handling (RMS)	1000 W
Recommended Amplifier Power (RMS)	400 - 1000 W
Nominal Impedance (Znom)	3 Ω



Physical Specifications

Nominal Diameter	12.0 in / 300 mm
Overall Diameter (A)	12.5 in / 318 mm
Mounting Hole Diameter (B)	10.5 in / 267 mm
Bolt Hole Circle Diameter (C)	11.27 in / 286 mm
Motor Outer Diameter (D)	7.5 in / 191 mm
Mounting Depth (E)	9.5 in / 241 mm
Driver Displacement	0.14 cu ft / 4.0 L
Net Weight	45 lb / 20.4 kg



Parameters

Free Air Resonance (Fs)	27.2 Hz
Electrical “Q” (Qes)	0.514
Mechanical “Q” (Qms)	7.807
Total Speaker “Q” (Qts)	0.482
Equivalent Compliance (Vas)	2.33 cu ft / 66.0 L
One-Way Linear Excursion (Xmax)*	1.15 in / 29 mm
Reference Efficiency (no)	0.25%
Efficiency (1 W / 1 m)**	86.2 dB SPL
Effective Piston Area (Sd)	84 sq in / 0.0542 sq m
DC Resistance (Re)	2.47 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	1.0 in / 25 mm
Volume (net int.)	1.375 cu ft / 38.94 L
External Width (W)	15 in / 381 mm
External Height (H)	15 in / 381 mm
External Depth (D)	16.125 in / 410 mm
F3	40.4 Hz
Fc	44.7 Hz
Qtc	0.791
Enclosure Notes Net volumes given above do not include the air volume displaced by the speaker (Driver Displacement). This value must be added to the net volume along with the displacement of any braces and/or ports (if applicable) to arrive at a gross internal volume. Air inside a port is not part of the effective net volume. Calculate ports as solid, not hollow objects. * The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker.This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.



Ported Enclosure Specifications

Wall Thickness	0.75 in / 19 mm
Front Baffle Thickness	1.0 in / 25 mm
Volume (net int.)	1.75 cu ft / 49.6 L
External Width (W)	22.75 in / 578 mm
External Height (H)	15 in / 381 mm
External Depth (D)	15.875 in / 403 mm
Internal Slot Port Width (SW)	1.875 in / 48 mm
Internal Slot Port Height (SH)	13.5 in / 343 mm
Internal Slot Port Length (SL)	24.75 in / 629 mm
Port Extension Length (EL)	7.9375 in / 202 mm
Tuning Frequency (Fb)	36.7 Hz
F3	32.8 Hz
Enclosure Notes Net volumes given above do not include the air volume displaced by the speaker (Driver Displacement). This value must be added to the net volume along with the displacement of any braces and/or ports (if applicable) to arrive at a gross internal volume. Air inside a port is not part of the effective net volume. Calculate ports as solid, not hollow objects. * The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
