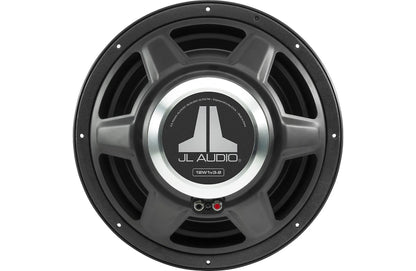

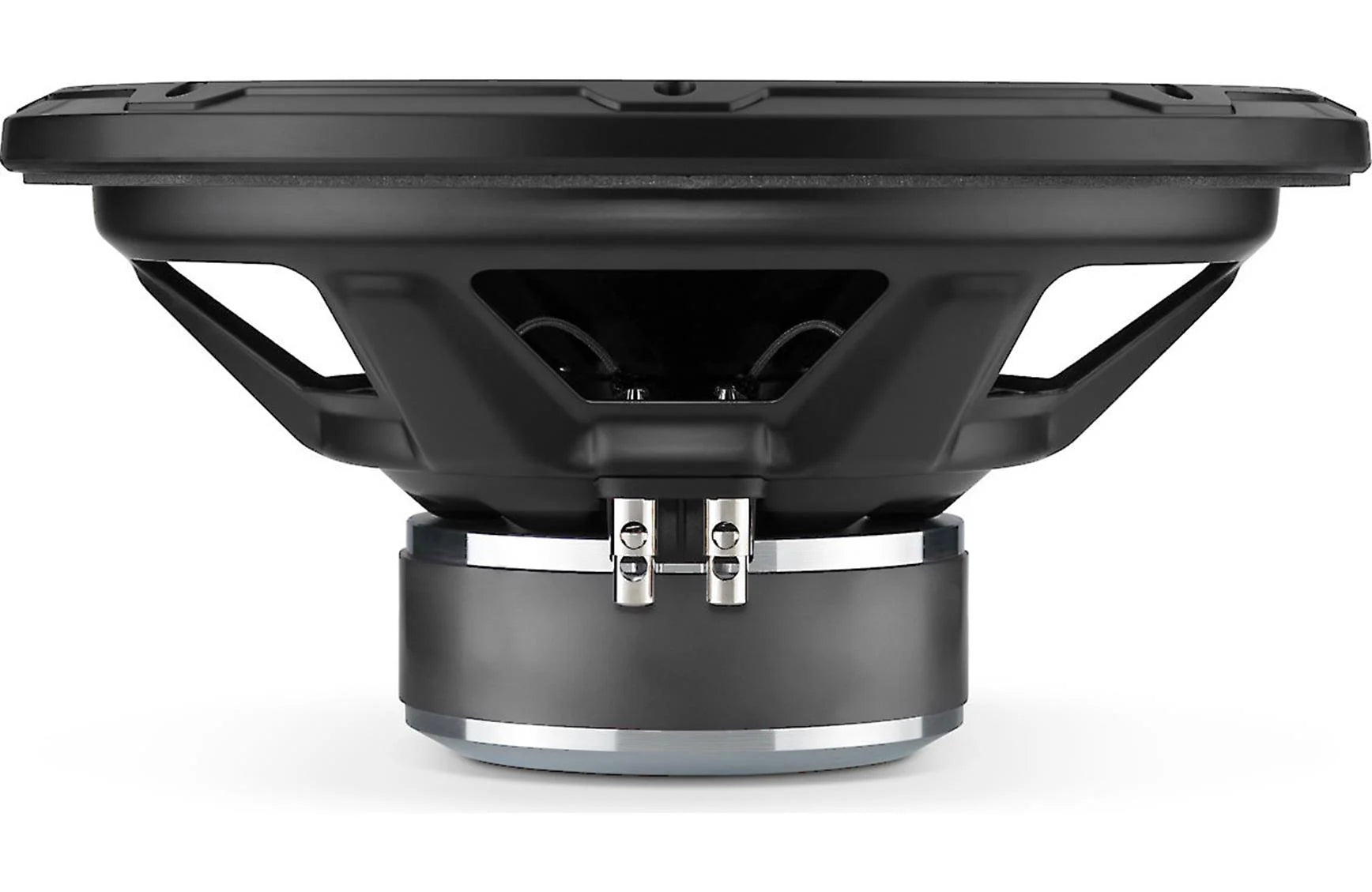

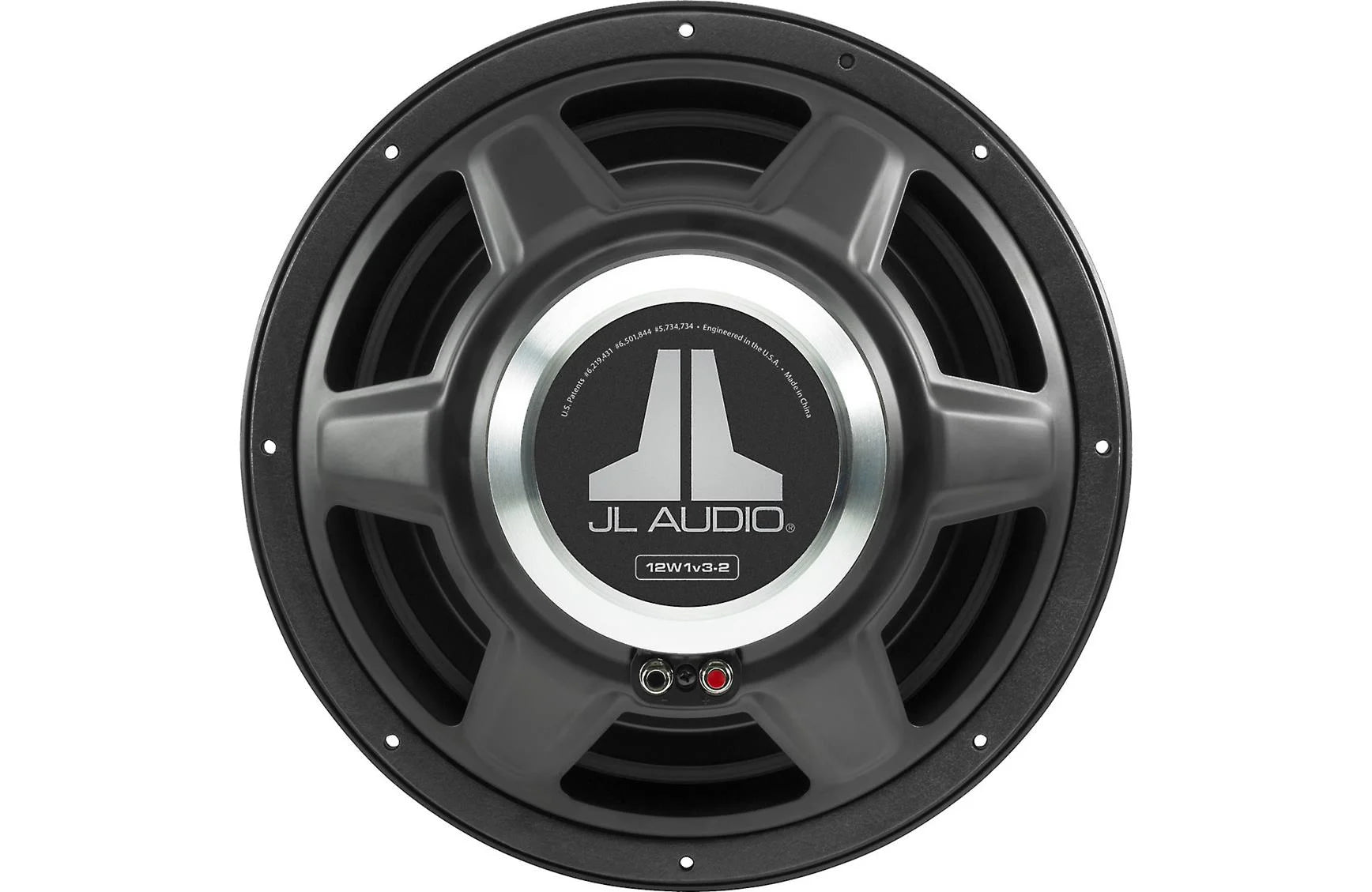

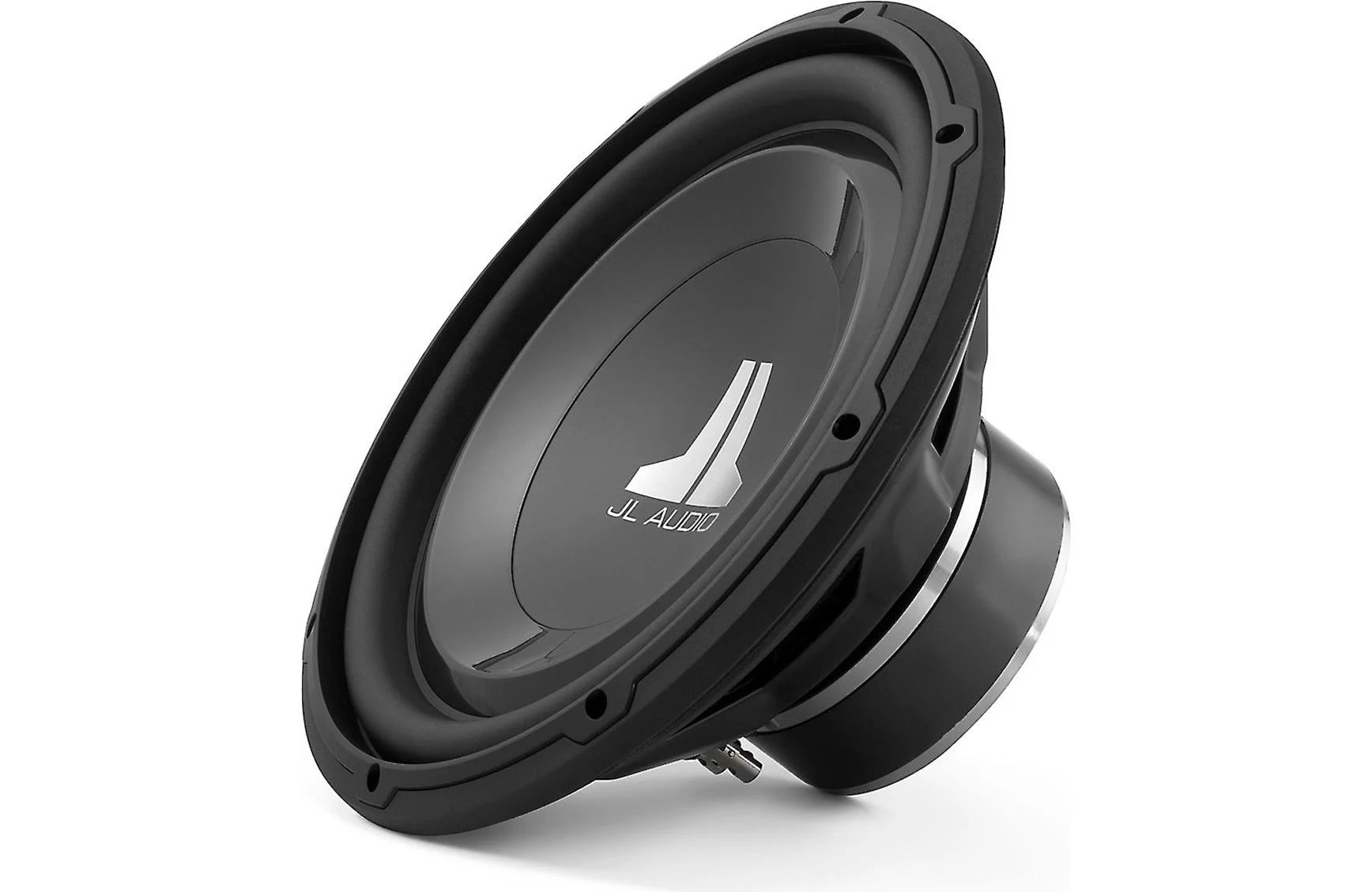

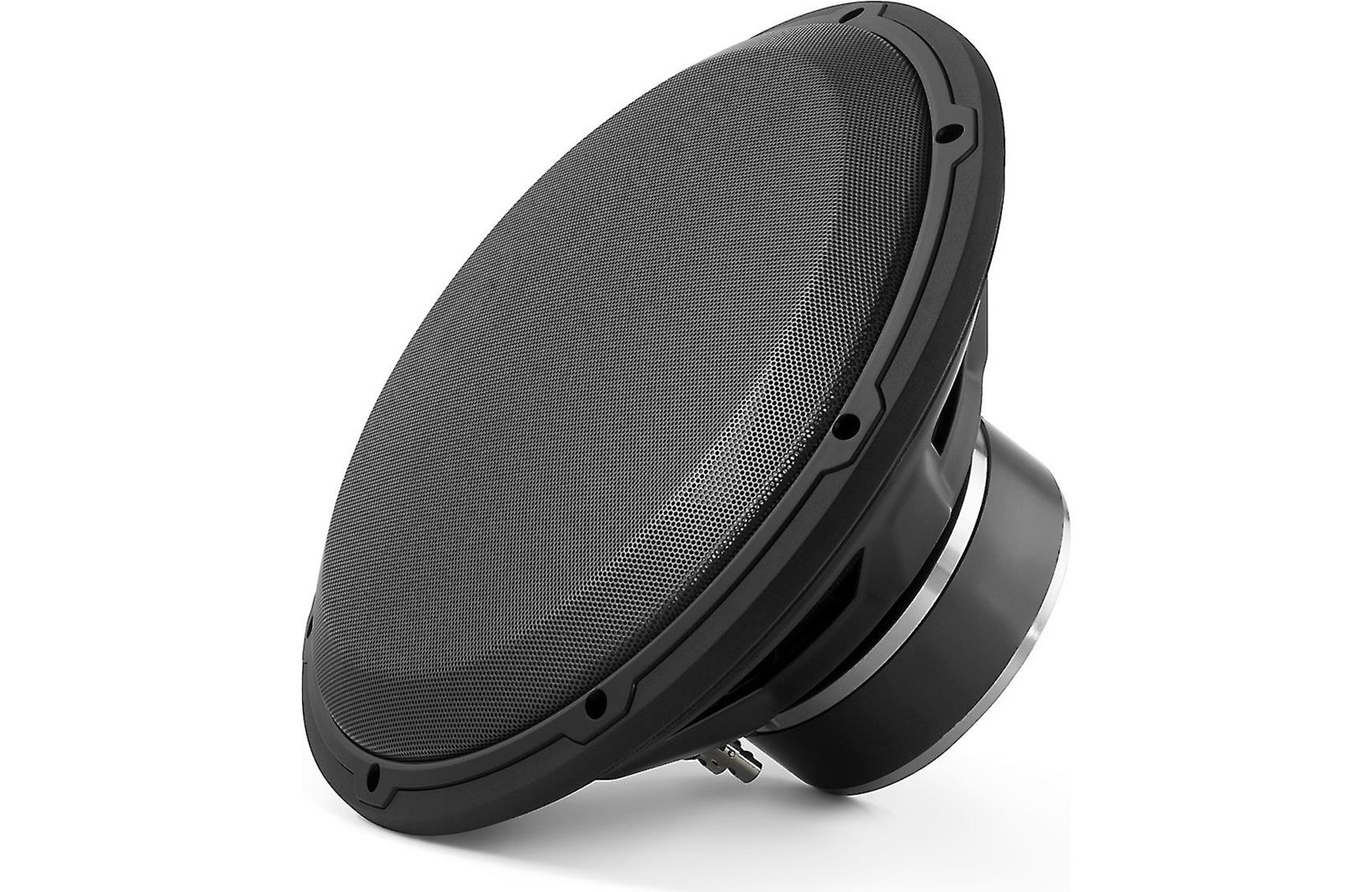

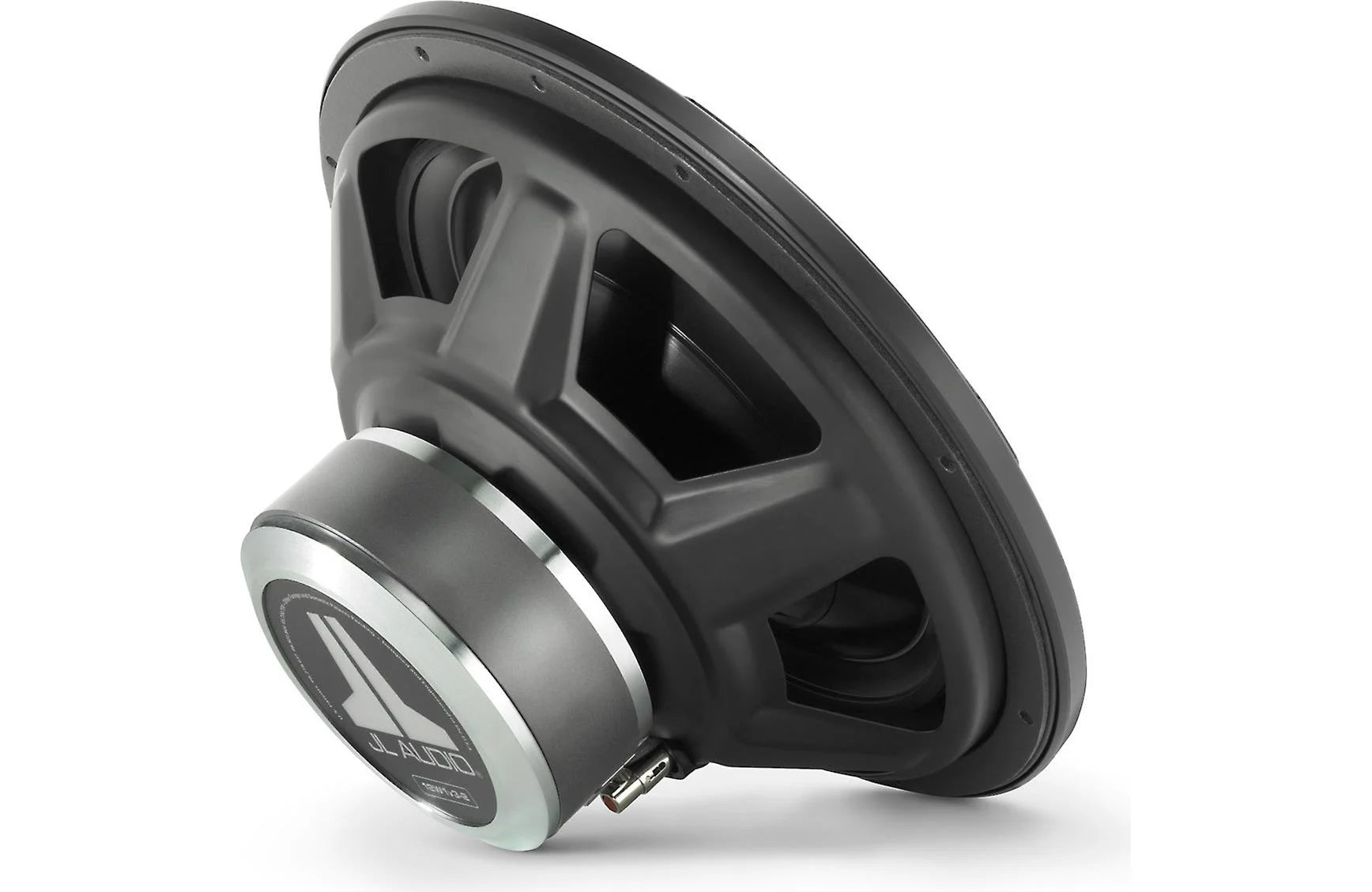

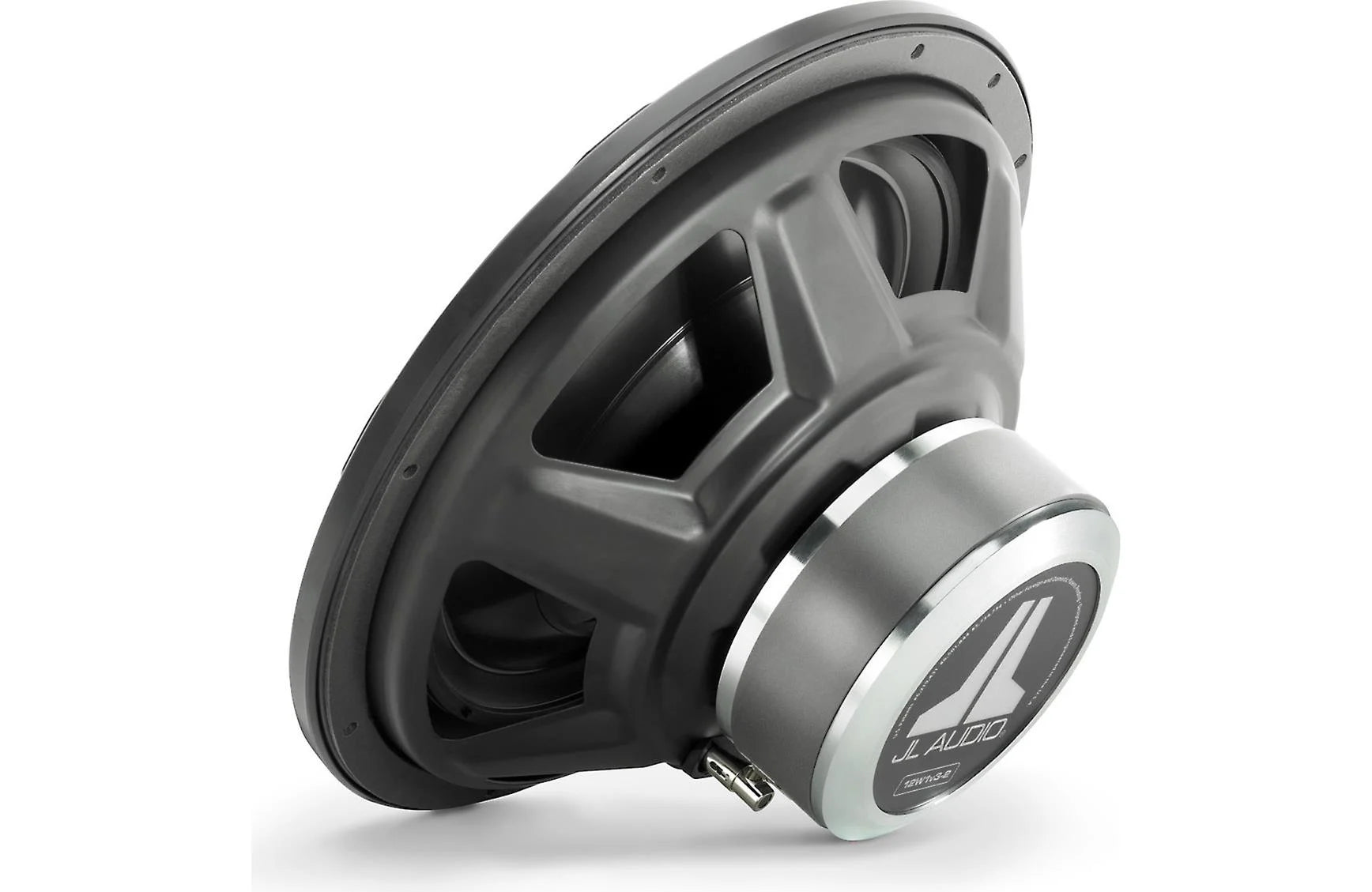

JL Audio 12W1v3-4 12" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92083

JL Audio 12W1v3-4 12" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92083

Regular price $279.99 USD
Regular price $279.99 USD Sale price $279.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03207-00

12W1v3 10-inch Subwoofer (300 W, 4 Ω)

The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 12W1v3-2 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Power Chart for 12W1v3 Subwoofer with ideal Power Range of 75 - 300 W
Continuous Power Handling (RMS) 300 W
Recommended Amplifier Power (RMS) 75 - 300 W
Nominal Impedance (Znom) 4 Ω



Physical Specifications

Lineart Bottom-View and Side-View of 12W1v3 Subwoofer with dimension labels A-E
Nominal Diameter 12.0 in / 300 mm
Overall Diameter (A) 12.5 in / 318 mm
Mounting Hole Diameter (B) 11.0625 in / 281 mm
Bolt Hole Circle Diameter (C) 11.7 in / 297 mm
Motor Outer Diameter (D) 5.25 in / 133 mm
Mounting Depth (E) 5.41 in / 137 mm
Driver Displacement 0.052 cu ft / 1.47 L
Net Weight 12.2 lb / 5.5 kg



Parameters

Free Air Resonance (Fs) 26.55 Hz
Electrical “Q” (Qes) 0.554
Mechanical “Q” (Qms) 8.731
Total Speaker “Q” (Qts) 0.521
Equivalent Compliance (Vas) 2.544 cu ft / 72.04 L
One-Way Linear Excursion (Xmax)* 0.45 in / 11 mm
Reference Efficiency (no) 0.23%
Efficiency (1 W / 1 m)** 85.9 dB SPL
Effective Piston Area (Sd) 81.426 sq in / 0.0525 sq m
DC Resistance (Re) 4 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.10 cu ft / 31.5 L
External Width (W) 16 in / 406 mm
External Height (H) 16 in / 406 mm
External Depth (D) 11 in / 279 mm
F3 38.99 Hz
Fc 48.39 Hz
Qtc 0.9496

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.



Ported Enclosure Specifications

Lineart diagram of empty slot ported enclosure with physical specification labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.6 cu ft / 45.3 L
External Width (W) 25 in / 635 mm
External Height (H) 15.5 in / 394 mm
External Depth (D) 13 in / 330 mm
Internal Slot Port Width (SW) 1.5 in / 38 mm
Internal Slot Port Height (SH) 14 in / 356 mm
Internal Slot Port Length (SL) 30.75 in / 781 mm
Port Extension Length (EL) 17 in / 432 mm
Tuning Frequency (Fb) 31.79 Hz
F3 31 Hz
