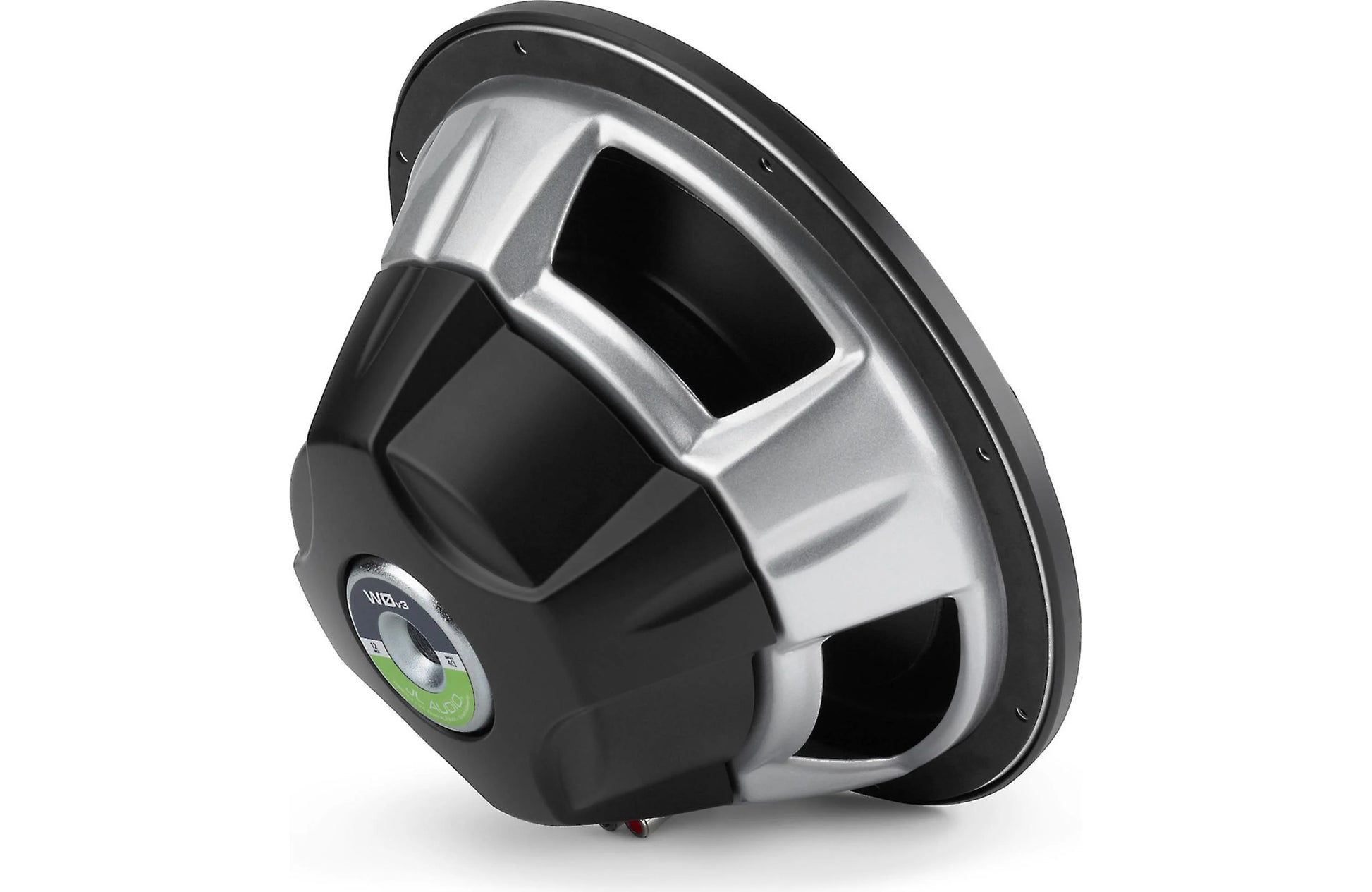

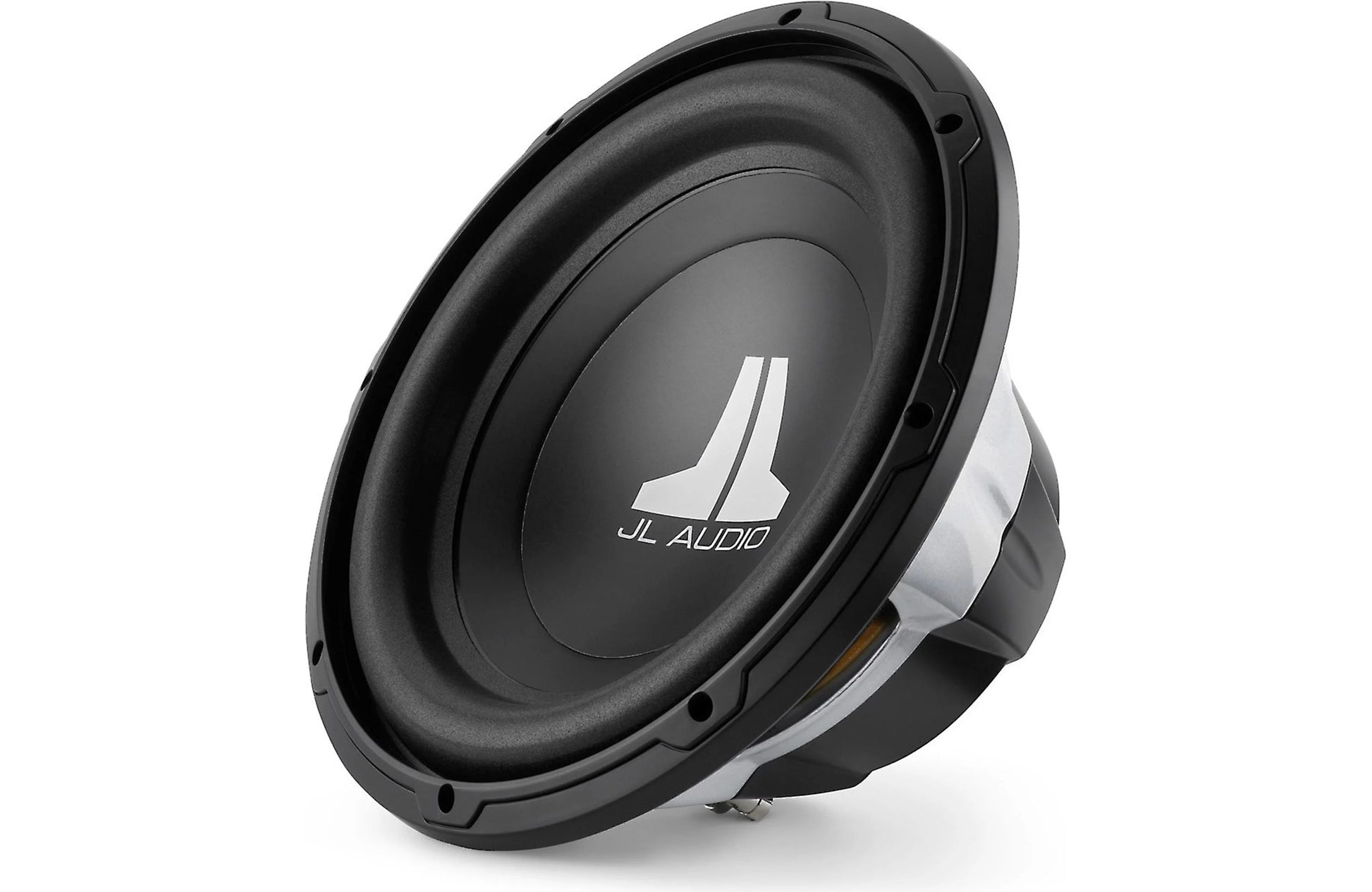

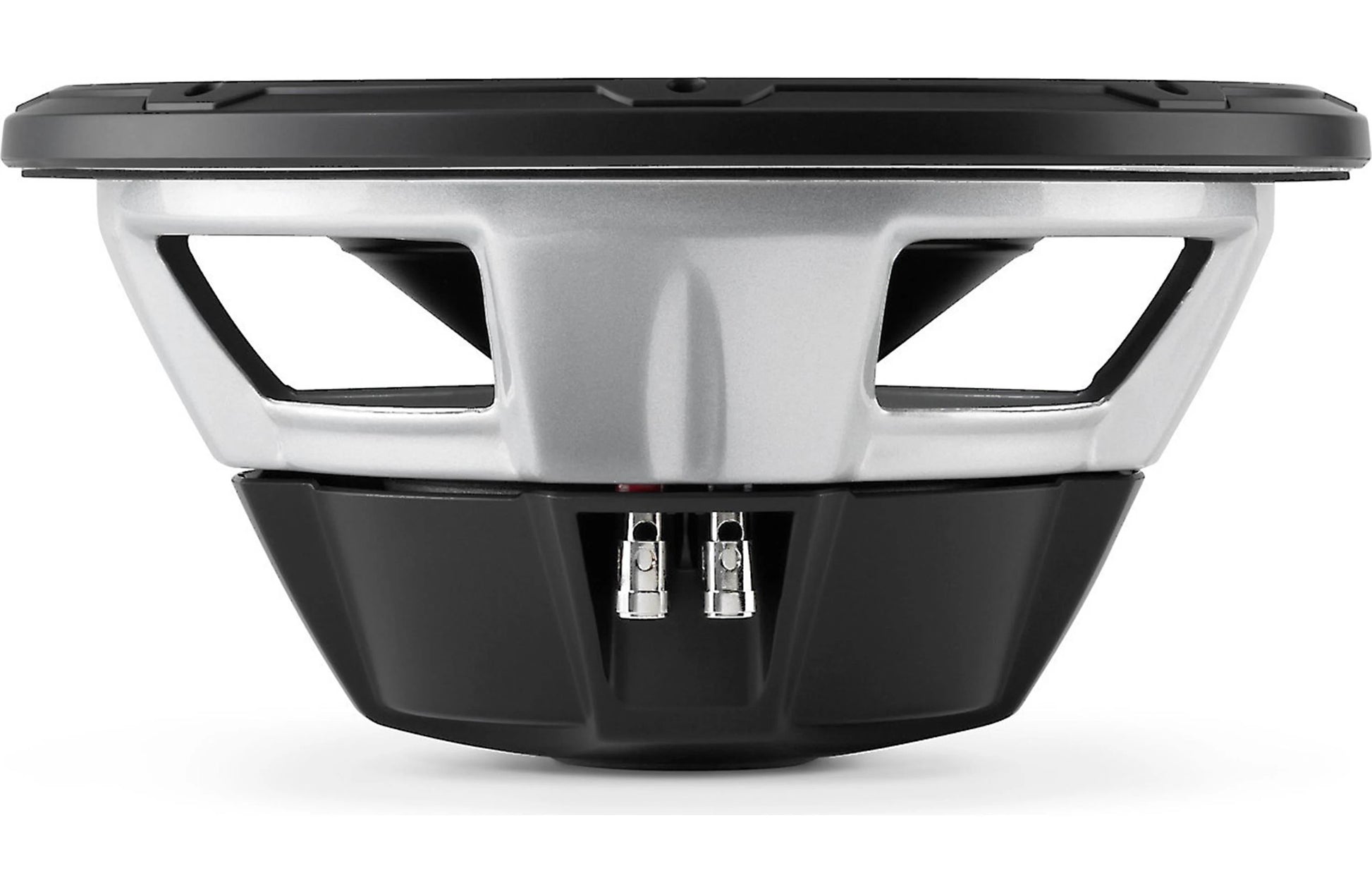

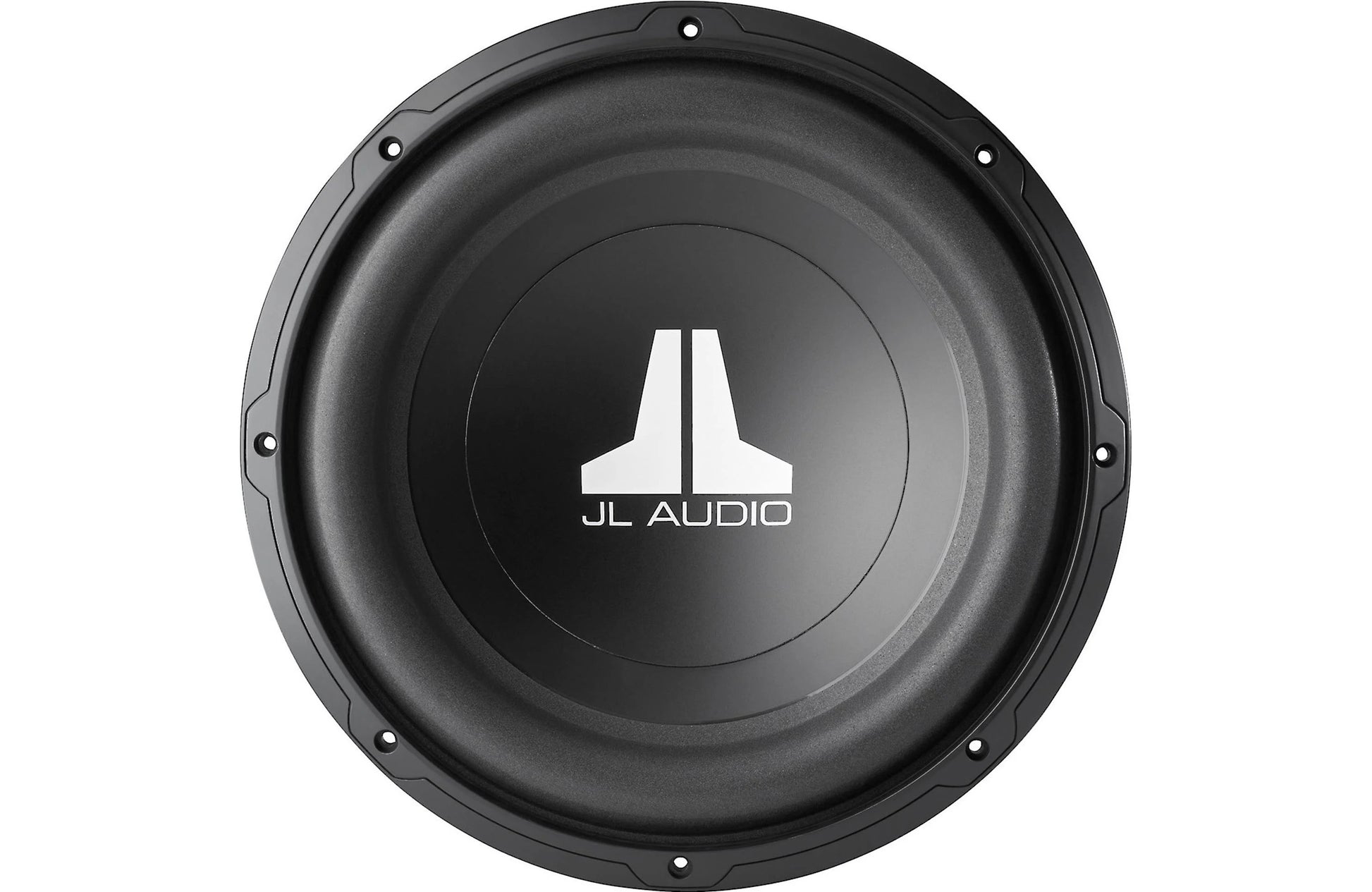

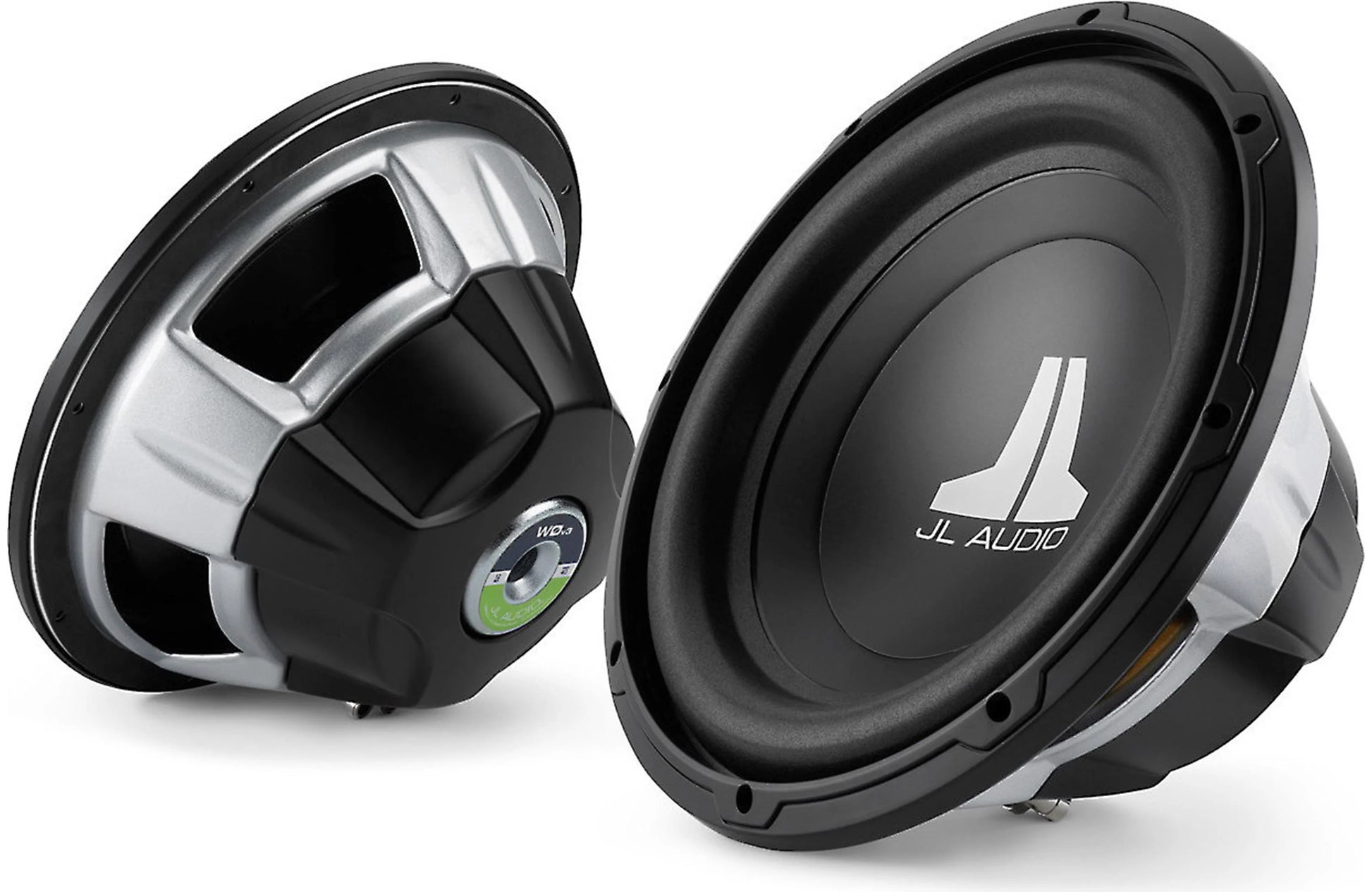

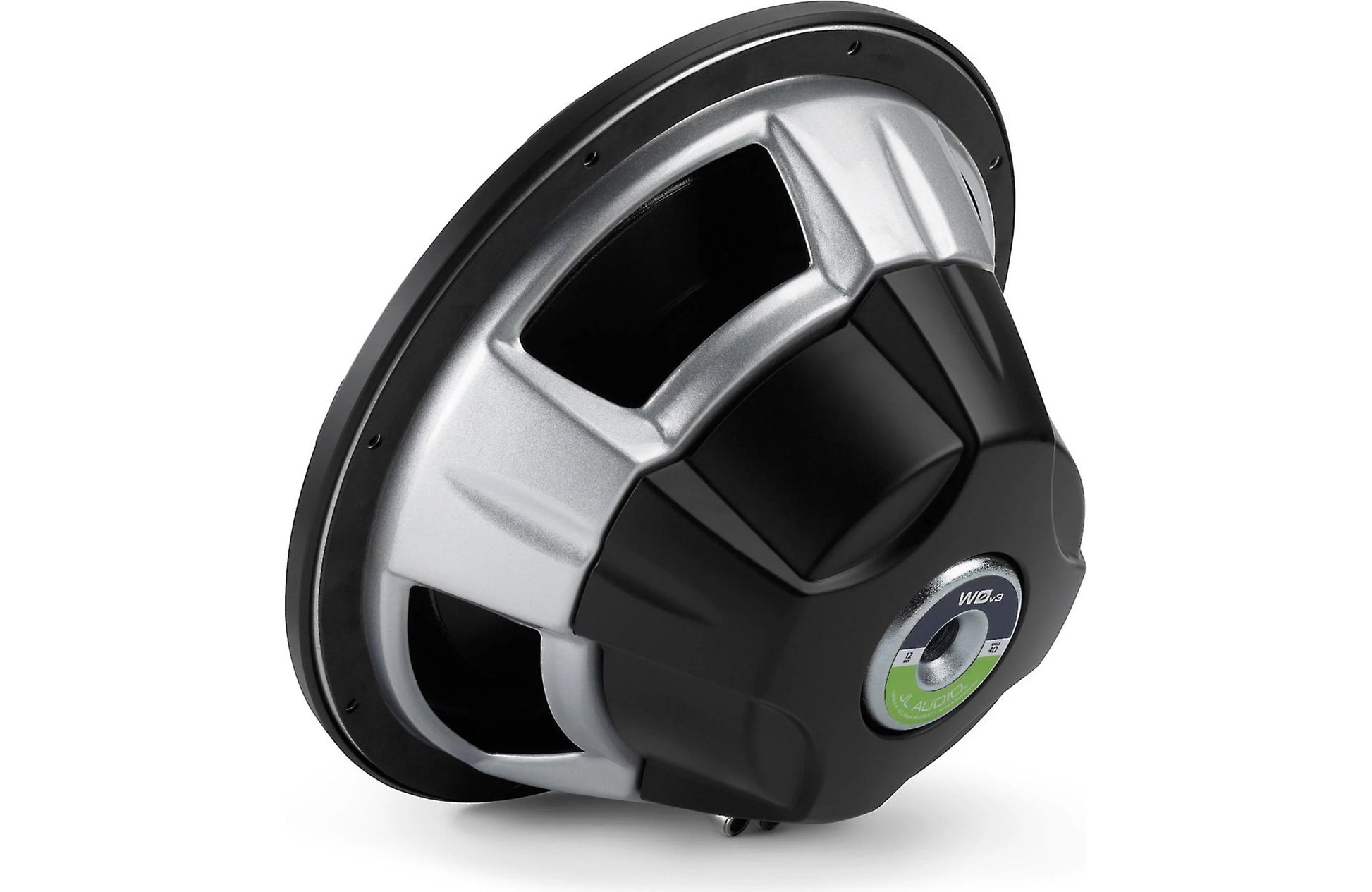

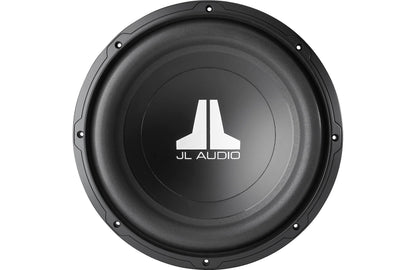

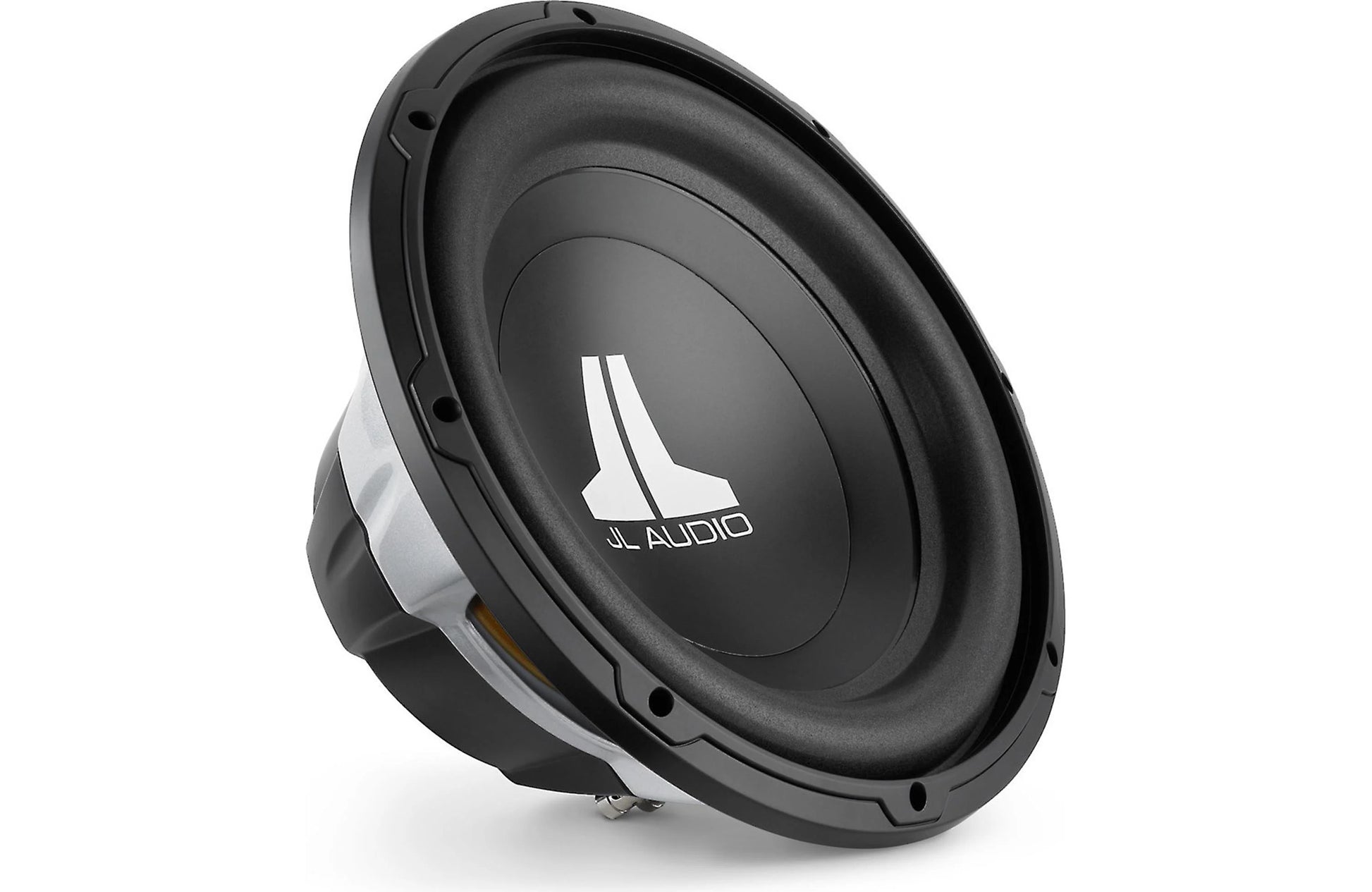

JL Audio 12W0v3-4 12" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92166

JL Audio 12W0v3-4 12" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92166

$159.99 USD
$159.99 USD $159.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03040-00

12W0v3 10-inch Subwoofer (300 W, 4 Ω)

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Power Chart for 12W0v3 Subwoofer with ideal Power Range of 75 - 300 W
Continuous Power Handling (RMS) 300 W
Recommended Amplifier Power (RMS) 75 - 300 W
Nominal Impedance (Znom) 4 Ω



Physical Specifications

Lineart Bottom-View and Side-View of 12W1v2 Subwoofer with dimension labels A-E
Nominal Diameter 12.0 in / 300 mm
Overall Diameter (A) 12.52 in / 318 mm
Mounting Hole Diameter (B) 11.0625 in / 281 mm
Bolt Hole Circle Diameter (C) 11.7 in / 297 mm
Motor Outer Diameter (D) 5.05 in / 128 mm
Mounting Depth (E) 5.40 in / 137 mm
Driver Displacement 0.048 cu ft / 1.36 L
Net Weight 8.11 lb / 3.68 kg



Parameters

Free Air Resonance (Fs) 28.43 Hz
Electrical “Q” (Qes) 0.715
Mechanical “Q” (Qms) 10.709
Total Speaker “Q” (Qts) 0.67
Equivalent Compliance (Vas) 2.530 cu ft / 71.64 L
One-Way Linear Excursion (Xmax)* 0.45 in / 11.4 mm
Reference Efficiency (no) 0.22%
Efficiency (1 W / 1 m)** 85.64 dB SPL
Effective Piston Area (Sd) 74.509 sq in / 0.0481 sq m
DC Resistance (Re) 4.280 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.375 cu ft / 38.94 L
External Width (W) 16 in / 406 mm
External Height (H) 19 in / 483 mm
External Depth (D) 11.75 in / 298 mm
F3 36.0 Hz
Fc 47.91 Hz
Qtc 1.179

Enclosure Notes

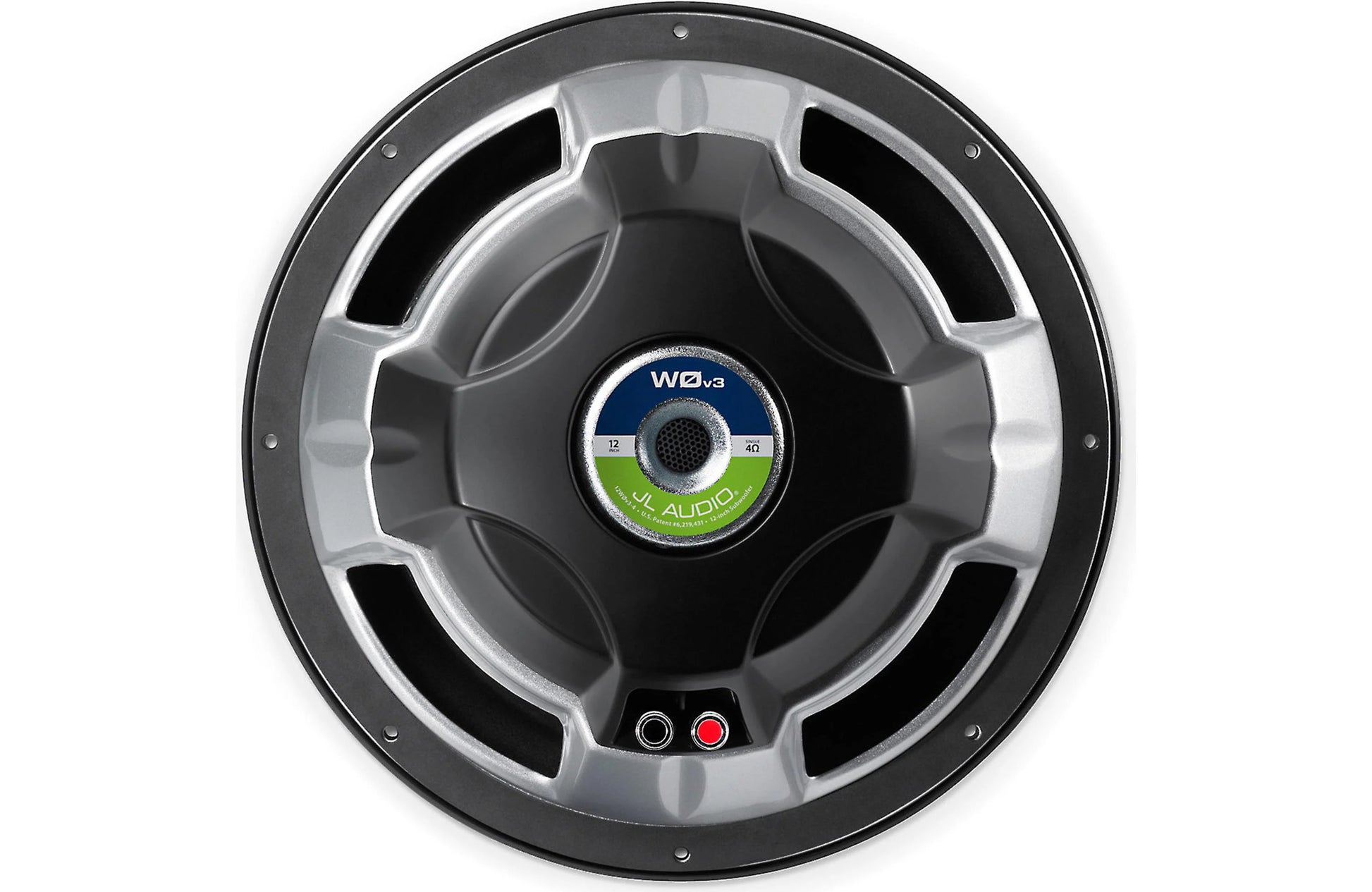

* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.



Ported Enclosure Specifications

Lineart diagram of empty round ported enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.75 cu ft / 49.6 L
External Width (W) 17.5 in / 445 mm
External Height (H) 14.75 in / 375 mm
External Depth (D) 16.25 in / 413 mm
Internal Port Diameter (ID) 3 in / 76 mm
Port Length (L) 14 in / 356 mm
Tuning Frequency (Fb) 26 Hz
F3 30.8 Hz

Enclosure Notes
* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
