JL Audio 10W0v3-4 10" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92165

JL Audio 10W0v3-4 10" inch Subwoofer, 4 Ohm, Single Voice Coil, 300 Watts 92165

$139.99 USD
$139.99 USD $139.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03039-00

10W0v3 10-inch Subwoofer (300 W, 4 Ω)

The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications

Power Chart for 10W0v3 Subwoofer with ideal Power Range of 75 - 300 W
Continuous Power Handling (RMS) 300 W
Recommended Amplifier Power (RMS) 75 - 300 W
Nominal Impedance (Znom) 4 Ω



Physical Specifications

Lineart Bottom-View and Side-View of 10W0v3 Subwoofer with dimension labels A-E
Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.52 in / 267 mm
Mounting Hole Diameter (B) 9.0625 in / 230 mm
Bolt Hole Circle Diameter (C) 9.7 in / 246.5 mm
Motor Outer Diameter (D) 5.05 in / 128 mm
Mounting Depth (E) 4.90 in / 124 mm
Driver Displacement 0.034 cu ft / 0.96 L
Net Weight 7.50 lb / 3.40 kg



Lineart Bottom-View and Side-View of 10W0v3 Subwoofer with dimension labels A-E
Parameters
Free Air Resonance (Fs) 32.09 Hz
Electrical “Q” (Qes) 0.64
Mechanical “Q” (Qms) 10.752
Total Speaker “Q” (Qts) 0.604
Equivalent Compliance (Vas) 1.095 cu ft / 31.01 L
One-Way Linear Excursion (Xmax)* 0.45 in / 11.4 mm
Reference Efficiency (no) 0.15%
Efficiency (1 W / 1 m)** 84.07 dB SPL
Effective Piston Area (Sd) 48.909 sq in / 0.0316 sq m
DC Resistance (Re) 4.280 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications

Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.65 cu ft / 18.41 L
External Width (W) 18 in / 457 mm
External Height (H) 11 in / 279 mm
External Depth (D) 9 in / 229 mm
F3 42.4 Hz
Fc 53.23 Hz
Qtc 1.002

Enclosure Notes

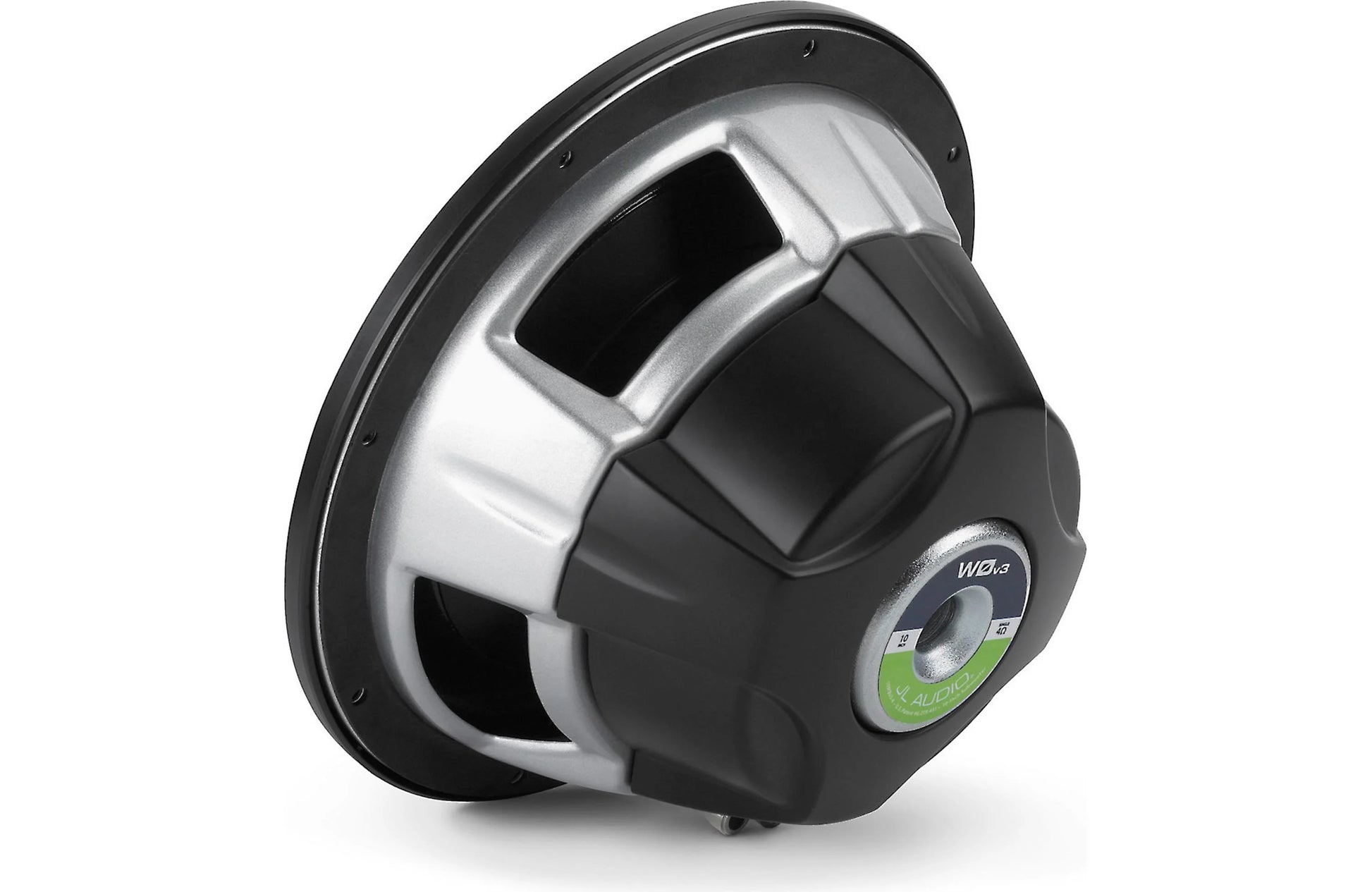

* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.



Ported Enclosure Specifications

Lineart diagram of empty slot ported enclosure with physical specification labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.125 cu ft / 31.86 L
External Width (W) 23 in / 584 mm
External Height (H) 12 in / 305 mm
External Depth (D) 13.625 in / 346 mm
Internal Slot Port Width (SW) 1.25 in / 32 mm
Internal Slot Port Height (SH) 10.5 in / 267 mm
Internal Slot Port Length (SL) 32 in / 813 mm
Port Extension Length (EL) 18.25 in / 464 mm
Tuning Frequency (Fb) 30 Hz
F3 29.6 Hz

Enclosure Notes
* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
