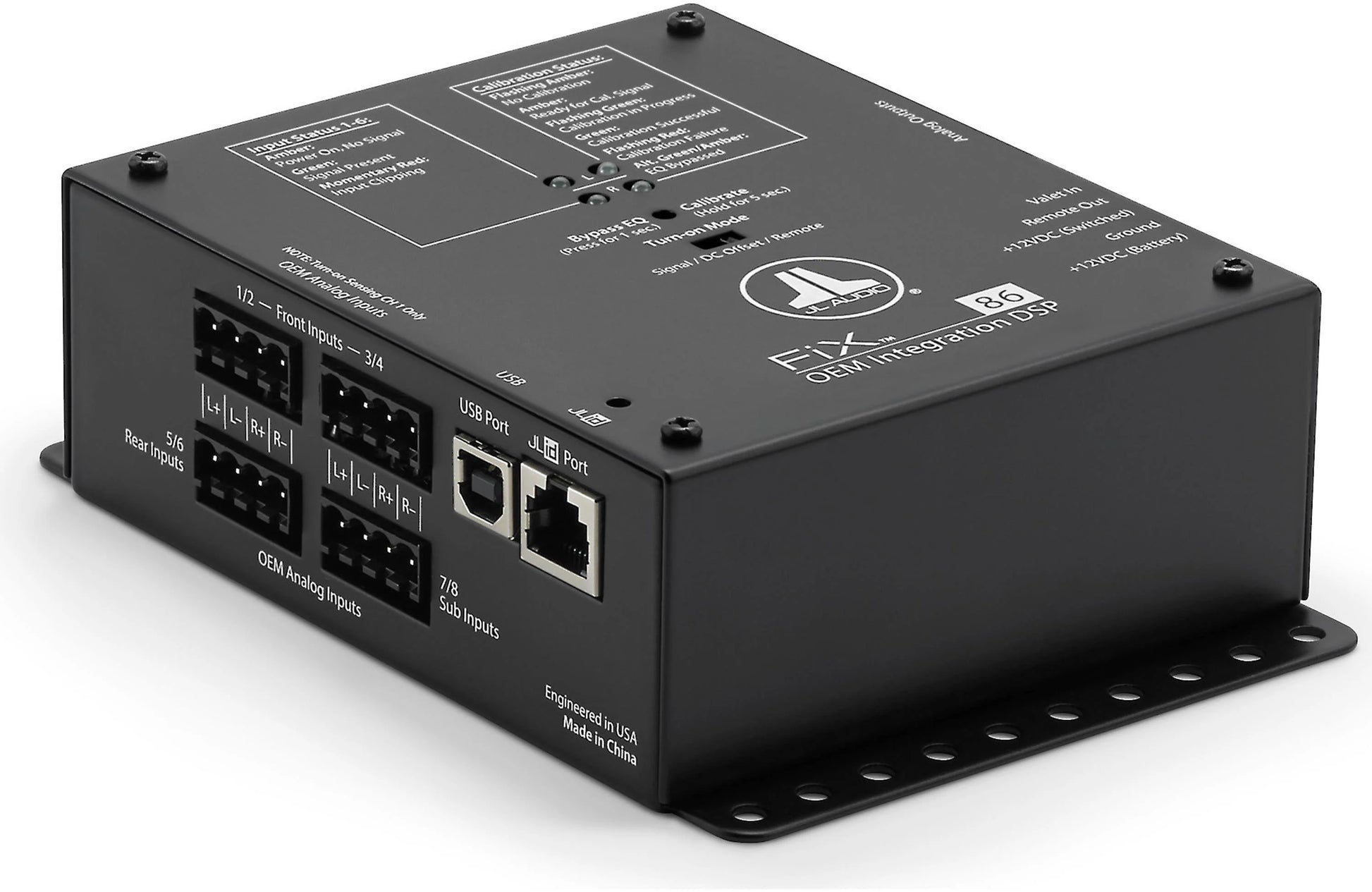

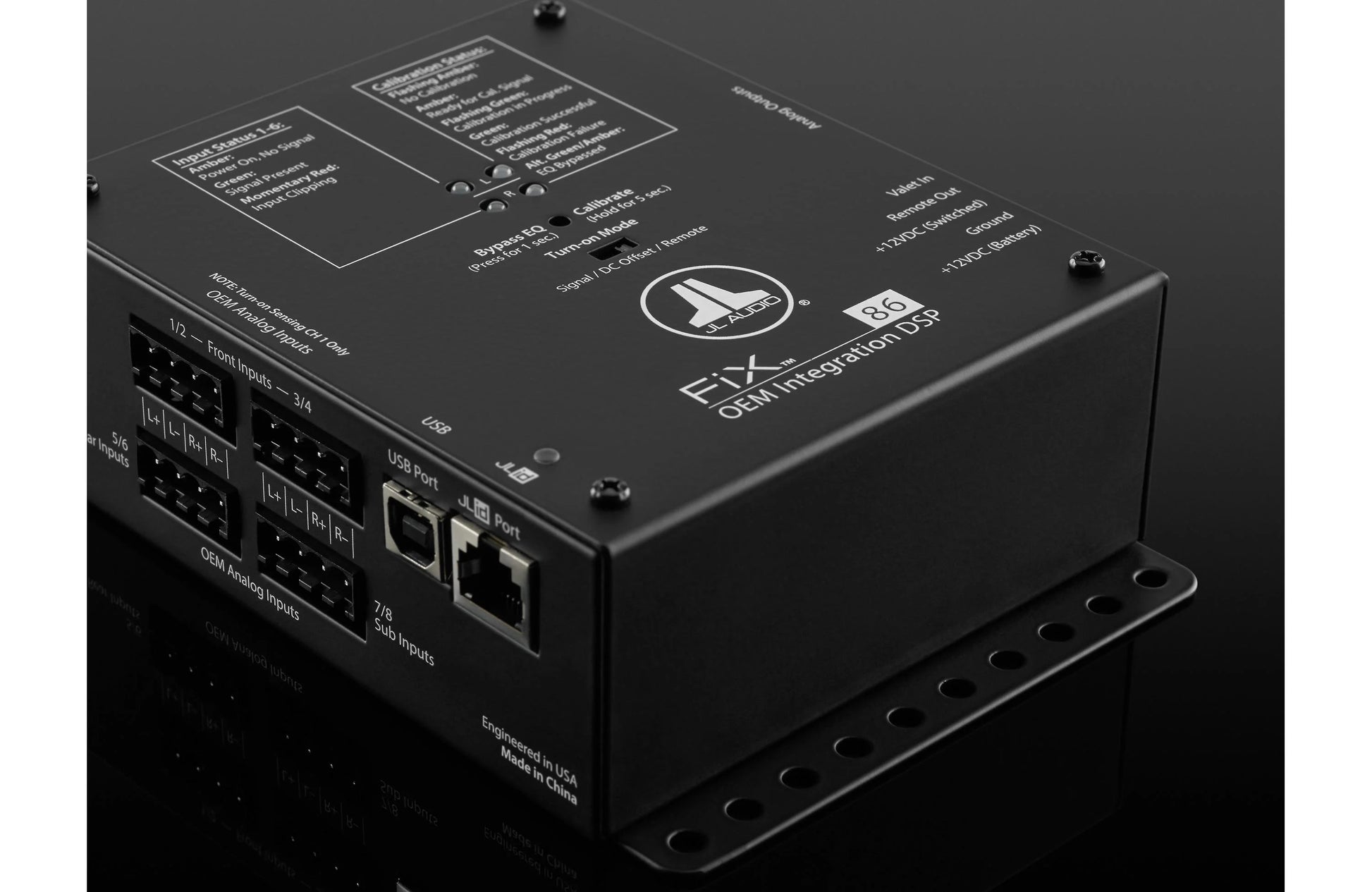

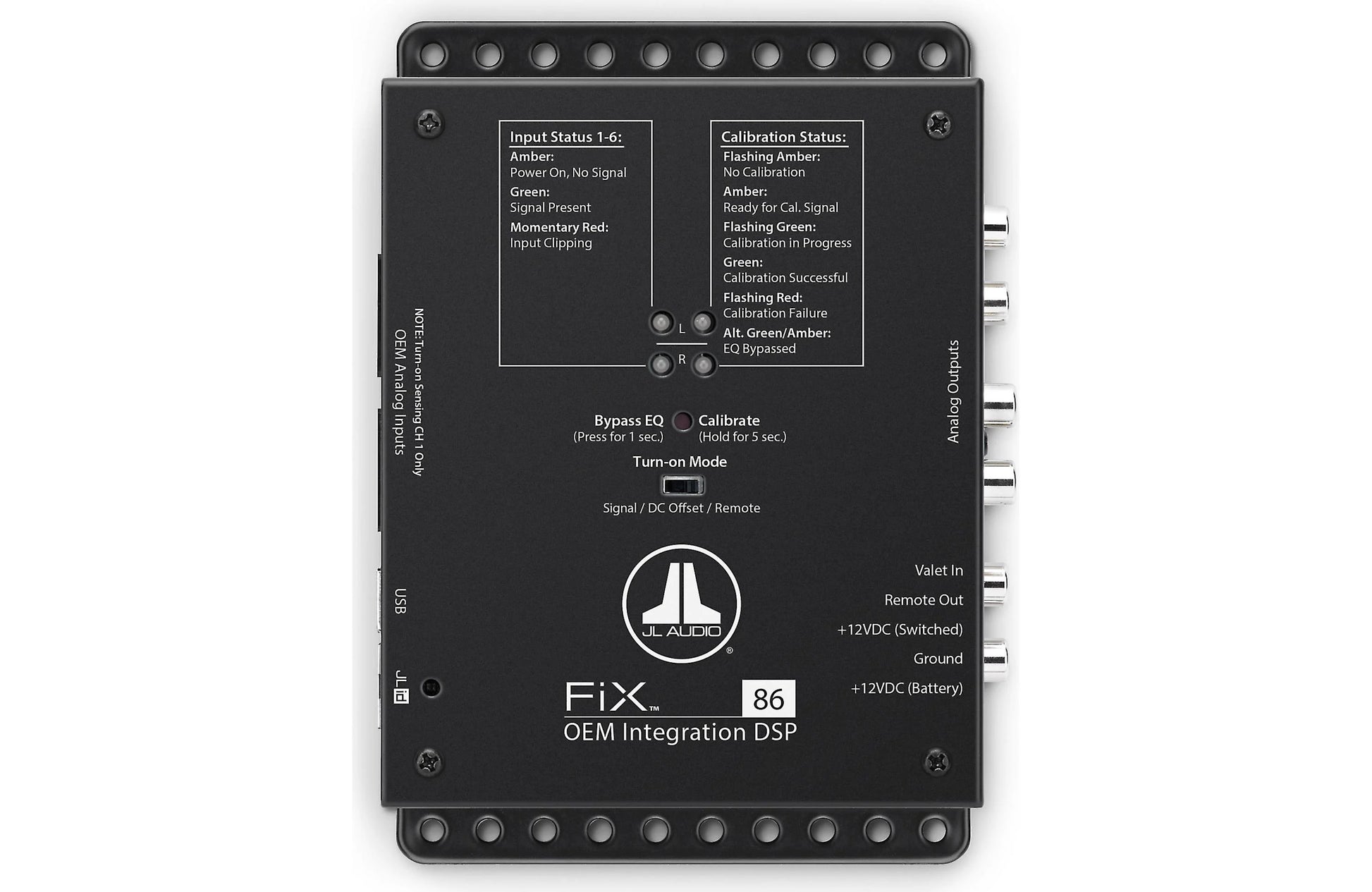

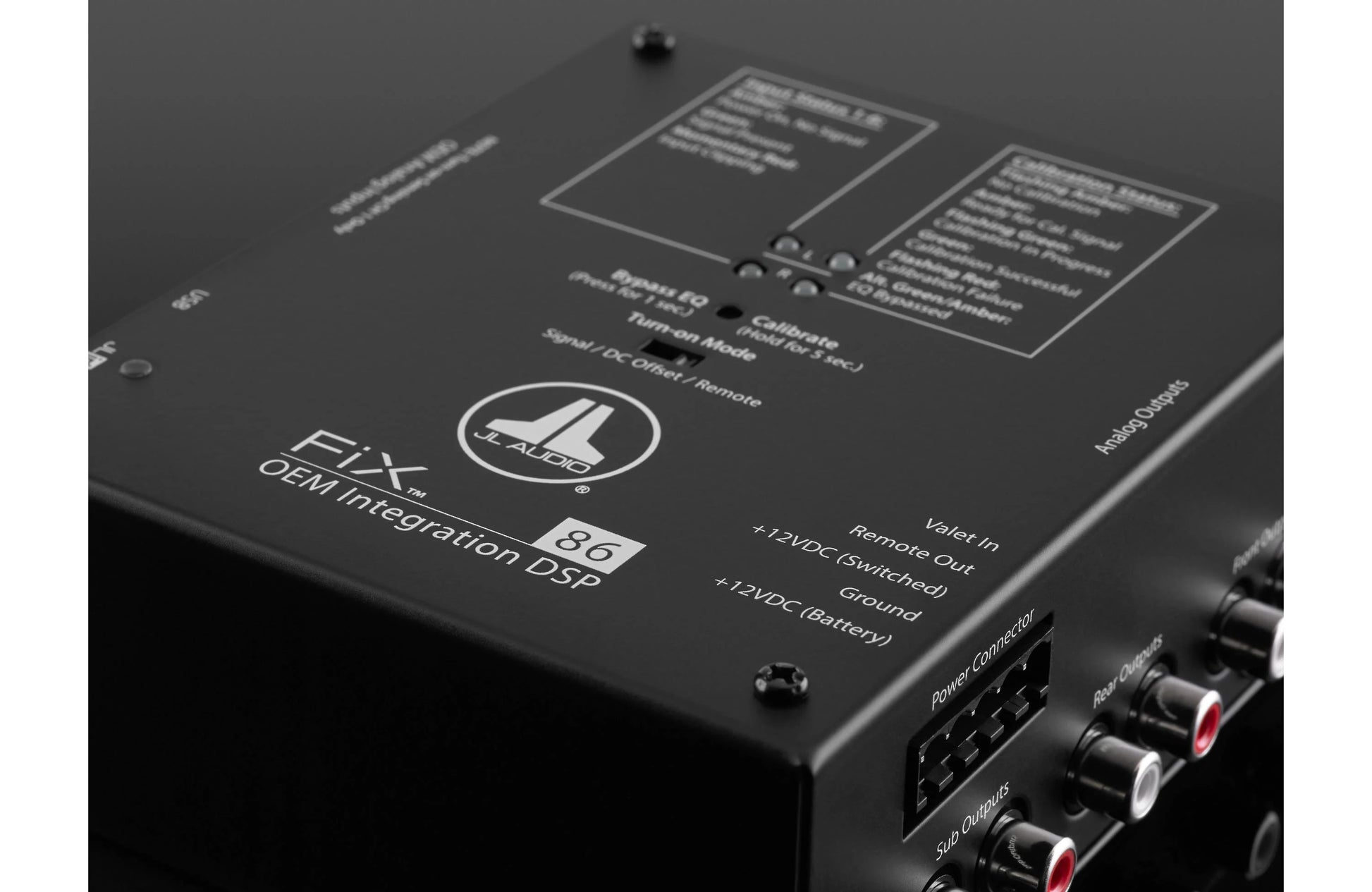

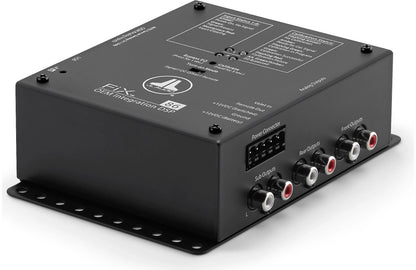

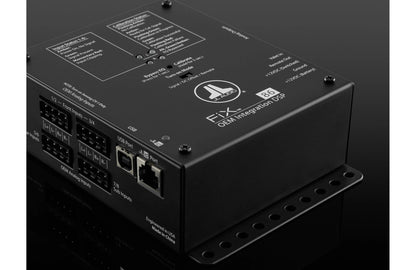

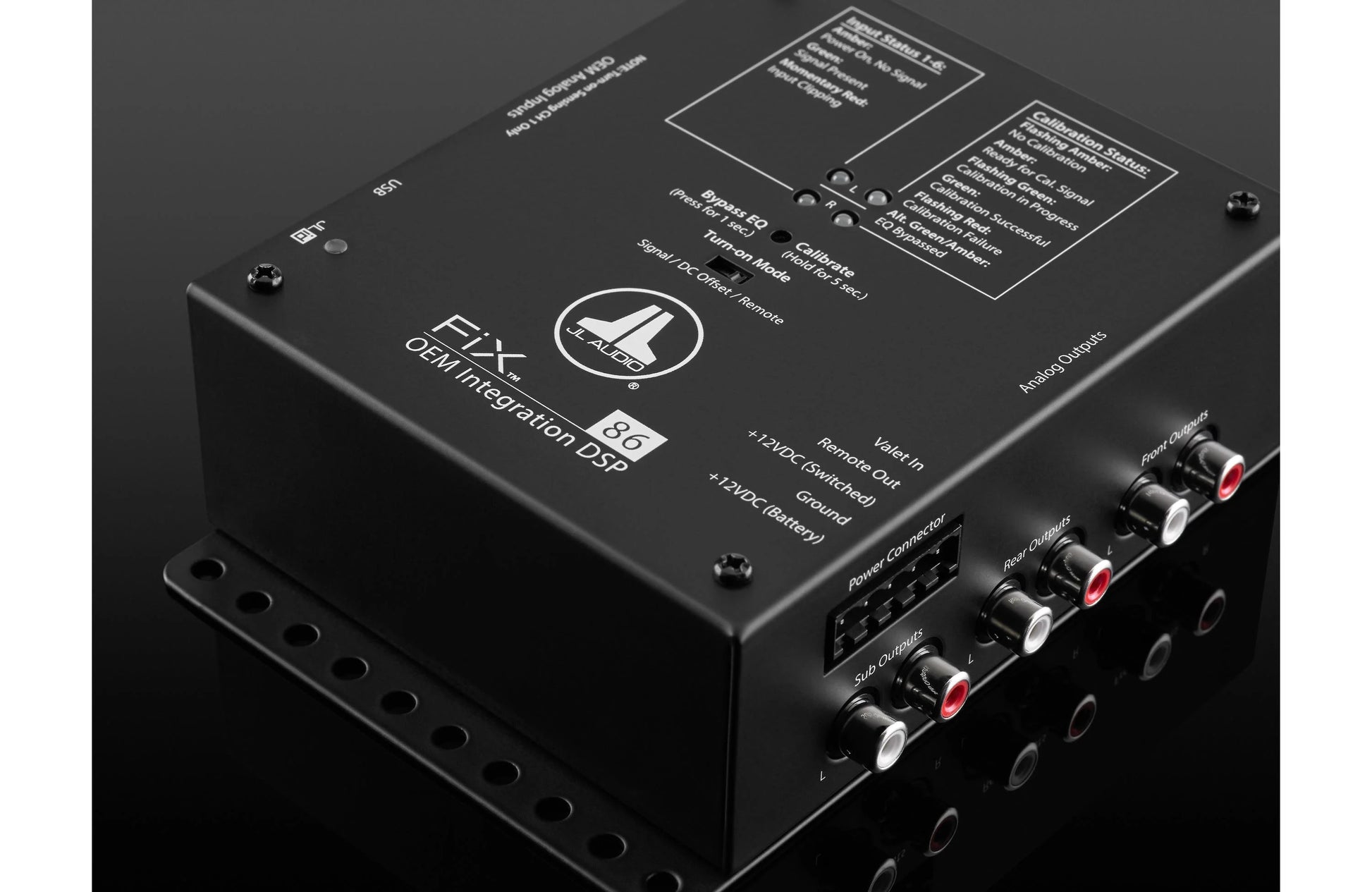

JL Audio FiX-86 OEM Integration DSP Processor is an 8-channel, fully active OEM signal correction processor engineered to extract a clean, full-bandwidth, flat audio signal from modern factory head units and factory-amplified systems. It corrects factory EQ curves, all-pass filters, time alignment, and summing artifacts that prevent high-end aftermarket amplifiers and speakers from performing properly when the OEM source must remain in place.

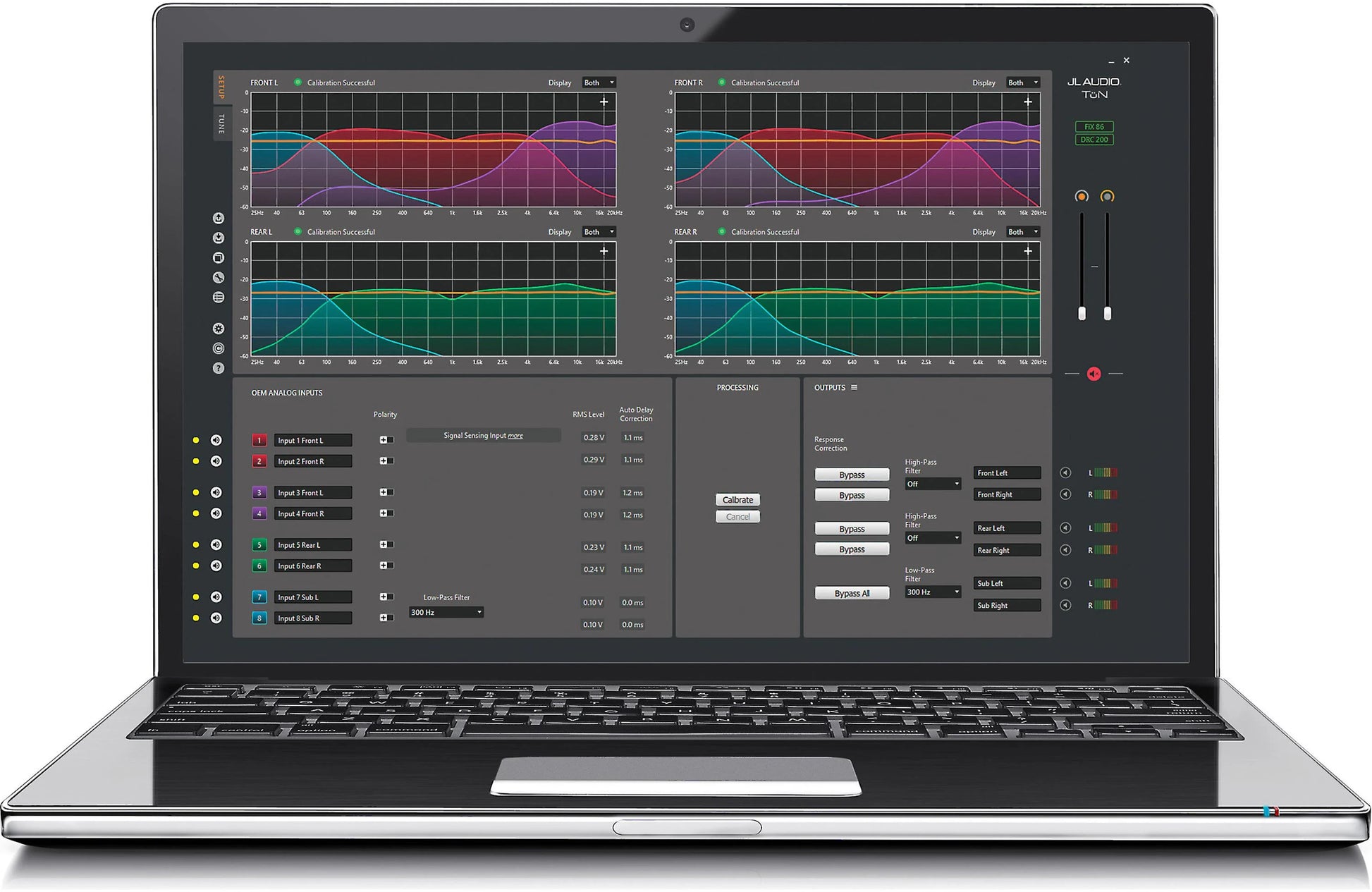

The FiX-86 accepts high-voltage speaker-level inputs (up to 30 V per channel), automatically sums multi-way factory outputs, and produces six discrete, full-range, low-distortion RCA outputs for downstream DSP, processors, or amplifiers. Calibration is handled via JL Audio’s setup routine using a dedicated test track (CD/USB) to analyze and flatten the OEM signal path.
Key Features
OEM integration processor with automatic signal correction
Corrects OEM EQ, all-pass filtering, and time alignment artifacts
Accepts up to 30 V speaker-level input per channel
Sums multi-way factory outputs into full-range channels
8-channel input / 6-channel RCA output topology
Low-distortion, calibrated output for aftermarket amplifiers
Dedicated calibration routine using included test material
Compact chassis for concealed installation
Technical Specifications
Model
FiX-86
Garmin PN
010-03167-00
JL Legacy PN
98103
UPC
699440981033

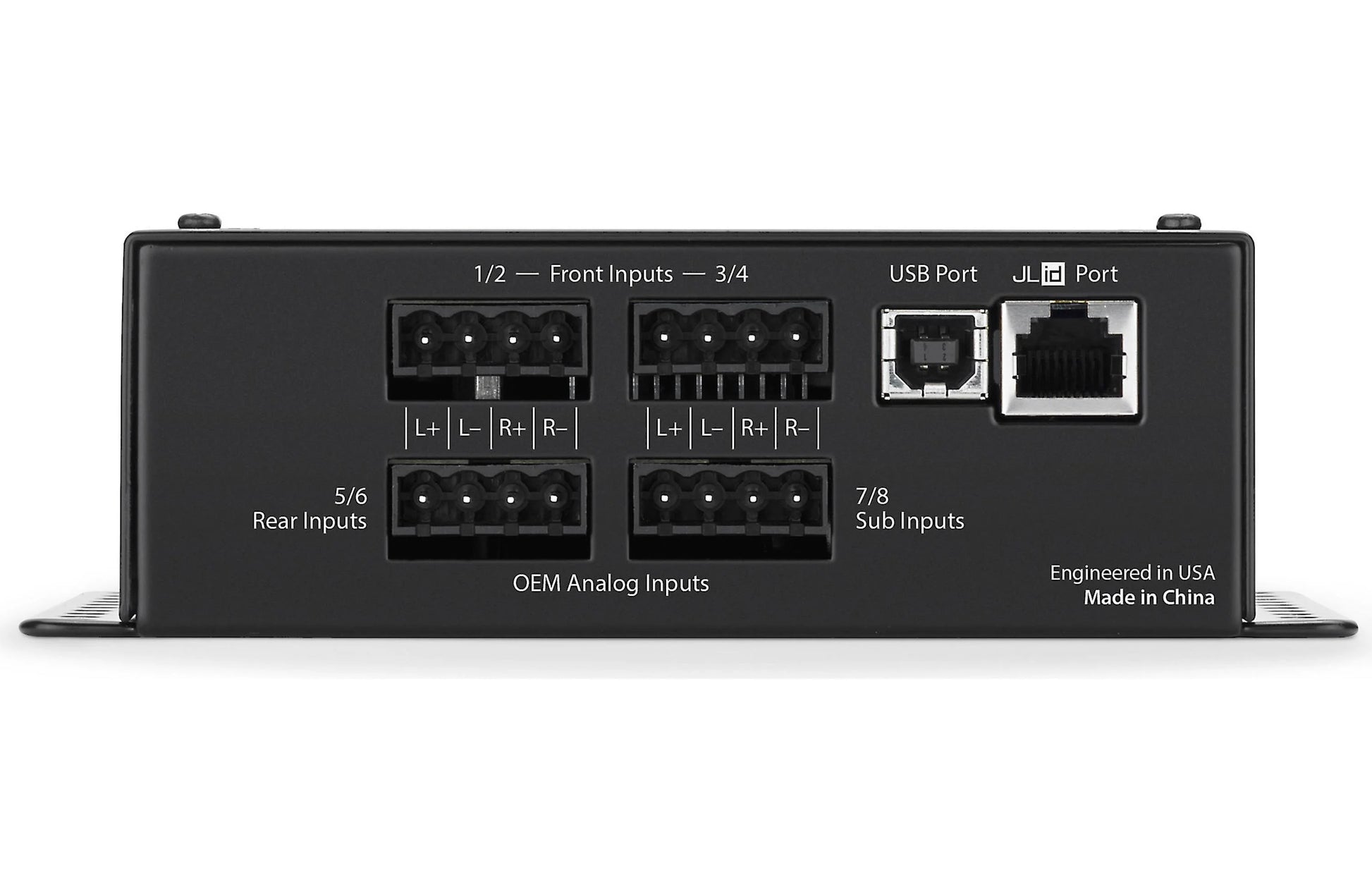

Inputs
8 ch speaker-level (up to 30 V)

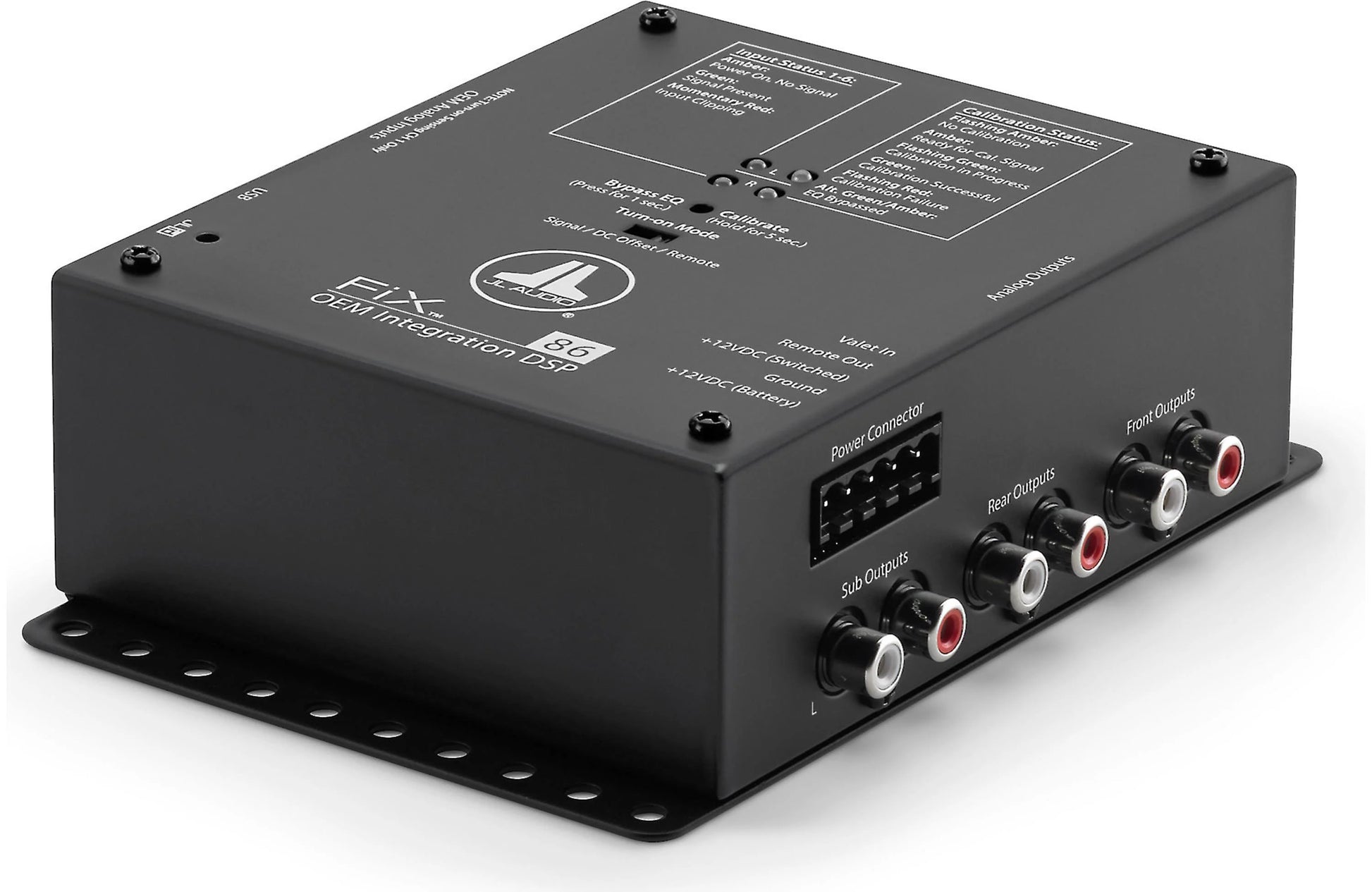

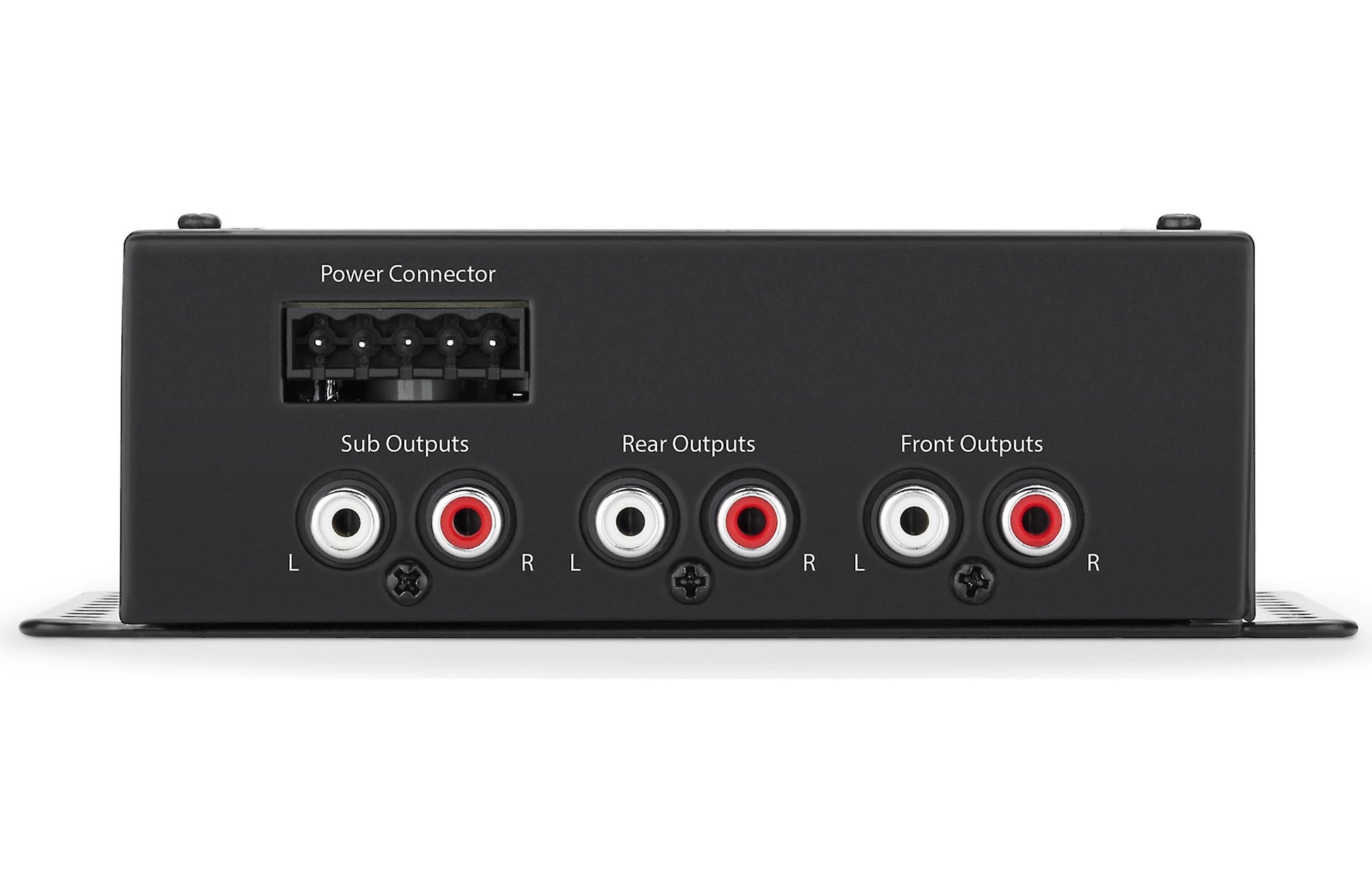

Outputs
6 ch stereo RCA
Signal Handling
Summing + de-EQ + time alignment correction
Calibration
Automatic (test track required)
Output Voltage
Up to 8 V RMS
Frequency Response
Full-range post-correction
Turn-On Logic
Signal-sense / remote
Operating Voltage
10–16 V DC
Dimensions
~7.09" W × 4.72" D × 1.85" H
Use Case
High-end OEM retention / aftermarket audio
Ideal Applications
OEM head unit retention with premium aftermarket amplification
Factory-amplified vehicles with processed speaker outputs
DSP-managed 3-way and 4-way automotive systems
Systems requiring corrective de-EQ and re-alignment
What’s Included
JL Audio FiX-86 OEM integration DSP processor
Harness and connectors (as supplied)
Calibration media (test track)
Documentation
