JL Audio CP110-W0v3 BassWedge 10" Ported Enclosure 300W RMS 4Ω 010-03236-00 (93138)
JL Audio CP110-W0v3 BassWedge 10" Ported Enclosure 300W RMS 4Ω 010-03236-00 (93138)
Couldn't load pickup availability
***This item may have an additional 3 days handling time***

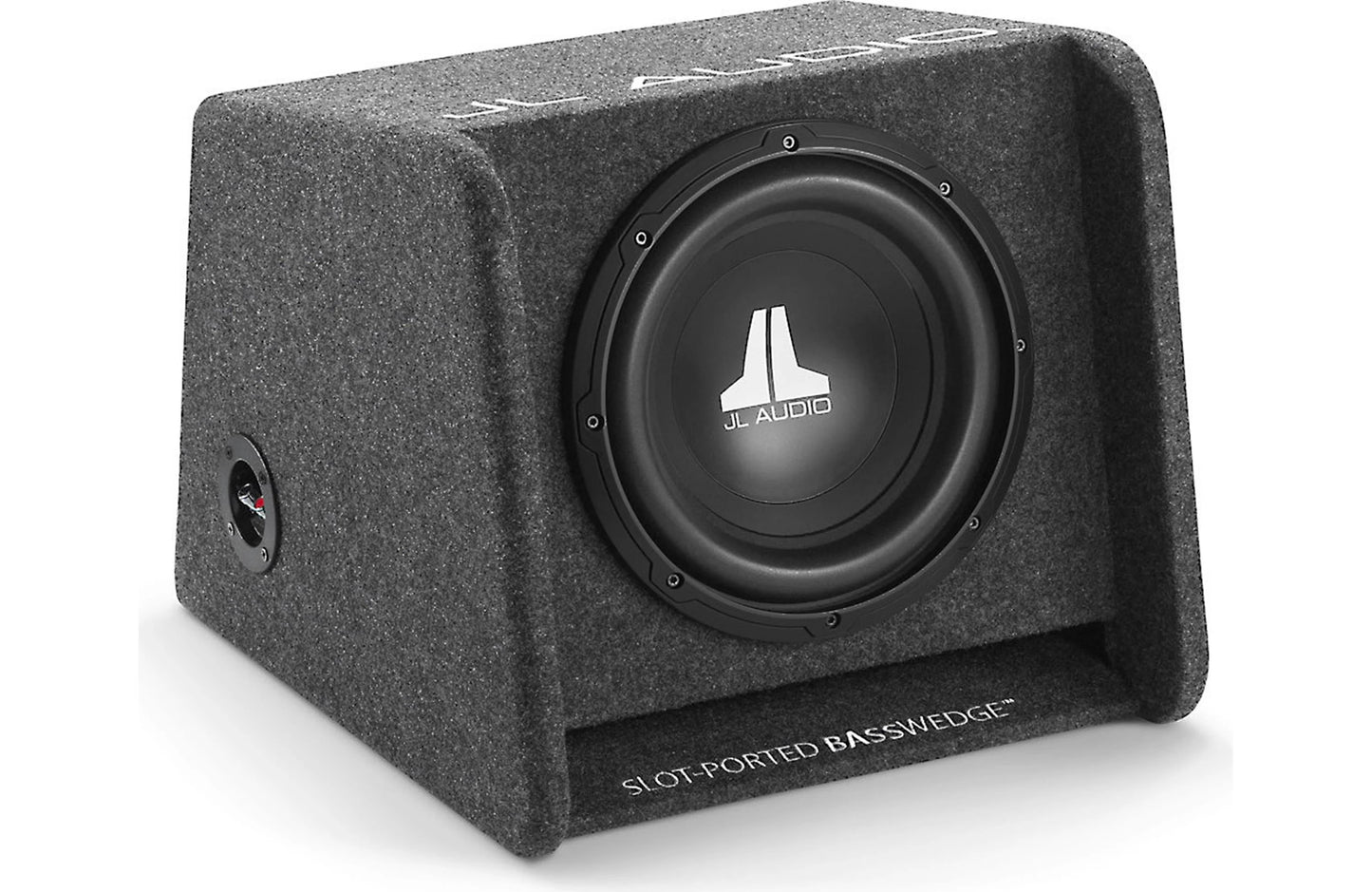

JL Audio CP110-W0v3 BassWedge 10" Enclosed Subwoofer is a compact slot-ported enclosure pre-loaded with JL Audio’s long-excursion 10W0v3 driver. Designed to maximize bass output and low-frequency extension from a small footprint, the BassWedge platform offers strong performance for budget-conscious systems and daily-driver vehicles.
The system is rated for 300 W RMS continuous power and presents a nominal 4 Ω load for broad amplifier compatibility. The slot-ported design increases efficiency and low-end reinforcement compared to sealed enclosures while maintaining musical articulation. The cabinet is finished in dark automotive carpet with a recessed baffle and steel-mesh grille for driver protection.
Key Features
- Slot-ported BassWedge™ enclosure with 10W0v3 subwoofer
- 300 W RMS continuous power handling
- Nominal 4 Ω impedance for flexible amplifier pairing
- Efficient port tuning for boosted low-frequency output
- Compact footprint suited for sedans, hatchbacks, and trucks
- Pre-wired and ready to connect
- Recessed steel-mesh grille included
Technical Specifications
| Model | CP110-W0v3 |
| Garmin PN | 010-03236-00 |
| JL Legacy PN | 93138 |
| UPC | 699440931382 |
| Subwoofer Size | 10" (250 mm) |
| Driver | 10W0v3-4 long-excursion subwoofer |
| Continuous Power (RMS) | 300 W |
| Nominal Impedance | 4 Ω |
| Enclosure Type | Slot-ported BassWedge™ |
| Finish | Dark gray automotive carpet |
| Dimensions (W×H×D) | ~18.5" × 13.25" × 11.0" |
| Weight | ~26.0 lb (est.) |
| Warranty | 2 Years |
Amp Matching
- Nominal Load: 4 Ω
- Target Power Range: 150–300 W RMS
-
Recommended JL Audio Mono Amplifiers:
- JL Audio JD250/1 — ideal daily-driver match at 4 Ω
- JL Audio XDM300/1 — compact, efficient, and clean at 4 Ω
- JL Audio RD500/1 — extra headroom, gain-matched for safety
- Non-JL guidance: Choose a class-D mono amplifier stable at 4 Ω delivering 150–300 W RMS.
- Filter setup: Low-pass ~60–80 Hz, 24 dB/octave; subsonic filter ~25–30 Hz (ported alignment).
Ideal Applications
- Cars, trucks, and hatchbacks needing compact bass reinforcement
- Value-oriented systems requiring ported output and efficiency
- Pairing with JL Audio mono amplifiers for daily-driver builds
What’s Included
- JL Audio CP110-W0v3 BassWedge™ loaded enclosure
- Pre-wired binding posts
- Steel-mesh grille
- Documentation / warranty
