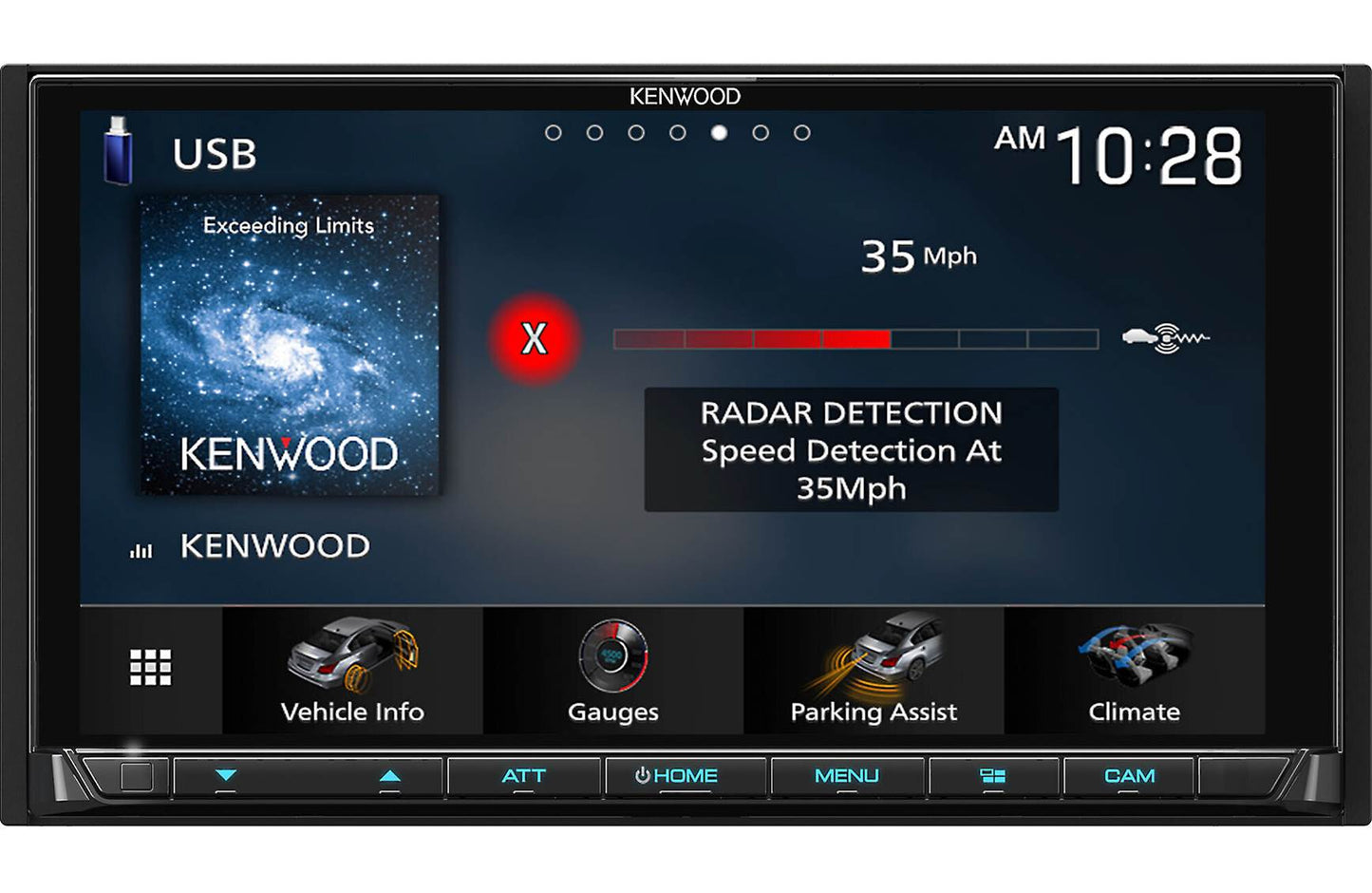

Kenwood eXcelon DMX958XR 6.8″ Digital Multimedia Receiver with Wireless CarPlay, Android Auto, HD Radio + CMOS-740HD Camera

The Kenwood eXcelon DMX958XR + CMOS-740HD bundle combines the high-performance DMX958XR digital multimedia receiver with the CMOS-740HD high-definition license plate camera. This package is engineered for drivers who demand a premium visual experience, offering a crystal-clear 1280 x 720 HD display and a matching 720p HD rear-view camera for superior safety and smartphone integration.

The DMX958XR features a short-chassis design for easier installation in tight dash locations while providing a full suite of audiophile-grade tuning tools and robust wireless connectivity for both Apple and Android devices.

Key Features

• 6.8" High Definition (1280 x 720) capacitive touchscreen monitor
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Built-in HD Radio tuner
• USB Type-C connectivity with up to 3.0A rapid charging
• 4 camera inputs with HD rear camera support
• High-Resolution Audio Wireless (LDAC) and Hi-Res wired playback
• Included CMOS-740HD high-definition camera with license plate mounting bracket

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection via USB-C
• Android Auto: Wireless and wired connection via USB-C
• Bluetooth: Dual phone connection for hands-free calling and music streaming
• Wireless Mirroring: Compatible with select Android devices
• USB: Rear USB Type-C port (USB-C to USB-A adapter and extension cable included)
• HDMI Input: Type-D input for external video sources (optional cables required)
• Cameras: 4 camera inputs; supports the included HD rear camera plus front, side, and dash camera configurations
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• 3 pairs of 5.0V gold-plated RCA preamp outputs (front, rear, and subwoofer)
• Independent 3-way crossover network for precise speaker management
• Drive EQ and advanced digital signal processing (DSP)
• Built-in internal amplifier (22 Watts RMS / 50 Watts Peak x 4 channels)

Installation & Fitment Notes

• Chassis Type: Double-DIN (in-dash)
• Short Chassis: 3.35" (85mm) mounting depth for versatile installation
• Parking Brake: Connection required to access video playback and specific system settings
• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining factory steering wheel controls, vehicle info, and climate data (module and adapter required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX958XR
• Screen Resolution: 1280 x 720 (720p HD)
• USB Port: Type-C (3.0A)
• Preamp Voltage: 5.0 Volts
• Camera Model: CMOS-740HDLP
• Camera Resolution: 1280 x 720 HD
• Camera Field of View: 180° Horizontal / 103° Vertical
• Camera Sensor: 1/3.8" Color CMOS with HDR
• Camera IP Rating: IP67 (Waterproof/Dustproof)

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX958-740
• UPC: 019048234407
• Sold As: Each
• Included Components: DMX958XR receiver, CMOS-740HDLP camera, CA-LPM10 license plate bracket, GPS antenna, microphone with bracket, USB-C to USB-A adapter, USB-C extension cable, wiring harness, and mounting hardware
